Page 1 Alpha Moisture Systems Model SADPmini2 Dewpoint Hygrometer 2301 SADPmini2 User Manual...
Page 2: Contact Information
Tel: +44 (0) 1274 733100 Email: info@amsystems.co.uk Website: amsystems.co.uk Office Opening Hours: Monday - Thursday 8.30am - 5.30pm (UK TIME) Friday 8.30am - 5.00pm Saturday and Sunday - Closed Authorised Distributor Contact Information © Alpha Moisture Systems 2017-2023 2301 SADPmini2 – Issue 3...
Page 3: Table Of Contents
SADPmini2 User Manual Contents Introduction ........................3 Explanation of Prohibition, Warning and Note Symbols used ......... 3 Warranty ........................3 Instrument Description .................... 4 General Arrangement ....................5 Functional Description of Desiccant Chamber ............6 Important Information ....................... 7 Symbols Table ......................7 Battery Information....................
Page 4 SADPmini2 User Manual Instrument Settings ......................16 Setting the Language, Date and Delimiter Display: Navigation Keypad ....16 Setting the Time, Date and Power Saving Mode (ECO): Navigation Keypad ..17 Notes on the Correct Use and Choices of Moisture Measurement Units ....18 Setting the Main and Secondary Screen Units: Navigation Keypad .......
Page 5: Introduction
User Manual. The instrument should not be repaired without prior inspection or authorisation by Alpha Moisture Systems or an authorised distributor. Any unauthorised alteration or misuse may invalidate the instrument warranty.
Page 6: Instrument Description

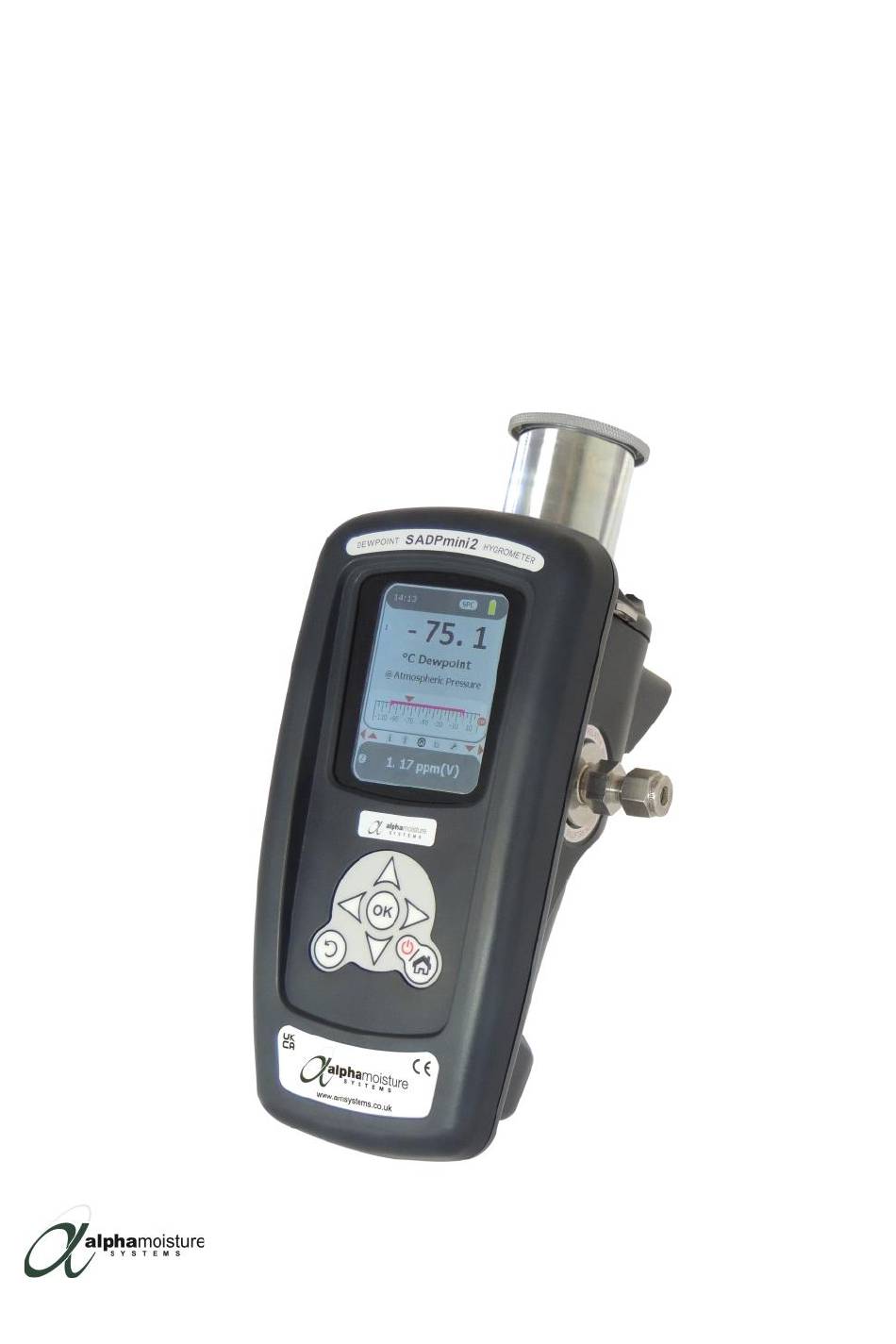

SADPmini2 User Manual Instrument Description The SADPmini2 is a fully self-contained, micro-controller based, battery operated dewpoint hygrometer primarily used for mobile analysis and short term continuous monitoring. Using an ultra-high capacitance aluminium oxide sensor and a high accuracy, high speed, Analogue to Digital Converter (ADC), the SADPmini2 monitors dry industrial process gas and dry compressed air samples.
Page 7: General Arrangement
SADPmini2 User Manual General Arrangement...
Page 8: Functional Description Of Desiccant Chamber
SADPmini2 User Manual Functional Description of Desiccant Chamber Keeping the sensor dry between tests makes sure that the SADPmini2 is ready to carry out rapid sample checks. The design of the Desiccant Head achieves this by surrounding the Aluminium Oxide Sensor with desiccant, keeping the sensor dry when not in use.
Page 9: Important Information
SADPmini2 User Manual Important Information Symbols Table Symbol Description Lithium-ion Battery The SADPmini2 is powered by a single lithium-ion battery. The battery may be exchanged by an authorised agent with the necessary training, support systems and accreditation. Only use the USB power supply supplied with the instrument to charge the battery.
Page 10: Battery Information
SADPmini2 User Manual Battery Information The SADPmini2 uses a single lithium-ion battery (3.65 V nominal). The battery cannot be removed or replaced by the user. The instrument must be returned to an authorised agent for battery replacement. When the battery charge is low and/ or the battery is charging, the instrument display will be dimmed.
Page 11 SADPmini2 User Manual NOTE Authorised distributor details will differ locally...
Page 12: Installation
SADPmini2 User Manual Installation This section details the sample specific SADPmini2 installation procedures and the instructions for obtaining the correct result from sample gas. 3.1 Gases to avoid Corrosive Gases: The Sensor should not be exposed to corrosive gases (or corrosive contaminants in the gas sample) as these can chemically attack the sensor, impairing calibration accuracy and/or damaging it beyond economic repair.
Page 13: Gas Sampling System
SADPmini2 User Manual Gas Sampling System DO NOT Do not allow the sample pressure to exceed 0.3 bar / 4 psi above ambient NOTE To maintain sample integrity and minimise equilibration time the system should be as simple as possible and of minimum swept volume. NOTE The sample tube should be stainless steel for very dry gas applications.
Page 14 SADPmini2 User Manual Clean Gas < 10 Bar Reduce positive pressure gas to atmospheric pressure. Use a needle valve at low pressures (<10 barg) to control flow and pressure drop. Clean Gas > 10 Bar Reduce positive pressure gas to atmospheric pressure.
Page 15: Installation And Sample
SADPmini2 User Manual Installation and Sample Install the sample piping system and equipment as per the required installation configuration. NOTE: The SADPmini2 is not connected to the inlet piping system at this stage. Open the sample Isolation Valve and adjust the needle valve/ regulator to allow a flow of 5-15 litres per minute to atmosphere through to sample pipe.
Page 16: Instrument Use
SADPmini2 User Manual Instrument Use The SADPmini2 is designed for quick start-up and ease of use. This section details how to power up the instrument and how to use the Navigation Keypad to access the different instrument displays and functions. 4.1 Powering Up the Instrument Description Power ON/ OFF...
Page 17: Navigation Carousel
SADPmini2 User Manual 4.3 Navigation Carousel The different instrument functions are accessed using the Navigation Carousel. Navigation icons on the carousel relate to the three different screen options available. The Navigation arrows displayed to the left and right of the Navigation Icons indicate the other screens that can be accessed after selecting one of the three Navigation icons.
Page 18: Instrument Settings
SADPmini2 User Manual Instrument Settings The SADPmini2 is despatched with client specific factory settings pre-installed. However, it may be necessary to adjust these settings periodically. Settings can be adjusted by using either the: • Navigation keypad to directly input the setting changes into the instrument •...
Page 19: Setting The Time, Date And Power Saving Mode (Eco): Navigation Keypad
SADPmini2 User Manual Setting the Time, Date and Power Saving Mode (ECO): Navigation Keypad NOTE To save power and extend the battery life, the SADPmini2 has a power saving mode (ECO). When the ECO setting is enabled, the display will dim after 10 minutes and turn off after a further 30 minutes.
Page 20: Notes On The Correct Use And Choices Of Moisture Measurement Units
SADPmini2 User Manual 5.3 Notes on the Correct Use and Choices of Moisture Measurement Units The SADPmini2 has two display screens: • A primary, upper screen ① providing numerical, scrolling strip chart and horizontal moving coil configuration sample readouts. • A secondary screen ②...
Page 21 SADPmini2 User Manual ppm(V) Moisture concentration expressed as parts per million by volume. ppm(W) Moisture concentration expressed as parts per million by weight when referencing the gas in which the moisture is being measured. The SADPmini2 default setting is for air (molecular weight 28.99) however, this function allows the molecular weight to be set appropriately for other gases.
Page 22: Setting The Main And Secondary Screen Units: Navigation Keypad
SADPmini2 User Manual 5.4 Setting the Main and Secondary Screen Units: Navigation Keypad 1. Select the Settings icon ① from the Navigation Carousel to display the Settings screen. 2. Using the navigation keys select either the main ② or secondary screen unit setting ③.
Page 23: Instrument Settings Using Pc Tool
SADPmini2 User Manual 5.5 Instrument Settings using PC Tool NOTE The instrument settings may be changed by use of the supplied PC Tool software either over a USB communication channel. To install PC Tool please refer to Appendix C of this manual. 5.6 Setting the Language, Date and Delimiter Display: User Tool Select the Settings tab ①.
Page 24: Setting The Time, Date, And Power Saving Mode (Eco): User Tool
SADPmini2 User Manual 5.7 Setting the Time, Date, and Power Saving Mode (ECO): User Tool Select the Date/ Time Set key ①. Using the arrows ② set the correct time. Using the arrow ③ select the drop-down calendar ④ and set the date. Select Set ⑤...
Page 25: Setting The Main And Secondary Screen Units: User Tool
SADPmini2 User Manual 5.8 Setting the Main and Secondary Screen Units: User Tool Select Display 1 ① or Display 2 ② as required. Select the required Moisture Units from the drop-down menu ③. If Dewpoint units are chosen (i.e. °C or °F) then the required pressure dewpoint must be selected.
Page 26: Setting The Gas Type: User Tool
SADPmini2 User Manual 5.9 Setting the Gas Type: User Tool Select the Gas tab ①. Select, In Natural Gas ② or In Ideal Gas ③ as required. Select the Gas Molecular Weight drop down menu ④. Select the required gas type ⑤. NOTE: The User Tool software automatically sets the Molecular Weight parameter for the selected gas ⑥.
Page 27 SADPmini2 User Manual...
Page 28: Calibration
SADPmini2 User Manual Calibration Field verifications of the range span may be performed periodically, every two to three months, to ensure correct operation between laboratory calibrations and correcting for any deviation. These functions can also be used to verify operation of the instrument if confirmation of an unexpected result is required.
Page 29 SADPmini2 User Manual...
Page 30: Calset
SADPmini2 User Manual 6.2 CalSet The instrument may be checked against a known moisture level, for example a reference standard, such as a chilled mirror hygrometer or a psychrometer using the function CalSet. This procedure is particularly useful when calibrating a Blue Spot sensor (-80°C to + 20°C) where the wettest end of the range is usually above normal ambient conditions.
Page 31 SADPmini2 User Manual...
Page 32: Single Point Calibration (Spc)
SADPmini2 User Manual 6.3 Single Point Calibration (SPC) NOTE The SPC facility allows users to check the reading of the instrument against a “standard reference gas” or instrument, such as a chilled mirror unit, at a particular value that may be considered to be critical, and make any adjustment necessary to give agreement with that “standard reference.”...
Page 33 SADPmini2 User Manual...
Page 34: Appendix A Instrument Specification
SADPmini2 User Manual Appendix A Instrument Specification...
Page 35: A1: Instrument Specifications
SADPmini2 User Manual A1: Instrument Specifications Description Specification Accuracy ±2 °C dewpoint Type Battery powered dewpoint hygrometer. Dimensions 108mm (4.252”) width 215mm (8.465”) height 127mm (5”) depth Weight 1.75 kg (3.8 lbs) Display Full colour graphics 240 x 320 resolution display. Power Supply Single lithium-ion battery (3.65 V nominal).
Page 36: Appendix B Trouble Shooting
SADPmini2 User Manual Appendix B Trouble Shooting...
Page 37: B1: Trouble Shooting
SADPmini2 User Manual B1: Trouble Shooting Fault Possible Explanation Action Notes Unit does not turn Battery low level Connect the supplied on, screen remains power supply unit for blank and LCD back a minimum of 12 light is not hours charging to illuminated achieve full charge Unit fails AutoCal...
Page 38: Appendix C User Tool Software Installation And Guidance
SADPmini2 User Manual Appendix C User Tool Software Installation and Guidance...
Page 39 SADPmini2 User Manual C1: User Tool Software Installation The SADPmini2 is supplied with dedicated User Tool software stored on the Micro SD Card. The software installation file may also be delivered by other means such as CD, DVD, flash drive, email attachment or internet download. The installation from the Micro SD card method is described here.
Page 40 SADPmini2 User Manual Install the USB cable end ① on the SADPmini2 ②. Install the USB cable end ③ on the PC ④. Press the power key ⑤ on the SADPmini2. Press the OK key ⑥ on the SADPmini2. Press the OK key ⑥ again to display the SD Card connection.
Page 41 SADPmini2 User Manual Select the required operating system installation version ⑨ for your PC. Select the User Tool Setup icon ⑩ from the list. 10. Follow the SADPmini2 User Tool software installation prompts selecting the desired options ⑪ as required.
Page 42 SADPmini2 User Manual NOTE A PC restart is not normally required. A SADPmini2 User Tool launch icon (shown below) will appear on the PC desktop at the end of the installation process Selecting the User Tool icon on the desktop opens the User Tool software.
Page 43: C2: User Tool Software Guide
SADPmini2 User Manual C2: User Tool Software Guide NOTE It is recommended you do not connect/disconnect other devices e.g. mobile phones, portable drives etc. whilst connecting or working with the instrument as this may cause the instrument to lose/break the connection with the PC NOTE For the best visual appearance, it is recommended that the PC display text and icons option is set to default rather than medium or larger.
Page 44 Battery: Battery charge status icon, ECO setting box and save Sensor: Range, calibration date, serial No. Screen Tabs to navigate to other sections of the User Tool Software. Alpha Moisture Systems website link for connected PCs Headings Menu: File (for access to Instrument Report Generation, Firmware Update),...
Page 45 SADPmini2 User Manual Setting the User Tool Language Select the language tab ① from the Headings Menu. Select the required language from the drop-down menu. The User Tool will now display information in the selected language. NOTE: The language on the SADPmini2 will not change.
Page 46: Appendix D Firmware Maintenance
SADPmini2 User Manual Appendix D Firmware Maintenance...
Page 47: D1: Firmware Update
SADPmini2 User Manual D1: Firmware Update Instrument firmware updates may be distributed as email attachments. Users should save the firmware update file from the email to a location on their PC before updating their instrument. NOTE: Firmware files are Hex files (*.hex). Select the File tab from the headings menu ①.
Page 48 SADPmini2 User Manual NOTE: If Yes is selected the Firmware Update screen will be displayed ④. All other User Tool Functions are disabled. Program Loader Connected will be displayed ⑤. The Program Loader screen will also be displayed on the SADPmini2 Instrument screen and the version of Program Loader software running on the instrument will be displayed ⑥.
Page 49: D2: Loading User Tool Configured Files
SADPmini2 User Manual D2: Loading User Tool Configured Files The User Tool software allows the user to load files into the SADPmini2 that contain already set parameters. This feature is particularly useful for multiple instrument set up. Select the Load tab ①. A folder will open.
Page 50 SADPmini2 User Manual...
Page 51: D3: Saving User Tool Configured Files
SADPmini2 User Manual D3: Saving User Tool Configured Files The User Tool software allows the user to save settings to a PC file to enable uploading for future use. Select the Save tab ①. A folder view will open ②. Select/ open an existing folder or create a new folder.
Page 52 SADPmini2 User Manual...
Page 53: D4: Downloading Settings To The Sadpmini2
SADPmini2 User Manual D4: Downloading Settings to the SADPmini2 NOTE The instrument settings may be uploaded from a settings file stored on the PC to the User Tool software then modified if required and then downloaded to a SADPmini2. Select the Download tab ①. Select OK ②...
Page 54: D5: Sadpmini2 Report
SADPmini2 User Manual D5: SADPmini2 Report The Report function provides the user with a real-time snapshot overview of the instrument status and settings. To view the SADPmini2 Report: Select the File tab from the headings menu ①. Select SADPmini2 Report ②. Select Save/ Print ③...
Page 55: D6: Configuring Instrument To Default Settings
SADPmini2 User Manual D6: Configuring Instrument to Default Settings WARNING Configuring the instrument to Default Settings will change the settings to the following defaults: Both Display units °C Dewpoint at Atmospheric pressure Language English Date format dd/mm/yy Numerical delimiter is a ‘.’ Gas Molecular weight 28.99 g/mol Gas type Ideal Gas Please contact your distributor for advice before proceeding with this process.
Page 56: D7: Downloading Calibration Files
SADPmini2 User Manual D7: Downloading Calibration Files Calibration files may be distributed as email attachments when a new sensor has been installed on the instrument. Users should save the file (.bin) from the email to a location on their PC before updating their instrument. To install the calibration file: Select Calibration ①...
