Chapter 4 — Media Load
Cut-Off , cont.
8

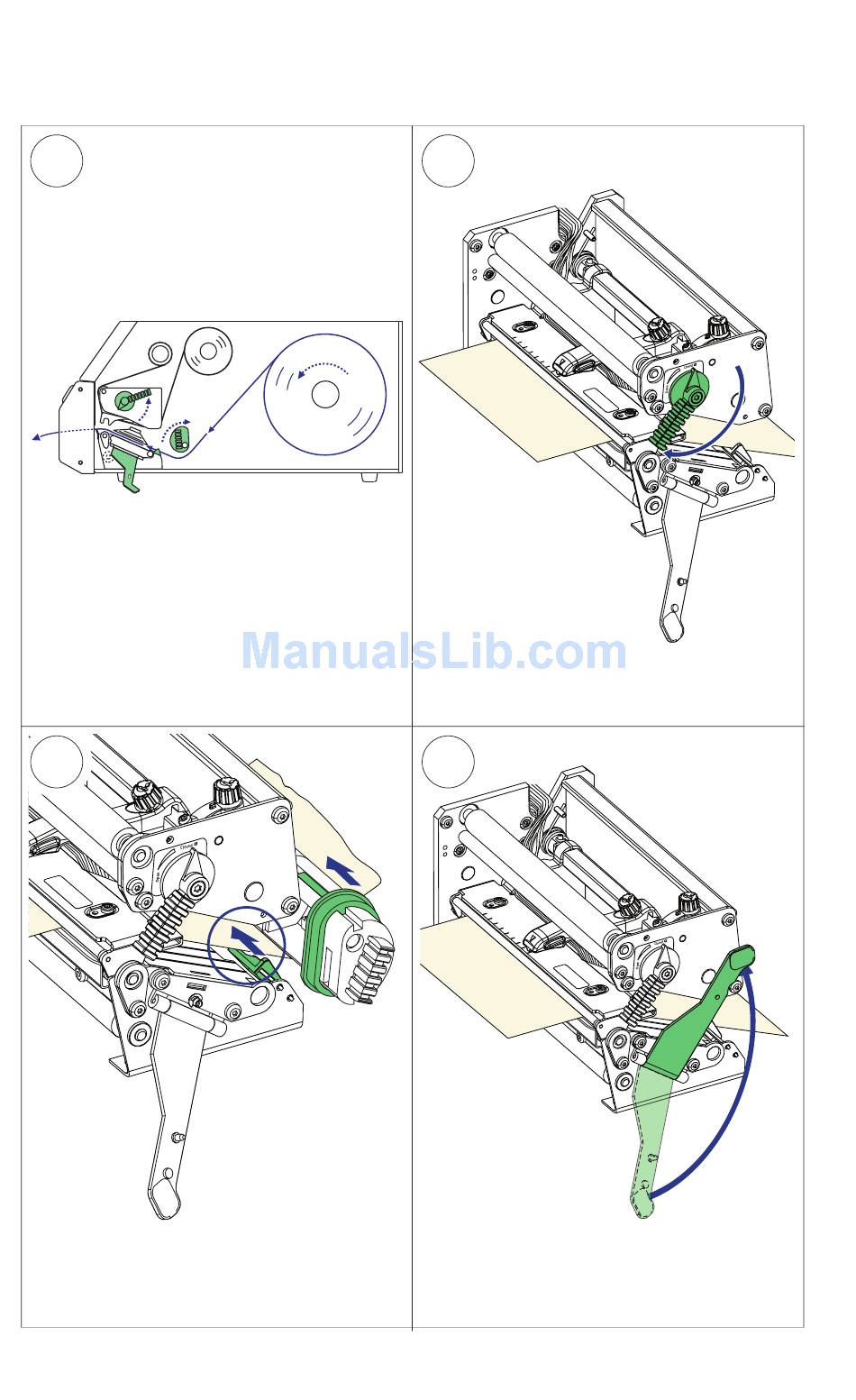

This diagram shows the media path.
10
Adjust the position of the green edge
guides so the media is guided with a
minimum of play.
28
9
Turn the printhead lift lever to "Closed"
position.
11
Return the locking handle to closed
position.
