1.2 Tear- off Assembly Installation
To install the Tear-off Assembly complete the following steps:
1. Open the Printer's Side Cover.
2. Disengage the Printhead by rotating the Head-Lift Lever
counterclockwise to the 'up' position.
3. Fit the Tear Bar Assembly to the slots below the drive roller
and push it down until it snaps into place.
4. Engage the Printhead by rotating the Head-Lift Lever
clockwise to the 'down' position.

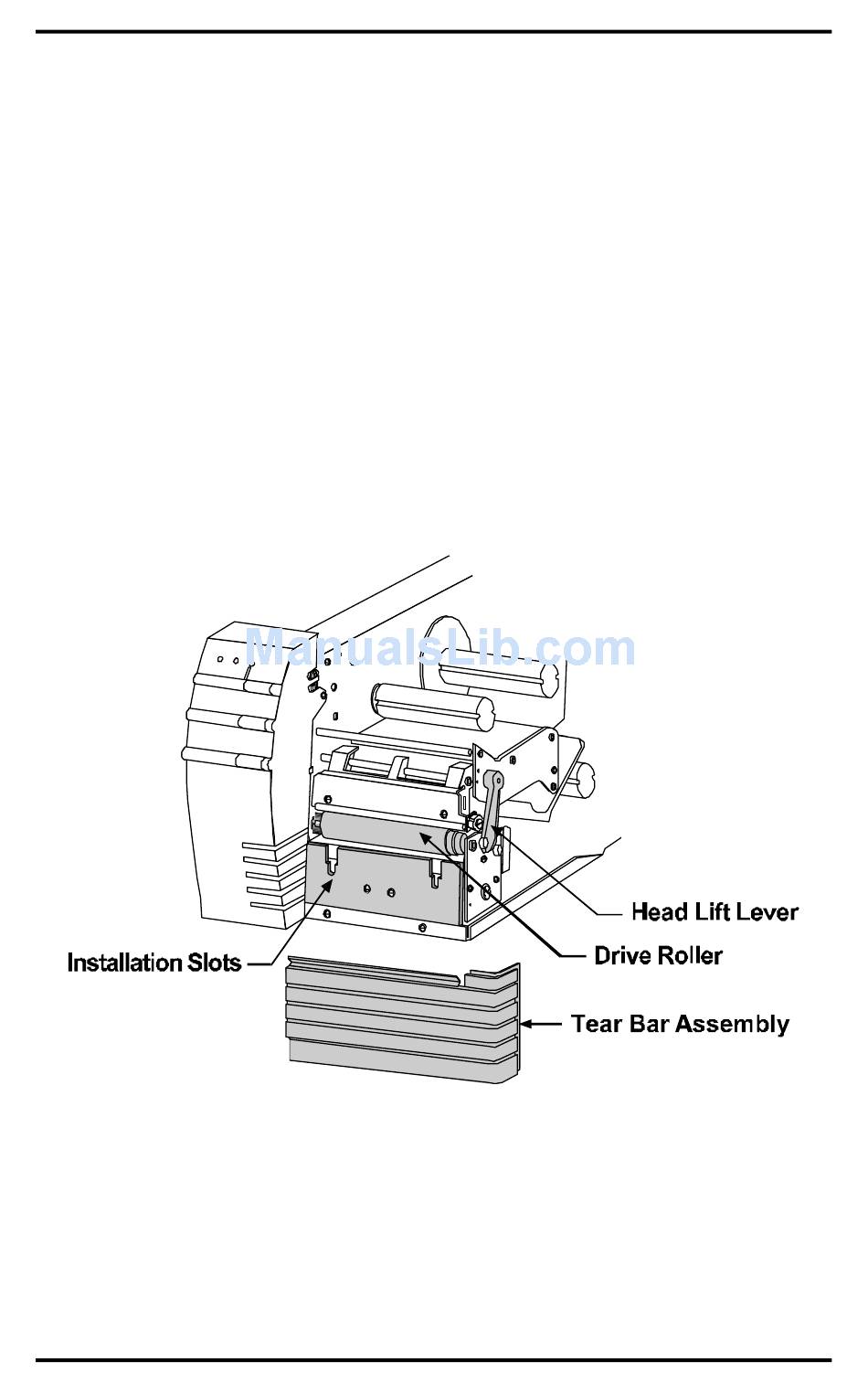

Figure 1-4 Tear Bar Assembly Installation
