Label/Tag Media Specifications:
A Label width
B Backing width
C Gap between labels
D Label length
E Backing thickness
F Label thickness
G Width of sensor opening
H Distance from edge of Media to edge
of sensor opening
I Reflective sensor mark width
J Reflective sensor mark length
K Distance between reflective mark
* Units of measure are in inches
F-4
Specifications

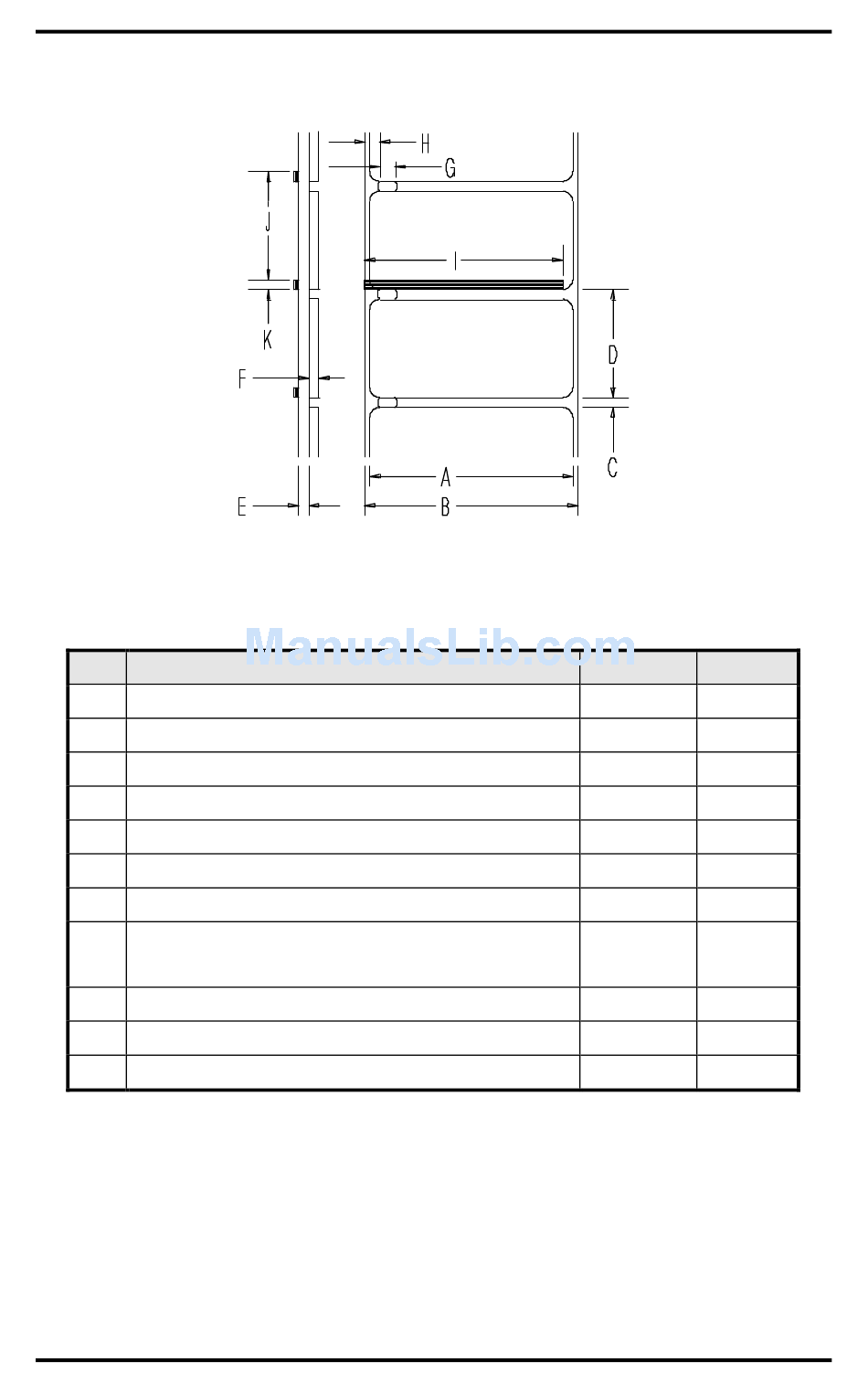

Figure F-1 Media Specifications
Description
Table F-1 Media Dimensions
MAX* MIN*
4.650 0.750
4.650 0.750
99.99 0.100
99.99 0.500
0.005 0.0023
0.005 0.0023
0.500 0.200
2.250 0.200
4.00 1.000
99.99 0.100
99.99 0.500
Allegro2
