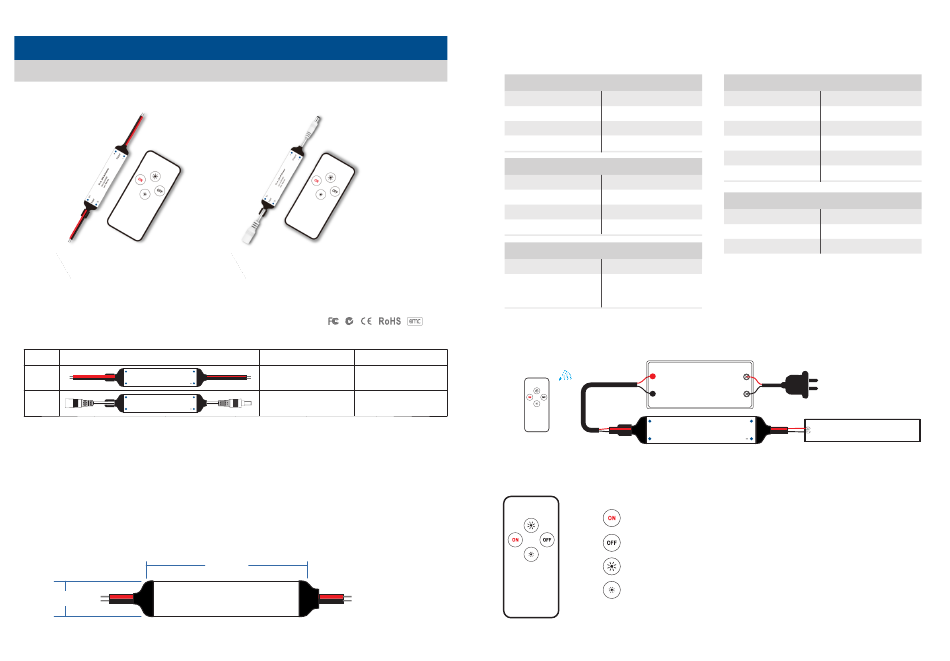

SKYDANCE F1-S User Manual

Single Color LED Mini IR Controller
Model No.: F1-S Set, F1-S(D) Set
1 channel constant voltage/Max 4A output/Step-less dimming/IR remote control
F1-S Set
Cable In /Cable Out Version
Model List

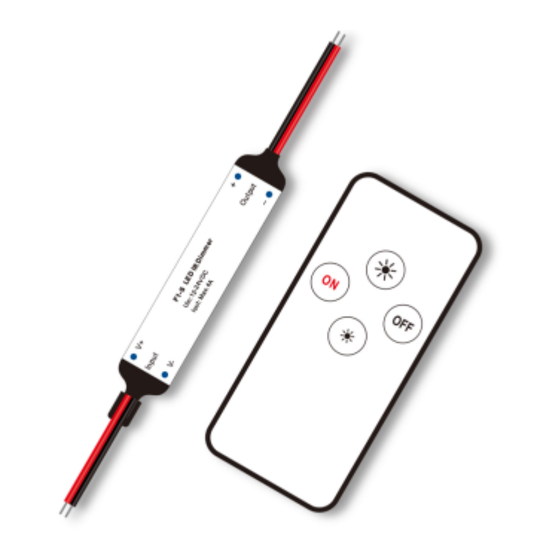

Model Photo
V+
F1-S LED IR Dimmer
F1-S
Input Output
Uin:12-24VDC
Iout: Max.4A
V-
V+
F1-S(D) F1-S LED IR Dimmer
Input Uin:12-24VDC Output
Iout: Max.4A
V-
Features
● 1 channel constant voltage single color LED mini IR controller.
● 4A output, connect with 5 meters single color
● 1024 levels 0-100% dimming smoothly without any flash.
Dimension
14.00 mm
User Manual Ver 1.0.2
F1-S(D) Set
DC Female Jack In /DC Male Jack Out Version
Power Connector
+
Red/Black Cable 10cm Red/Black Cable 10cm
+
5.5mm DC Female Jack 5.5mm DC Male Jack
LED strip.
60.00 mm
Technical Parameters
Input and Output
Input voltage
Output voltage
Output current
Output type
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Radio Equipment(RED)
Certification
Warranty and Protection
Warranty
Protection
LVD
Wiring Diagram
LED Connector
Dimming remote
Key function
F1-S Set, F1-S(D) Set Single Color LED Mini RF Controller
Dimming data
Input signal
12-24VDC
12-24VDC Control distance
Dimming gray scale
Max. 4A
Constant voltage Dimming range
Dimming cur ve
PWM Frequency
EN301 489,EN 62479
EN60950
Environment
EN300 328
Operation temperature
CE,EMC,LVD
Case temperature Max.
(
IP rating
5 years
Reverse polarity
Over heat
Short circuit
Power Supply
12-24VDC
Constant Voltage
V+ +
F1-S LED IR Dimmer
Input Output
Uin:12-24VDC
Iout: Max.4A
V-
Turn on the light.
Turn off the light.
Increase brightness,
Short press 10 levels, long press 1-6s for continuous 256 levels adjustment.
Decrease brightness,
Short press 10 levels, long press 1-6s for continuous 256 levels adjustment.
IR
5m (Barrier-free space)
1024 (2^10) levels
0 - 100%
Logarithmic
750Hz (default)
Ta: -30 O C ~ +55 O C
) O
T c: +85 C
IP20
AC100-240V
5m single color LED strip
+
-
Page 1
