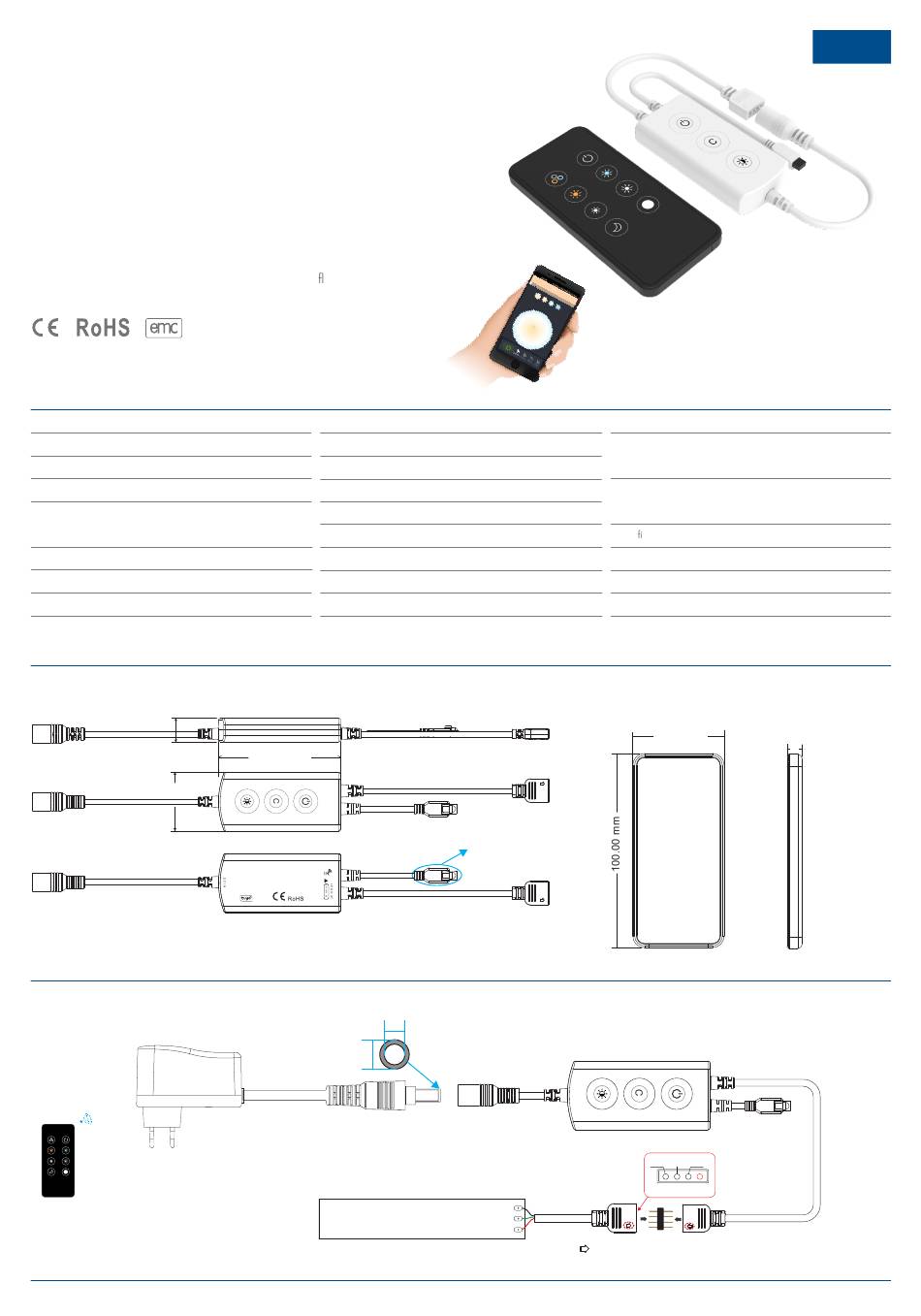

SKYDANCE F2-D(WT)+RC2 Manual

F2-D(WT)+RC2

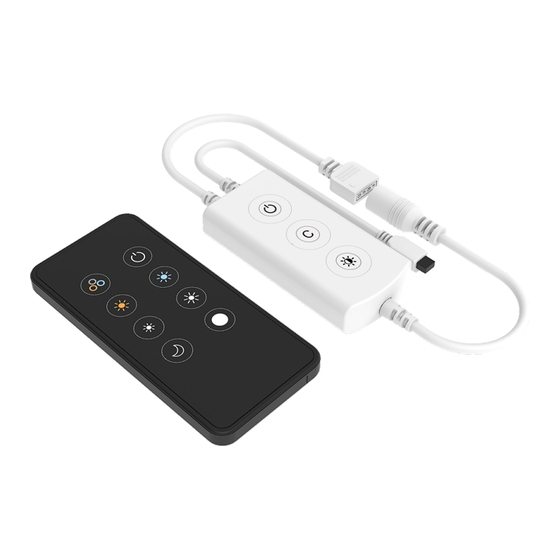

3-Button WiFi & IR CCT LED Controller
● WiFi & IR 2 channel constant voltage CCT LED controller.
● 2A per channel, output connects with 5 meters CCT LED strip.
● 3 button operation with on/off,
● Tuya APP cloud control, support on/off, color temperature
and brightness adjust, delay turn on/off light, timer run, scene edit function.
● Voice control, support for Amazon Alexa, Google Assistant, Tmall Genie
and Xiaodu voice assistant.
● 4096 levels 0-100% dimming smoothly without any ash.
Technical Parameters
Input and Output
Input voltage
5-24VDC
5-24VDC
Output voltage
Output current 2CH,2A/CH
20W@5V
48W@12V
Output power
96W@24V
Environment
O
Operation temperature
Ta: -30 C ~ +50 C
O
Case temperature (Max.)
Tc: +85 C
Mechanical Structures and Installations
Controller size:
14.00 mm
35.00 mm
Wiring Diagram
Power Adapter
12VDC
IR remote
User Manual Ver 1.0.0
2024.6
CCT and brightness adjustment .
Dimming data
Input signal
Control distance
Dimming gray scale
Dimming range
Dimming curve
PWM Frequency
O
Warranty
Protection
73.00mm
F2-D(WT)
WiFi & IR CCT LED Controller
Uin : 5-24VDC
Iout : 2CH, 2A/CH
Pout: 20W@5V 48W@12V 96W@24V
Temp Range: -30℃~+50℃
(Back side)
Inner diameter 2.1mm
Outer diameter
5.5mm
5m CCT LED strip
WiFi + IR + 3 button
10m(Barrier-free space)
4096 (2^12) levels
0-100%
Logarithmic
2KHz (default)
5 years
Over heat
Remote size:
Infrared reception head
V+
CW
WW
NOTE: Below is the fourth wiring port with no output.
Safety and EMC
ETSI EN 301 489-1 V2.2.3
EMC standard (EMC)
ETSI EN 301 489-17 V3.2.4
EN 61348-1:2015+A1:2021
Safety standard
EN 61348-2-13:2014+A1:2017
Certi cation
CE, EMC
Package
Size
L110 x W57 x H28mm
Gross weight 0.086kg
47.00 mm
8.00 mm
V+ CW WW
1 2 3 4
WiFi
