735SBSSA35A
Before commencing fitment read instructions and ensure all listed
components are supplied.
Estimated Fitting Time: 2hrs
Left hand & right hand components are determined as seated in the vehicle.
The fitment of TJM products does not nullify the OE manufacturer's operating
guidelines and/or warnings. Ensure you are familiar with and adhere to the
usage instructions specified by the manufacturer in the owner's manual or
other official documentation.
Check for (and remove) any build up in all threads fitted to the product.
When removing protective coatings, ensure all new edges are deburred, clean
any swarf from the area and apply rust preventative to exposed surfaces.
Always place the product on a soft work space to prevent damage prior to
installation.
Bolt tensions
All bolt tensions
are as follows
unless otherwise
specified.
For product warranty please refer to our website www.tjm.com.au
File: F-4085
FITTING INSTRUCTIONS
Modular Sidebar Steps
Dia. (mm)
5
6
8
10
12
Isuzu MU-X
Nm
ft.lbs
Dia. (inch)
1/4"
5
4
5/16"
9
7
3/8"
22
16
7/16"
44
32
1/2"
77
57
Page 1 of 6
Nm
ft.lbs
9
7
22
15
33
27
55
43
86
66
29/11/2016
Advertisement
Table of Contents
Related Manuals for TJM 735SBSSA35A
Summary of Contents for TJM 735SBSSA35A
- Page 1 Estimated Fitting Time: 2hrs Left hand & right hand components are determined as seated in the vehicle. The fitment of TJM products does not nullify the OE manufacturer's operating guidelines and/or warnings. Ensure you are familiar with and adhere to the usage instructions specified by the manufacturer in the owner's manual or other official documentation.
-

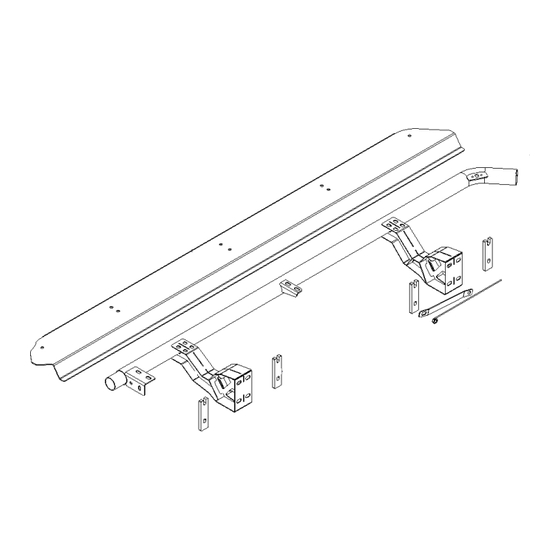

Page 2: Parts List
M12 x Ø24mm Flat Washer K0425 M10 x 1.25 Nut on Wire 84193 M12 x 1.25 Nut-Plate on Wire F-2328 End Cap Plug 92421 Foam Tape (2050mm) K1361 For product warranty please refer to our website www.tjm.com.au File: F-4085 Page 2 of 6 29/11/2016... - Page 3 “C”, using an M12 x 1.25 x 40mm hex bolt (1), M12 spring washer (1), M12 x Ø24mm flat washer (1) & the M12 x 1.25 nut-washer from the previous step. For product warranty please refer to our website www.tjm.com.au File: F-4085 Page 3 of 6 29/11/2016...
- Page 4 Insert the pinch plate as shown. Use M10 x 1.25 x 25mm hex head bolts (2) to clamp the mount to the chassis rail For product warranty please refer to our website www.tjm.com.au File: F-4085 Page 4 of 6 29/11/2016...
-
Page 5: Front Mount
M10 x 1.25 x 30mm hex head bolt (1), M10 spring washer (1) and 3/8” x Ø1” flat washer (1). For product warranty please refer to our website www.tjm.com.au File: F-4085 Page 5 of 6 29/11/2016... - Page 6 Ensure that no part of the installed product interferes with any vehicle components & the no chafing can occur. For product warranty please refer to our website www.tjm.com.au File: F-4085 Page 6 of 6 29/11/2016...
