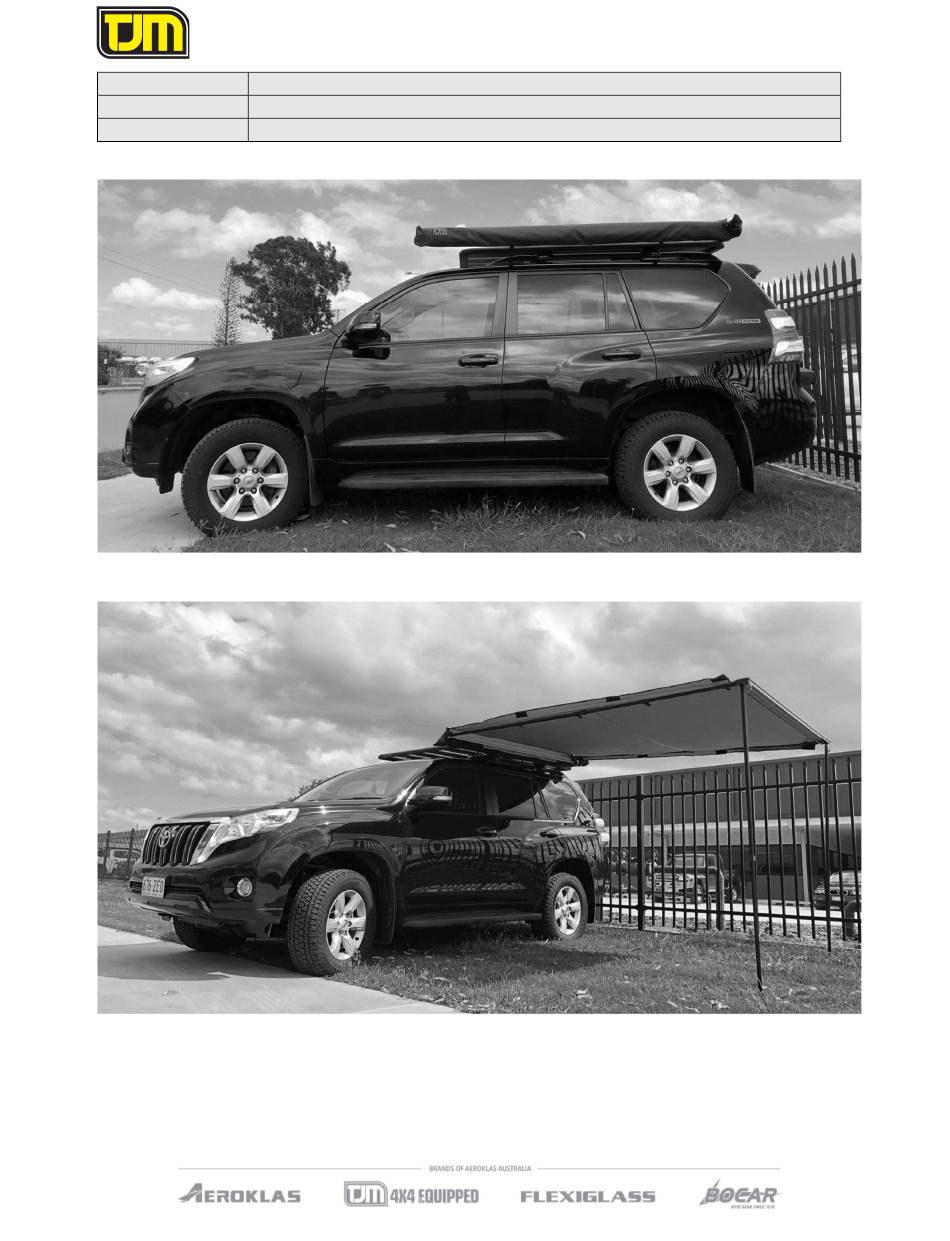

- Page 1 CARE & INSTRUCTION MANUAL Product: Awning Vehicle: Generic Part No. 620RTA140 / 620RTA200 / 620RTA250 File No. NPFI-001 rev1 Page 1 of 6 Date: 20/03/2020...
- Page 2 CARE & INSTRUCTION MANUAL Product: Awning Vehicle: Generic Part No. 620RTA140 / 620RTA200 / 620RTA250 Table of Contents 1. Parts List 2. Accessory/Service Parts 3. Safety Precautions 4. Care Instructions 5. Seasoning Fabric 6. Warranty 7. Installation 8. Set Up...
- Page 3 Seasoning is a term that refers to the soaking of canvas fabric with water so that the tiny holes made by the needle during the manufacturing process swells & seals up the tiny holes b) TJM recommends the awning fabric be soaked through with water & dried to condition the canvas & seams before use.
- Page 4 Before installing awning, determine suitable location to mount brackets supplied, ensuring that brackets are spaced no more than the below from each end. (1) 620RTA140- no more than 450mm from each end. (2) 620RTA200- no more than 650mm from each end.
- Page 5 Product: Awning Vehicle: Generic Part No. 620RTA140 / 620RTA200 / 620RTA250 8) Set Up a) Unzip Awning bag & fold bag out of way. b) While holding awning/front extrusion, release side velcro straps first, then release the middle velcro strap.
- Page 6 Awning Vehicle: Generic Part No. 620RTA140 / 620RTA200 / 620RTA250 e) Release both vertical poles in front extrusion & to desire height by twisting inner (smaller) pole & lock in place. f) Extend horizontal pole so pins on ends of pole, insert into holes in front extrusion &...
