FITTING INSTRUCTIONS
Product:

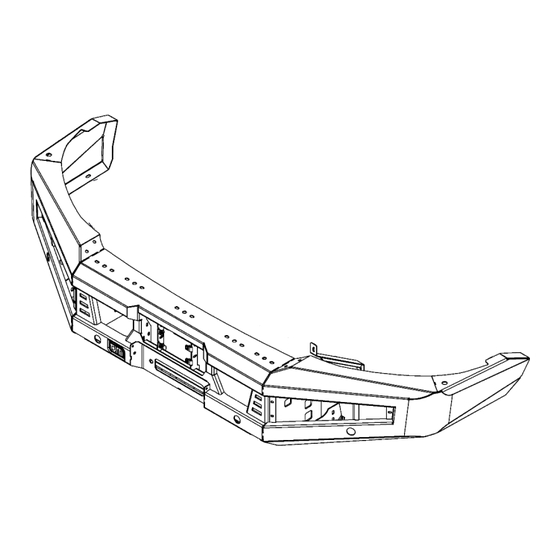

T24 Venturer Bar
Vehicle:
Mitsubishi Triton MY24
Part No.
070ST24N50T
Australian Standards Relating to Installing Vehicle Frontal Protection Systems (VFPS): AS 4876.1-2002
a)
Do not attach V.F.P.S. to vehicle using anchorages not intended for this purpose (e.g., engine mounting bolts), other than those
specified by the V.F.P.S. manufacturer in this instruction.
b)
Do not use this product for any vehicle make or model other than those specified by the V.F.P.S. manufacturer (as above).
c)
Do not remove any plaques or labels from the V.F.P.S.
d)
Do not modify the structure of the V.F.P.S. in any way.
For product warranty please refer to our website www.tjm.com.au
F-37719
Page 1 of 31
17/05/2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the T24 Venturer Bar and is the answer not in the manual?

Questions and answers

Related Manuals for TJM T24 Venturer Bar

Summary of Contents for TJM T24 Venturer Bar

  • Page 1 Do not use this product for any vehicle make or model other than those specified by the V.F.P.S. manufacturer (as above). Do not remove any plaques or labels from the V.F.P.S. Do not modify the structure of the V.F.P.S. in any way. For product warranty please refer to our website www.tjm.com.au F-37719 Page 1 of 31...

  • Page 2: Parts List

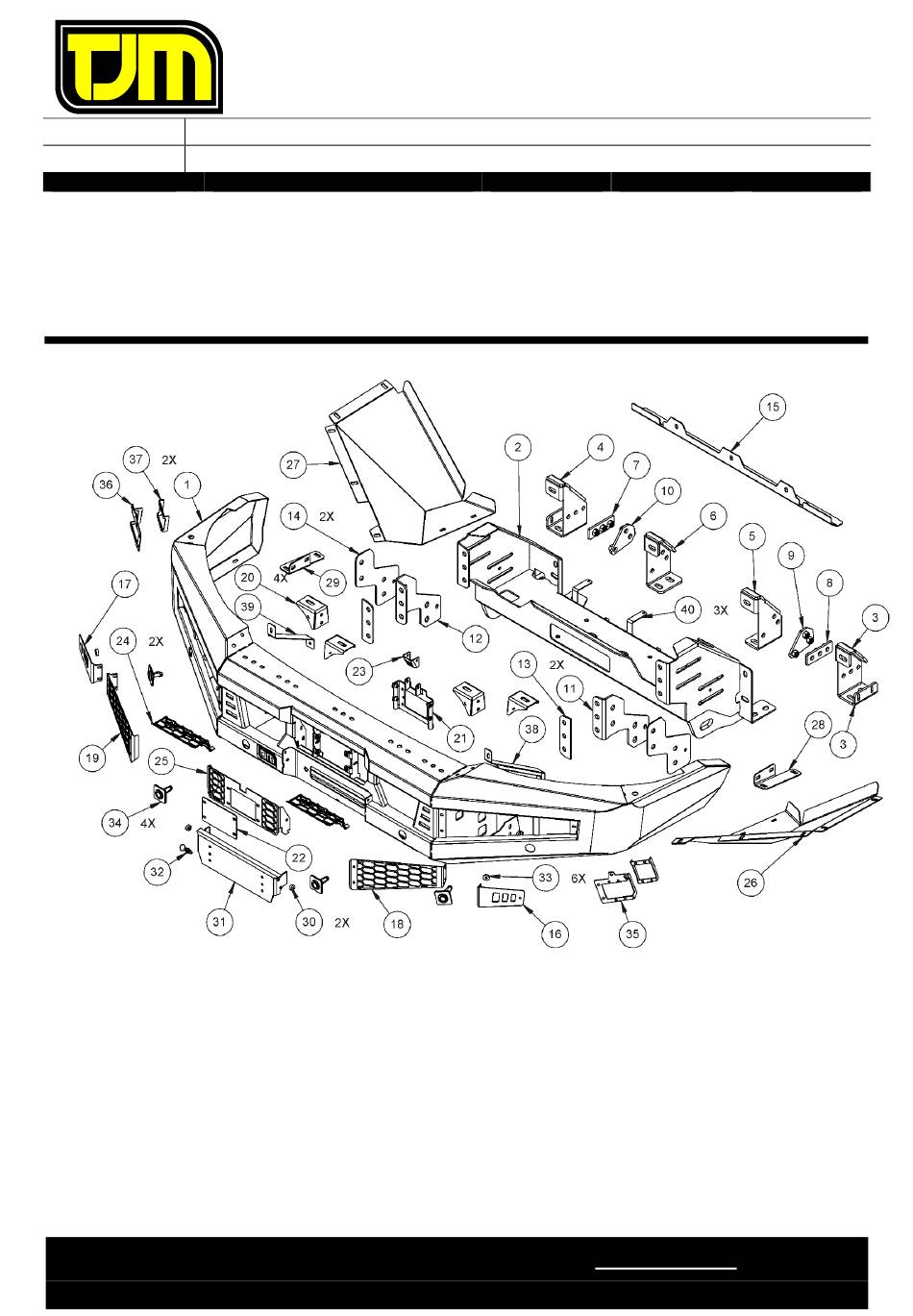

    FCTA Radar Keep F-39268 Grille Support Bracket LH F-39285L Grille Support Bracket RH F-39285R Guide Brace F-39287 Pinch Weld (800mm) 93154 Bumper cut template F-37719-T1 For product warranty please refer to our website www.tjm.com.au F-37719 Page 2 of 31 17/05/2024...
