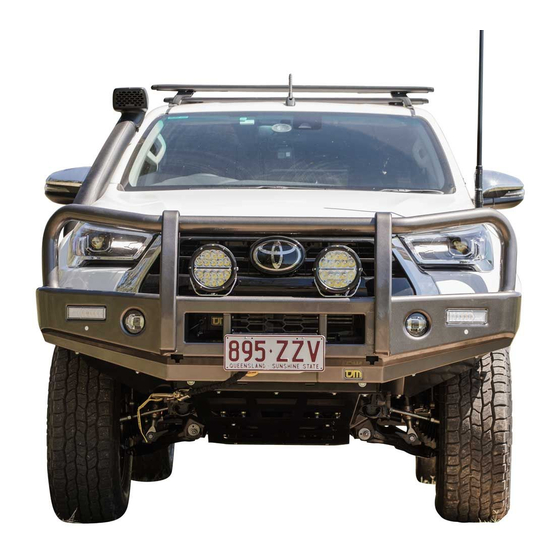

TJM T13 Outback Frontal Protection System Fitting Instructions Manual

Product:
Vehicle:
Part No. 070SB13N52V
Australian Standards Relating to Installing Vehicle Frontal Protection Systems (VFPS): AS 4876.1-2002
a) Do not attach V.F.P.S. to vehicle using anchorages not intended for this purpose (e.g. engine mounting bolts), other than those
specified by the V.F.P.S. manufacturer in this instruction.
b) Do not use this product for any vehicle make or model other than those specified by the V.F.P.S. manufacturer (as above).
c) Do not remove any plaques or labels from the V.F.P.S.
d) Do not modify the structure of the V.F.P.S. in any way.
•
Before commencing fitment read instructions and ensure all listed components are
supplied.
•
Left hand and Right hand components are determined as seated in the vehicle.
•
The fitment of TJM products does not nullify the OE manufacturer's operating guidelines
and/or warnings. Ensure you are familiar with and adhere to the usage instructions
specified by the manufacturer in the owner's manual or other official documentation.
•
Check for (and remove) any build up in all threads fitted to the product.
•
When fitting accessories to TJM products (ie. driving lights and aerials), ensure suitable
washer plates are used under the mounting surface that allow the accessory to be
secured in a way that prevents it from damaging the product.
•
Where OE air guides require trimming, ensure minimal clearance between air guides and
TJM components to prevent air leakage which may adversely affect vehicle cooling.
•
When removing protective coatings, ensure all new edges are deburred, clean any swarf
from the area and apply rust preventative to exposed surfaces.
•
Always place the product on a soft work space to prevent damage prior to installation.
•
Optional 076WLKIT008 plug and play harness available for indicator, parking light and
daytime running light installation.
•
946TJMTQLLKT : Torq winch control box long cable kit is required for winch fitment
Bolt tensions
All bolt tensions
are as follows
unless otherwise
specified.
For product warranty please refer to our website www.tjm.com.au
File: F-6966.docx
FITTING INSTRUCTIONS
T13 Outback Frontal Protection System
Mitsubishi Pajero NX
Dia. (mm)
5
6
8
10
12
Page 1 of 24
Nm ft.lbs Dia. (inch)
1/4"
5 4
5/16"
9 7
3/8"
22 16
7/16"
44 32
1/2"
77 57
Nm ft.lbs
9 7
22 15
33 27
55 43
86 66
20/10/2022
