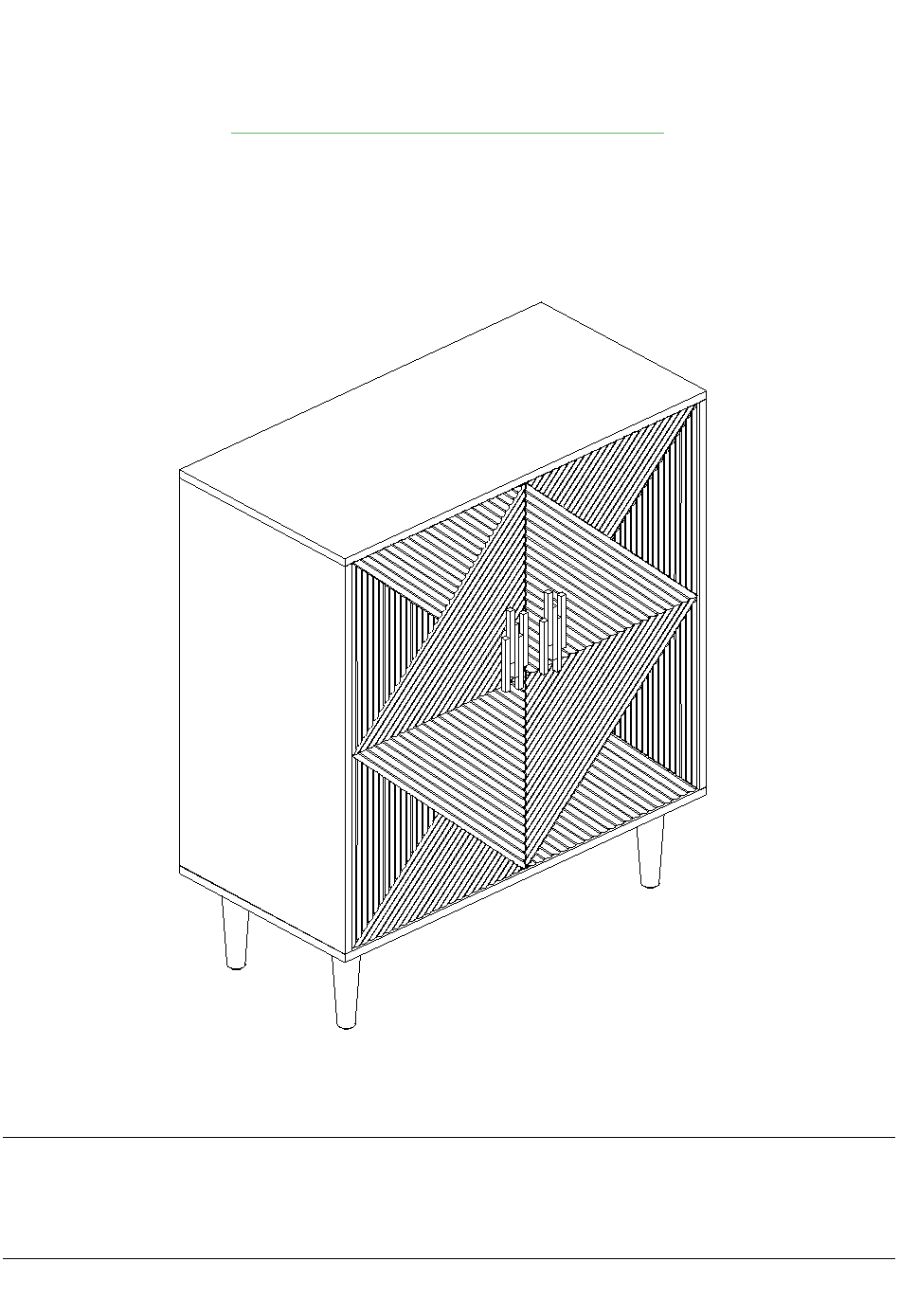

ITEM NO.SCTY0594
NOTE:
This brochure contains IMPORTANT safty info. Please read and keep for future
reference.
01/21

Advertisement

loading
Need help?

Need help?

Do you have a question about the SCTY0594 and is the answer not in the manual?

Questions and answers

Related Manuals for HULALA HOME SCTY0594

Summary of Contents for HULALA HOME SCTY0594

  • Page 1 HULALA ITEM NO.SCTY0594 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/21...
  • Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soa with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.

  • Page 3: Explosive View

    EXPLOSIVE VIEW 2PERSONENS 03/21...

  • Page 4: Parts List

    PARTS LIST 1 04/21...

  • Page 5: Hardware List

    HARDWARE LIST Ø3*15MM 1/4"*16MM 1/4"*3/4" Ø3*15MM Ø4*20MM Ø4*39MM TOOL LIST 1/4" HARDWARE SPARE LIST Ø3*15MM 1/4"*16MM 1/4"*3/4" Ø3*15MM 05/21...
  • Page 6 ASSEMBLY INSTRUCTIONS STEP-1 1.Use screw B2 to attach magnetic catch （ B4 ） to the corresponding hole of panel(A1), tighten screw with screwdriver B15. Ø3*15MM 06/21...
  • Page 7 ASSEMBLY INSTRUCTIONS STEP-2 1.Insert part (A4&A3) into part (A1),make sure all holes aligned and then tighten it with allen key B14 as picture show. 1/4" 07/21...
  • Page 8 ASSEMBLY INSTRUCTIONS STEP-3 1.Insert part (A5) into part (A1),make sure all holes aligned and then tighten it with allen key B14 as picture show. 1/4" 08/21...
  • Page 9 ASSEMBLY INSTRUCTIONS STEP-4 1.Insert bottom panel ( A2 ) into the corresponding hole of preassembled step 3 ， make sure all holes aligned and use allen key B14 to tighten it as picture show. 1/4" 09/21...
  • Page 10 ASSEMBLY INSTRUCTIONS STEP-5 1.Insert gasket B5 into screw B1. install leg A7 on of bottom panel A2, then tighten the screw with an Allen key B14. 1/4" 1/4"*16MM 1/4"*3/4" 10/21...
  • Page 11 ASSEMBLY INSTRUCTIONS STEP-6 1.insert back panel(A6) into the groove of preassembled step 5,make sure all holes aligned and use screw B2 to attach them ， tighten screw B2 with screwdriver B15. Ø3*15MM 11/21...
  • Page 12 ASSEMBLY INSTRUCTIONS STEP-7 Attention: Before the next step, adjust the feet of the locker to keep it level. 12/21...
  • Page 13 ASSEMBLY INSTRUCTIONS STEP-8 1.Use screw B3 to attach hingeB8 to the corresponding hole of panel(A8&A9), tighten screw with screwdriver B15. Ø3*15MM 13/21...
  • Page 14 ASSEMBLY INSTRUCTIONS STEP-9 1.Move door (A8&A9) to corresponding position of side panel (A3&A4) ， make sure all holes aligned and use screw B3 to attach them,tighten screwB1 with screwdriverB15. Ø3*15MM 14/21...
  • Page 15 ASSEMBLY INSTRUCTIONS Concealed hinges are three-way adjustable: Horizontal by screw adjustment! Concealed hinges are three-way adjustable: In-and-out by loosening the hinge arm mounting screw or via cam adjustment! Concealed hinges are three-way adjustable: Vertical via slots in the mounting plate or via cam adjustment! Hinge adjustment method 15/21...
  • Page 16 ASSEMBLY INSTRUCTIONS STEP-10 1.Insert shelf holder B6 into the corresponding hole of panel (A3&A5&A4) and then attach panel (A10) to it. Shelf holder can be adjusted up or down 16/21...
  • Page 17 ASSEMBLY INSTRUCTIONS STEP-11 1.Use bolt B1 to attach handle B7 to the corresponding hole of panel(A8&A9), tighten screw with Allen key B14. 1/4" 1/4"*3/4" 17/21...
  • Page 18 ASSEMBLY INSTRUCTIONS STEP-12 1.Use screw B11 to attach part B9 to preassemble unit at step 11 ,tighten screws with screwdriver B15. Ø4*20MM 18/21...
  • Page 19 ASSEMBLY INSTRUCTIONS STEP-13 Ø4*39MM 1.Install the anti-collapse device. 2.Mark the position on the wall, that corresponds to the location of part B9 on the of panel (A1); Drill and insert the expandable screw B10 by hammer. 3.Assemble the part B9 to the wall. Align the hole in the part B9 with the expandable screw B10, use screw B12 to attach it and tighten by screwdriverB15.
  • Page 20 ASSEMBLY INSTRUCTIONS STEP-14 1.Let the plastic belt B13 pass through the both part B9 and pull tightly. 20/21...

  • Page 21: Warranty

    WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
