Hex Monitor
Desk Mount
STAND-V106A
Assembly Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-V106A and is the answer not in the manual?

Questions and answers

Related Manuals for Vivo STAND-V106A

Summary of Contents for Vivo STAND-V106A

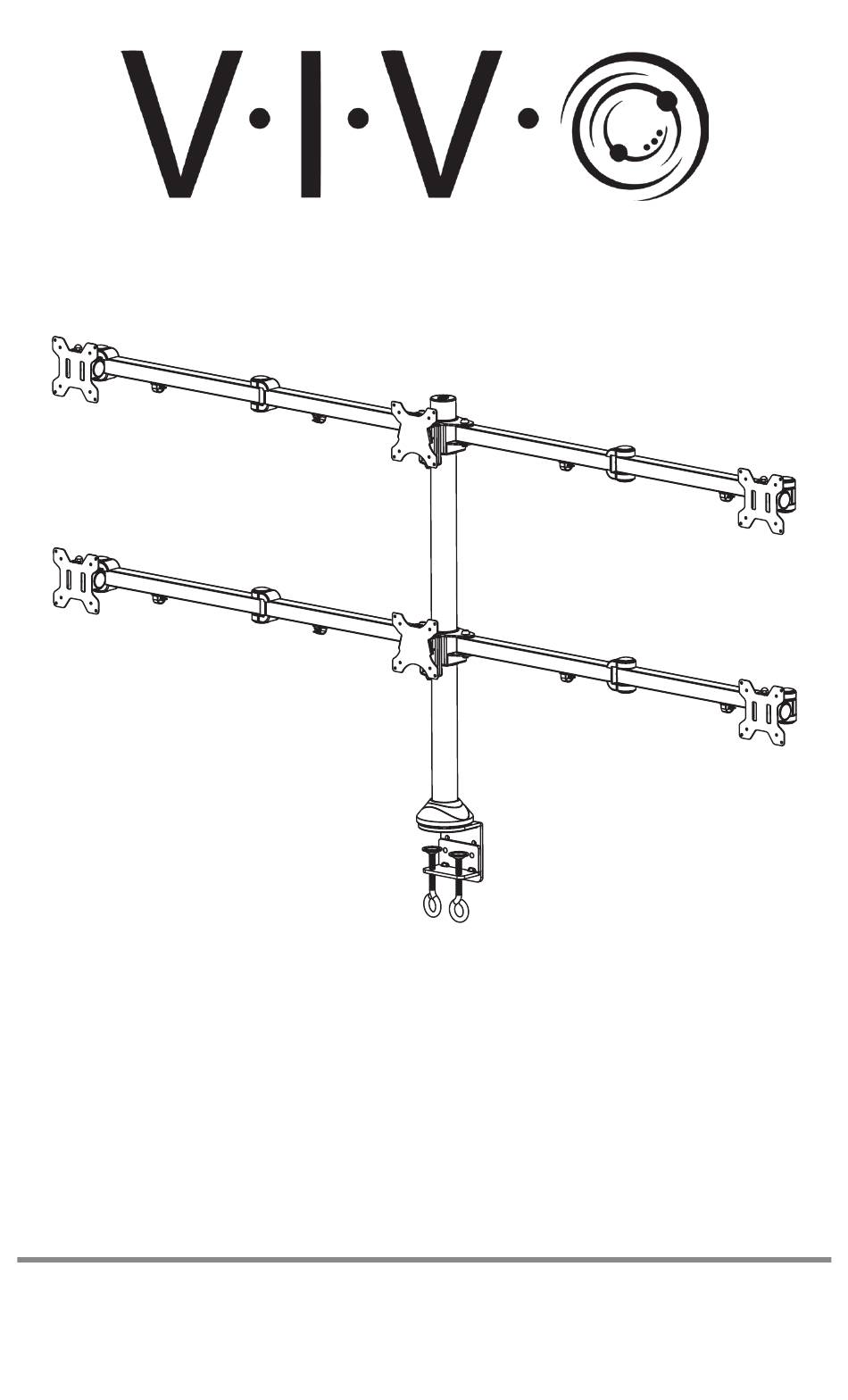

  • Page 1 Hex Monitor Desk Mount STAND-V106A Assembly Manual...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.

  • Page 3: Package Contents

    Package Contents A (x1) B (x1) C (x1) D (x1) E (x2) Pole Clamp Clamp Brace Decorative Center Cover Monitor Arm F (x4) G (x8) H (x1) I (x1) J (x8) Monitor Arm Plastic Spacer Support Plate Foam Pad Monitor Arm Cover K (x4) L (x2)

  • Page 4: Assembly Steps

    Assembly Steps STEP 1 Option 1: Clamp Assembly Install Pole (A) to Clamp Brace (C) Assemble Clamp (B) to Clamp Brace (C) using M6x10mm Screws (S-C) and a using M10x15mm Screws (S-D) and 6mm Allen Wrench (T-B). Phillips screwdriver. Secure the Clamp Assembly to the desktop by tightening the Hand Bolts on Clamp (B). Install the Pole Cover (D) to Pole (A).
  • Page 5 Option 2: Grommet Assembly Remove adhesive backing from Foam Pad Pad (I) and place on the bottom of Pole (A). Install Pole (A) to grommet hole using Support Install the Pole Cover (D) to Pole (A). Plate (H) with M10x100mm Screw (S-B), M10 Washer (S-I) and Spring Washer (S-H).
  • Page 6 STEP 2 Lay Monitor Arms (F) on flat surface with Cable Clip Holes facing down. Add Plastic Spacers (G) to holes at ends of Monitor Arm. Be sure to position all Arm Cable Clip Hole Assemblies so the Cable (on underside) Clip Holes are facing down.
  • Page 7 STEP 3 Slide arm assembly onto Pole (A) at desired height and secure using M8x10mm Screws (S-E) and 5mm Allen Wrench (T-B). STEP 4 Attach the Center VESA Plates (L) to the monitors you intend to mount in the center of the mount.
  • Page 8 STEP 5 Slide the center monitors onto the Center Heads (E1) of Arm Assemblies. Install M4x6mm Screws (S-G) to secure the monitors. STEP 6 Slide the outer monitors onto Outer Heads (F1) of Arm Assemblies. Secure with Cap Nut (S-F).
  • Page 9 Monitor Tilt Adjustment Side Monitor Tilt The exposed Nut on the side is Pry off Plastic Covers (F2) from used to adjust the tilt. Tighten the the Outer VESA Heads (F1). nut using Wrench (T-D) to adjust. Replace Plastic Covers. Center Monitor Tilt and Swivel Screw To adjust center monitor swivel or tilt, use 3mm Allen Wrench (T-A)
  • Page 10 Monitor Height Adjustment Center Monitor Height Adjustment Screw To adjust center monitor height, turn the Screw behind Center Head (E1) using the 5mm Allen Wrench (T-B). Side Monitor Leveling To level the side monitors, remove Cap Nut (S-F) and turn the inner bolt with the 3mm Allen Wrench (T-A) to raise or lower the monitor.

  • Page 11: Cable Management

    Cable Management Manage cables using Cable Clips (M) on assembled arms. Remove the split cap from the Pole (A) and feed cables through, pulling ends out from the opening in back. Replace the split cap when finished.
  • Page 12 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
