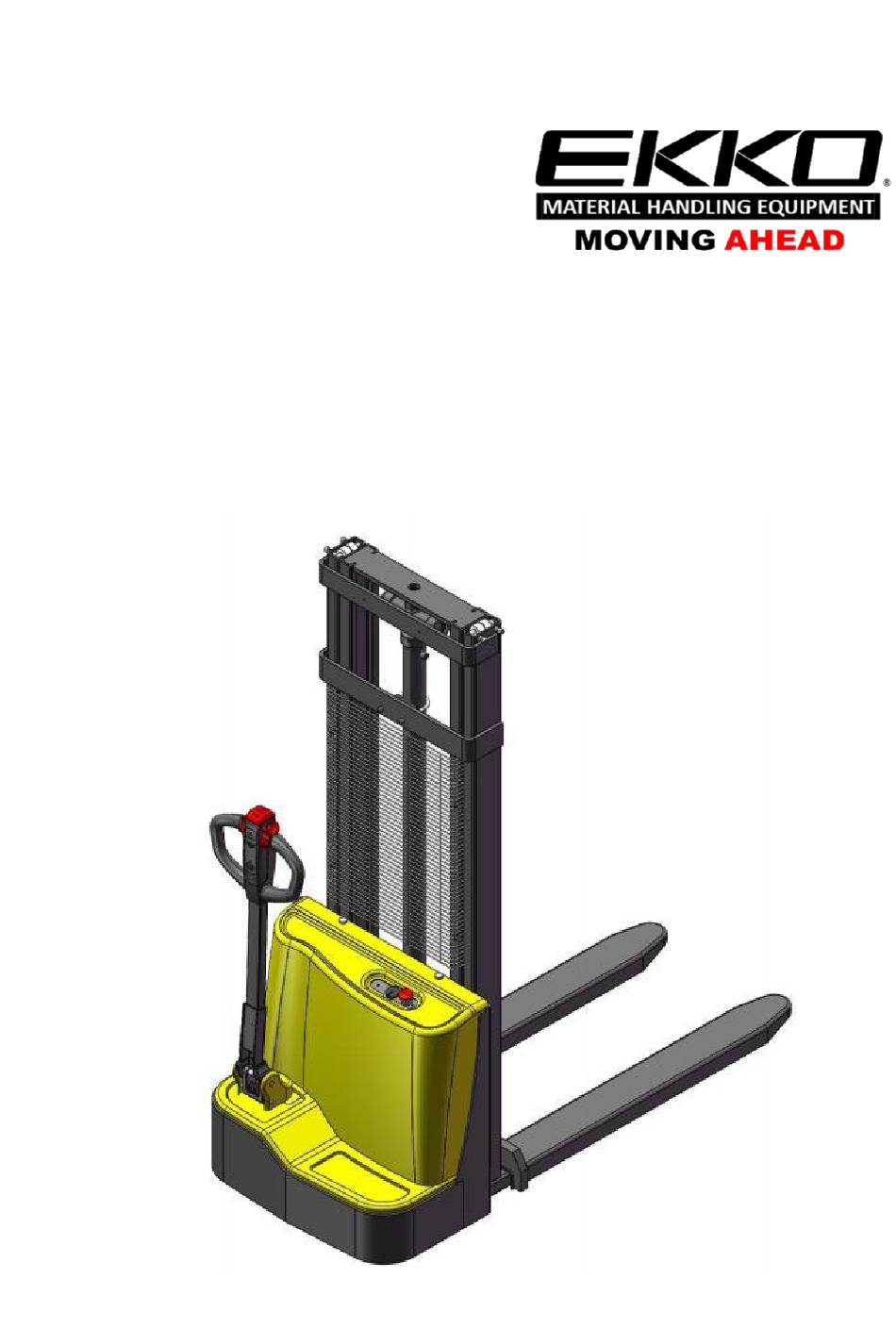

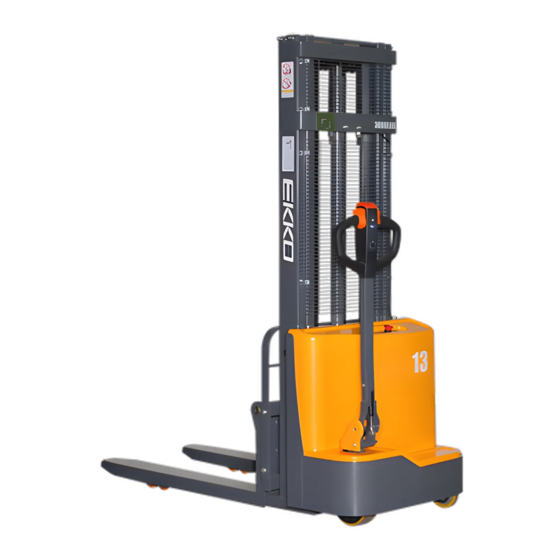

  • Page 1 Operations & Maintenance Manual Full Powered Fork Over Stacker EB13CD...
  • Page 2 Our product design will be consistently updated and improved, and the content of this manual may differ from your stacker truck. If you have any questions, please contact EKKO.

  • Page 3: Main Parts

    1 、MAIN PARTS Item no. Description Item no. Description Fork Handle Loading wheel Drive wheel Inner mast Balance wheel Outer mast Battery Oil pump Emergency button Protect mesh...
  • Page 4 Main technical parameters...
  • Page 5 EB13CD Model Drive type battery Operation type walkie Q(lbs.) 2800 Rated capacity c(in) Load center lbs. Service weight Wheels material h3(in) Max. lift height h1(in) 82.2 Lowered mast height 139.4 h4(in) Extended mast height h13(in) 3.54 Lowered fork height l1(in) 67.7...
  • Page 6 Application Walkie pallet stacker uses batteries as the power supply and the AC motor as the driver, traveling by gear transmission. As the traveling and lifting of the truck are electrically driven, it possesses the characteristics of energy saving, high efficiency, stable operation, easy operation, safe and reliable, low noise and no pollution, etc.
  • Page 7 Travel MOVE FORWARD MOVE FORWARD a. Push forward the speed button, the truck move forward. Speed and angle is proportional. Released the speed button, the truck speed will automatically slow to 0, and the truck will automatically stop. b. Push backward the speed button, the truck move reverse. Speed and angle is proportional.
  • Page 8 The red button at the top is the emergency reverse switch, When you touch this switch, the truck will be move in reverse. Up and down switch and horn button The lift button is located on the right side above the rudder handle. Press this switch and the fork will move upward.

  • Page 9: Maintenance

    backward. 5 Maintenance 5. 1 Operational safety and environmental protection – Any modification to the truck assemblies, in particular the safety mechanisms, is prohibited. The operational speeds of the truck must not be changed under any circumstances. – Only original spare parts have been certified by our quality assurance department. To ensure safe and reliable operation of the fork lift, use only the manufacturer's spare parts.
  • Page 10 Lift chains Lift chains wear rapidly if not lubricated. The intervals stated in the service checklist apply to normal duty use. More demanding conditions (dust, temperature) require more regular lubrication. The prescribed chain spray must be used in accordance with the instructions. Applying grease externally will not provide sufficient lubrication.

  • Page 11: Possible Faults And Trouble Shooting

    Possible faults and trouble shooting Fault Reason Solution Switch on the power, the The electrical box panel Replace fuse or power meter no display 10A fuse blown or damage power switch of the power switch. Can not reach max. lift Lack of Hydraulic oil Add hydraulic oil height...
  • Page 12 Warning (points for attention) Read the manual carefully before operation and know well the performances of the truck. It is strictly forbidden to press the lift or lower buttons while the truck is walking and frequently switching the two buttons, which might damage the truck and the goods. Do not shake the lever rapidly or with high frequency.

  • Page 13: Hydraulic Schematic Diagram

    9. Hydraulic schematic diagram...

  • Page 14: Electrical Schematic Diagram

    10. Electrical schematic diagram...
  • Page 15 Parts Manual Full Powered Fork Over Stacker EB13CD...
  • Page 16 1. Tiller system Drawing 1 Item ERP No. Drawing No. Description Note 11003000017 DQ131601006 Handle Handle tube 8B132009005 QBA15-1601200 22101700019 GB70.2 Screw M6×12 22600900003 GB894.1 Retainer 16 Bushing 2310050000001 SF-1-16170 72003000116 QDA12E-10004 Shaft 8D086001001 QDA-01201 Support block QBA15-1601001 Gas spring 72009010009 22600900011 GB894.1...

  • Page 17: Drive Wheel

    2. Drive wheel system Drawing 2 Item ERP No. Drawing No. Description Note Screw M8×30 22101600036 GB70.1 GB93 Washer 8 22501200004 23000100002 GB276 Bearing 6010 QDA12E-20003A Bearing seat 72004000048 Bearing 32012 2300050000011 GB297 71003000080 QBA15-02001 Drive wheel Chart 2-1...
  • Page 18 3. Balance wheel Drawing 3 Item ERP No. Drawing No. Description Note 22102600013 GB77 Screw M16×18 Screw M16×60 22102600024 GB77 Bearing 23009900001 QBA20B-02083 8D057006001 Wheel frame QBA20B-02087 72003000128 QBA20B-02088 Shaft 22600900010 GB894.1 Retainer 12 23100100003 SF-1-1210 Bushing 22101600024 GB70.1 Screw M6×10 8D057005001 QBA20B-02086 Wheel frame...

  • Page 19: Hydraulic System

    4. Hydraulic system Drawing 4 Item ERP No. Drawing No. Description Note 1.6 M Cylinder 73007000089 BDA-13016 2.5 M Cylinder 73007000091 BDA-13025 73007000092 BDA-13030 3.0 M Cylinder 73007000094 BDA-13035 3.5 M Cylinder Muffler M14×1.5 7300600000081 BDA-03033 73005000009 BDA-03023 Explosion-proof valve 21001100002 JB982 Washer 14...
  • Page 20 5. Double mast system Drawing 5 Item ERP No. Drawing No. Description Note Screw M8×18 72008000001 P15S0400002A Back cover 75000400008 QDA12E-51000 Small down cover 75000400041 QDA12E-54000 Screw M8×12 22101700007 GB70.2 Down cover 75000400009 QDA12E-52000 79000500022 BDA-00004-512 Mesh 2.5M 79000500009 BDA-00004-752 Mesh 3.0M 79000500024 BDA-00004-1008...
  • Page 21 Drawing 5 Item ERP No. Drawing No. Description Note 22403000008 Nut M10 GB889.1 Rubber pad 75000100024 BDA-00034B 72007000016 BDA-00003 Oil cylinder holding 8D05100100007 QDA12E-00030 PU wheel with bearing 80×70 72003000405 SDA-00001 Shaft 22600900002 GB894.1 Retainer 20 8D031011001 BDA-06010 Side roller 106 22600900007 GB894.1 Retainer 35...
  • Page 22 6. Single mast Drawing 6 Item ERP No. Drawing No. Description Note Screw M8×18 72008000001 P15S0400002A 75000400008 QDA12E-51000 Back cover Small down cover 75000400041 QDA12E-54000 Screw M8×12 22101700007 GB70.2 75000400009 QDA12E-52000 Down cover Mesh 1.6M 79000500011 BDA-00004-928 72002000191 BDA-00001 Fixed plate 22101600087 GB70.1 Screw M6×16...
  • Page 23 Item ERP No. Drawing No. Description Note 75000100024 BDA-00034B Rubber pad 72007000016 BDA-00003 Oil cylinder holding PU wheel 80×70 8D05100100007 QDA12E-00030 72003000405 SDA-00001 Shaft 22600900002 GB894.1 Retainer 20 Bolt M10×25 22000400020 GB5783 Instrument desk 7200200000937 QDA10EL-0400002 8D19200300012 QDA10EL-0416100 660 type 1.6M frame 550 type 1.6M frame 8D19200300001 QDA10EL-5416100...
  • Page 24 7. Loading wheel assembly Drawing 7 Item ERP No. Drawing No. Description Note 23000100001 GB276 Bearing 6204 PU wheel Φ80×70 8D05100100008 QDA12E-00031 Chart 8. Wheel chain shaft Drawing 8 Item ERP No. Drawing No. Description Note 72003000108 BDA-03031 Wheel chain shaft 71004100002 BDA-03032 Chain wheel...
  • Page 25 9. Fixed fork Drawing 9 Item ERP No. Drawing No. Description Note 22400700002 GB6172.1 Nut M10 Screw M16×50 22102600014 GB77 23001800010 GB308 Steel ball φ 19.05 8D012007033 SDA-07410-1070 Single mast fixed fork 660×1070 8D012007034 SDA-07420-1070 Double mast fixed fork 660×1070 8D012007031 SDA-07430-1070 Single mast fixed fork 550×1070...
  • Page 26 10. Adjustable fork Drawing 10 Item ERP No. Drawing No. Description Note 22400700002 GB6172.1 Nut M10 Screw M16×50 22102600014 GB77 Steel ball φ 19.05 23001800010 GB308 8D031011001 BDA-06010 Side wheel 106 22600900007 GB894.1 Retainer 35 22101600108 GB70.1 Screw M6×16 8D032005007 BDA-00014-680 L long shaft L long shaft...
  • Page 27 11. Forged fork Drawing 11 Item ERP No. Drawing No. Description Note 22400700002 GB6172.1 Nut M10 22102600014 GB77 Screw M16×50 Steel ball φ 19.05 23001800010 GB308 8D031011001 BDA-06010 Side wheel 106 22600900007 GB894.1 Retainer 35 22101600046 GB70.1 Screw M10×35 GB889.1 Nut M10 22403000008 Forged fork 900...
  • Page 28 12. Side wheel Drawing 12 Item ERP No. Drawing No. Description Note 71004000004 Side wheel BDA-06007 23000100005 Bearing 6207 GB276 Retainer 72 22600700004 GB893.1 Chart 12-1 13. Chain Drawing 13 Item ERP No. Description Note Fixed fork 23200300022 2.5M chain LH0846 149 sections 7100420000040 Adjustable fork 2.5M chain LH0846 147 sections...

  • Page 29: Battery Cover

    14. ACID-Lead battery Drawing 14 Item ERP No. Drawing No. Description Note 11009000034 QDA15EM1380102 Battery 12V85Ah 1100900000071 QDA10EL-1381000 Battery 12V65Ah 8D057009001 QDA12E-00010A 85Ah battery seat 8D19200500001 QDA10EL-0400010 65Ah battery seat Nut M8 22400300003 GB6170 Washer 8 22500100006 GB97.1 Spring washer 8 22501200004 GB93 22101600035...

  • Page 30: Lithium Battery

    15. Lithium battery Drawing 15 Item ERP No. Drawing No. Description Note 8D174002003 QDA15EM1380200 Lithium battery 24V/50Ah 7200200000976 QDA12E-00013 Battery fix plate 22101600035 GB70.1 Screw M8×25 Washer 8 22500100006 GB97.1 Spring washer 8 22501200004 GB93 Nut M8 22400300003 GB6170 Chart 14-1...

  • Page 31: Electric System

    16. Electric System Drawing 16 Item ERP No. Drawing No. Description Note Fuse seat 15000900012 QBA15-1350007 11006000038 BBM-1340003 Emergency button Microswitch 11006000022 QDA12E-1340002 11006000021 QBA15-1340003 Microswitch 15000900020 Fuse 10A 1200000000147 QDA10EL-1321000 Wire 11007000030 DQJ130201004 Controller...
  • Page 32 Relay 15000600002 QBQ-08052 1100910000049 QDA10EL-1351000 Built-in charger Fuse 100A 15000900011 QBA15-1350003 Chart Seal kit Item ERP No. Drawing No. Description Note 21000400043 AR2342E5 Dust ring 40×52×7/10 CF C2 40×50×6 U seal ring 40×50×6 21000400003 O seal ring d55.6×2.4 21000400044 C0 0640A 75000300101 CG000301-004 Support ring 56×2.5×20...
  • Page 33 Wearing parts Item ERP No. Drawing No. Description Note Handle 11003000017 DQ131601006 Chart 1-1/1 Bushing 2310050000001 SF-1-16170 Chart 1-1/5 72009010009 QBA15-1601001 Gas spring Chart 1-1/8 Bearing 6010 23000100002 GB276 Chart 2-1/3 2300050000011 GB297 Bearing 32012 Chart 2-1/5 23100100003 SF-1-1210 Bushing Chart 3-1/7 7100300000103 QBA-04026...
