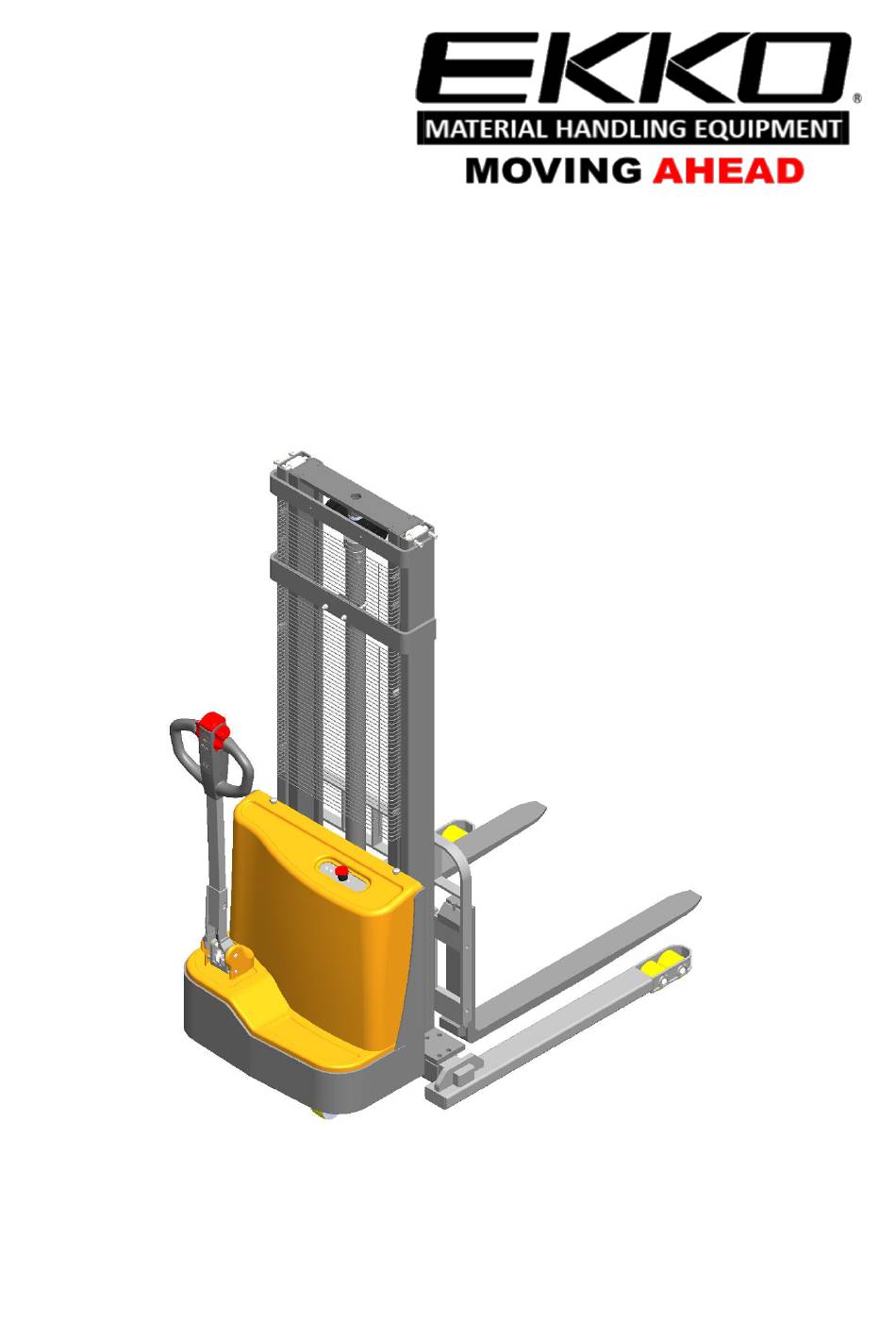

- Page 1 Operations & Mai ntenance Manual EB13CD / EB13C-98LI / EB13C-118 / EB13C-118Li / EB13C-138 / EB13C-138Li / EB13C-145Li...
- Page 2 Main technical parameters Item no. Description Item no. Description Fork Handle Loading wheel Drive wheel Inner mast Balance wheel Outer mast Battery Oil pump Emergency button Mesh guard...
-
Page 3: Main Technical Parameters
Main technical parameters... - Page 4 EB13CD / EB13C-98LI / Model number EB13C-118 / EB13C-138 Electric (battery) Trait Driving mode WALKIE Driving mode Q(lbs.) 2,800 Rated load c(in) Load center distance Wheel Wheel material h3(in) 98/118/138 Lifting height h1(in) 75.2/85/94.8 Height when mast is lowered Maximum stacker height during h4(in) 127.6/147.2/167...
- Page 5 Proper Use and Operation of Your Stacker Correct use and operation of your stacker can significantly improve work efficiency. However, incorrect use can lead to damage to the equipment or personal injury. Before using the stacker, please inspect the following: Hydraulic Pipeline: Check for oil leaks.
- Page 6 Horn Reverse switch Lift down Magnetic key Emergency Stop and Control Buttons • Emergency Reverse Switch: The red button at the top of the accelerator is an emergency stop. If activated, the stacker will immediately reverse direction. • Lift and Drop Buttons: Lift: The lift button, located on the right side above the rudder handle, raises the forks.
- Page 7 for normal operation. • Low Power: The middle indicator light indicates that the battery power is low and should be charged soon. • Critical Power: The rightmost indicator light indicates that the battery power is critically low and requires immediate charging. Running and Braking The rudder handle has three vertical sections: A, B, and C.
- Page 8 • External Charger: The stacker requires an external charger. Connect the appropriate plug from the external charger to the two-core socket on the stacker. Safety labels and guidelines Figure 2-1 Load curve: Please strictly adhere to the load curve indicated on the nameplate to avoid overloading the equipment . Figure 3-1 Figure 3-2...
-
Page 9: Data Plate
Data plate: Figure 4-1 Trademark maker Model number Rated load weight lbs. Maximum lifting Battery free weight lbs. height Load center Allowable battery weight lbs. Service Weight lbs. Voltage and Capacity V/Ah Serial number Production date Warning labels： Figure 5-1 Figure 5-2 Figure 5-3 Figure 5-4... - Page 10 Figure 5-7 Figure 5-8 Figure 5-1: Do not stand under a suspended load. Figure 5-2: Do not stand on the forks. Figure 5-3: Hoisting Points Figure 5-4: Avoid Moving Parts. Moving parts can cause severe injury. Figure 5-5: Charging Instructions Figure 5-6: Battery Power Indicator Figure 5-7: Forklift Operation Figure 5-8: Do not stack loose cargo.
- Page 11 Battery operating conditions Please use the battery at Avoid water, beverages, Keep batteries away from Keep metal objects away 14°F ~ 113°F and corrosive liquids near heat sources, open from the battery box, do the battery. flames, flammable and not pierce. explosive gases (liquids) Charging environment Do not exceed 12 hours of charging to...
-
Page 12: Troubleshooting
irreversible damage. 7. Low-Temperature Performance: Battery capacity may decrease at low temperatures. Refer to the following: 14°F (10°C): 70% capacity 32°F (0°C): 80% capacity 77°F (25°C): 100% capacity 8. Long-Term Storage: If storing the battery for an extended period, keep it at 50% charge and a temperature between 32°F and 68°F (0°C to 20°C). -
Page 13: Maintenance And Repair
Initial Inspection: Conduct the first maintenance check one month after purchase. • Regular Inspections: Perform regular maintenance checks every six months. • Professional Service: Engage an authorized EKKO service center for professional maintenance to ensure optimal performance. Daily Maintenance: •... - Page 14 Important Reminder: 1. Upon Delivery: Please inspect the stacker immediately upon receipt. 2. Maintenance and Repairs: If the stacker or its components require repair or replacement, please retain the relevant after-sales service documentation. Hydraulic schematic diagram 1. oil tank 2. oil filter 3. DC motor 4. gear oil pump 5. relief valve 6. check valve 7. Electromagnetic reversing valve 8.
-
Page 15: Electrical Schematic Diagram
Electrical schematic diagram...
