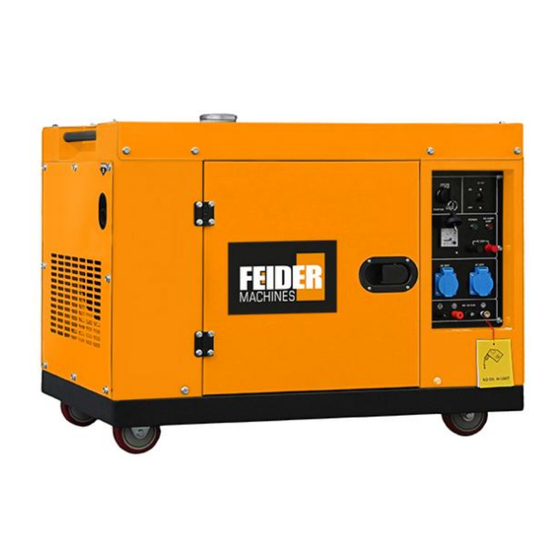

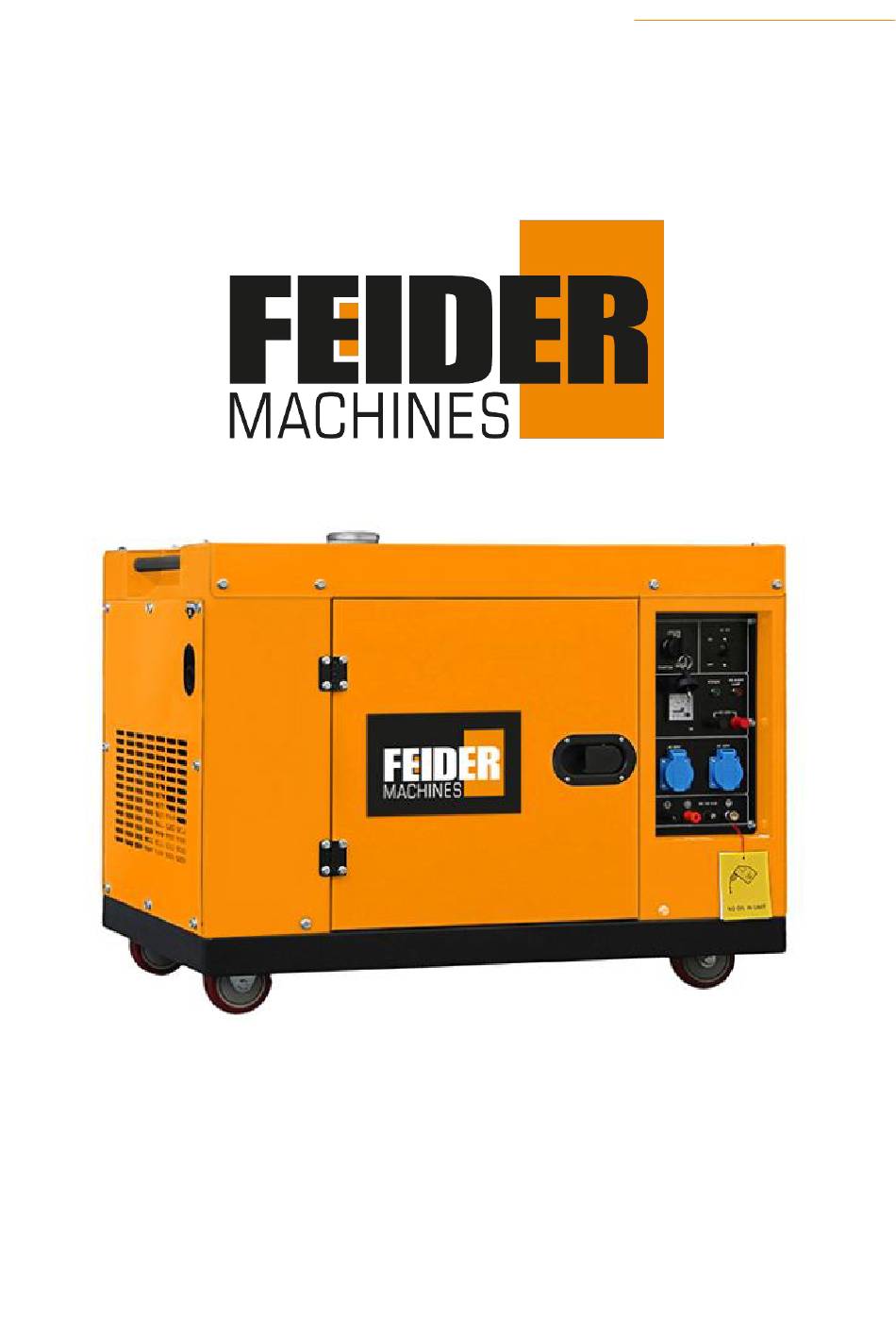

- Page 1 ORIGINAL INSTRUCTIONS >EN DIESEL GENERATOR FGED6500/ FGED8000/ FGED10500/FGED18000T INSTRUCTION MANUAL CAUTION: Read the instructions before using this machine.
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY WARNINGS ..............................3 2. DESCRIPTION ................................6 3. TECHNICAL INFORMATION ............................7 4. BEFORE STARTING ..............................11 5. USE ....................................12 6. MAINTENANCE ................................15 7. ENVIRONMENT ................................16 8. TRANSPORT AND STORAGE ...........................17 9. DISPOSAL ...................................17 10. EC DECLARATION OF CONFORMITY ........................18 11. -
Page 3: Safety Warnings
1. SAFETY WARNINGS The operator must know the principles of functioning and the structure of the generator and the motor. He must know how to stop the motor in case of urgency and how to manipulate the controls. Never let children use this device. ... - Page 4 Keep in flammable away. Warning: when you start the generator with the cord, watch out for sudden changes in the rotation of the motor!!! Risk of wounding!!! Never cover the generator when it is running. The cut-out mounted on the generator has the aim of reducing the risk of electric shock. If it needs to be replaced with another cut-out, the latter must correspond to the technical specifications of the generator.
- Page 5 Never fill the fuel tank while smoking or near a naked flame. Make sure you don’t spill fuel on the motor and the exhaust grille of the generator during filling with fuel. Keep the fuel in an appropriate recipient and sheltered from any sources of fire. ...
-
Page 6: Description
SYMBOLS Hot surface It is forbidden to run the generator in an enclosed room Fire hazard No naked flames Read the operating instructions Caution Keep bystanders away Carbon monoxide (CD) Danger Guarantee sound power level Electrical risk 2. DESCRIPTION ② ①... -
Page 7: Technical Information
3. TECHNICAL INFORMATION 3.1 Main data Model FGED6500 Type Single-phase Voltage Adjusting System Automatic Voltage Regulation (AVR) Voltage/Frequency 230V~ 50Hz Rated power COP 6.0 kW Max power 6.5kW max Rated Current 26.09A Power Factor (cos Ø) DC output 12V/8.3A Engine model... - Page 8 Model FGED8000 Type Single-phase Voltage Adjusting System Automatic Voltage Regulation(AVR) Voltage/Frequency 230V~ 50Hz Rated power COP7.5 kW Max power 8.0 kW max Rated Current 32.6A Power Factor (cos Ø) DC output 12V/8.3A Engine model HR198FD Displacement 633cc Rated output 8.8kW@3000min Fuel Diesel light oil Fuel tank capacity (L)
- Page 9 Model FGED10500 Type Single-phase Voltage Adjusting System Automatic Voltage Regulation (AVR) Voltage/Frequency 230V~ 50Hz Rated power COP9.5 kW Max power 10.5 kW max Rated Current 41.3A Power Factor (cos Ø) DC output 12V/8.3A Engine model HR1105F Displacement 761cc Rated output 11kW@3000min Fuel Diesel light oil...
- Page 10 Model FGED18000T Type Single-phase/Three-phase Voltage Adjusting System Automatic Voltage Regulation (AVR) Voltage/Frequency 230V / 400V~ 50Hz Rated power COP16.0 kW Max power 18.0 kW max 69,6A/13,3A Rated Current Power Factor (cos Ø) 1.0/ 0.8 DC output 12V/8.3A Engine model HR2V98F Displacement 1326 cc Rated output...
-
Page 11: Before Starting
4. BEFORE STARTING The installation and major repair work shall be carried out only by specifically trained personnel. install the generator set on the place where it is flat by placing it horizontally. Protect children by keeping them at a safe distance from the generating set. A generating set may cause hazards that are not recognized by the layman and especially children. -
Page 12: Use
• Fuel should be free of water or dust because these cause trouble in the fuel injection pump and nozzle. After3—4days: Put a suction pipe half way into the drum.(Water and dust After purchasing fuel: accumulate in the lower portion of the drum.) Allow drum to stand 3-4day WARNING:... - Page 13 Note: If you crank the starter to long, the battery may be drained too much to provide enough energy for proper engine ignition. Also, when the diesel engine is operating, let the key retain in the “ON” position. 5.2 Operate your generator 5.2.1 Operating the diesel engine.
- Page 14 2) Observe the pointer of the voltmeter, it should point to 230V ±5% (50Hz). (For 60Hz set, it will be 240V ±5%). Meanwhile put the switch in the GEN (generator) position. The AC Voltage from the socket of the power supply can be output. 3) When connecting devices to the generator, make sure to connect these devices in order.
-
Page 15: Maintenance
6. MAINTENANCE 6.1 Periodic checks and maintenance Periodic checks and maintenance are very important for keeping the engine in good condition and • durable. The mark ( ) indicates that special tools and skills are required; you have to contact your dealer. -
Page 16: Environment
Replace piston • rings Check battery Monthly liquid 6.2 Changing engine oil Remove the oil filter cap, remove the drain plug and drain the used oil while the engine is still warm. The plug is located on the bottom of the cylinder block. Tighten the drain plug and refill with the recommended oil. -
Page 17: Transport And Storage
5. When use the generating set, please conform to regulations of electrical safety applicable to the place where the generating sets are used. 6. The generating set shall not be connected to other power sources, such as the power company supply mains. -
Page 18: Ec Declaration Of Conformity
BUILDER SAS ZI, 32 RUE ARISTIDE BERGES – 312070 CUGNAUX – FRANCE Declares that the machinery designated below: DIESEL GENEERATOR FGED6500/ FGED8000/ FGED10500/FGED18000T Serial number: 20220725864-20220725868/20220725869-20220725871/ 20220725872-20220725876/20220725877-20220725881 Complies with the provisions of the Directive “machinery” 2006/42/CE and national laws transposing it:... -
Page 19: Warranty
1 1 . WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 20: Product Failure
1 2 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 21: Warranty Exclusions
13. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 22 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 2022...
