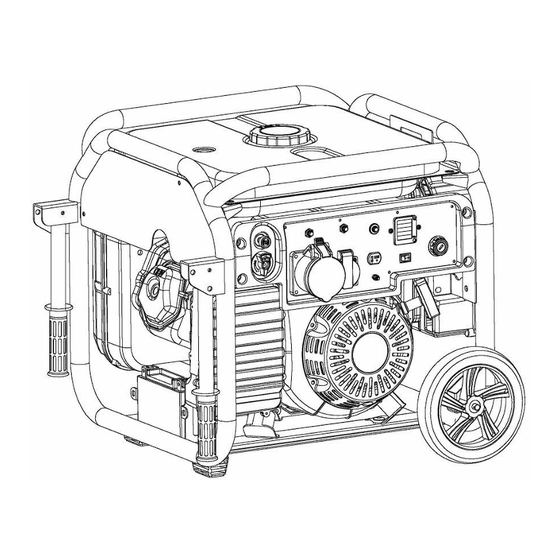

- Page 1 ORIGINAL INSTRUCTIONS >EN PETROL INVERTER GENERATOR FGHI7000ES USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS........................... 3 2. QUICK START............................... 7 3. SAFETY LABEL POSITION..........................9 4. PARTS IDENTIFICATION..........................10 5. CHECK BEFORE OPERATION........................10 6. START THE ENGINE............................13 7. OPERATING THE GENERATOR........................15 8. SHUT OFF THE ENGINE..........................20 9. MAINTENANCE..............................20 10. -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS WARNING 1. Attention! Exhaust gases are toxic. Do not operate the generator in a room without ventilation system! 2. Children should be protected by keeping them at a safe distance from the generator set! 3. Refilling of the generating sets are not allowed during the operation! 4. - Page 4 Keep the fuel filter clean, and change the oil of the motor regularly. Periodically check the installation of the connections and the tightness of the fixations, re-tightening them if necessary. Clean the components of the air filter periodically, and replace the air filter when necessary. ...
- Page 5 Always stop the motor of the generator when filling it with fuel. Never fill the fuel tank while smoking or near a naked flame. Make sure you don’t spill fuel on the motor and the exhaust grille of the generator during filling with fuel.
- Page 6 Symbol Attention! Please read the manual carefully before using the unit! Conforms to relevant safety standards Do not dispose of old appliances with domestic rubbish . Guaranteed sound power level Ground connection Fill in engine oil It is forbidden to run the generator in an enclosed room because exhaust emissions can lead humans or animals to coma to death.
-
Page 7: Quick Start
2. QUICK START WARNING Only use outdoors. The generator emits carbon monoxide, a toxic colorless and odorless gas that can cause death or serious injury. Ensure that the generator is placed horizontally. Never work in the rain, snow or other humid environment. ... - Page 8 When not using the generator for a long time, please turn off the generator. Foreword Thank you for purchasing our Inverter generator This manual includes the operation and maintenance of Model FGHI7000ES series inverter generator. All contents of this manual are consistent with the latest products (when this manual is printed).
-
Page 9: Safety Label Position
read and understand the instructions before use, otherwise incorrect operation could result in personal injury or equipment damage. 3. SAFETY LABEL POSITION These decals indicate serious accident that you may cause. Please read the decals, safety precautions and precautions mentioned in this manual carefully. -
Page 10: Parts Identification
4. PARTS IDENTIFICATION Control Panel 5. CHECK BEFORE OPERATION The generator should be placed on a flat ground, without debris around, and at least 1 meter away from buildings and other equipment. BE CAUTIOUS Be sure to check whether the generator is placed horizontally, and the engine is off. - Page 11 Check the Oil Level BE CAUTIOUS Use non-detergency oil or 2-stroke engine oil could shorten the engine life. Use a strong detergency, high-quality 4-stroke engine oil, which must meet or exceed US automobile manufacturer's requirements of the American Petroleum Institute classification SG, SF levels.
- Page 12 Check the Fuel Level Use automotive gasoline (preferably unleaded or low-lead gasoline to reduce combustion chamber carbon and reduce environmental pollution). When the fuel level is too low, please add fuel to the required level. Never use a mixture of oil and gasoline or dirty gasoline. Prevent dirt, water into the fuel tank.
-
Page 13: Start The Engine
BE CAUTIOUS Never run the engine without a filter, or dirt will enter the engine through the carburetor and cause rapid wear of the engine. It is normal if you find little oil under air filter box, please clean it after use (when the machine is entirely stopped). - Page 14 Pull outward the choke cable. Pull the handle until your feel resistance, then pull the handle outward to start the generator. According to the ambient temperature, push the choke cable inward after the starting the generator. The lower the ambient temperature is, the slower the inward pushing is. The higher the ambient temperature is, the faster the inward pushing speed is.
-
Page 15: Operating The Generator
Working at high altitudes In high altitude areas, the air-fuel mix in a standard carburetor is relatively thick, so the engine operating performance will reduce, while the fuel consumption increases. At this point you can adjust the main jet on the carburetor (smaller), while adjusting the ratio-mixing screw, then you can change the performance of the engine in high altitude areas. - Page 16 Note When using AC power, you can use DC power at the same time. Please pay attention to the sum of the power of AC and DC. It cannot exceed the rated power of the generator. Use of AC Power ...
- Page 17 When using the generator with a pure inductive load, the pure inductive load cannot exceed the rated power of the generator. The power can only run 40% to 75% of rated power on pure inductive load. Model FGHI7000ES Rated Power (W) 6300 Frequency（Hz）...
- Page 18 Note: When the relative humidity is 60%, the ambient temperature improvement factor is C-0.01 When the relative humidity is 80%, the ambient temperature improvement factor is C-0.02 When the relative humidity is 90%, the ambient temperature improvement factor is C-0.03 When the relative humidity is 100%, the ambient temperature improvement factor is C-0.04 For example：...
- Page 19 WARNING Charge should be properly ventilated, and away from fireworks, because the battery will evaporate flammable gas. The battery contains sulfuric acid (electrolyte). Contact with skin or eyes can cause burns. Wear protective clothing and mask. Electrolyte is toxic, if the electrolyte splashed on the skin, immediately rinse with water. ...
-
Page 20: Shut Off The Engine
8. SHUT OFF THE ENGINE If you need to shutdown the engine urgently, turn the start switch to the ‘OFF’ position. For Electric Start mode:you can turn the power switch to “OFF” position to stop the generator. Shut off all the connected devices, pull out the plugs. ... - Page 21 Maintenance schedule Please do the maintenance within the specified month or hour. Periodic Per month Every 3 Every 6 Each Per year or maintenance or 20 months or months or Project 300 hours time (1) hours 50 hours 100 hours an examination ○...
- Page 22 Wash your hands with soap and water after you touch the oil. BE CAUTIOUS In order to comply with environmental requirements, we recommend that collect the waste oil into a sealed container, send to the local service station or recycling center near your location.
- Page 23 Maintenance of Spark Plug Use recommended spark plug (NGK F7RTC): In order to ensure the best operation of the engine, the spark plug clearance must be appropriate. Remove the top maintenance cover screws and remove the top maintenance cover plate. ...
-
Page 24: Transportation/Warehousing
Maintenance of Muffler & Fireproof Net Dirty muffler will affect the effect of the generator and the power of the engine. To ensure the normal operation of the generator, please clean up the muffler fireproof net regularly. If you use the generator in a particularly dirty place, you need to clean it up frequently. -
Page 25: Troubleshooting
WARNING Under certain conditions, gasoline is extremely flammable and explosive. Stored generators may contain unburned clean fuel. Therefore, fireworks should be prohibited in the area where generators are stored. Transfer the gasoline from the tank to the reserve tank. Loosen the carburetor bolt and transfer the gas oil to the reserve tank;... - Page 26 NOTICE If the generator cannot be started for the first time when the oil is added, or the oil is changed, the oil alarm indicator flashes when pulling the start handle, at this time, the generator should be shaken back and forth to ensure that the float of the oil alarm floats. If the generator still does not start, please follow the troubleshooting instruction above.
-
Page 27: Specifications
Underpowered Underpowered Dirty Clean or replace the air filter Check the air filter Dirty Check the quality of gasoline Replace the gasoline Return the generator to an authorized dealer for further assistance. 12. SPECIFICATIONS Engine Model No. XG-190F Engine type 4-stroke, single cylinder, OHV Displacement( CC) 406cc... -
Page 28: Circuit Diagram
13. CIRCUIT DIAGRAM... -
Page 29: Declaration Of Conformity
Fax : +33 (0)5.34.502.503 States that the designated below machine: Product: Petrol Inverter generator Model: FGHI7000ES Serial number:20220512848-20220512865 is in confirmity with the essential requirements and other relavant provisions of the applicable European Directives,based on the application of European harmonized standerds.Any unauthorized modification of the apparatus voids this declaration. -
Page 30: Warranty
1 5 . WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 31: Product Failure
1 6 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 32: Warranty Exclusions
17. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 33 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France MADE IN PRC...
