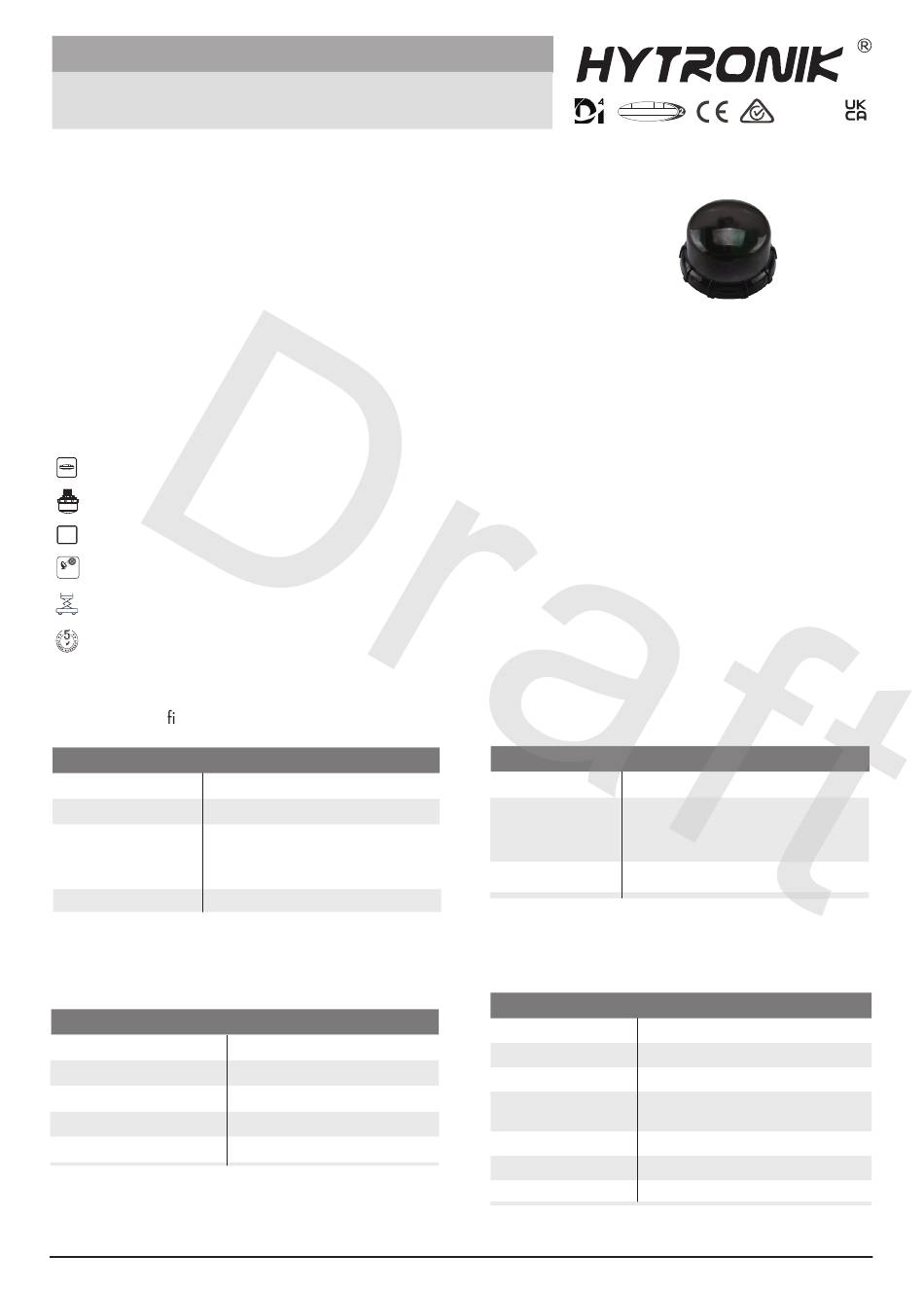

Hytronik SAM15 Manual

IP65 HF Zhaga book 18 Standard Motion Sensor
SAM15 (High-Bay)
DALI-2 output
Product Description
SAM15 is a Zhaga book 18 standard HF motion sensor with DALI-2
output (40mA DALI power supply built-in), which enables lighting
designers/manufacturers to freely connect to luminaires. All sensor
parameters can be programmed through remote controller HRC-11,
like adjusting sensitivity, time, lux level, and brightness settings.
Designed with a sturdy IP65 structure, HIR15 is perfect for high-bay
applications, accommodating installations of up to 12m in height,
making it ideal for outdoor lighting like streetlights.
Hardware Features
40mA DALI-2 Broadcast output
D A L I
Zhaga Book 18 standard
IP
IP65 design
Robust HF antenna design wireless interference
Robust HF
Antenna
High-bay (up to 12m height)
5-year warranty
Technical Speci cations
Input & Output Characteristics
Operating voltage
Stand-by power
Output
Lux range
Environment
Operation temperature
Storage temperature
Relative humidity
IP rating
Insulation
Subject to change without notice.
24VDC
< 1W
I guaranteed: 32mA
I max: 40 mA
U rated: 15VDC
0-1000Lux
Ta: -20°C ~ +50°C
-40°C ~ +70°C
10 ~ 90%
IP65
Class II
D A L I
Sensor Data
Sensor principle
High Frequency (microwave)
Max installation height：12m
Detection range*
Max detection range：14m
Detection angle
* The detection range is heavily influenced by sensor
placement (angle) and different walking paces. It may
be reduced under certain conditions.
Safety & EMC
EMC standard (EMC)
EN61547，EN50015
EN61347-1 EN61347-2-11
Safety standard (LVD)
Certification CE , UKCA
EN300440,EN301489-1/-3
RED
EN50663
Compliance RoHs, Reach
IEC62386-101/103, Part 351
DALI standard
Single master, Type D
D4i
Edition: 05 Jun. 2024
IP65
TYPE D TYPE D
360°
Ver. Draft Page 1/7
