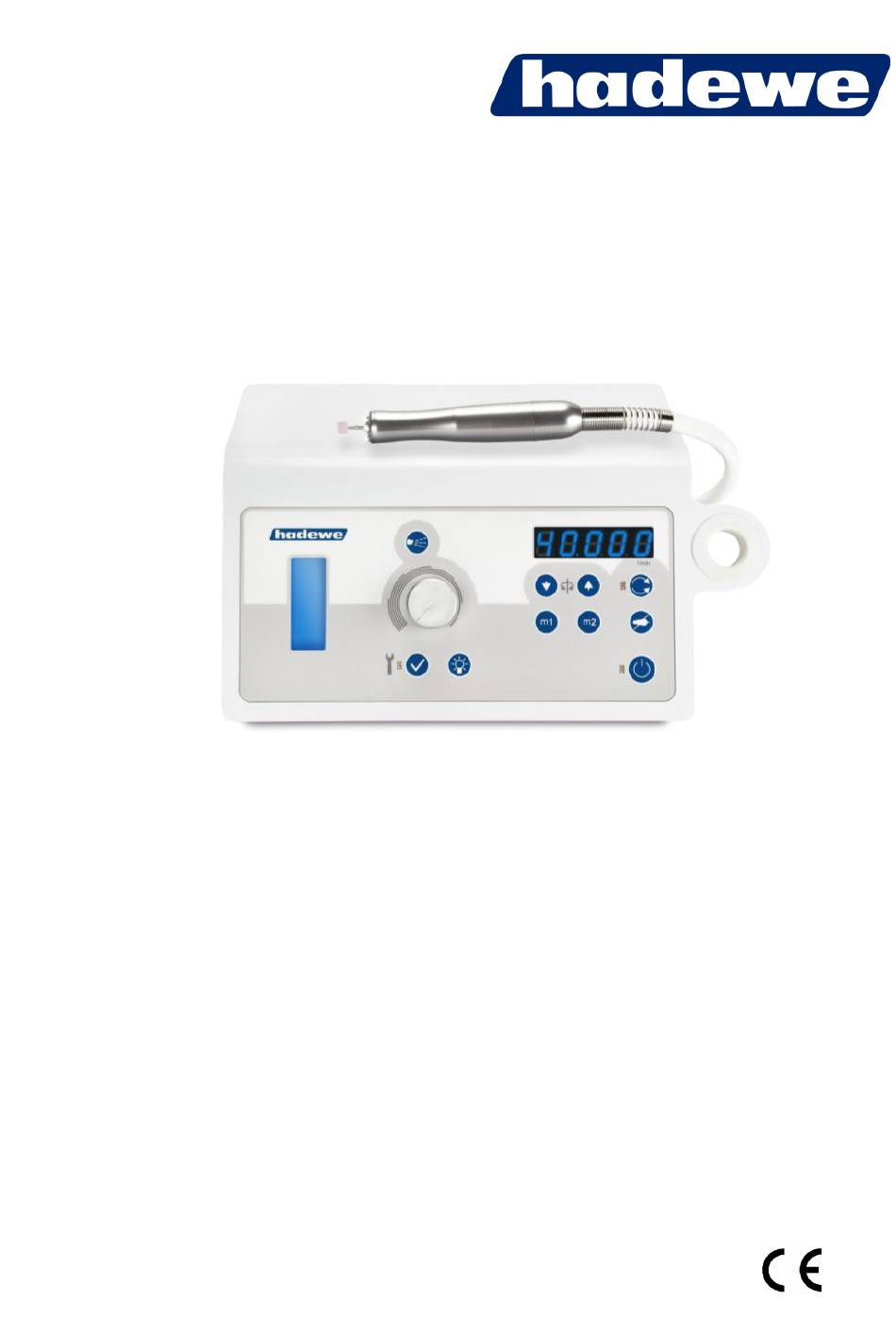

  • Page 1 Manual Hyperios CHROME Art. No. 0558 FB 04-306 Rev. 2 Date: 17.09.2024...

  • Page 2: Table Of Contents

    Directory Foreword Safety Instructions Cleaning & Disinfection Getting to Know the Unit Before Use Area of Application Operation Application Operation Steps Work Positioning Infilling the Spray Liquid Insert Bur Adjusting the Speed Memory Buttons m1, m2 Spray Drying Function / Changing the Bur Foot Switch Maintenance &...

  • Page 3: Foreword

    Foreword The Hyperios CHROME foot care unit was produced according to strict quality criteria and uses the latest technology in its design. The images in this manual may vary slight- ly from the product you have bought as we are constantly developing our products. This user manual includes a detailed description and explanation of how to use the Hyperios CHROME unit.

  • Page 4: Safety Instructions

    Safety Instructions Children should be supervised not to play with the appliance. The installation of the working area has to cor- respond to the relevant regulations. Set up the unit in such a way, that the louvers are not covered and the extracted air can escape well. To avoid the risk of an electric shock, this de- vice might only be connected to a power sup- ply with protective conductor.
  • Page 5 On- ly use distilled water plus an anti-germ liquid, e.g. hadewe AquaHy (art. 8555). If you use other brands, pay attention to their manuals if you can use them for this purpose. Never use tap water.
  • Page 6 Safety Instructions avoid in case you accidently spill water, this will flow into the unit. Change the spray liquid every day. Always add disinfection additive to the distilled water. Rinse the tank daily and fill it with fresh water every day.
  • Page 7 Safety Instructions Before using the equipment, assure that • the tool can be pushed far enough into the chuck (test this with a dipstick and clean if necessary), • the inserted tool sits properly in the chuck and will not cant/jam while clamping it •...
  • Page 8 Safety Instructions ment is plugged in as some components are live. A spare parts list may be supplied to quali- fied persons (repair workshops). No responsi- bility can be accepted for unauthorized or im- proper tampering with the unit, which nullifies the guarantee and any other liabilities.

  • Page 9: Cleaning & Disinfection

    Cleaning & Disinfection The device is designed to be compatible with rotating in- struments which do not penetrate the skin or mucosal or inadvertently may still cause injuries. For this application, please adhere to the cleaning and disinfection instructions provided be- low.

  • Page 10: Getting To Know The Unit

    Getting to Know the Unit Gerät kennen lernen 11 12 13 1 spray regulator knob 2 turn ON / OFF spray 3 speed down 4 speed up 5 pilot lamp: shines during anticlockwise operation 6 changeover switch for clockwise or anticlockwise operation 7 turn off handpiece &...

  • Page 11: Before Use

    Before Use Please read through the instructions Operation carefully before using the unit and The working area must conform to carefully note the safety advice. the conditions described. Set up the Always keep this manual accessible unit in such a way, that the air slits to any users of the drill.
  • Page 12 Before Use If you have a foot switch, insert its plug into the port on the right of the device which displays this symbol Make sure, that the tank is filled with spray liquid. Ensure that the tool is fixed. On the back of the device you will find the main power switch.

  • Page 13: Application

    Application If you want to take a break or finish Operation Steps the job, press the standby button In the following section the order in (14). The handpiece motor and which you should use the device is spray will turn off. The handpiece described.

  • Page 14: Work Positioning

    Application Work Positioning The following images are examples of how to work on various parts of the foot. Always make sure that the foot is firmly gripped and that you can work freely and without strain.

  • Page 15: Infilling The Spray Liquid

    Application Infilling the Spray Liquid Switch off the device. Pull out the spray tank on its handle. Hold the cover of the tank in hand and un- screw the tank. Now fill it with dis- tilled water and anti-germ liquid, e.g.

  • Page 16: Insert Bur

    Application based spray fluids often at- and a strong spray stream will be tack hoses and make them blowed out of the handpiece for the porous. first 15 sec. Then you can adjust the requested spray stream while turning knob (1). Insert Bur When turning off the unit or the Insert the bur until it stops.

  • Page 17: Foot Switch

    Application Foot Switch Commencement of foot switch Only use the original hadewe foot switch (art. 0970) to avoid damag- es. Insert the plug of the foot switch into the socket with this symbol Function of the foot switch Press foot switch long time:...

  • Page 18: Maintenance & Care

    Maintenance & Care Push the new washer in the top. Washer handpiece equipped with a white washer (art. 4571). This washer has to be re- placed by a new one every 2 weeks (25 operation hours), un- less exchanging it, water could en- ter the handpiece and cause of damages of the internal parts.

  • Page 19: Cleaning Function

    Maintenance & Care Cleaning Function Cleaning the Chuck Use the cleaning function if the Cleaning the chuck is not intended nozzle is blocked. Turn the unit off for Hyperios CHROME. using button 14 (standby). Remove the water filter at first. (For its in- Maintenance Overview structions see paragraph above.) Fill the tank with distilled water.

  • Page 20: Handling Instructions

    In cases in which a Working with high pressure rust infestation was found within the will not improve the out-...

  • Page 21: Troubleshooting

    Let cool down the unit for a hadewe Bur Shaft Tester (art. 4990) while. to see if it is bent. The unit shows different sound lev- Maximum allowed speed of the tool els at different sites of use.

  • Page 22: Technical Details

    2014/30/EU EMC guide line ing of discharge current not necessary) 2014/35/EU low voltage guide line Power connection: (non- detachable power connection) hadewe GmbH - Grambartstraße 10 The protective ground conductor is not 30165 Hannover - Germany connected touchable conductive parts.
  • Page 23 Washer change is necessary. turer (hadewe). We will dispose of the device free of charge. The devices should not be taken to public disposal confirm plants (WEEE Reg.
  • Page 24 GmbH Grambartstraße 10 30165 Hannover Germany info@hadewe.de www.hadewe.de...
