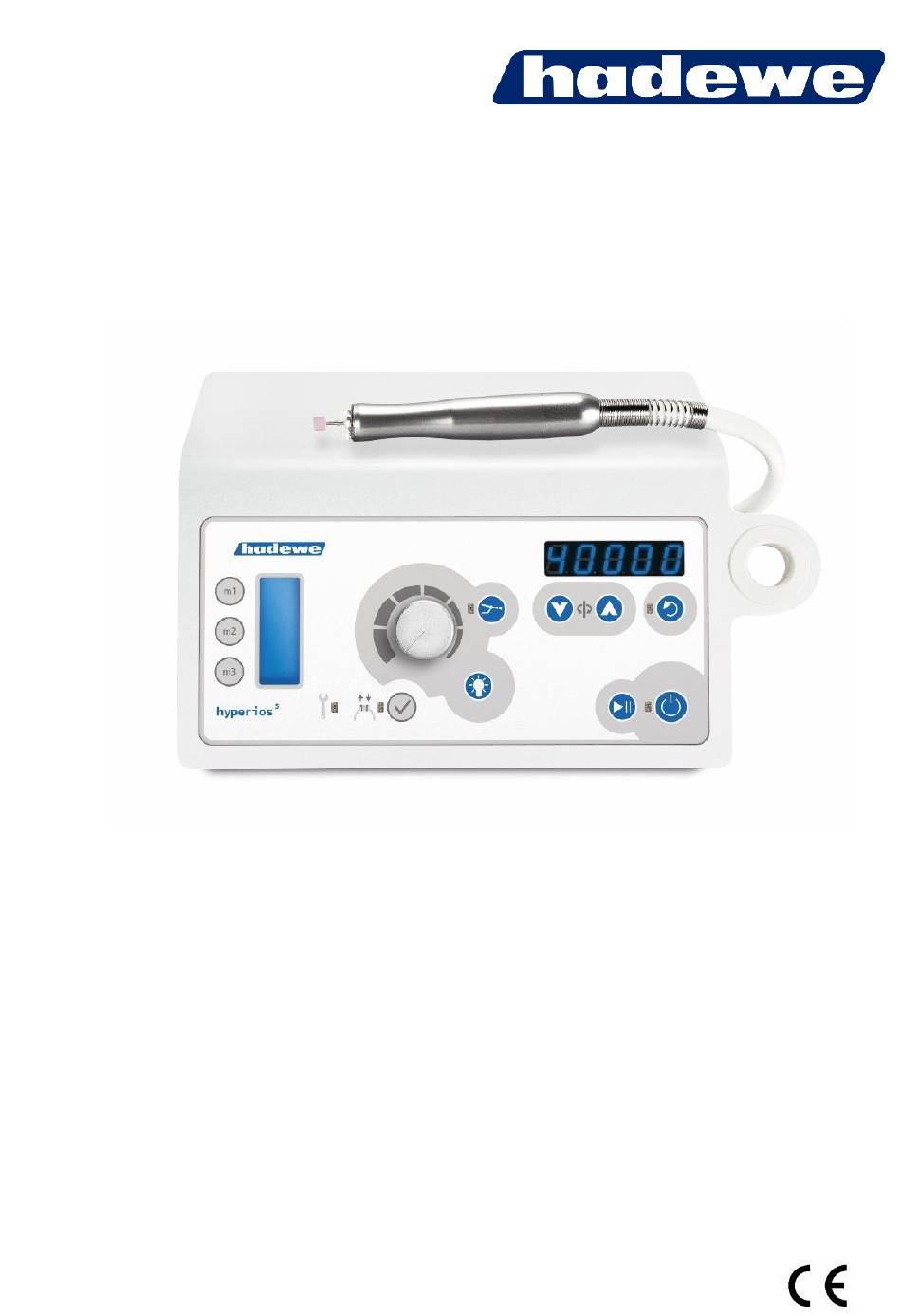

  • Page 1 Manual Hyperios Chrome Art. 0588 FB 04-446, rev. 2 Last release: 28.11.2023...

  • Page 2: Table Of Contents

    Directory Foreword Safety Instructions Cleaning & Disinfection Operating Elements Before First Use Area of Application Startup Procedure Application Work Steps Work Positioning Infilling the Spray Liquid Insert Bur Adjusting the Speed Memory Buttons m1, m2, m3 Spray Drying Function/Changing the Bur Foot Switch Maintenance &...

  • Page 3: Foreword

    Foreword The Hyperios Chrome foot care unit was produced according to strict quality criteria and uses the latest technology in its design. The images in this manual may vary slightly from the product you have bought as we are constantly developing our products. This user manual includes a detailed description and explanation of how to use the Hy- perios Chrome unit.

  • Page 4: Safety Instructions

    Safety Instructions The equipment should only be used by trained operators, who know the function of the unit well. The installation of the working area has to correspond to the relevant regulations. Set up the unit in such a way, that the louvers are not covered and the extracted air can escape well.
  • Page 5 Safety Instructions Only when pulling the mains cable, you can ensure that the device will be completely disconnected from mains. Check the mains cable regularly for damages, and in case of such, let it change or repair from an authorized service center.
  • Page 6 Safety Instructions Only use distilled water plus a sterilizing additive (e.g. hadewe AquaHy, art. 8555). If you use other brands, pay attention to their manuals if you can use them for this purpose. Never use tap water or alcoholic fluid, or other burnable liquids.
  • Page 7 Safety Instructions Before using the equipment, assure that: • the tool can be pushed far enough into the chuck (test this with a dipstick and clean if necessary), • the inserted tool will not can while clamping • the tool stuck properly in the chuck •...
  • Page 8 Safety Instructions manufacturer or an authorized specialist. Maintenance records may be supplied to repair workshops and trained technicians upon request. Never remove the housing, while the equipment is plugged in as some components are live. A spare parts list may be supplied to qualified persons (repair workshops).

  • Page 9: Cleaning & Disinfection

    Cleaning & Disinfection The device is designed to be compatible with rotating instru- ments which do not penetrate the skin or mucosal or inad- vertently may still cause injuries. For this application, please ad- here to the cleaning and disinfection instructions provided below. After every treatment, please carry out these steps: •...

  • Page 10: Operating Elements

    Operating Elements 9 10 11 12 14 15 spray regulator knob turn ON/OFF spray (cleaning function in standby) decrease speed increase speed led speed display LED lights up during anticlockwise operation change direction of rotation m1, m2, m3: memory buttons for speed LED lights up when maintenance is due at the repair workshop 10 LED lights up when washer change is required 11 Button to reset the message "Washer change"...

  • Page 11: Before First Use

    Before First Use Please read through the instructions Startup Procedure carefully before using the unit and The working area must conform to carefully note the safety advice. Al- the conditions described. Set up the ways keep this manual accessible to unit in such a way, that the air slits any users of the drill.
  • Page 12 Before First Use If you have a foot switch, insert its Take up the handpiece. To use the plug into the port on the right of the handpiece and spray function, press device which displays this symbol the button (13) on the front of the unit.

  • Page 13: Application

    Application (13). The handpiece motor and Work Steps spray will turn off. The handpiece In the following section the order in can now be placed in its holder on which you should use the device is the right of the unit. Alternatively, described.

  • Page 14: Work Positioning

    Application Work Positioning The following images are examples of how to work on various parts of the foot. Always make sure that the foot is firmly gripped and that you can work freely and without strain.

  • Page 15: Infilling The Spray Liquid

    Application Infilling the Spray Liquid Switch off the device. Pull out the spray tank on its handle. Hold the cover of the tank in hand and un- screw the tank. Now fill it with dis- tilled water and anti-germ liquid, e.g., AquaHy (art.

  • Page 16: Insert Bur

    Application Insert Bur When turning off the unit or the spray Insert the bur until it stops. The function, the spray liquid is pumped handpiece is equipped with a chuck back completely into the tank from which can hold all burs with a diam- the hoses.

  • Page 17: Drying Function/Changing The Bur

    Foot Switch (art. 0970) Drying Function/ Commencement of foot switch Changing the Bur Only use the original hadewe foot Press key (13) and the handpiece switch to avoid damages. Insert the and spray will be turned off. Now plug of the foot switch into the socket...

  • Page 18: Maintenance & Care

    Maintenance & Care Washer Push the new washer in the top. handpiece equipped with a white washer (art. 4571). This washer has to be re- placed by a new one every 2 weeks (25 operation hours), unless ex- changing it, water could enter the handpiece and cause of damages of the internal parts.

  • Page 19: Cleaning Function

    Maintenance & Care Cleaning Function Cleaning the Chuck Use the cleaning function if the noz- Cleaning the chuck is not intended zle is blocked. Switch the device to for Hyperios Chrome. standby mode (15). Remove the wa- ter filter at first. (For its instructions see paragraph above.) Fill the tank Maintenance Overview with distilled water.

  • Page 20: Handling Instructions

    Any materials used by hadewe prevent a for- Working with high pres- mation of rust. In cases in sure will not improve the which a rust infestation was...

  • Page 21: Troubleshooting

    The bur/tool itself can be tested with the hadewe Bur Rubber ring under the knob twists while using it. → Twist it Shaft Tester (art. 4990) to see if it is bent.
  • Page 22 Troubleshooting After lengthy use unit does not Acceleration spray spray. stream. Unit is overheated. → Slots of Note: To reduce the starting the unit should not be covered time of the spray, turn the or blocked. Let cool down the spray regulator on Max.

  • Page 23: Technical Details

    2,35 mm in accordance with EN ISO 1797. 2014/30/EU EMC directive 2014/35/EU low voltage directive Operating Time hadewe GmbH – Grambartstraße 10 The device is designed for extended 30165 Hannover usage.
  • Page 24 Old devices bought in Germany that correspond to the electronic device law should be sent directly to the manufacturer (hadewe). We will dis- pose of the device free of charge. The devices should not be taken to public disposal plants (WEEE Reg.
  • Page 25 Technical Details Bildzeichen water filter change required Caution! confirm the washer change Important Note! start / pause Follow instructions for use! alternating current temperature limit direct current (indicates the lower and upper temperature limit) safety fuse air pressure: permissible range protection class II air humidity: permissible range socket foot switch...
  • Page 28 GmbH Grambartstraße 10 30165 Hannover Germany info@hadewe.de www.hadewe.de...
