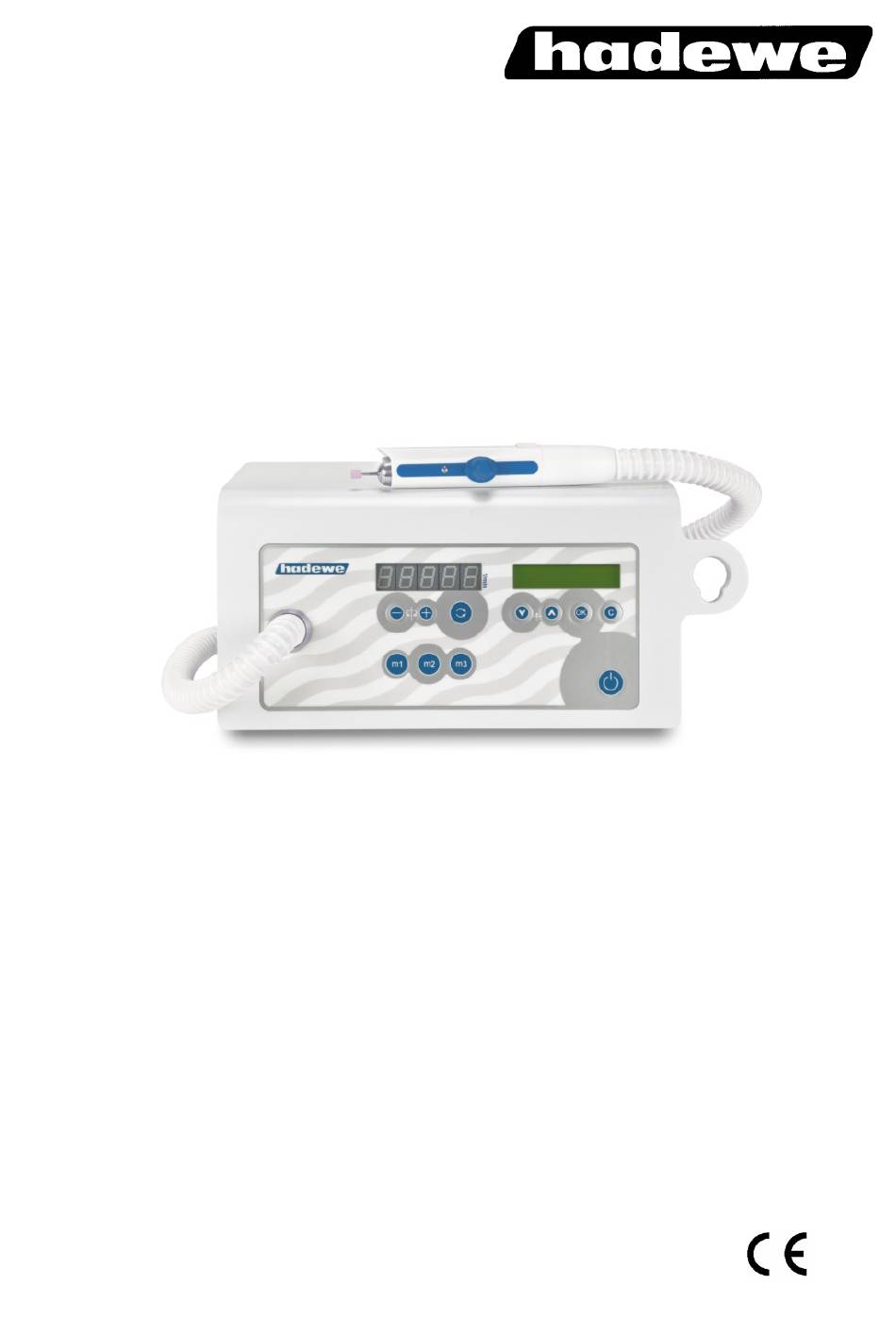

- Page 1 Manual Auroria Art. 0976 FB 04-266 Rev. 4 Date: 23.01.2019...
-
Page 2: Table Of Contents
Directory Foreword Safety Instructions Cleaning & Disinfection Getting to Know the Unit Before First Use Area of Application Operation Operating Steps Working Positioning Suction Exchange Micro Filter Exchange Control Unit Filter Clamping the Bur/Tool Setting up the Speed Memory Buttons m1, m2, m3 Button on the Handpiece Foot Switch LCD Display... -
Page 3: Foreword
Short description of functions The Auroria is a device for the treatment of callus and nails. The handpiece is compati- ble with rotating tools such as diamond polishers, steel cutters and ceramic cutters. -
Page 4: Safety Instructions
Safety Instructions The installation of the working area has to cor- respond to the relevant regulations. Set up the unit in such a way, that the air slits are not blocked and the extracted air can escape well. To avoid the risk of electrocution only connect the device to the mains power supply. - Page 5 Safety Instructions service center. Prevent your hair from wrapping itself around moving parts. If applicable, wear a hair net. When working with materials, which might cre- ate dust or moisture, use a drilling unit with suction or spray technique. Wear a nose and mouth protection.
- Page 6 Safety Instructions knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards in- volved. Cleaning and user maintenance shall not be made by children without supervision. Attention! Only use burs/tools which are permit- ted for speed level saved under m1 –...
- Page 7 Safety Instructions When changing the filter, it is advisable to wear a face mask conforming to EN 14683 type IIR or EN 149 FFP 2. For safety reasons, do not change the tool while the motor is running. Switch off the unit immediately if the bur comes off during the treatment itself.
- Page 8 Safety Instructions Always follow the operating instructions. Do not carry out any repairs, modifications or mainte- nance work yourself. This is only to be accom- plished by an authorized specialist. The mains cable may also only be changed by the manu- facturer, or an authorized specialist.
-
Page 9: Cleaning & Disinfection
Cleaning & Disinfection The device is designed to be compatible with rotating in- struments which do not penetrate the skin or mucosal or inadvertently may still cause injuries. For this application please adhere to the cleaning and disinfection instructions provided be- low. -
Page 10: Getting To Know The Unit
Getting to Know the Unit power switch reduce speed increase speed change direction of speed display for speed [rpm] display for suction level, time, change of the filter bag etc. menu button down and reducing the suction level menu button up and increasing the suction level menu button OK menu button stop memory button m1 for speed/suction level... -
Page 11: Before First Use
Before First Use Please read through the instructions Operation carefully before using the unit and The working area must conform to carefully note the safety advice. the conditions described. Set up the Always keep this manual accessible unit in such a way, that the air slits to any users of the drill. - Page 12 Before First Use If you have a foot switch, insert its you can adjust that at the control plug into the port on the right of the unit. device which displays this symbol Check that the filter bag and dust filter are correctly fitted.
-
Page 13: Use
Operating Steps saved using memory buttons m2 and m3. In the following section the order in which you should use the device is After choosing rotation speed and described. Additionally, the individ- suction power you can start work- ual steps will be explained in detail. ing. -
Page 14: Working Positioning
Work Positioning The following images are examples of how to work on various parts of the foot. Always make sure that the foot is firmly gripped and that you can work freely and without strain. -
Page 16: Suction
Suction Pull out the lid of the dust chamber and remove the old filter. Hold the Switch on the suction with button filter in the middle to prevent it from (8). The suction power can be regu- bending and sliding off (see picture lated in 5 levels. -
Page 17: Clamping The Bur/Tool
Clamping the Bur/Tool tion of speed/suction level, simply press button m1 again. Further The handpiece is equipped with a combinations can be saved with m2 chuck, which can hold all burs with and m3. a diameter of 2.35 mm (this is the diameter usually used for tools in Attention! Only... -
Page 18: Foot Switch
With the buttons Operation of the foot switch and you can go through the list Only use the original hadewe foot and select a setting by pressing OK. switch, to avoid any damages. In- With “C” you can stop a function to sert the plug of the foot switch into return to the main menu. - Page 19 Select from the list “maintenance”. Approve with the button “OK”. The date of the last service will appear. If you send in the device for maintenance, hadewe or an ap- proved service agent will update the date of service for you. Setting the time Select from the menu list “time”.
-
Page 20: Messages
A maintenance by an approved hadewe service agent is recommended after a year. The control system will determine the period between the last mainte- nance and shows a recommenda- tion for a new service. -
Page 21: Maintenance & Care
Maintenance & Care Cleaning the Chuck In the process of time, some dirt might collect itself within the hand- piece and might affect its functions. Therefore, the chuck has to be cleaned monthly. How to remove the chuck Screw off the top of the handpiece To assemble the chuck, follow the with the spanner shown in the pic- steps in reverse order. -
Page 22: Maintenance Overview
Maintenance & Care Rinse the chuck very well, and make sure you let it dry well after- wards. Cover your index finger with a very little amount (just a drop) of oil and rub in between your thumb and index finger. Dab off the oil until your fingers is only covered with a very thin film of oil. -
Page 23: Handling Instructions
A second hadewe prevend a formation disadvantage is the stronger impact of rust. In cases in which a rust on the ball bearings and the motor, infestation was found within the... -
Page 24: Troubleshooting
The bur/tool itself can be tested with Foot switch is used constantly or the hadewe Bur Shaft Tester faulty. → Pull out the socket of (art. 4990) to see if it is bent. the foot switch to see if this is the cause. -
Page 25: Technical Data
Air pressure: 700 hPa to 1060 hPa 2014/30/EU directive EMC 2014/35/EU low voltage directive Storage: Temp: -5°C to +55°C hadewe GmbH – Grambartstraße 10 – Rel. humidity: 10% to 95% 30165 Hannover (not condensed) Air pressure: 500 hPa to 1060 hPa... - Page 26 (WEEE Reg. No. DE20392713, b2b (no disconnection from main device). For disposal of this unit out power supply) of Germany, please contact the site where you bought this hadewe enter menu/ product. confirm with OK go back in menu/ Note for the disposal of the device/...
- Page 28 GmbH Grambartstraße 10 30165 Hannover Germany info@hadewe.de www.hadewe.de...
