Summary of Contents for hadewe Auroria 2

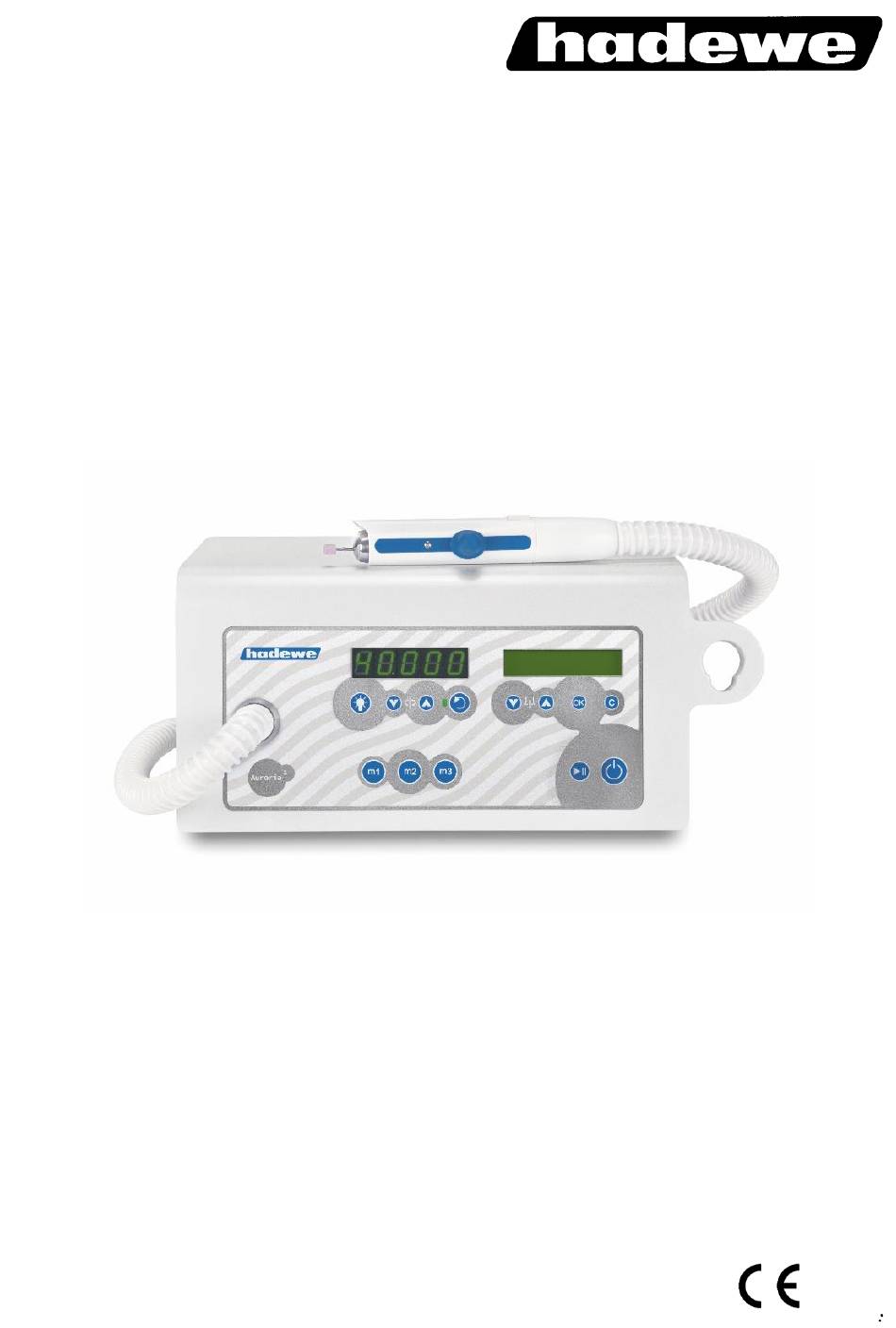

- Page 1 Manual Auroria 2 Art. 0986 FB 04-431 Rev. 1 Date: 04.12.2023...
-
Page 2: Table Of Contents
Directory Foreword Safety Instructions Cleaning & Disinfection Getting to Know the Unit Before First Use Area of Application Startup Procedure Work Steps Working Positioning Suction Exchange Micro Filter Exchange Control Unit Filter Clamping the Bur/Tool Setting up the Speed Memory Buttons m1, m2, m3 Button on the Handpiece Foot Switch LCD Display... -
Page 3: Foreword
Short description of functions The Auroria 2 is a device for the treatment of callus and nails. The handpiece is compat- ible with rotating tools such as diamond polishers, steel cutters and ceramic cutters. -
Page 4: Safety Instructions
Safety Instructions The installation of the working area has to cor- respond to the relevant regulations. Set up the unit in such a way, that the air slits are not blocked and the extracted air can escape well. To avoid the risk of electrocution only connect the device to the mains power supply. - Page 5 Safety Instructions center. Prevent your hair from wrapping itself around moving parts. If applicable, wear a hair net. When working with materials, which might cre- ate dust or moisture, use a drilling unit with suc- tion or spray technique. Wear a nose and mouth protection.
- Page 6 Safety Instructions or instruction concerning use of the appliance in a safe way and understand the hazards in- volved. Cleaning and user maintenance shall not be made by children without supervision. Attention! Only use burs/tools which are permit- ted for speed level saved under m1 – m3! To ensure that the bur/tool sits firmly in the chuck, do not work with tools which •...
- Page 7 Safety Instructions When changing the filter, it is advisable to wear a face mask conforming to EN 14683 type IIR or EN 149 FFP 2. For safety reasons, do not change the tool while the motor is running. Switch off the unit immediately if the bur comes off during the treatment itself.
- Page 8 Safety Instructions accomplished by an authorized specialist. The mains cable may also only be changed by the manufacturer, or an authorized specialist. Maintenance records may be supplied to repair workshops and trained technicians upon re- quest. Never remove the housing, especially not while the equipment is plugged into the socket, since some components are under electric volt- age.
-
Page 9: Cleaning & Disinfection
Cleaning & Disinfection The device is designed to be compatible with rotating instru- ments which do not penetrate the skin or mucosal or inad- vertently may still cause injuries. For this application please adhere to the cleaning and disinfection instructions provided below. After every treatment please carry out the following steps: •... -
Page 10: Getting To Know The Unit
Getting to Know the Unit power switch light ON/OFF reduce speed increase speed change direction of speed display for speed [rpm] display for suction level, time, change of the filter bag etc. menu button down and reducing the suction level menu button up ... -
Page 11: Before First Use
Before First Use Please read through the instructions Startup Procedure carefully before using the unit and The working area must conform to carefully note the safety advice. Al- the conditions described. Set up the ways keep this manual accessible to unit in such a way, that the air slits any users of the drill. - Page 12 Before First Use If you have a foot switch, insert its plug into the port on the right of the device which displays this symbol Check that the filter bag and dust fil- ter are correctly fitted. Ensure that the tool is fixed. On the left side of the device you will find the main power switch.
-
Page 13: Use
press m1. Other values can be Work Steps saved using memory buttons m2 In the following section the order in and m3. which you should use the device is described. Additionally, the individ- After choosing rotation speed and ual steps will be explained in detail. suction power you can start working. -
Page 14: Working Positioning
Work Positioning The following images are examples of how to work on various parts of the foot. Always make sure that the foot is firmly gripped and that you can work freely and without strain. -
Page 16: Suction
filter in the middle to prevent it from Suction bending and sliding off (see picture Switch on the suction with button (9). below). Therefore, you avoid it from The suction power can be regulated coming off again. in 5 levels. You will see the selected level in the display. -
Page 17: Clamping The Bur/Tool
button m1 again. Further combina- Clamping the Bur/Tool tions can be saved with m2 and m3. The handpiece is equipped with a chuck, which can hold all burs with a Attention! Only diameter of 2.35 mm (this is the di- burs/tools which are permit- ameter usually used for tools in po- ted for speed level saved... -
Page 18: Foot Switch
• setting the time, Operation of the foot switch • setting the date, Only use the original hadewe foot • choose your language. switch, to avoid any damages. Insert the plug of the foot switch into the Change of filter bag approval... - Page 19 Approve with the button “OK”. The date of the last service will appear. If you send in the device for mainte- nance, hadewe or an approved ser- vice agent will update the date of service for you. Setting the time Select from the menu list “time”.
-
Page 20: Messages
A maintenance by an ap- proved hadewe service agent recommended after a year. The control system will determine the period between the last mainte- nance and shows a recommenda- tion for a new service. -
Page 21: Maintenance & Care
Maintenance & Care Cleaning the Chuck In the process of time, some dirt might collect itself within the hand- piece and might affect its functions. Therefore, the chuck has to be cleaned monthly. How to remove the chuck Screw off the top of the handpiece To assemble the chuck, follow the with the spanner shown in the pic- steps in reverse order. -
Page 22: Maintenance Overview
Maintenance & Care sure you let it dry well afterwards. Cover your index finger with a very little amount (just a drop) of oil and rub in between your thumb and in- dex finger. Dab off the oil until your fingers is only covered with a very thin film of oil. -
Page 23: Handling Instructions
A second dis- hadewe prevend a formation advantage is the stronger impact on of rust. In cases in which a rust the ball bearings and the motor,... -
Page 24: Troubleshooting
Foot switch is used constantly or faulty. → Pull out the socket of the hadewe Bur Shaft Tester (art. 4990) to see if it is bent. the foot switch to see if this is the cause. -
Page 25: Technical Data
Air pressure: 700 hPa to 1060 hPa 2014/30/EU directive EMC 2014/35/EU low voltage directive Storage: Temp: -5°C to +55°C hadewe GmbH – Grambartstraße 10 – Rel. humidity: 10% to 95% 30165 Hannover (not condensed) Air pressure: 500 hPa to 1060 hPa... - Page 26 Old devices bought in Germany that correspond to the electronic device law should be sent directly to the manufacturer (hadewe). We will dis- pose of the device free of charge. The devices should not be taken to public disposal plants (WEEE Reg.
- Page 27 Technical Data Protective earthing Symbols Caution! type B applied part Important Note! socket foot switch Follow instructions for use! date of manufacture, name and address of the manufacturer temperature limit (indicates the lower and Do not dispose in household upper temperature limit) waste air pressure: permissible range...
- Page 28 GmbH Grambartstraße 10 30165 Hannover Germany info@hadewe.de www.hadewe.de...
