Directory Foreword Safety Instructions Cleaning & Disinfection Getting to Know the Unit Before Use Area of Application Fill Spray Liquid Tank Startup Procedure Application Work Steps Work Positioning Spray Liquid Insert Bur Adjusting the Speed Memory Buttons Spray Function Drying Function/Tool Change Foot Switch Maintenance &...

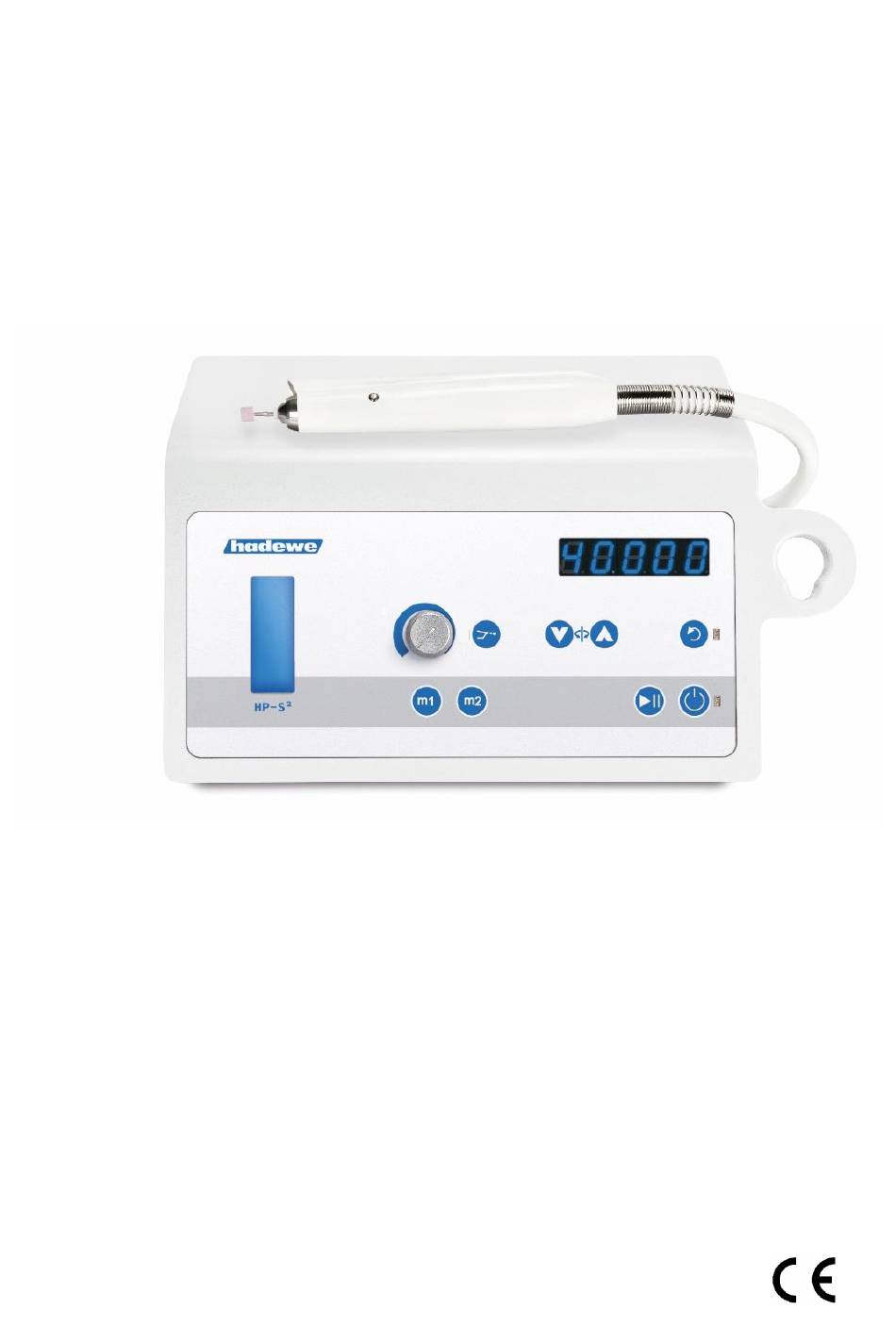

Foreword The foot care unit HP-S² was produced according to strict quality criteria and uses the latest technology in its design. The images in this manual may vary slightly from the product you have bought, as the products are constantly being developed. This user manual includes a detailed description and explanation of how to use the HP-S²...
Safety Instructions The installation of the working area has to correspond to the relevant regulations. Set up the unit in such a way, that the louvers are not covered and the extracted air can escape well. To avoid the risk of an electric shock, this device might only be connected to a power supply with protective conductor.
Page 5
Safety Instructions Prevent your hair from wrapping itself around moving parts. If applicable, wear a hair net. When working with materials which might create dust or moisture, use a drilling unit with suction or spray technique. Wear a nose and mouth protection.
Page 6
Safety Instructions always the danger of fire or explosion. Never refill the tank directly above the unit to avoid accidental spills of spray liquid on the unit. Change the spray liquid every day. Always add disinfection additive to the distilled water. Rinse the tank daily and fill it with fresh spray liquid every day.
Page 7
Safety Instructions Switch off the unit immediately if • the bur comes off during the treatment itself. • the motor blocks during the treatment. Empty the unit if it is not in use for a longer period of time (e.g. before vacations). Clean out the tank.
Page 8
Safety Instructions When the device is started from standby mode, it will start with the last used speed. If you change the tool, make sure that the last speed is recommended to the tool. Only use burs/tools which are permitted for speed level saved under M1 –...
Cleaning & Disinfection The device is designed to be compatible with rotating instruments which do not penetrate the skin or mucosal or inadvertently may still cause injuries. For this application, please adhere to the cleaning and disinfection instructions provided below. After every treatment, please carry out these steps: •...
Getting to Know the Unit spray regulator knob turn OFF/ON spray decrease speed increase speed changeover switch for clockwise or anticlockwise operation LED is ON during reverse rotation memory button for rotation speed M1, M2 Start/Stop button unit ON/OFF (standby) 10 standby LED...
Before Use Please read through the instructions on to the tank cover and unscrew the carefully before using the unit and tank container. Now fill it with carefully note the safety advice. distilled water and anti-germ liquid, Always keep this manual accessible e.g.
Before Use Make sure, that the tank is filled with Startup Procedure spray liquid. Ensure that the tool is The working area must conform to fixed. the conditions described. Position the device so that the operating On the back of the device you will buttons are easy to reach and the find the main power switch.
Application the job, press the standby button (9). Work Steps The handpiece motor and spray will In the following section the order in turn off. The handpiece can now be which you should use the device is placed in its holder on the right of the described.
Application Work Positioning The following images are examples of how to work on various parts of the foot. Always make sure that the foot is firmly gripped and that you can work freely and without strain.
Application Spray Liquid Switch off the device. Pull out the spray liquid tank. Hold on to the tank cover unscrew tank container. Now fill it with distilled water and anti-germ liquid, e.g. AquaHy (art. 8555). Do not exceed the maximum level when filling the tank.
Application Insert Bur Spray Function Insert the bur until it stops. The Turn on the spray function while handpiece is equipped with a chuck pushing switch (2). Now the spray which can hold all burs with a system will be filled automatically diameter of 2.35 mm.
Application Drying Function/Tool Change Foot Switch Press key (8) and the handpiece and Connecting with control unit spray will be turned off. Now only air Only use the original foot switch (art. will come out of the top of the 0970) to avoid damages.
Maintenance & Care Washer Filter handpiece Even smallest parts of dirt could equipped with a washer (art. 4571). block the nozzle, which sits in the This washer has to be replaced by a top. Avoiding such blockages, there new one every 2 weeks (25 is a spray liquid filter (art.
Maintenance & Care Cleaning Function Maintenance Overview Use the cleaning function if the What has to be How often? nozzle is blocked. Turn the unit off done? Done by using button (8). Remove the filter at whom? first. instructions paragraph above. changing the Every 2 weeks washer 4571...
Handling Instructions Always deposit Always make sure that you handpiece with do not let the handpiece fall downwards. This will prevent down or exposes it to any liquid from entering the handpiece. shocks. The ball bearings and the motor could be damaged by this. Never put the handpiece into any kind of liquid, and never Only work with tools, which...
Troubleshooting Handpiece vibrates, is very noisy Pull out the mains plug to reset and/or becomes warm in the front the device. part. After lengthy use unit does not Use of bent burs/tools. → Use a spray. different bur/tool to test this. The Unit is overheated.
2,35 mm in accordance with 2014/30/EU EMC directive DIN EN ISO 1797-1. 2014/35/EU low voltage directive hadewe GmbH – Grambartstraße 10 Operating Time 30165 Hannover The device is designed for extended usage.
Page 24
Technical Data Disposal For orderly disposal of your unit, please contact your distributor in your country. Safety Check A safety check must be done in compliance with the regulations of the country where the device is used. The inspection interval is once a year.
Page 25
Technical Data Symbol Caution! Important Note! Follow instructions for use! temperature limit (indicates the lower and upper temperature limit) air pressure: permissible range air humidity: permissible range Keep dry! alternating current direct current safety fuse type B applied part socket foot switch date of manufacture start/ stop m1, m2...
