- Page 1 Manual Hyperios PLUS Art. 0587 FB 04-411, rev. 1 Last release: 16.11.2023...
-
Page 2: Table Of Contents
Directory Foreword Safety Instructions Cleaning & Disinfection Operating Elements Before First Use Area of Application Operation Application Operation Steps Work Positioning Infilling the Spray Liquid Insert Bur Adjusting the Speed Memory Buttons m1, m2, m3 Spray Drying Function/Changing the Bur Foot Switch Maintenance &... -
Page 3: Foreword

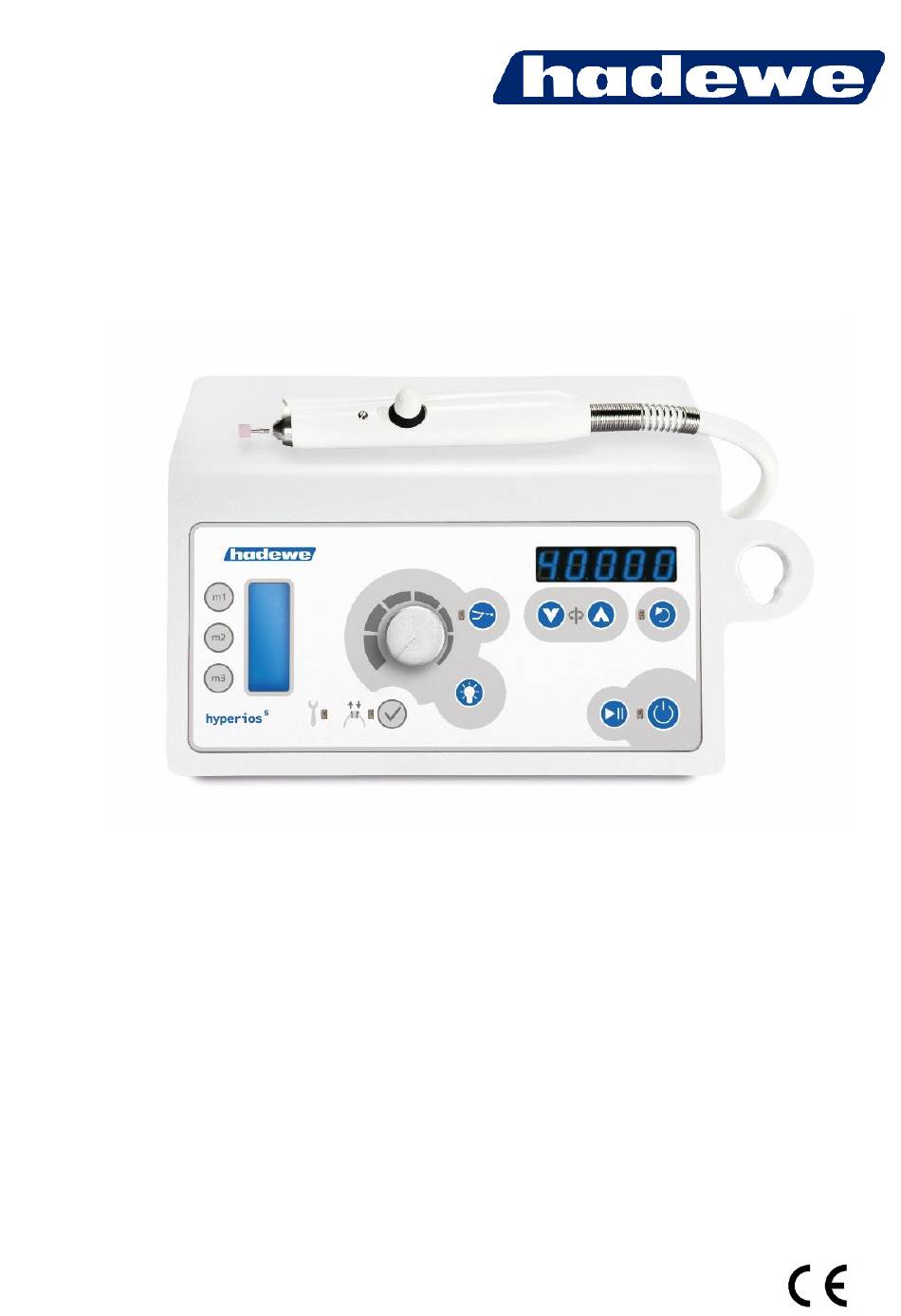

Foreword The Hyperios Plus foot care unit was produced according to strict quality criteria and uses the latest technology in its design. The images in this manual may vary slightly from the product you have bought as we are constantly developing our products. This user manual includes a detailed description and explanation of how to use the Hy- perios Plus unit. -
Page 4: Safety Instructions
Safety Instructions The equipment should only be used by trained operators, who know the function of the unit well. The installation of the working area has to correspond to the relevant regulations. Set up the unit in such a way, that the louvers are not covered and the extracted air can escape well. - Page 5 Safety Instructions Only when pulling the mains cable, you can ensure that the device will be completely disconnected from mains. Check the mains cable regularly for damages, and in case of such, let it change or repair from an authorized service center.
- Page 6 Safety Instructions Only use distilled water plus a sterilizing additive (e.g. hadewe AquaHy, art. 8555). If you use other brands, pay attention to their manuals if you can use them for this purpose. Never use tap water or alcoholic fluid, or other burnable liquids.
- Page 7 Safety Instructions Before using the equipment, assure that: • the tool can be pushed far enough into the chuck (test this with a dipstick and clean if necessary), • the inserted tool will not can while clamping • the tool stuck properly in the chuck •...
- Page 8 Safety Instructions manufacturer or an authorized specialist. Maintenance records may be supplied to repair workshops and trained technicians upon request. Never remove the housing, while the equipment is plugged in as some components are live. A spare parts list may be supplied to qualified persons (repair workshops).
-
Page 9: Cleaning & Disinfection
Cleaning & Disinfection The device is designed to be compatible with rotating instru- ments which do not penetrate the skin or mucosal or inad- vertently may still cause injuries. For this application, please ad- here to the cleaning and disinfection instructions provided below. After every treatment, please carry out these steps: •... -
Page 10: Operating Elements
Operating Elements 9 10 14 15 spray regulator knob turn ON/OFF spray (cleaning function in standby) decrease speed increase speed led speed display LED lights up during anticlockwise operation change direction of rotation m1, m2, m3: memory buttons for speed LED lights up when maintenance is due at the repair workshop 10 LED lights up when washer change is required 11 Button to reset the message "Washer change"... -
Page 11: Before First Use
Before First Use Please read through the instructions Operation carefully before using the unit and The working area must conform to carefully note the safety advice. Al- the conditions described. Set up the ways keep this manual accessible to unit in such a way, that the air slits any users of the drill. - Page 12 Before First Use If you have a foot switch, insert its Take up the handpiece. To use the plug into the port on the right of the handpiece and spray function, press device which displays this symbol the button (13) on the front of the unit.
-
Page 13: Application
Application (13). The handpiece motor and Operation Steps spray will turn off. The handpiece In the following section the order in can now be placed in its holder on which you should use the device is the right of the unit. Alternatively, described. -
Page 14: Work Positioning
Application Work Positioning The following images are examples of how to work on various parts of the foot. Always make sure that the foot is firmly gripped and that you can work freely and without strain. -
Page 15: Infilling The Spray Liquid
Application Infilling the Spray Liquid Switch off the device. Pull out the spray tank on its handle. Hold the cover of the tank in hand and un- screw the tank. Now fill it with dis- tilled water and anti-germ liquid, e.g., AquaHy (art. -
Page 16: Insert Bur
Application For security reasons, only Insert Bur change the tool if the hand- The handpiece is equipped with a piece is turned off. chuck, that can hold tools that are commonly used in foot care. Tools may only be inserted when the Adjusting the Speed handpiece is turned off. -
Page 17: Spray
(2). Now the spray Commencement of foot switch system will be filled automatically Only use the original hadewe foot and a strong spray stream will be switch to avoid damages. Insert the blown out of the handpiece for the plug of the foot switch into the socket first 15 sec. -
Page 18: Maintenance & Care
Maintenance & Care Washer Water Filter handpiece Even smallest parts of dirt could equipped with a white washer (art. block the nozzle, which sits in the 4571). This washer has to be re- top. Avoiding such blockages, there placed by a new one every 25 oper- is a water filter installed in the cap of ation hours, unless exchanging it, the tank. -
Page 19: Cleaning Function
Maintenance & Care Cleaning Function Cleaning the Chuck Use the cleaning function if the noz- Because of the washer, very little dirt zle is blocked. Switch the device to might enter the handpiece. In the standby mode (15). Remove the wa- curse of the time, dirt can appear ter filter at first. -
Page 20: Maintenance Overview
Maintenance & Care Cover your index finger with a very little amount (just a drop) of oil and rub in between your thumb and in- dex finger. Dab off the oil until your fingers is only covered with a very thin film of oil. -
Page 21: Handling Instructions
Any materials used by hadewe prevent a for- Working with high pres- mation of rust. In cases in sure will not improve the which a rust infestation was... -
Page 22: Troubleshooting
The bur/tool itself can be tested with the hadewe Bur Rubber ring under the knob twists while using it. → Twist it Shaft Tester (art. 4990) to see if it is bent. - Page 23 Troubleshooting After lengthy use unit does not Note: To reduce the starting spray. time of the spray, turn the Unit is overheated. → Slots of spray regulator on Max. After the unit should not be covered the spray started, adjust the or blocked.
-
Page 24: Technical Details
2,35 mm in accordance with EN ISO 1797. 2014/30/EU EMC directive 2014/35/EU low voltage directive Operating Time hadewe GmbH – Grambartstraße 10 The device is designed for extended 30165 Hannover usage. - Page 25 Old devices bought in Germany that correspond to the electronic device law should be sent directly to the manufacturer (hadewe). We will dis- pose of the device free of charge. The devices should not be taken to public disposal plants (WEEE Reg.
- Page 26 Technical Details Bildzeichen water filter change required Caution! confirm the washer change Important Note! start / pause Follow instructions for use! alternating current temperature limit direct current (indicates the lower and upper temperature limit) safety fuse air pressure: permissible range protection class II air humidity: permissible range socket foot switch...
