  • Page 1 Manual SB-40 Chrome Art.: 0984 FB 04-442, Rev.1 Date: 28.11.2023...
  • Page 2: Table Of Contents

    Directory Foreword Safety Instructions Cleaning & Disinfection Getting to Know the Unit Before First Use Area of Application Startup Procedure Application Work Steps Working Positioning Suction Exchange Micro Filter Exchange Control Unit Filter Clamping the Bur/Tool Setting up the Speed Foot Switch Maintenance &...
  • Page 3: Foreword

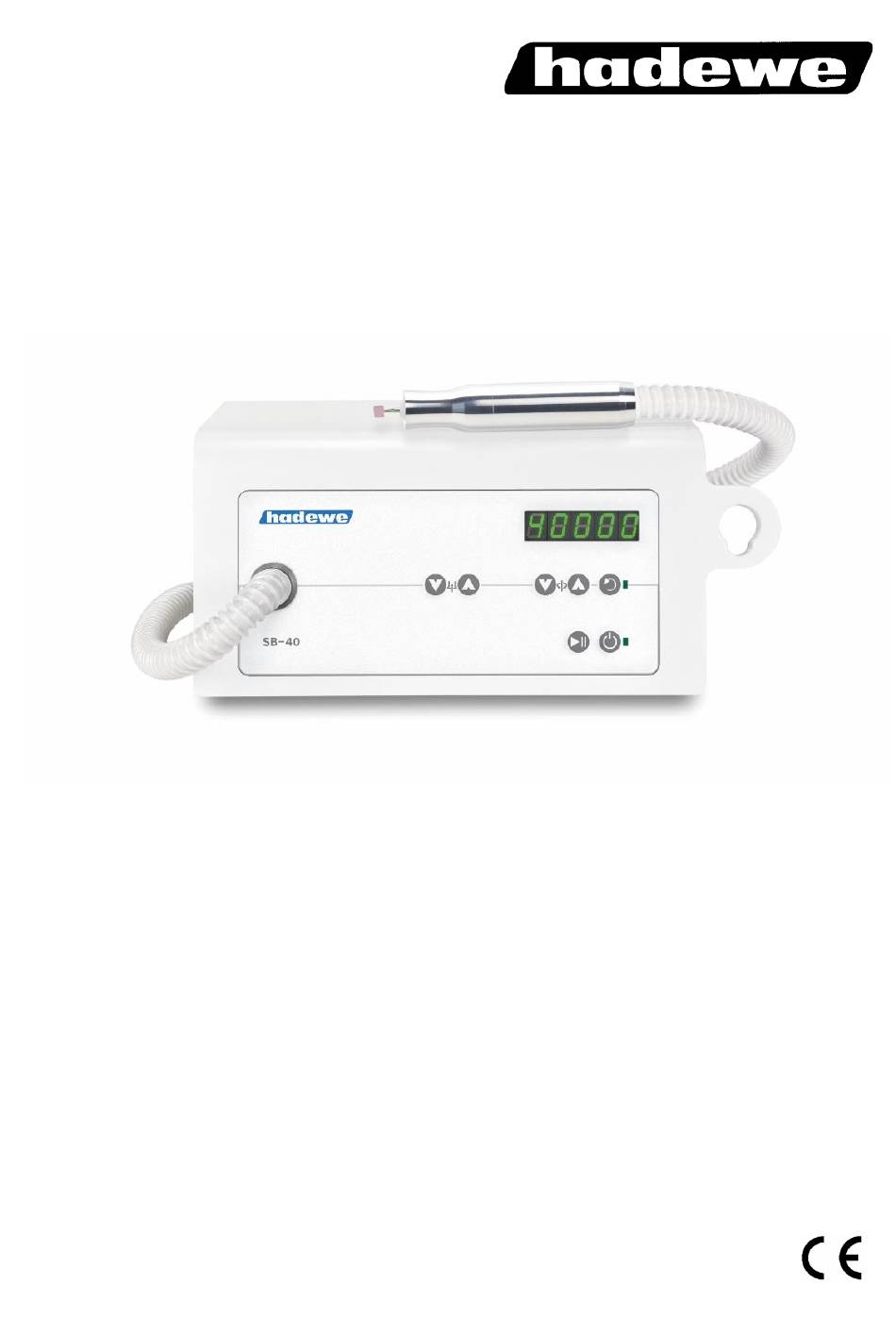

    Short description of functions The SB-40 Chrome is a device for the treatment of callus and nails. The handpiece is compatible with rotating tools such as diamond polishers, steel cutters and ceramic cut- ters.
  • Page 4: Safety Instructions

    Safety Instructions The equipment should only be used by trained operators. The installation of the working area has to cor- respond to the relevant regulations. Set up the unit in such a way, that the air slits are not blocked and the extracted air can escape well. To avoid the risk of electrocution only connect the device to the mains power supply.
  • Page 5 Safety Instructions service center. Prevent your hair from wrapping itself around moving parts. If applicable, wear a hair net. When working with materials, which might create dust or moisture, use a drilling unit with suction or spray technique. Wear a nose and mouth protection.
  • Page 6 Safety Instructions chuck (test this with a dipstick and clean if necessary), • the inserted tool sits properly in the chuck and will not cant/jam while clamping it, • the tool is approved for using it at the maxi- mum speed (see manufacturer’s instruc- tions) or only use the speed required by the instrument, •...
  • Page 7 Safety Instructions Children should be supervised not to play with the appliance. This appliance can be used by children aged from 8 years and above and per- sons with reduced physical, sensory or mental capabilities lack experience knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards in- volved.
  • Page 8: Cleaning & Disinfection

    Cleaning & Disinfection The device is designed to be compatible with rotating instru- ments which do not penetrate the skin or mucosal or inad- vertently may still cause injuries. For this application please adhere to the cleaning and disinfection instructions provided below. After every treatment please carry out the following steps: •...
  • Page 9: Getting To Know The Unit

    Getting to Know the Unit 10 11 12 decrease the suction output increase the suction output reduce the speed increase the speed display of speed/suction level change direction of rotation LED is ON during reverse rotation main switch START/STOP switch ON/OFF button (Standby) standby LED connecting socket for foot switch...
  • Page 10: Before First Use

    Before First Use Please read through the instructions Startup Procedure carefully before using the unit and The working area must conform to carefully note the safety advice. Al- the conditions described. Set up the ways keep this manual accessible to unit in such a way, that the air slits any users of the drill.
  • Page 11 Before First Use If you have a foot switch, insert its The device is now on standby. Pick plug into the port on the right of the up the handpiece. Should the hand- device which displays this symbol piece be twisted by the hose you can adjust that at the control unit.
  • Page 12: Application

    Application holder on the right of the unit. If you Work Steps want to end the work completely, In the following section the order in use the standby key (10). The dis- which you should use the device is play will then also switch off. described.
  • Page 13: Working Positioning

    Application Work Positioning The following images are examples of how to work on various parts of the foot. Always make sure that the foot is firmly gripped and that you can work freely and without strain.
  • Page 14 Application...
  • Page 15: Suction

    Application filter (art. 5115) bag and push your Suction finger into the opening in the front. Switch on the suction with button (2). The suction output can be regulated in 5 levels. You will see the selected level in the display. Level 0 would mean that the suction is turned off.
  • Page 16: Exchange Control Unit Filter

    Foot Switch (art. 0970) place the new one in its holder (see Operation of the foot switch picture). Only use the original hadewe foot switch, to avoid any damages. Insert the plug of the foot switch into the socket with the symbol...
  • Page 17: Maintenance & Care

    Maintenance & Care Turn the drill clockwise while you Cleaning the Clamping hold fast the white plastic part: System When inserting the instruments, it may happen that dust enters the clamping system. This may cause that instruments can no longer be in- serted deep enough and that a tight grip is no longer granted.
  • Page 18: Maintenance Overview

    Maintenance & Care Maintenance Overview What has to be How often? done? Done by whom? cleaning the chuck monthly by user changing the filter every 50 hours 5115 or 5179 of operation by user (check after each 10 hours) changing the control every 200 hours unit filter of operation...
  • Page 19: Handling Instructions

    A second of rust. In cases in which a disadvantage is the stronger impact rust infestation was found within the...
  • Page 20: Troubleshooting

    Pull out the mains plug to reset the bur/tool itself can be tested with the device. hadewe Bur Shaft Tester (art. 4990) to see if it is bent. The unit shows different sound levels Maximum allowed speed of the tool at different sites of use.
  • Page 21: Technical Details

    Technical Details 0984 SB-40 Chrome total weight: 3,8 kg dimension: W273xH142xD186 mm incl. exterior parts: W313xH142xD235mm input: 230 V~, 50 Hz power consumption: 0,9 A vacuum: 2,9 - 5,8 kPa fuse primary: F1: 315 mA time delayed safety fuse F2, F3: 3,15 A time delayed safety fuse fuse sec.: thermal fuse...
  • Page 22 We declare under our sole responsi- bility, that the product 0984, to which this declaration relates, is conform to the following standards or normative documents: 2014/30/EU directive EMC 2014/35/EU low voltage directive hadewe GmbH – Grambartstraße 10 – 30165 Hannover...
  • Page 23 Old devices bought in Germany that correspond to the electronic device air pressure: permissible law should be sent directly to the range manufacturer (hadewe). We will dis- pose of the device free of charge. air humidity: permissible The devices should not be taken to range public disposal plants (WEEE Reg.-...
  • Page 24 GmbH Grambartstraße 10 30165 Hannover Germany info@hadewe.de www.hadewe.de...
