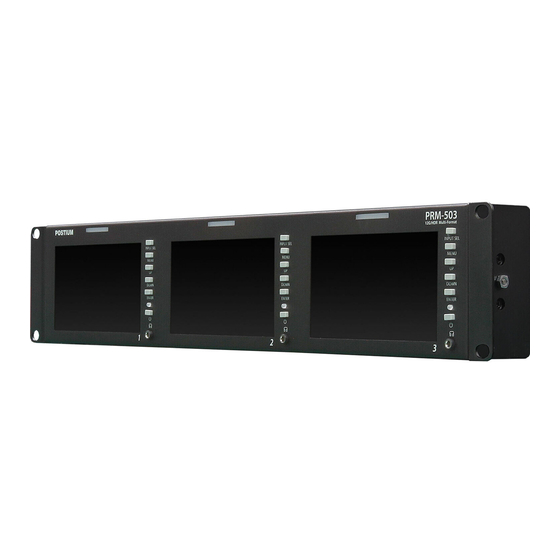

User Manual
PRM-12G Series
12G Multi-Channel Rack Monitors
Operational Instructions
PRM-702
PRM-503
Ver.24.11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRM-12G Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Postium PRM-12G Series

Summary of Contents for Postium PRM-12G Series

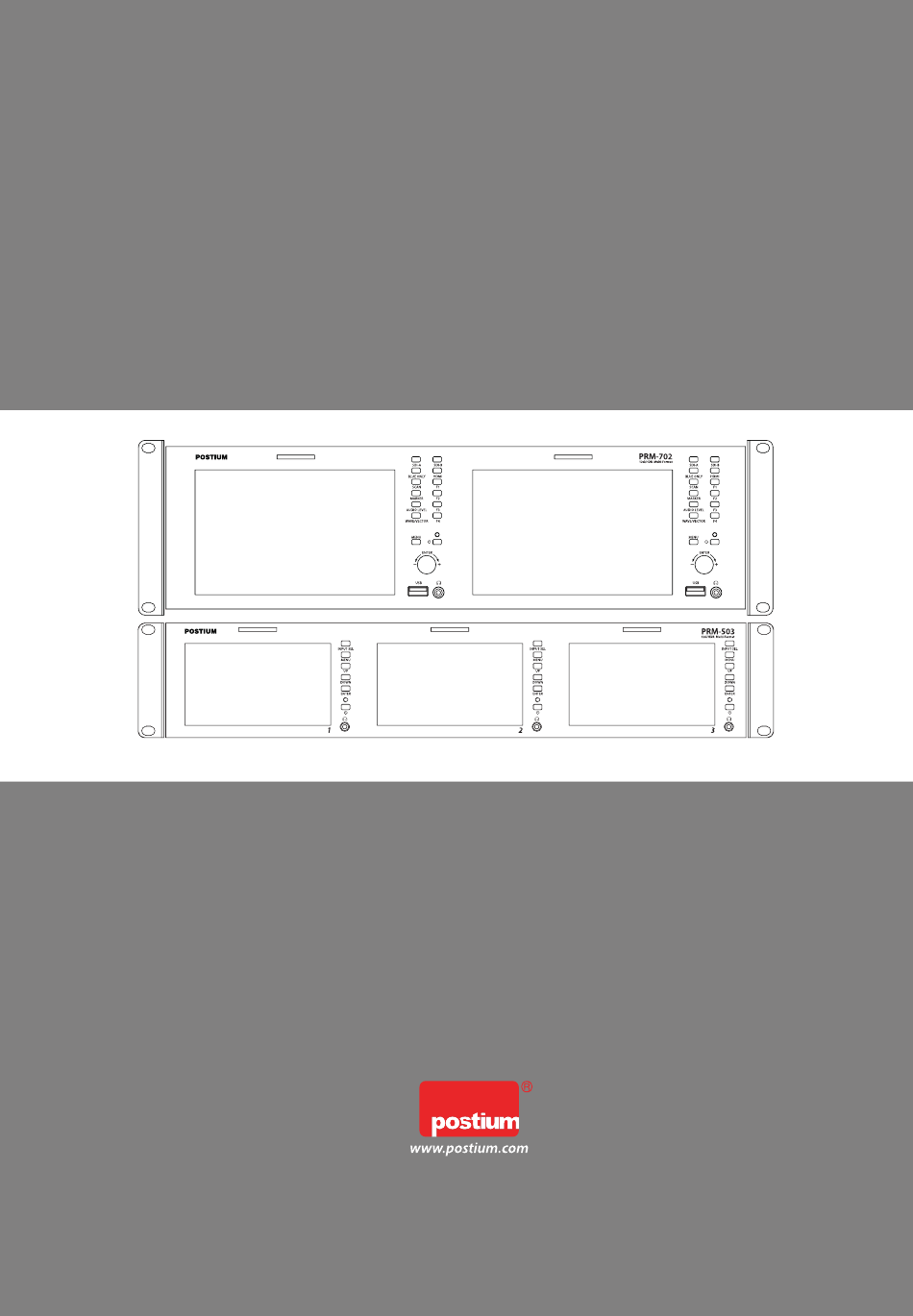

  • Page 1 User Manual PRM-12G Series 12G Multi-Channel Rack Monitors Operational Instructions PRM-702 PRM-503 Ver.24.11...

  • Page 2: Table Of Contents

    12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional Table of Contents 1. Precaution 2. Main Features 3. Location and Function of Parts and Controls Front Panel (PRM-702) Front Panel (PRM-503) Rear Panel 4. Using the Menu 5. Adjustment Using the Menu 6.

  • Page 3: Precaution

    12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional 1. Precaution Always use set voltage. DC 12V 5A All these instruc ons should be read and understood before opera ng the unit. If liquid is spilled on or impacts this product, please disconnect the product immediately and seek professional help before con nued use.
  • Page 4 12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional Do not a empt to service the product yourself. Removing covers can expose you to high voltage and other dangerous condi ons. Request a qualified service person to perform servicing. When the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteris cs and performance as the original parts.

  • Page 5: Main Features

    12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional 2. Main Features PRM 12G RACK Monitor Series unit has the following features: - Versa le HD/3G/4K Input Capability This monitor is equipped with standard 12G-SDI input interface(x2), HDMI. - Suppor ng 12G/6G-SDI(4K) 2 Channel - HDR(High Dynamic Range) display suppor ng PQ EOTF(ST 2084), Hybrid Log Gamma, S-Log3 - Gamma Selec on (1.0 ~ 3.0) - Color Temperature(3200K, 5500K, 6500K, 9300K, USER 1/2/3)

  • Page 6: Location And Function Of Parts And Controls

    12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional 3. Location and Function of Parts and Controls Front Panel of PRM-702 A : Input select Bu ons Press to monitor the signal input to each connector. [SDI-A] Bu on - Press the bu on to select SDI-A input for one channel. [SDI-B] Bu on - Press the bu on to select SDI-A input for one channel.

  • Page 7: Front Panel (Prm-503)

    12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional E : Menu Opera on Bu ons Displays or sets the on-screen menu. [MENU] Bu on - Ac vates and deac vates the display of the Main Menu. - When the on-screen menu is not displayed, if this bu on is pressed the main menu is display. When the menu is displayed, press the bu on to return to the previous menu.

  • Page 8: Rear Panel

    12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional Rear Panel of PRM-702 Rear Panel of PRM-503 A : SDI IN (SDI Input) connectors (BNC) Input connectors for SDI signals. B : SDI OUT (SDI Output) connectors (BNC) Output connectors for SDI signals. Each connector outputs the signal which is SDI-A, SDI-B input to the corresponding SDI IN connector.
  • Page 9 12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional E : SERIAL REMOTE IN/OUT connector (RJ-45) Used for the future func on expansion. the external UMD(IMD) equipment and controls the monitor. F : DC IN terminal Connects the DC power supply to the monitor. DC 12V(5A) PRM-702 DC IN Socket PRM-503 DC IN Socket...

  • Page 10: Using The Menu

    12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional 4. Using the Menu This monitor is equipped with an OSD menu to make various adjustments and se ngs such as picture control, input se ng, set se ng change, etc. 1.

  • Page 11: Adjustment Using The Menu

    12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional 5. Adjustment Using the Menus The OSD menu of this monitor consists of the following items. Status menu (To indicate the current se ngs) Color Temp./Color Space/Gamma menu Format Color Temp Color Temp Manual Adjustment Brightness...
  • Page 12 12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional User Configura on menu WFM/Vector Se ng User Preset Se ng WFM/Vector Load Type Save Intensity Transparency Func on Bu on Se ng Color F1 Bu on Posi on F2 Bu on F3 Bu on System Se ng F4 Bu on...
  • Page 13 12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional Security Se ng Remote menu Parallel Remote Key Lock 1 Pin Password User Parameter Lock 2 Pin Change Password 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin Monitor ID In-Monitor Display Se ng IMD Type...

  • Page 14: Osd Menu Operations

    12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional 6. OSD Menu Operations Status Menu The Status menu displays the current status of the Page 3/4 monitor. The following items are displayed. Page 1/4 SDI Input SDI Payload ID Iden fier Sampling Format Picture Rate...

  • Page 15: Color Temp/Color Space/Gamma Menu

    12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional Color Temp/Color Space/Gamma Menu These menus are used for adjus ng or se ng the Page 2/3 color temperature, color space or gamma of the picture. Page 1/3 Color Space Selects the color space from among [ITU-R BT.709], [SMPTE-C],[EBU], [DCI-P3], [ITU-R Color Temp.
  • Page 16 12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional Color Temp/Color Space/Gamma Menu ST-2084 10,000 - ToneMappingPQ-1,000/4,000/10,000: As you can see in the graph below, the data level is Tone mapping mode can be set to 1,000, 4,000, expressed only up to 1000 cd/m² within the panel or 10,000.

  • Page 17: Camera Assist Menu

    12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional Color Temp/Color Space/Gamma Menu Camera Assist Menu Page 1/2 *Back Light Adjusts the level of the back light level. If the back light value is increased, the screen becomes brighter. ** If the se ng in Color Temp. menu and Color Space menu is changed, the value of Back Light returns to the default value of the color calibra on in the factory.
  • Page 18 12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional Camera Assist Menu Page 2/2 False Color Comparison Allows the user to divide the picture side by side, and compare the original image on the le half and the False Color image on the right half. Wipe Posion Adjusts the boundary line of the le and right area.
  • Page 19 12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional User Configura on Menu User Configura on consists of the adjustment Page 2/7 menus such as[User Preset Se ng],[Func on Bu on Se ng],[Input Se ng], [Output Se ng], [Speaker Out / Audio Level Meter Se ng], [Marker Se ng],[WFM/Vector Se ng], [Closed Cap on Se ng], [System Se ng].
  • Page 20 12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional User Configura on Menu User Configura on Menu Page 3/7 Page 4/7 Marker Se ng Speaker / ALM Se ng Marker - Selects the audio channel of the SDI & HDMI - Selects On to display the marker, and Off...
  • Page 21 12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional Page 6/7 Page 5/7 WFM/Vector Se ng Marker Se ng 2/2 This func on is ac vated when the “Aspect Marker” WFM/Vector is set [Custom]. - Select [On] to display the [WFM/Vector] and Menu >...

  • Page 22: Remote Menu

    12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional User Configura on Menu Remote Menu Page 7/7 Page 1/2 System Se ng Parallel Remote Internal Signal Selects the Parallel Remote connector pins for Generates the White Pa ern internally. which you want to change the func on. The selectable range is from 100%(White) Various func ons can be assigned to pin 1 to 6.
  • Page 23 12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional Remote Menu Page 2/2 L-Tally Color - Selects the color of le tally lamp displayed in IMD. - The user can select from among [White], [Gray], [Red], [Green], [Blue], [Yellow], [Cyan], [Magenta]. R-Tally Color - Selects the color of right tally lamp displayed in IMD.

  • Page 24: Security Menu

    12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional Security Menu Page 1/1 Password Security -This func on allows the user to protect the Security Setting se ng values through password. Key Lock : -When the Password lock is applied, the Password : * * * * func ons and the se ng values can be...

  • Page 25: Available Signal Formats

    12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional 8. Available Signal Formats This monitor is applicable to the following signal formats Single HD-SDI Signal System Signal Format 1920 x 1080 / 4:2:2 YCbCr 10bit 23.98, 24, 25, 29.97, 30p/Psf, 50, 59.94, 60i 2048 x 1080 / 4:2:2 YCbCr 10bit 23.98, 24, 25, 29.97, 30p/Psf...
  • Page 26 12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional HDMI Signal System Signal Format 720 x 480p@59.94 / 60 720 x 576p@50 4:4:4 RGB 8 / 10 / 12bit 1280 x 720p@50 / 59.94 / 60 4:4:4 YCbCr 8 / 10 / 12bit 1920 x 1080i@50 / 59.94 / 60 4:2:2 YCbCr 12bit 1920 x 1080p@23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60...

  • Page 27: Product Specifications

    12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional 9. Product Specifications PRM-702 Spec PRM-702 Screen number / Rack Size(19”) Dual / 3RU Size 7" Resolution 1920 x 1200 Active Area (W x H) 151.2mm (W) X94.5(H)mm Pixel Pitch 0.078mm x 0.078mm Display Color 16.7M...
  • Page 28 12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional PRM-503 Spec PRM-503 Screen number / Rack Size(19”) Triple / 2RU Size 5" Resolu on 1920 x 1080 Ac ve Area (W x H) 109.58mm (W) X61.64(H)mm Pixel Pitch 0.057mmX0.057mm Display Color 16.7M Viewing Angle...

  • Page 29: Product Dimensions

    12G Multi-Channel Rack Monitors PRM- 12G Series 12G-SDI Professional 10. Product Dimensions PRM-702 Dimensions(With RMK) : 476.5 x 132.3 x 58.5 mm / 18.88 x 5.2 x 2.30 inch. Weight : 2.5kg / 5.511lbs PRM-503 Dimensions(With RMK) : 476.5 x 76.2 x 63 mm / 18.88 x 3 x 2.48 inch. Weight : 2.3 Kg / 5.07 lb...
  • Page 30 208, Building A, Samsong Techno Valley, 140, Tongil-ro, Deogyang-gu, Goyang-si, Gyeonggi-do, Korea, 10594 Tel : +82.2.354.6055 / Fax : +82.2.354.6056 E-mail : sales@postium.com www.postium.com...
