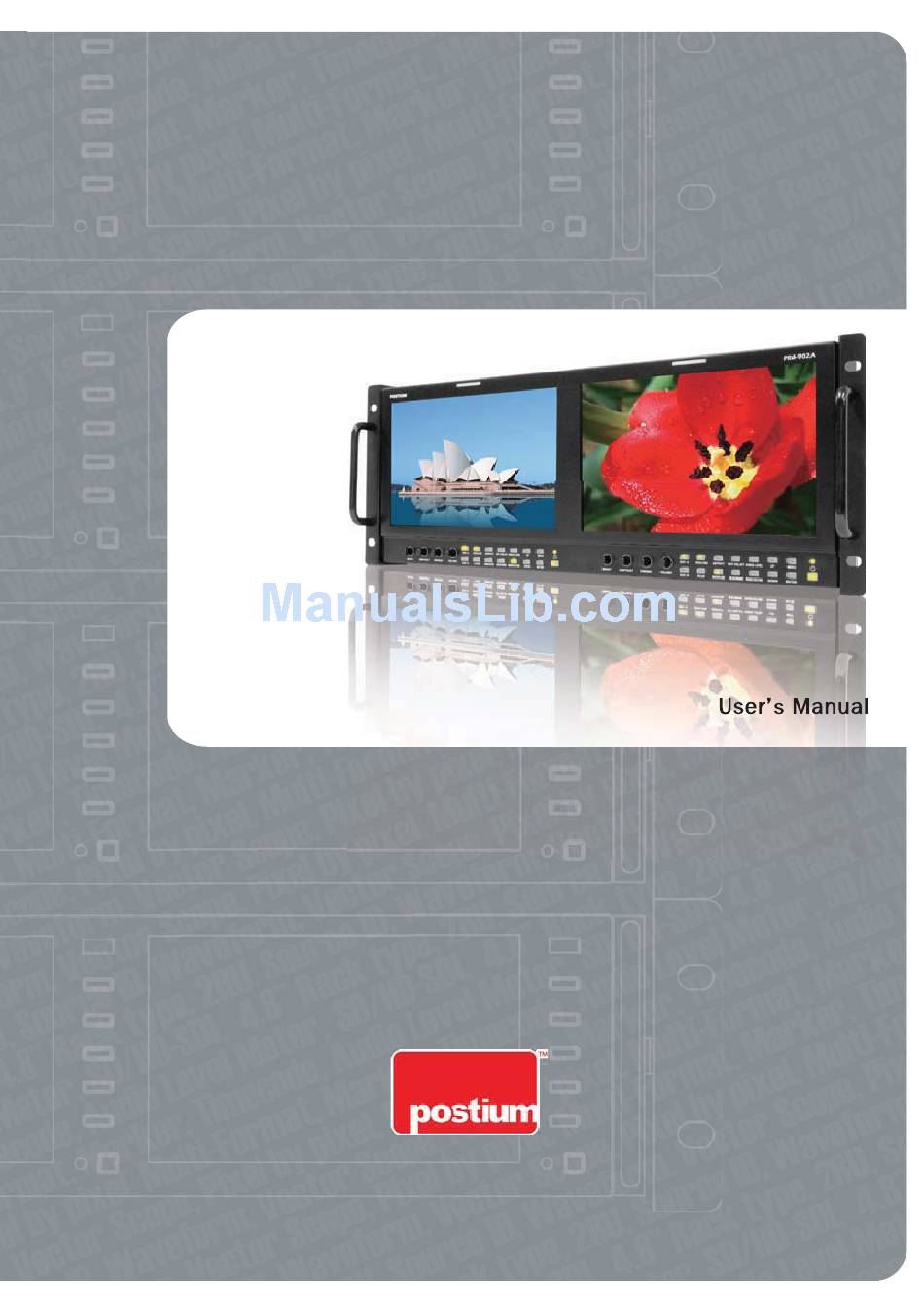

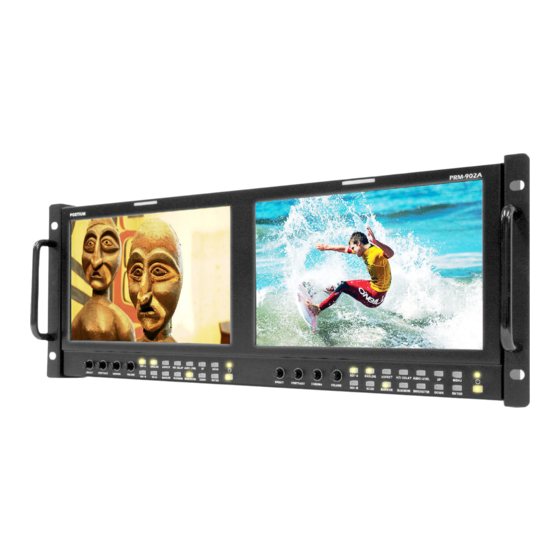

  • Page 1 LCD Racks Monitor PRM-902A MULTI-CHANNEL LCD MONITOR...

  • Page 3: Table Of Contents

    Contents Warnings ......................3 Features ......................4 Name & Function of Each Part ................. 5 OSD Menu Organization & Adjustment ............8 Other Functions ....................15 System Default Value..................24 Specifications ....................25...

  • Page 4: Warnings

    MULTI-CHANNEL LCD RACK MONITORS Warning · Always use DC 12V power. · If liquid comes in contact with this product, please disconnect the product immediately and seek professional support before continued use. · Keep unit disconnected during extended periods of nonuse. ·...

  • Page 5: Features

    Features PRM Series LCD Rack Monitors have the following features: · Compatible with varied SDI Signals The product is compatible with varied SDI signal - 480i, 576i, 720p, 1035i, 1080i, 1080p, 1080psf, 2K · Compatible with varied Analog Signals The product is compatible with varied Composite, S-Video signal - NTSC, PAL, SECAM The product is compatible with varied Component, RGB signal - 480i,576i,480p,576p,720p,1080i,1080p...

  • Page 6: Name & Function Of Each Part

    MULTI-CHANNEL LCD RACK MONITORS Name & Function of Each Part <FRONT> PRM-902A · [BRIGHT] knob Used to adjust the degree of brightness between MAX(25) and MIN(-25). · [CONTRAST] knob Used to adjust the contrast ration between MAX(25) and MIN(-25). · [CHROMA] knob Used to adjust the saturation between MAX(25) and MIN(-25).
  • Page 7 · [SCAN] button Used to transfer from OVER SCAN mode to ZERO SCAN mode. Mode changes in the order of ZERO SCAN -> OVER SCAN -> PIXEL TO PIXEL -> ZERO SCAN. -This function is not available in Internal Pattern and Wave Form/Vector Scope full size. ·...
  • Page 8 MULTI-CHANNEL LCD RACK MONITORS <REAR> PRM-902A · SDI A-IN (BNC) SDI A signal input terminal · SDI B-IN (BNC) SDI B signal input terminal · SDI-OUT (BNC) SDI signal output terminal · CVBS1/B/Pb (BNC) Signal input terminal used for COMPOSITE1, RGB B, COMPONENT Pb signals.

  • Page 9: Osd Menu Organization & Adjustment

    OSD Menu Organization & Adjustment [1] MAIN - Picture · Brightness This Item controls the degree of brightness. -Brightness can be adjusted by using the [BRIGHT] control knob on the front of the monitor. · Contrast This item controls the contrast ratio. -Contrast can be adjusted by using the [CONTRAST] control knob on the front of the monitor.
  • Page 10 MULTI-CHANNEL LCD RACK MONITORS [2] MAIN - Color · Color Temp This item controls Color Temperature with presets of 3200K, 5600K, 6500K, 9300K, and User1, User2 & User3 mode. · User On User Mode, the user may select and control R, G, & B GAIN, BIAS values by using the [UP]/[DOWN]/[ENTER] buttons.
  • Page 11 Center Marker · This item displays the CENTER MARKER on the screen. Safety Area · This item controls the size of the SAFETY AREA between 80%, 85%, 88%, 90%, 93%, and 100%. Marker Mat · This item darkens the area outside of MARKER setting area. The degree of the matte is between OFF(0) and (7).
  • Page 12 MULTI-CHANNEL LCD RACK MONITORS ANALOG CHANNEL DIGITAL A CHANNEL DIGITAL B CHANNEL TALLY RED TALLY GREEN BLUE ONLY UNDERSCAN ASPECT HVDELAY 16:9 MARKER, 15:9 MARKER, 14:9 MARKER, 13:9 MARKER, 4:3 MARKER, 4:3 ON AIR MARKER, 1.85:1 MARKER, 2.35:1 MARKER, 1.85:1 & 4:3 MARKER CENTER MARKER SAFETY AREA 80%, SAFETY AREA 85%, SAFETY AREA 88%, SAFETY AREA 90%, SAFETY AREA 93%, SAFETY AREA 100%...
  • Page 13 [6] MAIN - System [page2] · Audio Level Meter This item selected the type of Audio Level Meter ( Off/Horizontal / Vertical / dBFS / VU / EBU / BBC /Nordic ) - This feather can’t be activated a function of Waveform on Full Audio Level Meter(dBFS / VU / EBU / BBC /Nordic) selected, - This feather can be activated a function of Permitted Max/ Alignment /Peak Hold Time on Full Audio Level Meter selected...
  • Page 14 MULTI-CHANNEL LCD RACK MONITORS [7] MAIN - System [page3] · Source ID This item is used to activate the source ID display by selecting BG Type or Char Type. · Source ID Character This item is used to customize the Source ID display. (A~Z, a~z, 0~9 and special characters) ·...
  • Page 15 · · · · [10] · ·...

  • Page 16: Other Functions

    MULTI-CHANNEL LCD RACK MONITORS Other Functions [1] PIXEL TO PIXEL · PRM-Rack monitor’s Pixel to Pixel mode displays input signal without scaling. · To activate the [Pixel to Pixel] mode, access the Scan menu in Syetem menu and select [Pixel to Pixel]. ·...
  • Page 17 Input Action Button Available Modes [UP] Center -> Left Top -> Right Top -> Right Bottom -> left Bottom -> (Clockwise) Center -> … HD 720p [DOWN] Center -> Left Bottom -> Right Bottom -> Right Top -> Left Top (Opposite) ->...
  • Page 18 MULTI-CHANNEL LCD RACK MONITORS · Positions in HD Signal 1080i/1080p mode Left Top [UP] [UP] Center [DOWN] [DOWN] Right [UP] [UP] [UP] Right Right [DOWN] [DOWN] [DOWN] Bottom [UP] [UP] [UP] Left Left [DOWN] [DOWN] [DOWN] Bottom Bottom · Positions in HD Signal 720p mode [UP] [UP] Left Top...
  • Page 19 [2] Waveform Small display : YCbCr Vector Full display Vector · Waveform Waveform · Waveform Size Small (Y) Small (Cb, Cr, Y) Full (Y) If push the Input button (SDI-A ,SDI-B and Analog), Waveform full mode is change to small mode automatically. ·...
  • Page 20 MULTI-CHANNEL LCD RACK MONITORS · Exception: If overlaps with OSD, blending activates automatically. Main OSD Info Window Pixel To Pixel Source ID This function is only available with SDI Input. [3] Vector Scope ·Vector Scope Vector Scope OFF Vector Scope ON ·...
  • Page 21 Vector Scope Position / Blending : Refer to the Waveform position (P .18) and Waveform Blending (P .19) This function is only available with SDI Input. [4] Audio Level Meter · Audio Level Meter HORIZONTAL VERTICAL dBFS Nordic Peak hold Time Permitted Max Alignment On signal, Blue bar...
  • Page 22 MULTI-CHANNEL LCD RACK MONITORS · Avoid Overlap In full size WaveForm mode, WaveForm shifts down to avoid the overlap with Audio Level Meter. Audio Level Meter OFF Audio Level Meter ON · Group & Channel Group / Channel (Horizontal) C H1 C H2 Group 1 Group 1 C H3 C H4...
  • Page 23 [5] Time Code Time Code Time Code + Audio Level Meter Time Code + WaveForm Full Size Time Code + SourceID + WaveForm + Audio Level Meter #This function is only available with SDI Input. [6] Source ID · Source ID BG Type Char Type...
  • Page 24 MULTI-CHANNEL LCD RACK MONITORS · Source ID Position Left Top Mid Top Right Top Left Bottom Mid Bottom Right Bottom · Source ID Color Black White Green Blue Yellow...

  • Page 25: System Default Value

    System Default Value MEMU Value Brightness Contrast Chroma Picture Aperture Phase NTSC Setup 7.5 IRE Color Temp 6500K Gain Red (1/2/3) Gain Green (1/2/3) Gain Blue (1/2/3) Color Bias Red (1/2/3) Bias Green (1/2/3) Bias Blue (1/2/3) Color Copy 6500K Line Marker Center Marker Safety Area...

  • Page 26: Specifications

    MULTI-CHANNEL LCD RACK MONITORS Product Specifications 3 x BNC Analog Input Input (1 Screen) 1 x BNC SDI 2 Channel Input Output (1 Screen) 1 x BNC SDI Output (Active Through Out) Composite 1.0Vpp (With Sync) S-Video 1.0Vpp (Y With Sync), 0.286Vpp(C) Component 1.0Vpp (Y With Sync), 0.7Vpp (Pb,Pr) Input Signal...
  • Page 27 Power/Dimensture Specification Model 902A Power 12V DC, 2.7A Power Consumption (Approx.) 33 Watts Operating Temperature to 40 to 104 ) Storage Temperature Main Body Dimensions 442 x 170 x 63.2 mm (174 x 66.9 x 24.9 inch) Main Body Dimensions 482 x 178 x 86.7 mm (189.6 x 70 x 34.1 inch)- With Rack Bracket) Weight 4.1 kg / 9.038 lbs...
  • Page 28 Postium korea Postium Bldg. 2F, 433-34 Kalhyun-Dong, Eunpyoung-Gu, Seoul, Korea Tel : +82-2-354-6055 Fax : +82-2-354-6056 www.postium.com...
