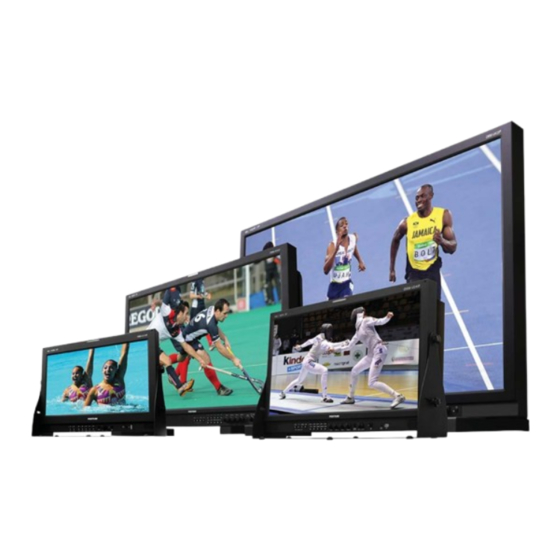

OBM-4K-IP Series

Professional Video 12G-SDI / SFP-IP Monitor

Operational Instructions

OBM-U17

OBM-U24

OBM-U31

OBM-U42

User Manual

Ver.24.05

Need help?

Do you have a question about the OBM-4K-IP Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Postium OBM-4K-IP Series

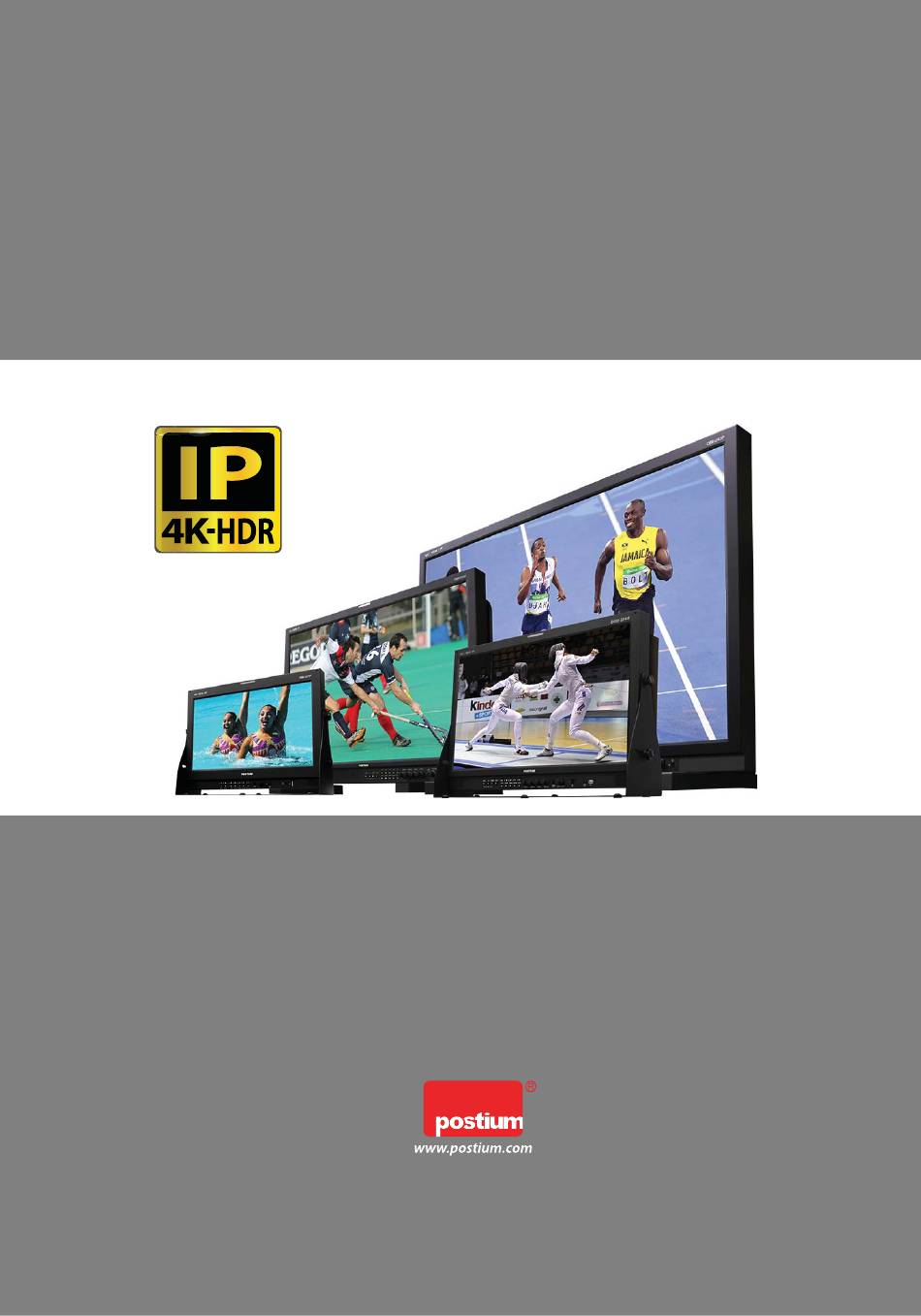

Page 1 User Manual OBM-4K-IP Series Professional Video 12G-SDI / SFP-IP Monitor Operational Instructions OBM-U17 OBM-U24 OBM-U31 OBM-U42 Ver.24.05...
Page 2 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Table of Contents 1. Precaution 2. Main Features 3. Location and Function of Parts and Controls Front Panel Rear Panel 4. Using the Menu 5. Adjustment Using the Menu 6. OSD Menu Operations...
Page 3 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP 1. Precaution Always use set voltage. AC 100 ~ 230V, 50/60Hz DC 24V(OBM-U17IP, OBM-U24IP, OBM-U31IP), U42IP cannot be connected to DC. All these instruc ons should be read and understood before opera ng the unit.
Page 4 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Do not a empt to service the product yourself. Removing covers can expose you to high voltage and other dangerous condi ons. Request a qualiﬁed service person to perform servicing. When the product needs replacement parts, make sure that the service person uses replacement parts speciﬁed by the manufacturer, or those with the same characteris cs and performance as the original parts.
Page 5 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP 2. Main Features OBM-4K SFP-IP Series unit has the following features: - Versa le HD/3G/4K Input Capability This monitor is equipped with standard 12G-SDI input interface(x2), SFP(ST-2110) and support 4K 2-sample interleave signals.
Page 6 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP 3. Location and Function of Parts and Controls Front Panel (OBM-U17IP) Front Panel (OBM-U24IP / U31IP / U42IP) A : Input select Bu ons/Lamp Press to monitor the signal input to each connector.
Page 7 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP C : Func on Bu on/Lamp Press to adjust or turn/oﬀ each func on. [SCAN] Bu on - Press the bu on to adjust the scan mode. (Zero Scan, 1:1 Scan).
Page 8 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP (headphone) Jack and USB Connector Headphone Jack - The audio signal which is selected using the input select bu on is output in stereo sound form speakers. - When SDI signals are input, the audio signals of the channels selected with SDI Audio Se ng in the User Conﬁgura on menu are output.
Page 9 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP F : SERIAL REMOTE IN/OUT connector (RJ-45) Used for the future func on expansion. Connects the monitor to control the program provided by the manufacturer by using RS-422/485 communica on or the external UMD(IMD) equipment and controls the monitor.
Page 10 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP 4. Using the Menu This monitor is equipped with an OSD menu to make various adjustments and se ngs such as picture control, input se ng, set se ng change, etc.
Page 11 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP 5. Adjustment Using the Menus The OSD menu of this monitor consists of the following items. Status menu (To indicate the current se ngs) Color Temp./Color Space/Gamma menu Format Color Temp...
Page 12 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Camera Assist menu User Conﬁgura on menu Zebra & False Color Se ng User Preset Se ng Zebra & False Color Load Zebra Level Adj. Save Zebra Range Func on Bu on Se ng...
Page 13 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Remote menu WFM/Vector Se ng Parallel Remote WFM/Vector 1 Pin Type 2 Pin Intensity 3 Pin Transparency 4 Pin Color 5 Pin Line Select 6 Pin Line Posi on 7 Pin...
Page 14 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP 6. OSD Menu Operations Status Menu The Status menu displays the current status of the Page 3/4 monitor. The following items are displayed. Page 1/4 SDI Input SDI Payload ID Iden ﬁer...
Page 15 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Color Temp/Color Space/Gamma Menu These menus are used for adjus ng or se ng the Page 2/3 color temperature, color space or gamma of the picture. Page 1/3 Color Space Selects the color space from among [ITU-R BT.709], [SMPTE-C],[EBU], [DCI-P3], [ITU-R...
Page 16 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Color Temp/Color Space/Gamma Menu ST-2084 10,000 - ToneMappingPQ-1,000/4,000/10,000: As shown in the graph below, within the panel Tone mapping mode can be set to 1,000, 4,000, maximum brightness level 800 cd/m2 sec on or 10,000.
Page 17 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Color Temp/Color Space/Gamma Menu Tonemapping PQ 4,000 As shown in the graph below, within the panel maximum 800 cd/m2 sec on of the model, the data level is only expressed up to 4000 cd/m²...
Page 18 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Color Temp/Color Space/Gamma Menu Default Log Sel ** 1) OSD Menu of this mode is diﬀerent, Allows the user to select a camera log among depending on each model’s HDR maximum Log-C EI 160~3200, S-Log2 To LC-709, luminance.
Page 19 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Camera Assist Menu Color Temp/Color Space/Gamma Menu Page 3/3 Page 1/3 Zebra & False Color RGB/YCC Range - Evaluates the Luma(Y’) level of the input image. - Selects Black Level and White Level of RGB/YCC If the certain Y’...
Page 20 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Camera Assist Menu Page 2/3 False Color Comparison Allows the user to divide the picture side by side, and compare the original image on the le half and the False Color image on the right half.
Page 21 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Camera Assist Menu User Conﬁgura on Menu User Conﬁgura on consists of the adjustment Page 3/3 menus such as[User Preset Se ng],[Func on Bu on Se ng],[Input Se ng], [Output Se ng],...
Page 22 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP User Conﬁgura on Menu - The following func ons are assigned in the factory. [Auto]: [F1 Bu on] : Color Temp Square / 2-S.I. The input automa cally recognizes [F2 Bu on] : Audio Level Meter...
Page 23 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP User Conﬁgura on Menu Page 3/7 Page 4/7 Marker Se ng Speaker Out / Audio Level Meter Se ng Marker - Selects the audio channel of the SDI & HDMI - Selects On to display the marker, and Oﬀ to input signal.
Page 24 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP User Conﬁgura on Menu Page 5/7 WFM/Vector Se ng WFM/Vector - Select [On] to display the [WFM/Vector] and [Oﬀ] not to display. Type - You can select from among [WFM], [VectorScope], [WFM+Vector] *This func on doesn’t work when RGB format...
Page 25 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP User Conﬁgura on Menu Remote Menu Page 7/7 Page 1/3 System Se ng Parallel Remote Internal Signal Selects the Parallel Remote connector pins for Generates the White Pa ern internally. which you want to change the func on.
Page 26 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Remote Menu Page 2/3 Le Tally Color - Selects the color of le tally lamp displayed in IMD. - The user can select from among [White], [Gray], [Red], [Green], [Blue], [Yellow], [Cyan], [Magenta].
Page 27 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Security Menu Page 1/1 Security Security Setting Key Lock : Password : * * * * User Parameter Lock : Change Password : * * * * Security Se ng Key Lock When Key Lock func on is set On, the change of the menu se ngs and func ons doesn’t work.
Page 28 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP 7. Scan Mode Image 4K/QFHD Mode The LCD panel resolu on of OBM-U17IP/U24IP/U31IP/U42IP is QFHD(16:9) 3840x2160, so if the input signal is 3840x2160 1:1 mapping is supported. If the input signal is DCI 4K(4096x2160), 1:1 mapping is not supported.
Page 29 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP 8. Connecting the SDI Signals Single Link 12G/6G/3G/HD-SDI, Dual-Link 6G/3G-SDI, Quad Link 12G/6G/3G/-SDI signals can be Input to the SDI In connectors of this monitor. Up to 2-channel Single Link 12G/6G/3G/HD-SDI signals, 1-channel Dual-Link 6G/3G-SDI or 1-channel SFP-IP signals can be input.
Page 30 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP 9. Available Signal Formats This monitor is applicable to the following signal formats Single HD-SDI Signal System Signal Format 1920 x 1080 / 4:2:2 YCbCr 10bit 23.98, 24, 25, 29.97, 30p/Psf, 50, 59.94, 60i...
Page 31 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Dual-Link (4K) 3G-SDI Signal System Signal Format 3840 x2160 / 4:2:2 YCbCr 10bit Level B-DS 2-sample interleave division 23.98, 24, 25, 29.97, 30p 4096 x2160 / 4:2:2 YCbCr 10bit Level B-DS 2-sample interleave division 23.98, 24, 25, 29.97, 30p...
Page 32 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP 10. Key Functions Versa le 4K Input Capability OBM-HDR provides the func on of comparing HDR The OBM-UxxIP series is equipped with standard and SDR(Standard Dynamic Range) on the displayed 12G-SDI input interface(x2) and support 4K Dual Link image on the OBM series simultaneously.
Page 33 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Adjustable Gamma Focus Assist Gamma value is adjustable from 1.0 to 3.0 as user's This func on controls the aperture level of a video preference to monitor in the dark area of the picture.
Page 34 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Various 4K/12G Display Modes Single Link 12G-SDI 12G-SDI Single Link 12G-SDI Single Link 2160 Dual Link 2-Sample Interleave(2-SI) 3G-SDI Level B x 2 Link A-1 A-2 B-1 B-2 (*Supported up to 2160/30p)
Page 35 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Black Stretch The Black Stretch increases the visibility of subjects in dark areas, not degrading image quality in bright areas. This mode can be used to increase shadow detail without changing the absolute black level, and without aﬀec ng mid-tones.
Page 36 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Gamut Error The total range of the SDI 10bit signal is 0 to 1023. The range 0 to 3 and 1020 to 1023 are the reserved values for Sync, and the total video signal range is 4 to 1019.
Page 37 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Supports 12G-SDI Single Link Square Division signal format The OBM-U**IP series can display 12G-SDI Single Link 4K/UHD signals as well as 3G-SDI Quad Link signals. This is already a very useful feature, compared to compe tors’ monitors.
Page 38 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP HDR Waveform When HDR more is set on, HDR Waveform is displayed on screen. HDR Mode + HDR Waveform HDR Waveform SDR Mode + SDR Waveform SDR Waveform In-Monitor Display(IMD) Func on The image source names and tally informa on can be displayed on the screen, with an external remote func on via Ethernet.
Page 39 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Various Markers The OBM U/X series can display various markers, including aspect marker, area marker, and center marker. In addi on, the detailed display se ngs of each marker are allowed. For example, the color, brightness, horizontal/ver cal posi on, and thickness of aspect markers can all be adjusted.
Page 40 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP 11. Product Specifications Speciﬁca ons (OBM-U17IP) ITEM OBM-U17IP 12G/3G/HD-SDI-1/2 2 x BNC Input SFP(ST-2110)/SFP-1/SFP-2(redundant) 2 x SFP HDMI 2.0 1 x HDMI Output 12G/3G/HD-SDI-1/2 Loop Output, SFP Loop Output 3 x BNC 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF...
Page 41 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Speciﬁca ons (OBM-U24IP) ITEM OBM-U24IP 12G/3G/HD-SDI-1/2 2 x BNC Input SFP(ST-2110)/SFP-1/SFP-2(redundant) 2 x SFP HDMI 2.0 1 x HDMI Output 12G/3G/HD-SDI-1/2 Loop Output, SFP Loop Output 3 x BNC 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF SMPTE ST 425-AB /25sF/24sF/23.98sF) / 1080i (60/59.94/50)
Page 42 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Speciﬁca ons (OBM-U31IP) ITEM OBM-U31IP 12G/3G/HD-SDI-1/2 2 x BNC Input SFP(ST-2110)/SFP-1/SFP-2(redundant) 2 x SFP HDMI 2.0 1 x HDMI Output 12G/3G/HD-SDI-1/2 Loop Output, SFP Loop Output 3 x BNC 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF SMPTE ST 425-AB /25sF/24sF/23.98sF) / 1080i (60/59.94/50)
Page 43 4K-IP LCD Professional Monitor OBM-4K-IP Series 12G-SDI / SFP-IP Speciﬁca ons (OBM-U42IP) ITEM OBM-U42IP 12G/3G/HD-SDI-1/2 2 x BNC Input SFP(ST-2110)/SFP-1/SFP-2(redundant) 2 x SFP HDMI 2.0 1 x HDMI Output 12G/3G/HD-SDI-1/2 Loop Output, SFP Loop Output 3 x BNC 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF SMPTE ST 425-AB /25sF/24sF/23.98sF) / 1080i (60/59.94/50)
Page 44 208, Building A, Samsong Techno Valley, 140, Tongil-ro, Deogyang-gu, Goyang-si, Gyeonggi-do, Korea, 10594 Tel : +82.2.354.6055 / Fax : +82.2.354.6056 E-mail : sales@postium.com www.postium.com...
