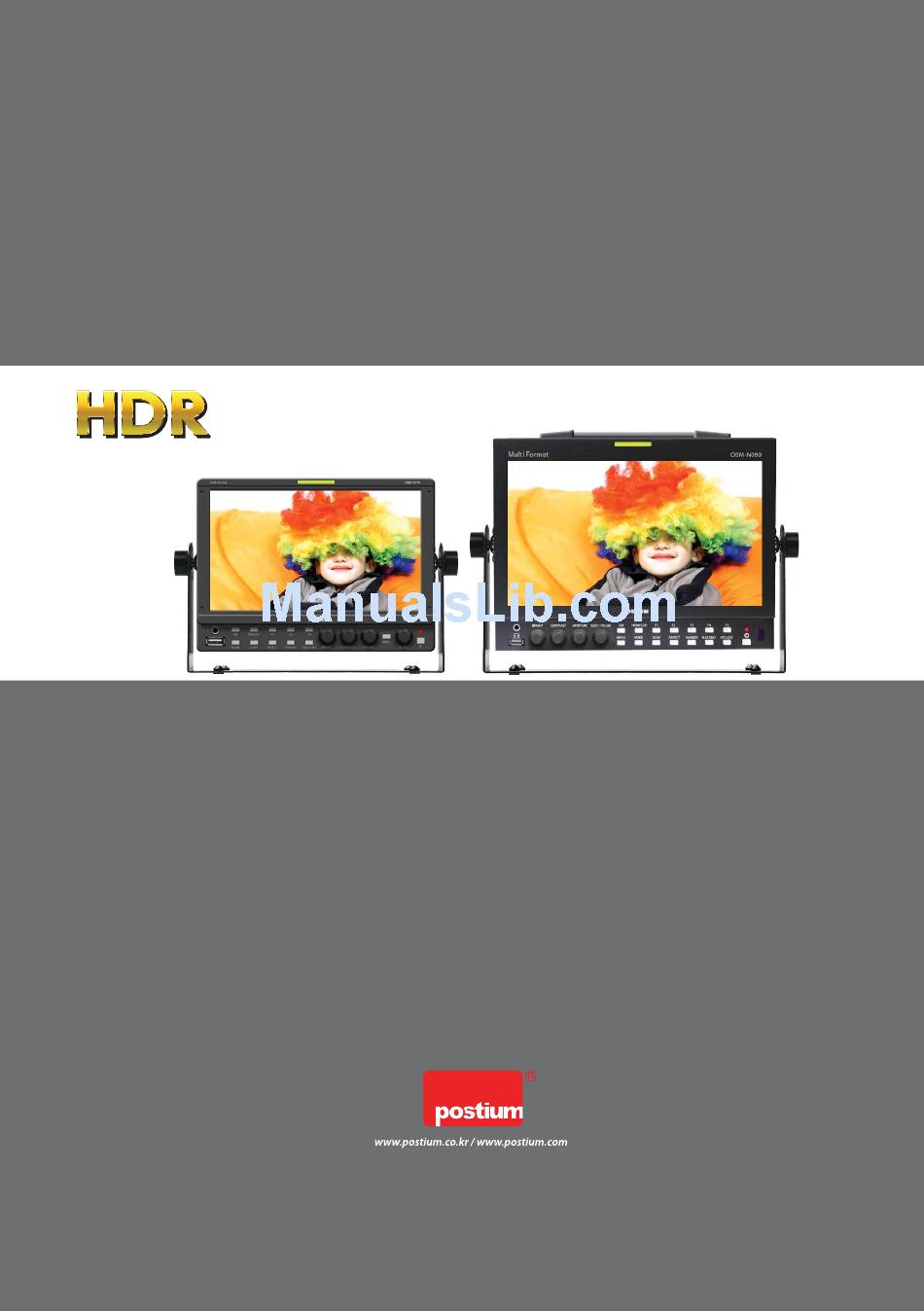

- Page 1 User Manual OBM N Series Professional Video Monitor Operational Instructions OBM-N070 OBM-N090 Ver 18.1...
-
Page 2: Table Of Contents
Professional Video Monitor OBM-N Series Outstanding Picture Quality Table of Contents 1. Precaution 2. Main Features 3. Location and Function of Parts and Controls Front Panel Rear Panel 4. Using the Menu 5. Adjustment Using the Menus 6. OSD Menu Operations Status Menu Color Temp/Color Space/Gamma Menu Camera Assist Menu... -
Page 3: Precaution
Professional Video Monitor OBM-N Series Outstanding Picture Quality 1. Precaution Always use set voltage. DC 12V All these instruc ons should be read and understood before opera ng the unit. If liquid is spilled on or impacts this product, please disconnect the product immediately and seek profession- al help before con nued use. - Page 4 Professional Video Monitor OBM-N Series Outstanding Picture Quality Do not a empt to service the product yourself. Removing covers can expose you to high voltage and other dangerous condi ons. Request a qualified service person to perform servicing. When the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteris cs and performance as the original parts.
-
Page 5: Main Features
Professional Video Monitor OBM-N Series Outstanding Picture Quality 2. Main Features The OBM N series offers the superior picture quality and wide viewing angle, and includes an array of professional features and the advanced audio & video signal analysis func ons including Waveform, Vector Scope, Audio Level Meter, IMD, Camera Log Selec on, Custom 3D LUT Import, Focus Assist, etc. -

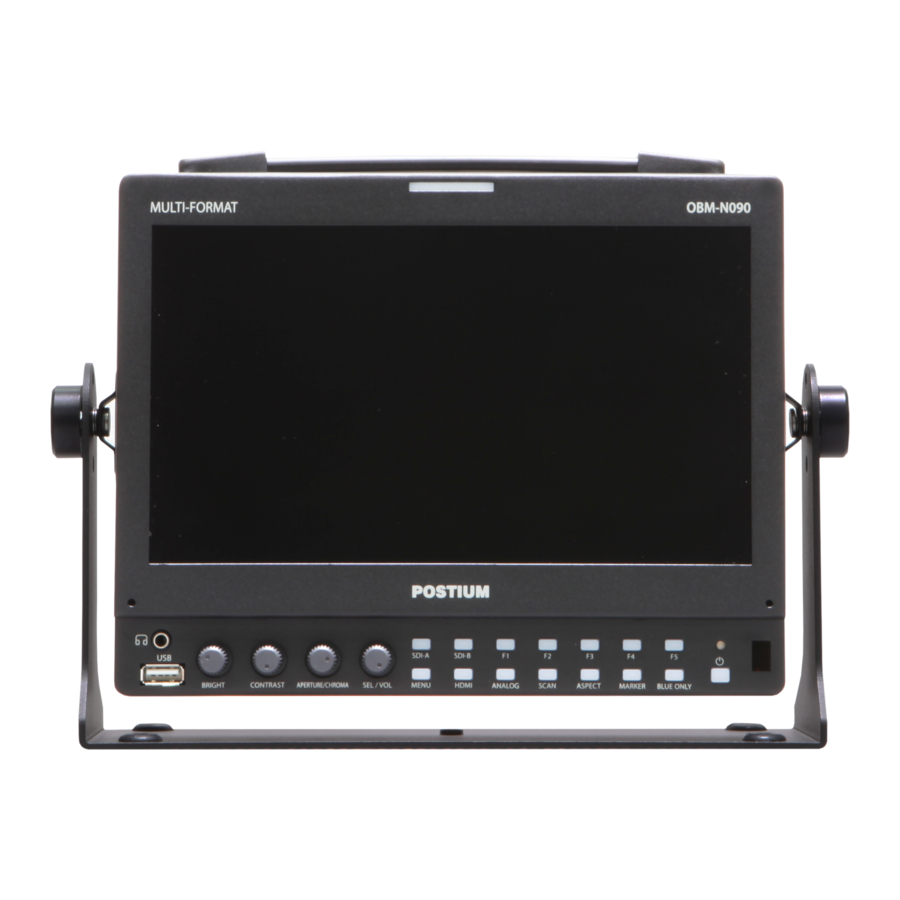

Page 6: Location And Function Of Parts And Controls
A : Input select Bu ons/Lamp Press to monitor the signal input to each connector. [ANALOG] Bu on/Lamp [SDI] Bu on/Lamp (OBM-N070) - Press the bu on to select Analog Input. - Press the bu on to select SDI input. - Page 7 Professional Video Monitor OBM-N Series Outstanding Picture Quality [CHROMA] knob Press this knob to display the adjustment screen and adjust the color intensity. Press again to hide the adjustment screen. Turn the knob right to increase the color intensity and turn le to decrease it. [APERTURE] knob Press this knob to display the adjustment screen and adjust the picture sharpness.
-
Page 8: Rear Panel
Professional Video Monitor OBM-N Series Outstanding Picture Quality Rear Panel OBM-N070 OBM-N090... - Page 9 Professional Video Monitor OBM-N Series Outstanding Picture Quality A : SDI IN (SDI Input) connectors (BNC) Input connectors for SDI signals. B : SDI OUT (SDI Output) connectors (BNC) Output connectors for SDI signals. Each connector outputs the signal which is input to the corresponding SDI IN connector. **Note - Output is ac vated only when the power is on.
- Page 10 J : DC IN terminal Ba ery Power Input terminal for DC 12V. * Rated Power Input : DC 12V (OBM-N070 : 1.5A, OBM-N090 : 2A) When using a DC Adapter other than the one supplied by the manufacturer, please be advised that the adapter with DC 12V/3A ~ 6A can be compa ble with the monitor.
-
Page 11: Using The Menu
Professional Video Monitor OBM-N Series Outstanding Picture Quality 4. Using the Menu This monitor is equipped with an OSD menu to make various adjustments and se ngs such as picture control, input se ng, set se ng change, etc. 2. Turn SEL/VOL knob to select a menu, 1. -
Page 12: Adjustment Using The Menus
Professional Video Monitor OBM-N Series Outstanding Picture Quality 5. Adjustment Using the Menus The OSD menu of this monitor consists of the following items. Status menu (To indicate the current se ngs) Camera Assist menu Format Zebra & False Color Color Temp Zebra Level Adjustment Brightness... - Page 13 Professional Video Monitor OBM-N Series Outstanding Picture Quality User Configura on menu Remote menu Load User Preset Se ng Parallel Remote Save 1 Pin Func on Bu on Se ng 2 Pin F1 Bu on 3 Pin F2 Bu on 4 Pin F3 Bu on 5 Pin...
-
Page 14: Osd Menu Operations
Professional Video Monitor OBM-N Series Outstanding Picture Quality 6. OSD Menu Operations Status Menu The Status menu displays the current status of the Page 3/4 monitor. The following items are displayed. Page 1/4 SDI Input Iden fier SDI Payload ID Sampling Picture Rate Format... -
Page 15: Color Temp/Color Space/Gamma Menu
Professional Video Monitor OBM-N Series Outstanding Picture Quality Color Temp/Color Space/Gamma Menu These menus are used for adjus ng or se ng the color Page 2/3 temperature, color space or gamma of the picture. Page 1/3 Color Space - Selects the color space between [ITU-R BT.709], [Na ve]. - Page 16 file should be placed on the top folder of each model’s luminance. the USB memory s ck. OBM-N070 : - ST 2804 -300 - HLG -0.98(300) Ex) If the file name is ‘S-log3 to LC709_A.cube’, OBM-N090 : - ST 2804 -200 it is displayed as ‘S-log3 to LC709’...
-
Page 17: Camera Assist Menu
Professional Video Monitor OBM-N Series Outstanding Picture Quality Camera Assist Menu Page 1/3 False Color Comparison - Allows the user to divide the picture side by side and compare the original image on the le half and the False Color image on the right half. -
Page 18: User Configuration Menu
Professional Video Monitor OBM-N Series Outstanding Picture Quality Camera Assist Menu User Configuration Menu User Configura on consists of the adjustment Page 3/3 menus such as[User Preset],[Func on Bu on Se ng],[Input Se ng],[Speaker Out / Audio Level Meter Se ng],[Marker Se ng],[WFM/Vector Se ng], [Closed Cap on Se ng], [System Se ng]. - Page 19 Professional Video Monitor OBM-N Series Outstanding Picture Quality User Configuration Menu Speaker Out / Audio Level Meter Se ng Page 2/7 - Selects the audio channel of the SDI & HDMI input signal. SDI : Le Speaker Out / Right Speaker Out - Selects the embedded audio channel for the le and right audio out of the Headphone jack on the front panel of the monitor.
- Page 20 Professional Video Monitor OBM-N Series Outstanding Picture Quality User Configuration Menu Page 5/7 Page 4/7 WFM/Vector Se ng Marker Se ng WFM/Vector Marker - Select [On] to display the [WFM/Vector] and [Off] - Selects On to display the marker, and Off to not to display.
- Page 21 Professional Video Monitor OBM-N Series Outstanding Picture Quality User Configuration Menu Page 7/7 Posi on - Sets the display posi on of the [WFM/Vector]. Selects [Right Bo om], [Le Bo om], [Le Top], or [Right Top]. Size Sets the size of Waveform and Vector Scope. [Large] and [Small] can be selected.
-
Page 22: Remote Menu
Professional Video Monitor OBM-N Series Outstanding Picture Quality Page 2/3 Remote Menu Page 1/3 Monitor ID Sets the ID of the monitor to control the monitor through Serial Remote or Network. Parallel Remote Selects the Parallel Remote connector pins for In-Monitor Display Se ng which you want to change the func on. -
Page 23: Security Menu
Professional Video Monitor OBM-N Series Outstanding Picture Quality Security Menu Remote Menu Page 3/3 Security Se ng Network Se ng Key Lock DHCP When Key Lock func on is set On, the change of - Toggle DHCP On or Off. the menu se ngs and func ons doesn’t work. -
Page 24: Available Signal Formats
Professional Video Monitor OBM-N Series Outstanding Picture Quality 7. Available Signal Formats This monitor is applicable to the following signal formats HD-SDI Signal System Signal Format 1920x1080 / 4:2:2 YCbCr 10bit 23.98, 24, 25, 29.97, 30p/Psf, 50, 59.94, 60i 2048 x 1080 / 4:2:2 YCbCr 10bit 23.98, 24, 25, 29.97, 30p/Psf 1280x 720 /... -
Page 25: Key Functions
Professional Video Monitor OBM-N Series Outstanding Picture Quality 8. Key Functions Focus Assist High Dynamic Range(HDR) Display Func on The OBM N series provides the func on to display the This func on controls the aperture level of a video High Dynamic Range footage. - Page 26 Professional Video Monitor OBM-N Series Outstanding Picture Quality Black Stretch The Black Stretch increases the visibility of subjects in dark areas, not degrading image quality in bright areas. This mode can be used to increase shadow detail without changing the absolute black level, and without affec ng mid-tones. Black Stretch Off...
- Page 27 Professional Video Monitor OBM-N Series Outstanding Picture Quality Gamut Error Zebra pa ern or Color is displayed on the por on whose Y, Cb, Cr and R, G, B are out of the range of the adjusted values based on the target color space which the user selects. The default values of Y Maximum/Minimum, Chroma Maximum/Minimum, RGB Maximum/Minimum are in compliance with EBU R 103 standard.
- Page 28 Professional Video Monitor OBM-N Series Outstanding Picture Quality Waveform & Vector Scope Posi on Changeable Wave/Vector Scope Size Adjustable The posi on of Waveform and Vectro Scope can be changed among The image size of Wave/Vector Scope Le Top, Right Top, Right Bo om, Le Bo om. can be changed between Small and Large.
- Page 29 Professional Video Monitor OBM-N Series Outstanding Picture Quality Password Lock for User Preset When mul ple users share the same monitor, each user can register his/her own password for color temperature and user preset data. This ensures the users correctly recalls their preset data, and keeps preset informa on safe from unauthorized use.
- Page 30 Professional Video Monitor OBM-N Series Outstanding Picture Quality Fast Mode This func on allows the total latency to become nearly the zero delay, from the receipt of the signal to the on-screen display. Input Signal Fast Mode On Fast Mode Off 480i(59.94)/576i(50) SD-SDI 1 frame...
-
Page 31: Product Specifications
DV Ba ery Mount / V-Mount / D-Tap Cable / Ball Head (*OBM-N070 Only) Table Stand / Rack Mount Kit / Carrying Case / Sun Hood / Acrylic Protector * Specifica ons are subject to change without prior no ce for the product quality improvement. - Page 32 Professional Video Monitor OBM-N Series Outstanding Picture Quality 208, Building A, Samsong Techno Valley, 140, Tongil-ro, Deogyang-gu, Goyang-si, Gyeonggi-do, Korea, 10594 Tel : +82.2.354.6055 / Fax : +82.2.354.6056 E-mail : sales@postium.com www.postium.com...
