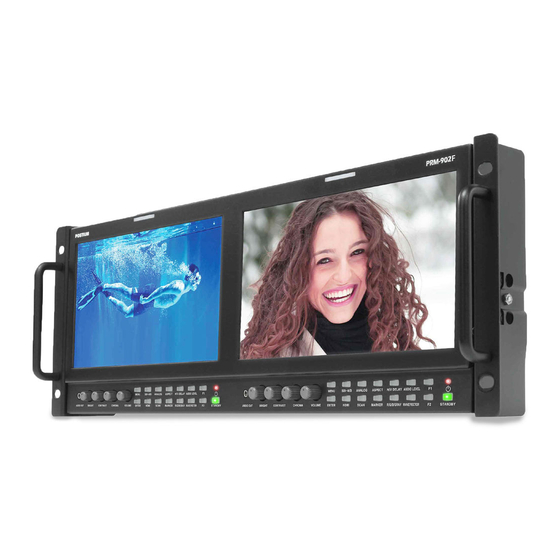

LCD Rack Monitor
PRM-902F / PRM-102F
MULTI-CHANNEL LCD RACK MONITOR
MONITOR
,
User
Manual
s

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRM-902F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Postium PRM-902F

Summary of Contents for Postium PRM-902F

  • Page 1 LCD Rack Monitor PRM-902F / PRM-102F MULTI-CHANNEL LCD RACK MONITOR MONITOR User Manual...
  • Page 2 Instructions on installation. Please read the following instructions before installing the monitor. Avoid installing the monitor in the following places. • Do not install the monitor near any heat sources such as radiators, heat registers, stoves or other apparatus that produce heat. •...
  • Page 3 PRM-902F / 102F Precautions on safety • Do not push any objects of any kind into the monitor through openings as they may touch dangerous voltage points or short-circuit the parts, which could result in a fire or an electric shock.

  • Page 4: Table Of Contents

    MULTI-CHANNEL LCD RACK MONITORS Contents 1. Product Overview --------------------------------------------------- 4 2. Features ----------------------------------------------------------------- 4 3. Controls and Functions 3-1. Front Panel ------------------------------------------------------------5 3-2. Rear Panel -------------------------------------------------------------7 3-3. How to save a function on F1, F2 -------------------------------8 4. STATUS DISPLAY --------------------------------------------------------9 5.

  • Page 5: Product Overview

    PRM-902F / 102F 1. Product Overview This product receives the standard 3G/HD/SD-SDI input signals and Composite, Component and HDMI input signals and displays the images on the LCD Panel with a particular function which converts HDMI input signal into SDI and SDI input signal into HDMI. As a high performance color video monitor, this product is suitable for television stations or video production houses, where precise color reproduction is required.

  • Page 6: Controls And Functions

    MULTI-CHANNEL LCD RACK MONITORS 3. Controls and Functions 3-1. Front Panel (PRM-902F / PRM-102F) PRM-902F Front PRM-102F Front PRM-102F ⑮ ⑭ ⑬ ⑫ ⑪ ⑩ PRM-902F / PRM-102F ⑨ ⑧ ⑦ ⑥ ⑤ ④ ③ ② ①...
  • Page 7 PRM-902F / 102F ①--STANDBY : Press for a second to turn on the power and the indicator is on. Press again to turn off the power. ②--F1/F2 : User-preferred functions are saved on the F1 & F2. The settings for the functions are managed under System Menu.

  • Page 8: Rear Panel

    MULTI-CHANNEL LCD RACK MONITORS 3-2. Rear Panel (PRM-102F,PRM-902F) PRM-902F Rear PRM-102F Rear PRM-902F / PRM-102F ⑥ ② ⑦ ③ ⑧ ⑤ ④ ⑨ ① ⑩...

  • Page 9: How To Save A Function On F1, F2

    PRM-902F / 102F ①--AC POWER : Connects the supplied AC power cord. ②--SDI A,B input port (BNC) : Used for the input of HD/SD-SDI signals and for the SDI signal input which contains audio signals as well. ③--SDI-LOOP OUT port (BNC) : Used for the output of HD/SD-SDI input signals.

  • Page 10: Status Display

    MULTI-CHANNEL LCD RACK MONITORS 4. STATUS DISPLAY This function displays the operational status of the monitor on the screen. Some of the displays are not supported depending on the product models CH-1, 3, 5 ~ 15 CH-2, 4, 6 ~ 16 Vector Scope or Waveform Waveform or Vector Scope 1) Audio Level Meter Display...

  • Page 11: How To Set Osd Menu

    PRM-902F / 102F 5. How to Set OSD Menu 1. Press Menu button and OSD Menu opens up. 2. Use Knob KEY to move UP(CW) ▲ or DOWN(CCW) ▼. Press Knob KEY to enter. 3. Rotate Knob KEY to adjust the settings.
  • Page 12 MULTI-CHANNEL LCD RACK MONITORS • SDI 3G Mode : Selects the mode when 3G-SDI signal is in. • SDI Switching : When the input signal coming from Matix or Routing Switcher is changed, SDI Switching lowers a chance of changes on the screen and guarantees smooth and stable pictures.

  • Page 13: Display

    PRM-902F / 102F 5-2. DISPLAY1 • Aspect : Selects the aspect ratio of the screen when a format is in. The ratios to choose from are 16 : 9 , 4:3, and Native Ratio. If the 1080i, 1080p, 720p of...

  • Page 14: Display

    MULTI-CHANNEL LCD RACK MONITORS 5-3. DISPLAY2 • Exposure Range Check : Displays the over-exposed or under-exposed areas of Y, C Level on the screen. The values for the exposure range check are Y, Cb, Cr, and Off Mode. • Y Range Max & Min : Sets the maximum or the minimum value of Y range. •...
  • Page 15 PRM-902F / 102F • False Color : Displays the picture in specific colors in accordance with the Y (Luminance) value range. False Color OFF False Color ON False Color Table When the input signal happens to be in 10bit or 12 bit dither formant, instead of 8bit format,...

  • Page 16: Color

    MULTI-CHANNEL LCD RACK MONITORS 5-4. COLOR • Dithering : Displays the gradation changes of the picture more smoothly and softly. • Auto Color Temperature : Adjusts the color temperature automatically following the temperature changes around the monitor. There can be a margin of error, depending on conditions of the environment around. •...

  • Page 17: Marker

    PRM-902F / 102F 5-5. MARKER • Marker Ratio : Selects the type of Markers. The types to choose from are 4:3, 4:3 ON AIR, 16:9, 15:9, 14:9, 13:9, 1.85:1, 2.35:1, User1, User2, User3, and OFF. • Center Marker : Turns on or off the display of center marker (+).

  • Page 18: Osd

    MULTI-CHANNEL LCD RACK MONITORS 5-6. OSD 1 • OSD Display Time : Sets the display time(from 0[continuous] to 60 sec) for Menu and other information on the screen. • OSD Blend : Sets the transparency of Menu from level 0 to 5. The higher the level become the more transparently OSD is displayed.
  • Page 19 PRM-902F / 102F • CC708 Service : There are 6 standard services and 57 expanded services. -Service 1 : This is a general caption service, translating the audio of Primary language into the caption. -Service 2 : This is a translated caption service for a Secondary language, containing the translated caption of the Primary language.
  • Page 20 MULTI-CHANNEL LCD RACK MONITORS UMD Off UMD On 5-7. OSD 2 • PIP Source : Selects either a digital or an analog input for Picture in Picture function. • PIP Mode : Selects the Mode, among Large PIP, Small PIP and Side by Side. •...

  • Page 21: Audio

    PRM-902F / 102F 5-8. AUDIO • Audio Level Meter : Turns on or off the embedded audio signals of SDI / HDMI inputs in the form of Level bar on the screen. • Level Meter SDI Channel : Selects one of the following audio channel groups of the embedded audio signals: 1~4(Group 1), 5~8(Group 2), 9~12(Group 3), 13~16(Group 4), 1~8(Group 1 &...
  • Page 22 MULTI-CHANNEL LCD RACK MONITORS • Audio Level Meter Type HORIZONTAL VERTICAL dBFS Nordic Peak hold Time Permitted Max Alignment On signal, Blue bar...

  • Page 23: Gpi

    PRM-902F / 102F 5-9. GPI • GPI Control : Turns on or off the external monitor controlling function. External remote controlling is disabled when GPI control is turned off. • GPI Port 1, 2, 3, 4, 5, 6 : Assigns the function on each GPI port (RJ-45). The function of each port can’t be overlapped.

  • Page 24: 5-10.System

    MULTI-CHANNEL LCD RACK MONITORS 5-10. SYSTEM • Function 1, 2: Save certain functions on the front F1 and F2. Please refer to the list of 3-3 for further details. • Back Light : Controls the back light intensity of the panel from 0 (min.) to 40 (max.). The higher the number is the brighter the back light becomes.

  • Page 25: Remote Terminal Assignment

    PRM-902F / 102F 6. Remote Terminal Assignment 6-1. Remote Terminal(RJ-45) Assignment The function of each port is assigned under GPI Control Setting Menu. Remote PIN Assignment 1PIN GPI Port 1 5PIN GPI Port 5 2PIN GPI Port 2 6PIN GPI Port 6...

  • Page 26: Remote Terminal Assignment (Gpi Port)

    MULTI-CHANNEL LCD RACK MONITORS 6-3. Remote Terminal Assignment (GPI Port) 7. How to Use the Program Update Port A SERIAL PORT is used as an Updated port under the following situations. 1) When the firmware program of the monitor needs to be updated. 2) When the color temperature of the monitor needs to be measured, calibrated and adjusted.

  • Page 27: List Of Compatible Signal Formats (Hdmi/Composite)

    PRM-902F / 102F 8. List of Compatible Signal formats ( HDMI/COMPOSITE) INPUT OUTPUT OUTPUT Signal input Composite SDI to HDMI HDMI to SDI HD-YPbPr Formats SD-YPbPr (Convert) (Convert) HDMI NTSC 720x576/50i 720x480/59.94i 720x480/60i 720x576/50p 720x480/59.94p O(480i) O(480i) 720x480/60p 1280x720/23.98p 1280x720/24p 1280x720/25p 1280x720/29.97p...

  • Page 28: 8-1.List Of Compatible Signal Formats (Sdi)

    MULTI-CHANNEL LCD RACK MONITORS 8-1. List of Compatible Signal formats( SDI) SD/SD-SDI Signal input Single Formats YUV 4:4:4 RGB4:4:4 YUV 4:2:2 NTSC √ √ 525/60i(SD) √ 625/50i(SD) √ 720x480/59.94p 720x576/50p 1280x720/23.98p 1280x720/24p 1280x720/50p √ √ √ 1280x720/59.94p √ √ √ 1280x720/60p √...

  • Page 29: Specifications

    PRM-902F / 102F 9. Specifications ITEM PRM-902F PRM-102F 2 x BNC HD/SD-SDI, 3G/1.485G/270M Input 1 x HDMI HDMI, (with HDCP v.1.1), 19pin Female 3 x BNC Analog(YPbPr/CVBS/S-Video/RGB) 1 x BNC Selectable SDI-1/2 Loop-through or HDMI conversion Out Output 1 x HDMI HDMI (with HDCP v.1.1), 19pin Femaleor SDI conversion Out...

  • Page 30: Osd

    MULTI-CHANNEL LCD RACK MONITORS 10. Dimensions <PRM-902F> Dimensions(WxHxD) : 480x170x63mm(18.9x6.7x2.4 inch) 63mm 480mm <PRM-102F> Dimensions(WxHxD) : 480x176x50mm(18.9x6.9x1.9 inch) 50mm 480mm PRM-102F...

  • Page 31: Trouble Shooting

    PRM-902F / 102F 11. Trouble -shooting Try the following first if you experience problems using the monitor. Contact us for repairing service if the following possible solutions can’t solve the problems. Symptoms Possible Solutions. - Press the Power Switch to restart the monitor.
  • Page 32 MULTI-CHANNEL LCD RACK MONITORS Symptoms Possible Solutions. - Unplug the monitor and then reconnect it. Make sure to restart the monitor. - Check the input selection. - After setting the monitor on the Factory Default, select the input again and make sure the input mode is correct. - Try a different input cable.

  • Page 33: Maintenance

    PRM-902F / 102F 12. Maintenance ▪ Repair under warranty - When there are technical or performance problems within 24 months from the purchasing date. - When a monitor displays the same symptoms within 6 months from the previous repairing date.
  • Page 34 POSTIUM KOREA Co., Ltd. 208, Building A, Samsong Techno Valley, 140, Tongil-ro, Deogyang-gu, Goyang-si, Gyeonggi-do, Korea, 10594 Tel : +82.2.354.6055 / Fax : +82.2.354.6056...
