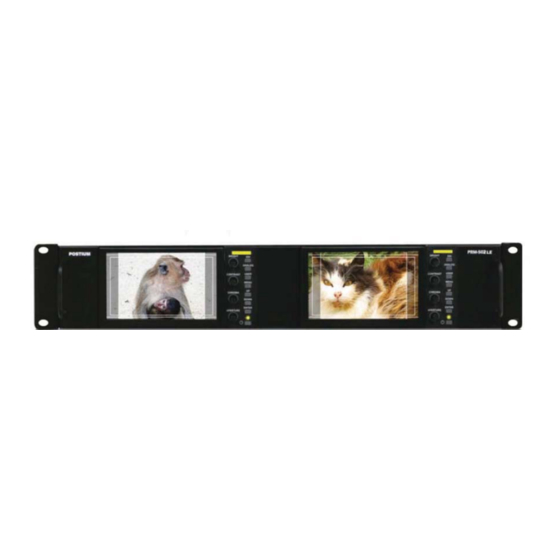

- Page 1 LCD Rack Monitor PRM-502LE MULTI-FORMAT LCD MONITOR...
-
Page 2: Table Of Contents
Contents PRM-502LE Warning ......................3 Features ......................4 Feature Name & Functions ................5 OSD Menu Organization & Adjustment ............8 Other Functions ....................13 System Default menu..................18 Product Specification ..................19... -
Page 3: Prm-502Le Warning
PRM-502LE MULTI-FORMAT LCD MONITOR Warning · Always use set voltage. - DC 12V · If liquid is spilled on or impacts this product, please disconnect the product immediately and contact for professional help before continuing use. · Keep unit disconnected during extended periods of disuse. -
Page 4: Features
Features PRM-502LE Multi-Format Rack Monitor features: · Wide Support for SDI Signals - 480i (59.94),576i (50) 576p (50),720p (60/59.94/50),1035i (60/59.94),1080i (60/59.94/50), 1080p (30/29.97/25/24/24sF/23.98/23.98sF), 2K (2048x1080 – 23.98psf/24psf/23.98p/24p) · BLUE ONLY/ MONO · H/V Delay · Markers & Safety Areas Center Marker, Safety Area Marker, Aspect Marker, Display Size (Scan) ·... -
Page 5: Feature Name & Functions
PRM-502LE MULTI-FORMAT LCD MONITOR Feature Name & Functions <FRONT> · [BRIGHT] knob Used to adjust the degree of brightness between MAX(25) and MIN(-25). · [CONTRAST] knob Used to adjust the contrast ratio between MAX(25) and MIN(-25). · [CHROMA] knob Used to adjust color saturation between MAX(25) and MIN(-25). - Page 6 · [ENTER] button Used to confirm selected value (or mode) within the OSD Menu. This can be used to control the position of Waveform in small overlay mode. · [POWER] button Power On/Off button. If the signal is normal, LED will be illuminated Green. If the signal is unsupported or disconnected, LED will be illuminated Yellow.
- Page 7 PRM-502LE MULTI-FORMAT LCD MONITOR Feature Name & Functions <REAR> · SDI A-IN (BNC) SDI A Signal Input Terminal · SDI B-IN (BNC) SDI B Signal Input Terminal · SDI-OUT (BNC) SDI Signal Output Terminal · CVBS1/B/Pb (BNC) Signal input terminal for COMPOSITE1, RGB B, COMPONENT Pb signals.
-
Page 8: Osd Menu Organization & Adjustment
OSD Menu Organization & Adjustment [1] MAIN - Picture · Brightness This Item indicates brightness level. #Brightness can be adjusted by using the [BRIGHT] control knob on the front of the monitor. · Contrast This item indicates contrast level. #Contrast can be adjusted by using the [CONTRAST] control knob on the front of the monitor. ·... - Page 9 PRM-502LE MULTI-FORMAT LCD MONITOR [2] MAIN - Color · Color Temp This item controls Color Temperature with presets of 3200K, 5600K, 6500K, 9300K, and User1, User2, User3 mode. · User In User Mode, allows selection and control of RGB GAIN and BIAS values by using the [UP]/[DOWN]/[ENTER] buttons.
- Page 10 [3] MAIN - Marker · Marker Used to show MARKER on the screen. The type of marker displayed may be selected on the other menu. -This function is not available in 1:1 Pixel to Pixel and HV Delay modes. · Line Marker This selects the marker type when the MARKER is displayed on the screen.
- Page 11 PRM-502LE MULTI-FORMAT LCD MONITOR [4] System - [page1] · System Default Allows System Default selection to initialize the default values of the monitor. · Source ID This item is used to activate the Source ID display by selecting Manual(BG), Manual(Char), UMD(Small), UMD(Medium), or UMD(Large).
- Page 12 This item sets function for front USER button. - You can select the function of Marker, Source ID, Blue&Mono, Scan, Aspect Ratio and HV Delay. · Firmware Version This item is the firmware version of the system. · License Licensed by Postium Korea Co., Ltd.
-
Page 13: Other Functions
PRM-502LE MULTI-FORMAT LCD MONITOR Other Functions [1] 1:1 Pixel to Pixel · PRM-502A monitor’s 1:1 Pixel to Pixel mode displays the input signal without scaling the image. · To activate 1:1 Pixel to Pixel mode, access the Scan Menu in System Menu and select [Pixel to Pixel]. - Page 14 Input Action Button Available Modes [UP] Center -> Left-Top -> Right-Top -> Right-Bottom -> (Clockwise) Left-Bottom -> Center -> ... HD 720p [DOWN] Center -> Left-Bottom -> Right-Bottom -> Right-Top -> (Opposite) Left-Top -> Center -> ... - OSD change ·...
- Page 15 PRM-502LE MULTI-FORMAT LCD MONITOR · Positions in HD Signal 1080i/1080p mode Left- Mid- [UP] [UP] Center [DOWN] [DOWN] Right- [UP] [UP] [UP] Right- Right- [DOWN] [DOWN] [DOWN] Bottom [UP] [UP] [UP] Left- Mid- Left- [DOWN] [DOWN] [DOWN] Bottom Bottom · Position in HD Signal 720p mode...
- Page 16 [2] Source ID Manual (BG) Manual (Char) UMD (Small) UMD (Medium) UMD (Large) UMD Usage Example...
- Page 17 PRM-502LE MULTI-FORMAT LCD MONITOR · Source ID Position (Manual Only) · Source ID Color...
-
Page 18: System Default Menu
System Default Value MENU VALUE Brightness Contrast Chroma Picture Aperture Phase NTSC Setup 7.5 IRE Color Temp 6500K Gain RED (1/2/3) Gain GREEN (1/2/3) Gain BLUE (1/2/3) Color Bias RED (1/2/3) Bias GREEN (1/2/3) Bias BLUE (1/2/3) Color Copy 6500K Marker Line Marker Marker... -
Page 19: Product Specification
PRM-502LE MULTI-FORMAT LCD MONITOR Product Specification Analog Input Input (1 Screen) SDI 2 Channel Input 3 x BNC Output (1 Screen) 1 x BNC SDI Output (Active Through Out) Composite 1.0Vpp (With Sync) 1.0Vpp (Y With Sync), 0.286Vpp (C) S-Video... - Page 20 TEL : +1 (818) 567-4900 FAX : +1 (818) 567-4903 2009 Postium Korea co., Ltd. All rights reserved. Other product names mentioned may be registered trademarks or trademarks of their respective companies. Specifications subject to change without notice. Hardware may not appear exactly as shown. Printed in Korea 07/13...
