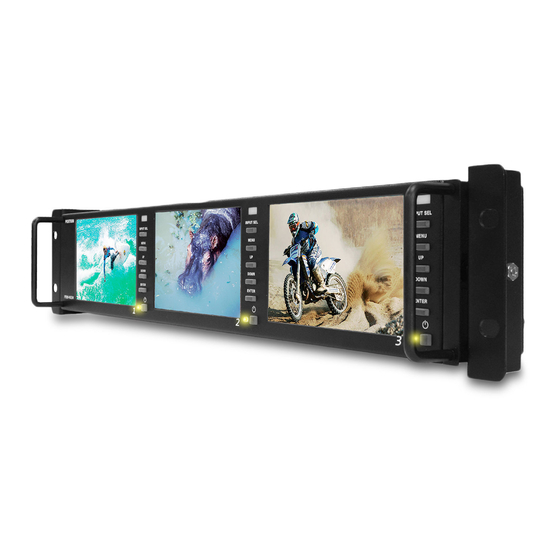

Postium PRM-483A User Manual

Multi-channel lcd monitor
Hide thumbs

Advertisement

Quick Links

Download this manual
LCD Racks Monitor
PRM-483A
MULTI-CHANNEL LCD MONITOR

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRM-483A and is the answer not in the manual?

Questions and answers

Related Manuals for Postium PRM-483A

Summary of Contents for Postium PRM-483A

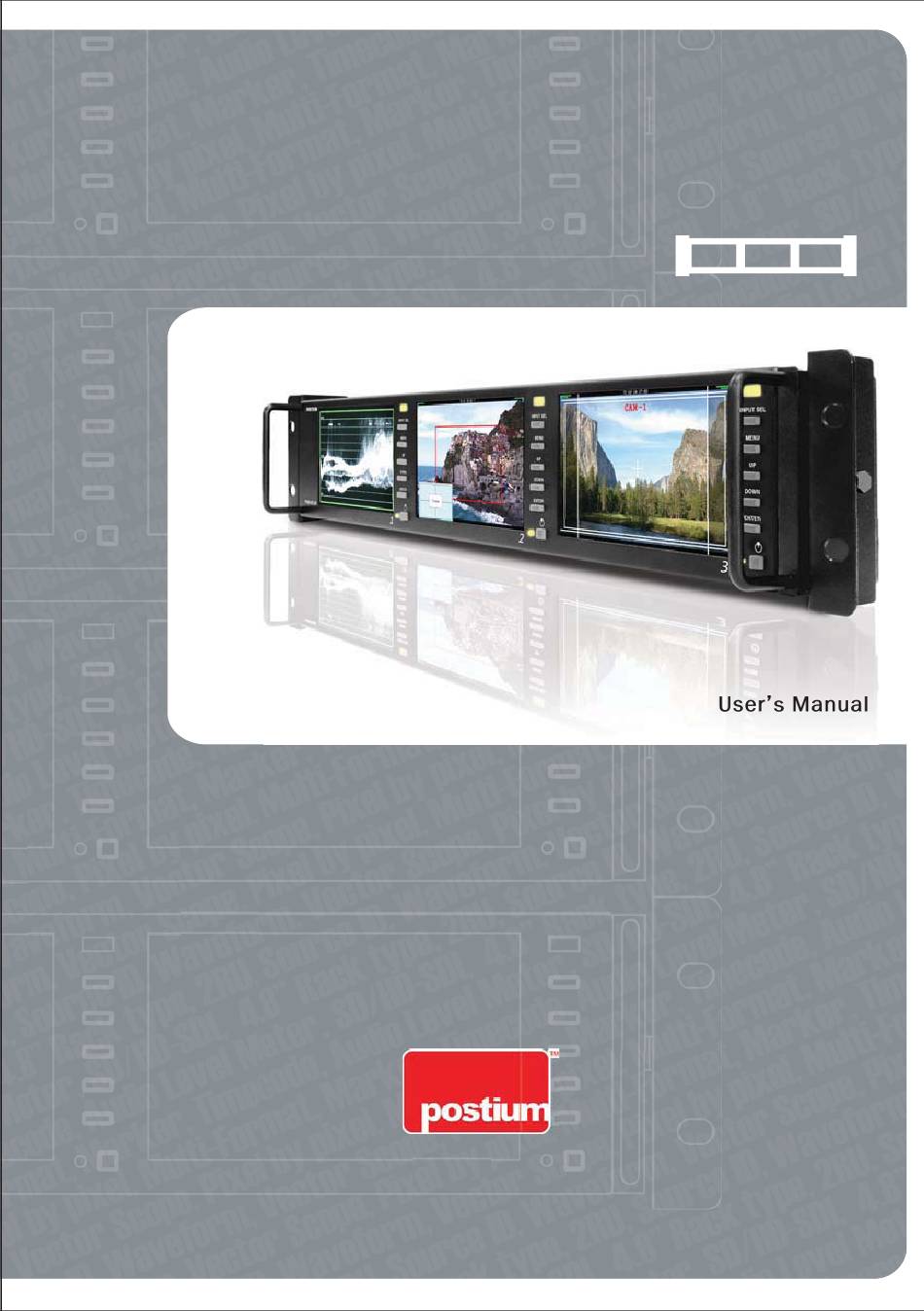

  • Page 1 LCD Racks Monitor PRM-483A MULTI-CHANNEL LCD MONITOR...

  • Page 2: Table Of Contents

    Contents PRM-483A Warnings ......................3 Features ......................4 Name & Function of Each Part ................. 5 OSD Menu Organization & Adjustment ............7 Other Functions ....................14 System Default Value..................23 Product Specification ..................24...

  • Page 3: Prm-483A

    PRM-483A MULTI-CHANNEL LCD MONITOR Warning · Always use set voltage. - DC 12V · If liquid is spilled on or impacts this product, please disconnect the product immediately and seek professional help before continued use. · Keep unit disconnected during extended periods of disuse.

  • Page 4: Features

    Features Multi-Format PRM-483A Series unit has the following features: · Compatible with varied SDI Signals The product is compatible with varied SDI signal - 480i, 576i, 720p, 1035i, 1080i, 1080p, 1080psf, 2K · Compatible with varied Composite Signals - NTSC, PAL, SECAM ·...

  • Page 5: Name & Function Of Each Part

    PRM-483A MULTI-CHANNEL LCD MONITOR Name & Function of Each Part <FRONT> TALLY POWER ENTER DOWN UP MENU INPUT · [INPUT] button Used to select SDI A / SDI B / COMPOSITE Input (Rotation) · [MENU] button Used to activate the OSD menu.
  • Page 6 <REAR> REMOTE FACTORY PGM SDI OUTPUT SDI B INPUT COMPOSITE OUTPUT DC IN SDI A INPUT COMPOSITE INPUT · REMOTE (RJ-45) Connection for remote control of monitor. · SDI A-IN (BNC) SDI A signal input terminal · SDI B-IN (BNC) SDI B signal input terminal ·...

  • Page 7: Osd Menu Organization & Adjustment

    PRM-483A MULTI-CHANNEL LCD MONITOR OSD Menu Organization & Adjustment [1] MAIN - Picture · Brightness This Item controls the degree of brightness. · Contrast This item controls the contrast ratio. · Chroma This item controls saturation. · Aperture This item controls the picture sharpness.
  • Page 8 [2] MAIN - Color · Color Temp This item controls Color Temperature with presets of 3200K, 5600K, 6500K, 9300K and User1, User2, User3 mode. · User On User Mode, the user may select and control R, G, & B GAIN, BIAS values by using the [UP]/[DOWN]/[ENTER] buttons.
  • Page 9 PRM-483A MULTI-CHANNEL LCD MONITOR · Line Marker This selects the marker type when the Line Marker is displayed on the screen. Compatible Line MARKER types are as follows: MODE Line Marker CLASS 16:9, 4:3, 4:3 ON AIR, 15:9, 14:9, SD 16:9 13:9, 1.85:1, 2.35:1, 1.85:1 &...
  • Page 10 · Pin1 ~ Pin6 The user may connect RJ-45 jack to the remote terminal on the rear of the unit and designate a function for each pin. The selectable functions are as follows: ANALOG CHANNEL, DIGITAL A CHANNEL, DIGITAL B CHANNEL TALLY RED, TALLY GREEN BLUE ONLY UNDERSCAN...
  • Page 11 PRM-483A MULTI-CHANNEL LCD MONITOR · WaveForm Size This item controls the size of Waveform or Vector Scope. · WaveForm Position This item controls the position of Waveform or Vector Scope between Right, Center and Left. #In normal display, press Enter button to activate this feature.
  • Page 12 · Source ID Position This item controls the position of Source ID display. (Top-left, Top-center, Top-right, Bottom-right, Bottom-center, Bottom-left) · Source ID Color This item is used to change the color of Source ID display by selecting black, white, red, green, blue or yellow.
  • Page 13 This item is the firmware version of the system. · License [8] INPUT Menu · PRM-483A Series unit is capable of process- ing varied Input signals Composite and SDI. · Press [INPUT] button on the front of the monitor and activate the OSD menu as shown on the left.

  • Page 14: Other Functions

    Other Functions [1] PIXEL TO PIXEL · PRM-483A monitor’s Pixel to Pixel mode displays input signal without scaling. · To activate the [Pixel to Pixel] mode, access the Scan menu in Syetem menu and select [Pixel to Pixel]. · In the [Pixel To Pixel] mode, use the [UP]/[DOWN] buttons to toggle between 1:1 scan...
  • Page 15 PRM-483A MULTI-CHANNEL LCD MONITOR Input Action Button Available Modes [UP] Center -> Left Top -> Right Top -> Right Bottom -> left Bottom -> (Clockwise) Center -> … HD 720p [DOWN] Center -> Left Bottom -> Right Bottom -> Right Top -> Left Top (Opposite) ->...
  • Page 16 · Positions in HD Signal 1080i/1080p mode Right Left Top Mid Top [UP] [UP] [DOWN] [DOWN] [UP] [DOWN] [UP] [DOWN] [UP] Left Right Center [DOWN] [UP] [DOWN] [UP] [DOWN] [UP] [UP] Left Right [DOWN] [DOWN] Bottom Bottom Bottom · Position in HD Signal 720p mode [UP] [UP] Left Top...
  • Page 17 PRM-483A MULTI-CHANNEL LCD MONITOR [2] Waveform Small display : YCbCr Vector Full display Vector · Waveform Waveform · Waveform Size Small (Y) Small (Cb, Cr, Y) Full (Y) If push the Input button (SDI-A ,SDI-B and Analog), Waveform full mode is change to small mode automatically.
  • Page 18 · Exception: If overlaps with OSD, blending activates automatically. Main OSD Info Window Pixel To Pixel Source ID This function is only available with SDI Input. [3] Vector Scope ·Vector Scope Vector Scope OFF Vector Scope ON · Vector Scope Size Small Full...
  • Page 19 PRM-483A MULTI-CHANNEL LCD MONITOR Vector Scope Position / Blending : Refer to the Waveform position (P .18) and Waveform Blending (P .19) This function is only available with SDI Input. [4] Audio Level Meter · Audio Level Meter HORIZONTAL VERTICAL...
  • Page 20 · Avoid Overlap In full size WaveForm mode, WaveForm shifts down to avoid the overlap with Audio Level Meter. Audio Level Meter OFF Audio Level Meter ON · Group & Channel Group / Channel (Horizontal) C H1 C H2 Group 1 Group 1 C H3 C H4 C H1 C H2...
  • Page 21 PRM-483A MULTI-CHANNEL LCD MONITOR [5] Time Code Time Code Time Code + Audio Level Meter Time Code + WaveForm Full Size Time Code + SourceID + WaveForm + Audio Level Meter #This function is only available with SDI Input. [6] Source ID ·...
  • Page 22 · Source ID Position Left Top Mid Top Right Top Left Bottom Mid Bottom Right Bottom · Source ID Color Black White Green Blue Yellow [7] MAIN - System [page3] · Back Light This item controls the LED backlight setting. The value should be within range between MIN(0) and MAX(50).

  • Page 23: System Default Value

    PRM-483A MULTI-CHANNEL LCD MONITOR System Default Value MEMU Value Brightness Contrast Picture Chroma Aperture Phase NTSC Setup 7.5 IRE 6500K Color Temp Gain Red (1/2/3) Gain Green (1/2/3) Color Gain Blue (1/2/3) Bias Red (1/2/3) Bias Green (1/2/3) Bias Blue (1/2/3)

  • Page 24: Product Specification

    Product Specification Input (1 Screen) 2 x BNC SDI 2 Channel Input 1 x BNC Composite Input Output (1 Screen) 1 x BNC SDI Channel (Active Through Out) 1 x BNC Composite Output (Internal Buffer Output) Analog Composite (1.0Vpp with Sync) Input Signal HD-SDI 1.485 Gbps...
  • Page 25 POSTIUM KOREA Co., Ltd. 208, Building A, Samsong Techno Valley, 140, Tongil-ro, Deogyang-gu, Goyang-si, Gyeonggi-do, Korea, 10594 Tel : +82.2.354.6055 / Fax : +82.2.354.6056...
