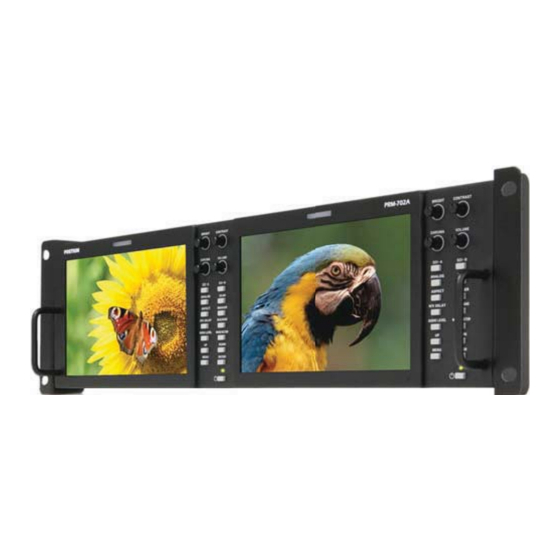

Postium PRM-702A User Manual

Multi-channel lcd monitor
Hide thumbs

Advertisement

Quick Links

Download this manual
LCD Racks Monitor
PRM-702A
MULTI-CHANNEL LCD MONITOR

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRM-702A and is the answer not in the manual?

Questions and answers

Related Manuals for Postium PRM-702A

Summary of Contents for Postium PRM-702A

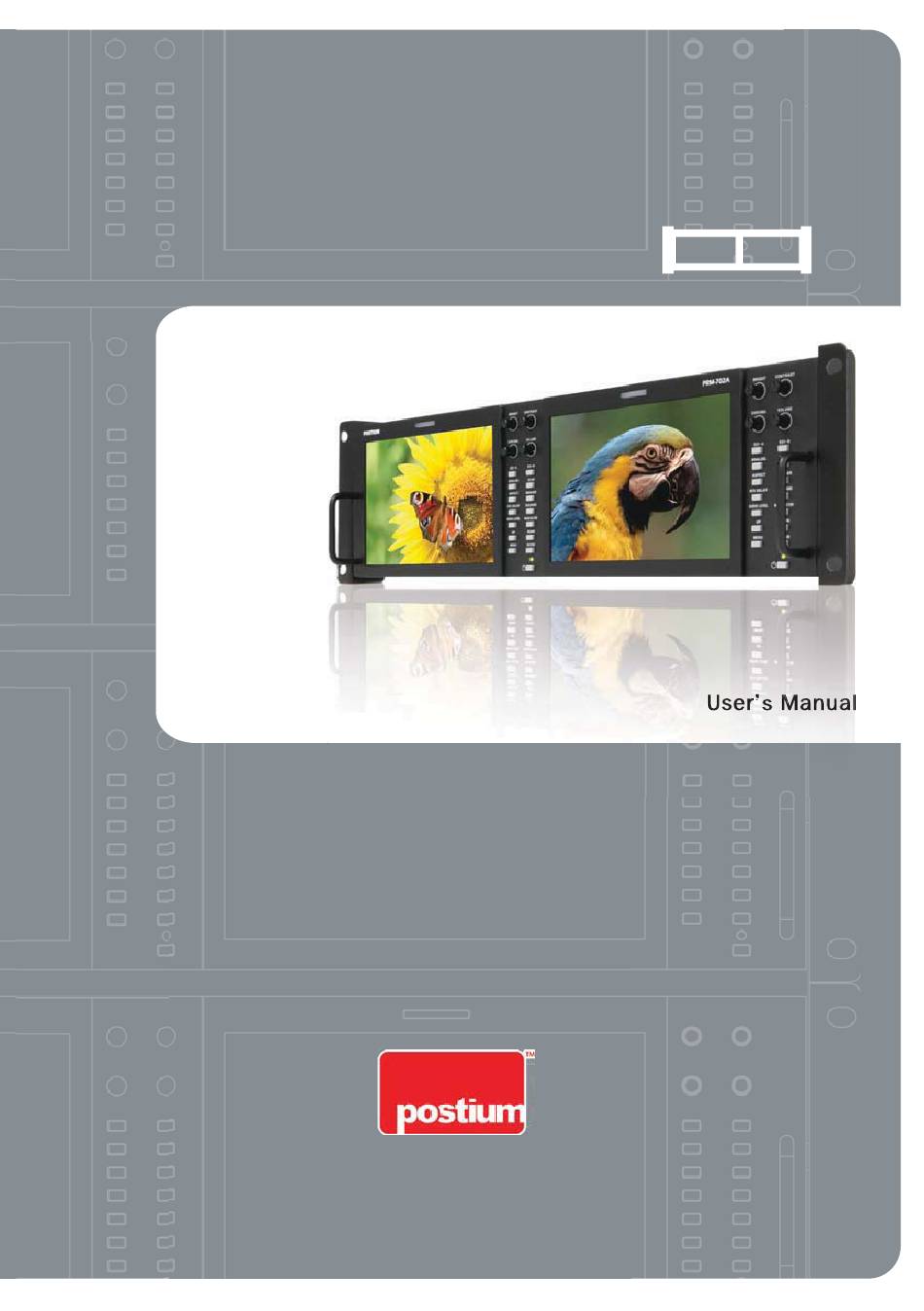

  • Page 1 LCD Racks Monitor PRM-702A MULTI-CHANNEL LCD MONITOR...

  • Page 3: Table Of Contents

    Contents PRM-702A Warnings ......................3 Features ......................4 Name & Function of Each Part ..............5 OSD Menu Organization & Adjustment ..........8 Other Functions ................... 16 System Default Value.................. 25 Product Specification ................26...

  • Page 4: Prm-702A

    PRM-702A MULTI-CHANNEL LCD MONITOR Warning · Always use set voltage. - DC 12V · If liquid is spilled on or impacts this product, please disconnect the product immediately and seek professional help before continued use. · Keep unit disconnected during extended periods of disuse.

  • Page 5: Features

    Features Multi-Format PRM-702A Series unit has the following features: · Compatible with varied SDI Signals The product is compatible with varied SDI signal -480i,576i,720p,1035i,1080i,1080p,1080psf, 2K · Compatible with varied Analog Signals The product is compatible with varied Composite, S-Video signal...

  • Page 6: Name & Function Of Each Part

    PRM-702A MULTI-CHANNEL LCD MONITOR Name & Function of Each Part <FRONT> CONTRAST TALLY VOLUME BRIGHTNESS CHROMA 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 1. SDI-A 2. ANALOG 3. MARKER 4. HV DELAY 1.
  • Page 8 PRM-702A MULTI-CHANNEL LCD MONITOR <REAR> AUDIO OUT FACTORY PGM SDI OUTPUT CVBS1/B/Pb REMOTE SDI B INPUT CVBS2/G/Y/S-Y SDI A INPUT CVBS3/R/Pr/S-C DC IN · SDI A-IN (BNC) SDI A signal input terminal · SDI B-IN (BNC) SDI B signal input terminal ·...

  • Page 9: Osd Menu Organization & Adjustment

    OSD Menu Organization & Adjustment [1] MAIN - Picture · Brightness This Item controls the degree of brightness. #Brightness can be adjusted by using the [BRIGHT] control knob on the front of the monitor. · Contrast This item controls the contrast ratio. #Contrast can be adjusted by using the [CONTRAST] control knob on the front of the monitor.
  • Page 10 PRM-702A MULTI-CHANNEL LCD MONITOR [2] MAIN - Color · Color Temp This item controls Color Temperature with presets of 3200K, 5600K, 6500K, 9300K, and User1, User2, User3 mode. · User On User Mode, the user may select and control R, G, & B GAIN, BIAS values by using the [UP]/[DOWN]/[ENTER] buttons.
  • Page 11 [3] MAIN - Marker · Line Marker This selects the marker type when the MARKER is displayed on the screen. Compatible MARKER types are as follows: MODE Marker CLASS HD / SD 16:9, 4:3, 4:3 ON AIR, 15:9, 14:9, 16:9 13:9, 1.85:1, 2.35:1, 1.85:1 &...
  • Page 12 PRM-702A MULTI-CHANNEL LCD MONITOR [4] MAIN - Remote · Pin1 ~ Pin6 The user may connect RJ-45 jack to the remote terminal on the rear of the unit and designate a function for each pin. The selectable functions are as follows:...
  • Page 13 [5] MAIN - System [page2] · Audio Level Meter This item selected the type of Audio Level Meter ( Off/Horizontal / Vertical / dBFS / VU / EBU / BBC /Nordic ) - This feather can’t be activated a function of Waveform on Full Audio Level Meter(dBFS / VU / EBU / BBC /Nordic) selected, - This feather can be activated a function of Permitted Max/ Alignment /Peak Hold Time on Full Audio Level Meter selected...
  • Page 14 PRM-702A MULTI-CHANNEL LCD MONITOR [5] MAIN - System [page3] · Source ID This item is used to activate the source ID display by selecting BG Type or Char Type. · Source ID Character This item is used to customize the Source ID display. (A~Z, a~z, 0~9 and special characters) ·...
  • Page 15 [5] MAIN – System [page4] · Back Light This item controls the LED backlight setting. The value should be within range between MIN(0) and MAX(15). · AFD This item activates the AFD mode. Selectable mode are Off, Aspect Mode and Marker Mode. #This feature action in only SDI signal included AFD Data.
  • Page 16 PRM-702A MULTI-CHANNEL LCD MONITOR · · · · · ·...

  • Page 17: Other Functions

    Other Functions [1] PIXEL TO PIXEL · PRM-702A monitor’s Pixel to Pixel mode displays input signal without scaling. · To activate the [Pixel To Pixel] mode, access the Scan menu in System menu and select [Pixel To Pixel]. · In the [Pixel To Pixel] mode, use the [UP]/[DOWN] buttons to toggle between 1:1 scan...
  • Page 18 PRM-702A MULTI-CHANNEL LCD MONITOR Input Action Button Available Modes [UP] Center -> Left Top -> Right Top -> Right Bottom -> left Bottom -> (Clockwise) Center -> … HD 720p [DOWN] Center -> Left Bottom -> Right Bottom -> Right Top -> Left Top ->...
  • Page 19 · Positions in HD Signal 1080i/1080p mode Right Left Top Mid Top [UP] [UP] [DOWN] [DOWN] [UP] [DOWN] [UP] [DOWN] [UP] Left Right Center [DOWN] [UP] [DOWN] [UP] [DOWN] [UP] [UP] Left Right [DOWN] [DOWN] Bottom Bottom Bottom · Position in HD Signal 720p mode [UP] [UP] Left Top...
  • Page 20 PRM-702A MULTI-CHANNEL LCD MONITOR [2] Waveform Small display : YCbCr Vector Full display : Y Vector · Waveform Waveform · Waveform Size Small (Y) Small (Cb, Cr, Y) Full (Y) If push the Input button (SDI-A ,SDI-B and Analog), Waveform full mode is change to small mode automatically.
  • Page 21 · Exception: If overlaps with OSD, blending activates automatically. Main OSD Info Window Pixel To Pixel Source ID This function is only available with SDI Input. [3] Vector Scope ·Vector Scope Vector Scope OFF Vector Scope ON · Vector Scope Size Small Full...
  • Page 22 PRM-702A MULTI-CHANNEL LCD MONITOR Vector Scope Position / Blending : Refer to the Waveform position (P.18) and Waveform Blending (P.19) This function is only available with SDI Input. [4] Audio Level Meter · Audio Level Meter HORIZONTAL VERTICAL dBFS Nordic...
  • Page 23 · Avoid Overlap In full size WaveForm mode, WaveForm shifts down to avoid the overlap with Audio Level Meter. Audio Level Meter OFF Audio Level Meter ON · Group & Channel Group / Channel (Horizontal) C H1 C H2 Group 1 Group 1 C H3 C H4 C H1 C H2...
  • Page 24 PRM-702A MULTI-CHANNEL LCD MONITOR [5] Time Code Time Code Time Code + Audio Level Meter Time Code + WaveForm Full Size Time Code + SourceID + WaveForm + Audio Level Meter #This function is only available with SDI Input. [6] Source ID ·...
  • Page 25 · Source ID Position Left Top Mid Top Right Top Left Bottom Mid Bottom Right Bottom · Source ID Color Black White Green Blue Yellow [7] MAIN - System [page3] · Back Light This item controls the LED backlight setting. The value should be within range between MIN(0) and MAX(50).

  • Page 26: System Default Value

    PRM-702A MULTI-CHANNEL LCD MONITOR System Default Value MEMU Value Brightness Contrast Chroma Picture Aperture Phase NTSC Setup 7.5 IRE Color Temp 6500K Gain Red (1/2/3) Gain Green (1/2/3) Gain Blue (1/2/3) Color Bias Red (1/2/3) Bias Green (1/2/3) Bias Blue (1/2/3)

  • Page 27: Product Specification

    Product Specification Input (1 Screen) 3 x BNC Analog Input 2 x BNC SDI 2 Channel Input Output (1 Screen) 1 x BNC SDI Output (Active Through Out) Composite 1.0Vpp (With Sync) S-Video 1.0Vpp (Y With Sync), 0.286Vpp(C) Input Signal Component 1.0Vpp (Y With Sync), 0.7Vpp (Pb,Pr) 1.0Vpp (G With Sync), 0.7Vpp (B,R)
  • Page 28 POSTIUM KOREA Co., Ltd. 208, Building A, Samsong Techno Valley, 140, Tongil-ro, Deogyang-gu, Goyang-si, Gyeonggi-do, Korea, 10594 Tel : +82.2.354.6055 / Fax : +82.2.354.6056...
