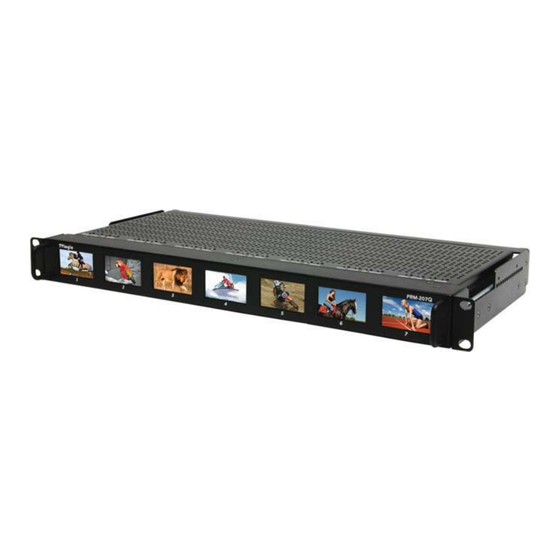

LCD Rack Monitor
207
MULTI-CHANNEL LCD MONITOR

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRM-207Q and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Postium PRM-207Q

Summary of Contents for Postium PRM-207Q

  • Page 1 LCD Rack Monitor MULTI-CHANNEL LCD MONITOR...

  • Page 2: Table Of Contents

    Contents PRM-207Q Warning ......................2 Features ......................3 Feature Name & Functions ................4 OSD Menu Organization & Adjustment ............6 Other Functions ....................10 System Default Value..................15 Product Specification ..................16...

  • Page 3: Warning

    MULTI-FORMAT LCD MONITOR Warning · Always use set voltage. - DC 12V · If liquid is spilled on or impacts this product, please disconnect the product immediately and contact for professional help before continuing use. · Keep unit disconnected during extended periods of disuse. ·...

  • Page 4: Features

    Features Multi-Format PRM-207Q Rack Monitor Contains the following features : ·Compatible with various SDI Signals The product is compatible with varied SDI Signals -480i,576i,720p,1035i,1080i,1080p,1080psf, 2K · Wide Varieties of Markers & Safety Areas Center Marker, Safety Area Marker, Aspect Marker, Display Size(Scan) ·...

  • Page 5: Feature Name & Functions

    MULTI-FORMAT LCD MONITOR Feature Name & Functions <FRONT> Peacetime Protrusion Tilt · [MENU] button Used to activate the OSD Menu. · [UP] button Used to navigate menu during OSD Menu activation. It may also be used to select Aspect Marker during OSD Menu non-activation. ·...
  • Page 6 Feature Name & Functions <REAR> RS422 IN DC 12V 4.2A IN SDI-IN SDI-IN SDI-IN SDI-IN SDI-IN SDI-IN · SDI A-IN (BNC) SDI A signal input terminal · SDI-OUT (BNC) SDI signal output terminal · DC IN (3 pins) Used to supply DC power; 12V ·...

  • Page 7: Osd Menu Organization & Adjustment

    MULTI-FORMAT LCD MONITOR OSD Menu Organization & Adjustment [1] MAIN - Color · Color Temp (Default Setting – 6500K) This item controls Color Temperature with presets of 3200K, 5600K, 6500K, 9300K, and User1, User2, and User3 mode. · User On User Mode, the user may select and control R, G, & B GAIN, or BIAS values by using the [UP]/[DOWN]/[ENTER] buttons.
  • Page 8 [2] MAIN - Marker · Marker (Default Setting – On) Used to show MARKER on the screen. The type of marker at work may be selected on the other menu. -This function is not available in Pixel to Pixel and HV Delay modes. ·...
  • Page 9 MULTI-FORMAT LCD MONITOR [3] MAIN - System [page1] · System Default (Default Setting – No) User can use the System Default Menu to initialize the values of the monitor. · Source ID (To make active, off the Marker function) This item is used to activate the Source ID display by selecting Manual(BG), Manual(Char), UMD(Small), UMD(Medium), or UMD(Large).
  • Page 10 -SD Signal only (Disables automatically in any other signal including No signal) · HV Delay This item activates the HV Delay mode. -In HV Delay mode, Marker Feature and Menu are disabled automatically. · Firmware Version This item is the firmware version of the system. · License Licensed by Postium Korea.

  • Page 11: Other Functions

    MULTI-FORMAT LCD MONITOR Other Functions [1] Line Marker · A line marker which is enabled by default, displays aspect lines with the input signal. · To display the [Line Marker] mode, use the [UP]/[DOWN] buttons to select aspect lines as below.
  • Page 12 [2] PIXEL TO PIXEL · Pixel to Pixel mode in PRM-207Q monitor displays the input signal without scaling the image. · To activate the [Pixel to Pixel] mode, access the Scan Menu in System Menu and select [Pixel to Pixel].
  • Page 13 MULTI-FORMAT LCD MONITOR Input Action Button Available Modes [UP] Center -> Left-Top -> Right-Top -> Right-Bottom -> (Clockwise) Left-Bottom -> Center -> ... HD 720p [DOWN] Center -> Left-Bottom -> Right-Bottom -> Right-Top -> (Opposite) Left-Top -> Center -> ... - OSD change ·...
  • Page 14 · Positions in HD Signal 1080i/1080p mode Left- Mid- [UP] [UP] Center [DOWN] [DOWN] Right- [UP] [UP] [UP] Right- Right- [DOWN] [DOWN] [DOWN] Bottom [UP] [UP] [UP] Left- Mid- Left- [DOWN] [DOWN] [DOWN] Bottom Bottom · Position in HD Signal 720p mode [UP] [UP] Left-Top...
  • Page 15 MULTI-FORMAT LCD MONITOR [3] Source ID Manual (BG) Manual (Char) UMD (Small) UMD (Medium) UMD (Large) UMD Usage Example...

  • Page 16: System Default Value

    · Source ID Position (Manual Only) · Source ID Color System Defaut Value MENU VALUE Color Temp 6500K Gain RED (1/2/3) Gain GREEN (1/2/3) Gain BLUE (1/2/3) Color Bias RED (1/2/3) Bias GREEN (1/2/3) Bias BLUE (1/2/3) Color Copy 6500K Marker Line Marker Marker...

  • Page 17: Product Specification

    MULTI-FORMAT LCD MONITOR Product Specification Input (1 Screen)* SDI 2 Channel Input 1 x BNC Output (1 Screen)* 1 x BNC SDI Output (Active Through Out) HD-SDI 1.458Gbps Input Signal* SD-SDI 270Mbps 1080i (60/59.94/50) SMPTE-274M 1080p (30/29.97/25/24/24sF/23.98/23.98sF) SMPTE-296M 720p (23.98/24/25/29.97/30/50/59.94/60) SDI Input Signal Formats* SMPTE-260M 1035i (60/59.94)
  • Page 18 Postium Korea Postium Bldg. 2F, 433-34 Kalhyun-Dong, Eunpyoung-Gu, Seoul, 122-811, Korea Tel : +82-2-354-6055 Fax : +82-2-354-6056 www.postium.com...
