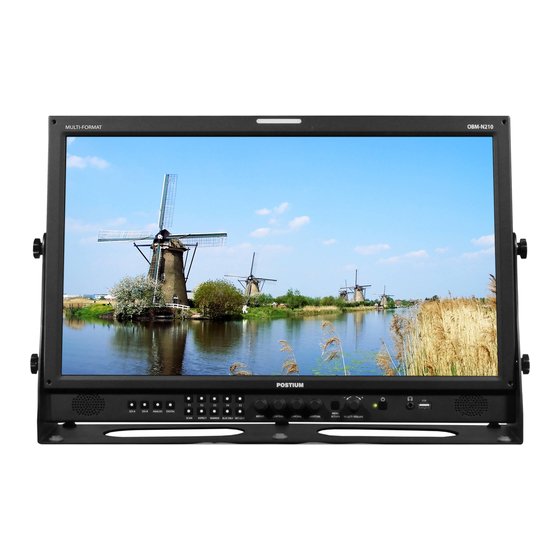

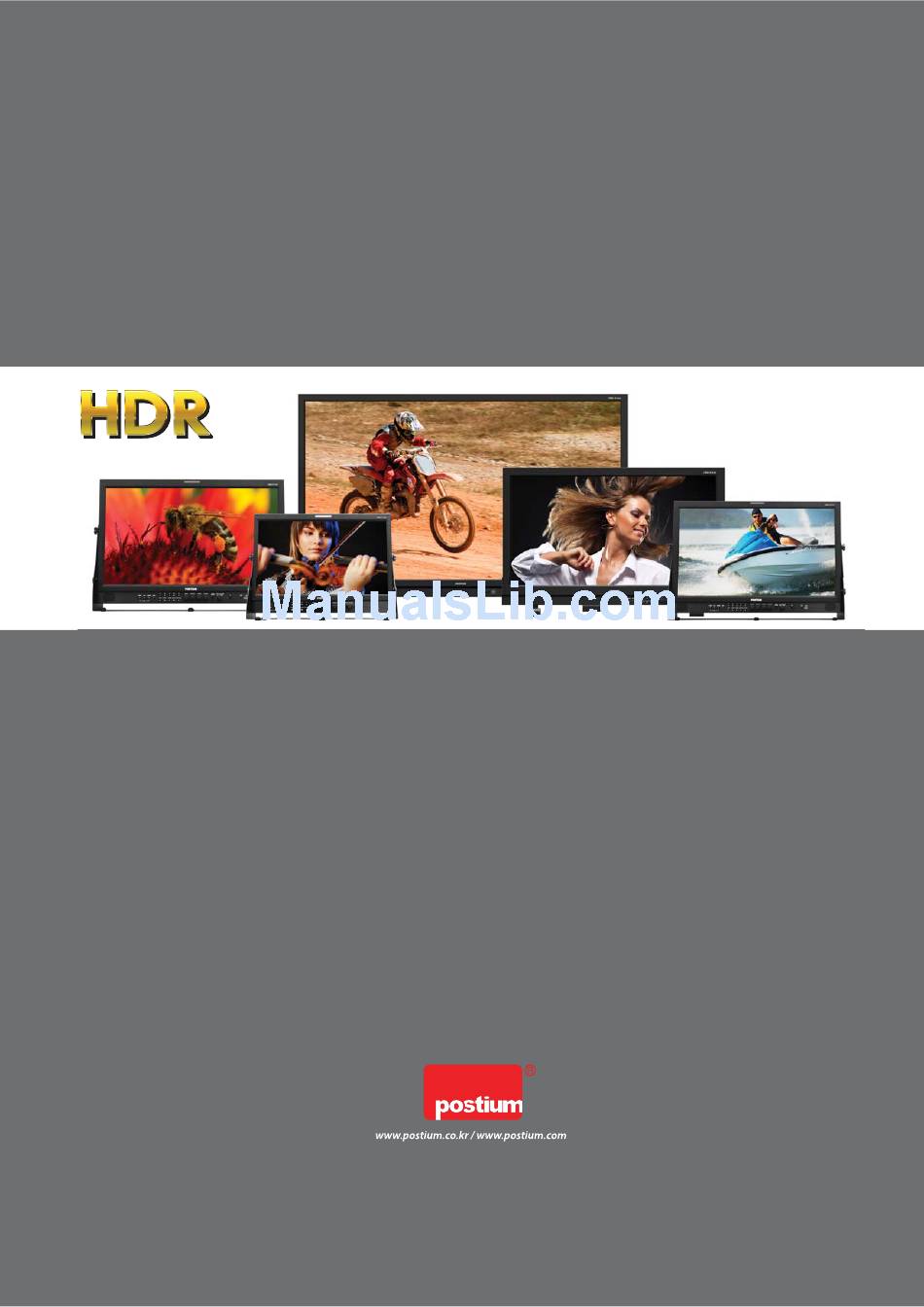

- Page 1 User Manual OBM N Series Professional Video Monitor Operational Instructions OBM-N180 OBM-N210 OBM-N240 OBM-N310 OBM-N420 OBM-N460 OBM-N550 07. 2017...
-
Page 2: Table Of Contents
Professional Video Monitor OBM-N Series Outstanding Picture Quality Table of Contents 1. Precaution 2. Main Features 3. Location and Function of Parts and Controls Front Panel Rear Panel 4. Using the Menu 5. Adjustment Using the Menus 6. OSD Menu Operations Status Menu Color Temp/Color Space/Gamma Menu Zebra/Focus Menu... -
Page 3: Precaution
Protect the power cord from being walked on or pinched par cularly at plugs, convenience receptacles, and the point where they exit from the apparatus. When using other DC 12V(OBM-N180/N210/N240) or DC 24V(OBM-N310) adapters instead of the standard adapter provided by the manufacturer, please check the proper load capacity or current capacity and use an adapter with stable voltage. - Page 4 Professional Video Monitor OBM-N Series Outstanding Picture Quality Do not a empt to service the product yourself. Removing covers can expose you to high voltage and other dangerous condi ons. Request a qualified service person to perform servicing. When the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteris cs and performance as the original parts.
-
Page 5: Main Features
Professional Video Monitor OBM-N Series Outstanding Picture Quality 2. Main Features The OBM N series offers the superior picture quality and wide viewing angle, and includes an array of professional features and the advanced audio & video signal analysis func ons including Waveform, Vector Scope, Audio Level Meter, IMD, Camera Log Selec on, Custom 3D LUT Import, Focus Assist, etc. -
Page 6: Location And Function Of Parts And Controls
Professional Video Monitor OBM-N Series Outstanding Picture Quality 3. Location and Function of Parts and Controls Front Panel A : Input select Bu ons/Lamp Press to monitor the signal input to each connector. [SDI-A] Bu on/Lamp - Press the bu on to select 3G SDI-1 input [SDI-B] Bu on/Lamp - Press the bu on to select 3G SDI-2 input [ANALOG] Bu on/Lamp... - Page 7 Professional Video Monitor OBM-N Series Outstanding Picture Quality [CHROMA] knob Press this knob to display the adjustment screen and adjust the color intensity. Press again to hide the adjustment screen. Turn the knob right to increase the color intensity and turn le to decrease it. [APERTURE] knob Press this knob to display the adjustment screen and adjust the picture sharpness.
-
Page 8: Rear Panel
Professional Video Monitor OBM-N Series Outstanding Picture Quality Rear Panel A : SDI IN (SDI Input) connectors (BNC) Input connectors for SDI signals. For details, see “Connec ng the SDI Signals” (page 26). B : SDI OUT (SDI Output) connectors (BNC) Output connectors for SDI signals. - Page 9 J : DC IN terminal Connects the DC power supply to the monitor. - OBM-N180 / N210 / N240 : 12V - OBM-N310: 24V Make sure to use DC 12V power supply for OBM-N180/N210/N240 and DC 24V power supply for OBM-N310. OBM-N180/N210/N240 OBM-N310...
-
Page 10: Using The Menu
Professional Video Monitor OBM-N Series Outstanding Picture Quality 4. Using the Menu This monitor is equipped with an OSD menu to make various adjustments and se ngs such as picture control, input se ng, set se ng change, etc. 1. Press the MENU bu on. The menu appears. -
Page 11: Adjustment Using The Menus
Professional Video Monitor OBM-N Series Outstanding Picture Quality 5. Adjustment Using the Menus The OSD menu of this monitor consists of the following items. Status menu (To indicate the current se ngs) User Configura on menu Format User Preset Color Temp Func on Bu on Se ng F1 Bu on Brightness... - Page 12 Professional Video Monitor OBM-N Series Outstanding Picture Quality Remote menu Parallel Remote 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin Monitr ID In-Monitor Display Se ng IMD Type Transparency Text Color Le Tally Color Right Tally Color Security Se ng Key Lock...
- Page 13 Professional Video Monitor OBM-N Series Outstanding Picture Quality 6. OSD Menu Opera ons Status Menu The Status menu displays the current status of the Page 3/4 monitor. The following items are displayed. Page 1/4 SDI Input Iden fier SDI Payload ID Sampling Picture Rate Format...
-
Page 14: Color Temp/Color Space/Gamma Menu
Professional Video Monitor OBM-N Series Outstanding Picture Quality Color Temp/Color Space/Gamma Menu These menus are used for adjus ng or se ng the color Page 2/2 temperature, color space or gamma of the picture. Page 1/2 Color Space - Selects the color space between [ITU-R BT.709], [Na ve]. - Page 15 Professional Video Monitor OBM-N Series Outstanding Picture Quality Color Temp/Color Space/Gamma Menu Camera Log HDR&Cam.Log Comparison Selects a camera log for the input signal. Divides the screen side by side, applies HDR or [Off]: Sets off the camera log. Camera log on the le side, and compares the [Default]: The log which is selected in [Default Log Sel.] picture between the le side and the right side.
-
Page 16: Zebra/Focus Menu
Professional Video Monitor OBM-N Series Outstanding Picture Quality User Configuration Menu Zebra/Focus Menu User Configura on consists of the adjustment menus such as[User Preset],[Func on Bu on Se ng],[Input Se ng],[Speaker Out / Audio Level Meter Se ng], [Marker Se ng],[WFM/Vector Se ng], [Closed Cap on Se ng], [System Se ng]. - Page 17 Professional Video Monitor OBM-N Series Outstanding Picture Quality User Configuration Menu Page 2/7 Page 3/7 Speaker Out / Audio Level Meter Se ng Input Se ng - Selects the audio channel of the SDI & HDMI 3G Signal Format input signal. - Selects the format of 3G SDI input signal.
- Page 18 Professional Video Monitor OBM-N Series Outstanding Picture Quality User Configuration Menu Page 5/7 Page 4/7 WFM/Vector Marker - Sets to ac vate and deac vate Waveform - Selects On to display the marker, and Off to monitor and Vectorscope. deac vate it. You can select from among [WFM], Aspect Marker [VectorScope], [WFM+Vector], [WFM Wide].
- Page 19 Professional Video Monitor OBM-N Series Outstanding Picture Quality Page 7/7 Size Sets the size of Waveform and Vector Scope. [Large] and [Small] can be selected. * The size of Waveform and Vector Scope is fixed as Small in PBP Mode WFM&Throughout w/ Camera log The Waveform is displayed on the basis of the image, which the Camera log is applied to.
-
Page 20: Remote Menu
Professional Video Monitor OBM-N Series Outstanding Picture Quality Remote Menu Monitor ID Sets the ID of the monitor to control the monitor Parallel Remote through Serial Remote or Network. Selects the Parallel Remote connector pins for which you want to change the func on. In-Monitor Display Se ng Various func ons can be assigned to pin 1 to 6. -
Page 21: Security Menu
Professional Video Monitor OBM-N Series Outstanding Picture Quality Security Menu Security Se ng Key Lock When Key Lock func on is set On, the change of the menu se ngs and func ons doesn’t work. ** The same func on as [Key Lock] bu on on the front panel. -
Page 22: Key Functions
Professional Video Monitor OBM-N Series Outstanding Picture Quality 7. Key Functions Focus Assist High Dynamic Range(HDR) Display Func on The OBM N series provides the func on to display the This func on controls the aperture level of a video High Dynamic Range footage. - Page 23 Professional Video Monitor OBM-N Series Outstanding Picture Quality In-Monitor Display(IMD) Func on The image source names and tally informa on can be displayed on the screen, with an external remote func on via Ethernet. The TSL system protocol is supported. The color of the source name and tally color can be selectable among White, Red, Green, Blue, Yellow, Cyan, Magenta.
- Page 24 Professional Video Monitor OBM-N Series Outstanding Picture Quality Zebra Various Markers The OBM U series can display various markers, including aspect This func on displays the Luma(Y') level of the input marker, area marker, and center marker. In addi on, the detailed image in zebra pa ern.
-
Page 25: Available Signal Formats
Professional Video Monitor OBM-N Series Outstanding Picture Quality 8. Available Signal Formats This monitor is applicable to the following signal formats HD-SDI Signal System Signal Format 1920x1080 / 4:2:2 YCbCr 10bit 23.98, 24, 25, 29.97, 30p/Psf, 50, 59.94, 60i 2048 x 1080 / 4:2:2 YCbCr 10bit 23.98, 24, 25, 29.97, 30p/Psf 1280x 720 /... - Page 26 Professional Video Monitor OBM-N Series Outstanding Picture Quality HDMI / DVI Signal System Signal Format 640 x 480p@59.94 / 60 720 x 480p@59.94 / 60 720 x 576p@50 4:4:4 RGB 8 / 10 / 12bit 4:4:4 YCbCr 8 / 10 / 12bit 1280 x 720p@50 / 59.94 / 60 4:2:2 YCbCr 12bit 1920 x 1080i@50 / 59.94 / 60...
-
Page 27: Product Specifications
Professional Video Monitor OBM-N Series Outstanding Picture Quality 9. Product Specifications OBM-N180 / N210 / N240 OBM-N240 OBM-N180 OBM-N210 ITEM 3G/HD/SD-SDI-1/2 2 x BNC 1 x HDMI HDMI 1.3a Input 3 x BNC (YPbPr) Analog(YPbPr) 1 x BNC (CVBS) Composite... - Page 28 Professional Video Monitor OBM-N Series Outstanding Picture Quality OBM-N310 / N420 OBM-N310 OBM-N420 ITEM 2 x BNC 3G/HD/SD-SDI-1/2 1 x HDMI HDMI 1.3a Input 3 x BNC (YPbPr) Analog(YPbPr) 1 x BNC (CVBS) Composite 1 x DVI DVI-D Output 2 x BNC 3G/HD/SD-SDI-1/2 SMPTE ST 425-AB 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
- Page 29 Professional Video Monitor OBM-N Series Outstanding Picture Quality OBM-N460 / N550 OBM-N460 OBM-N550 ITEM 2 x BNC 3G/HD/SD-SDI-1/2 1 x HDMI HDMI 1.3a Input 3 x BNC (YPbPr) Analog(YPbPr) 1 x BNC (CVBS) Composite 1 x DVI DVI-D Output 2 x BNC 3G/HD/SD-SDI-1/2 SMPTE ST 425-AB 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
- Page 30 Professional Video Monitor OBM-N Series Outstanding Picture Quality 208, Building A, Samsong Techno Valley, 140, Tongil-ro, Deogyang-gu, Goyang-si, Gyeonggi-do, Korea, 10594 Tel : +82.2.354.6055 / Fax : +82.2.354.6056 E-mail : sales@postium.com www.postium.com...
