User Manual
Professional Video Monitor
Operational Instructions
OBM-U240
OBM-U170
03. 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OBM-U240 and is the answer not in the manual?

Questions and answers

Related Manuals for Postium OBM-U240

Summary of Contents for Postium OBM-U240

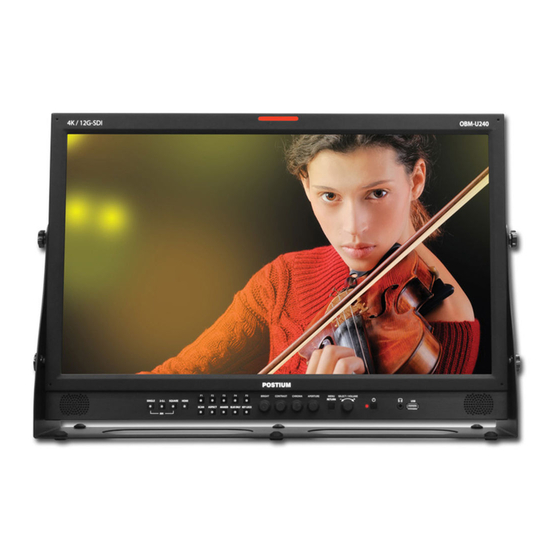

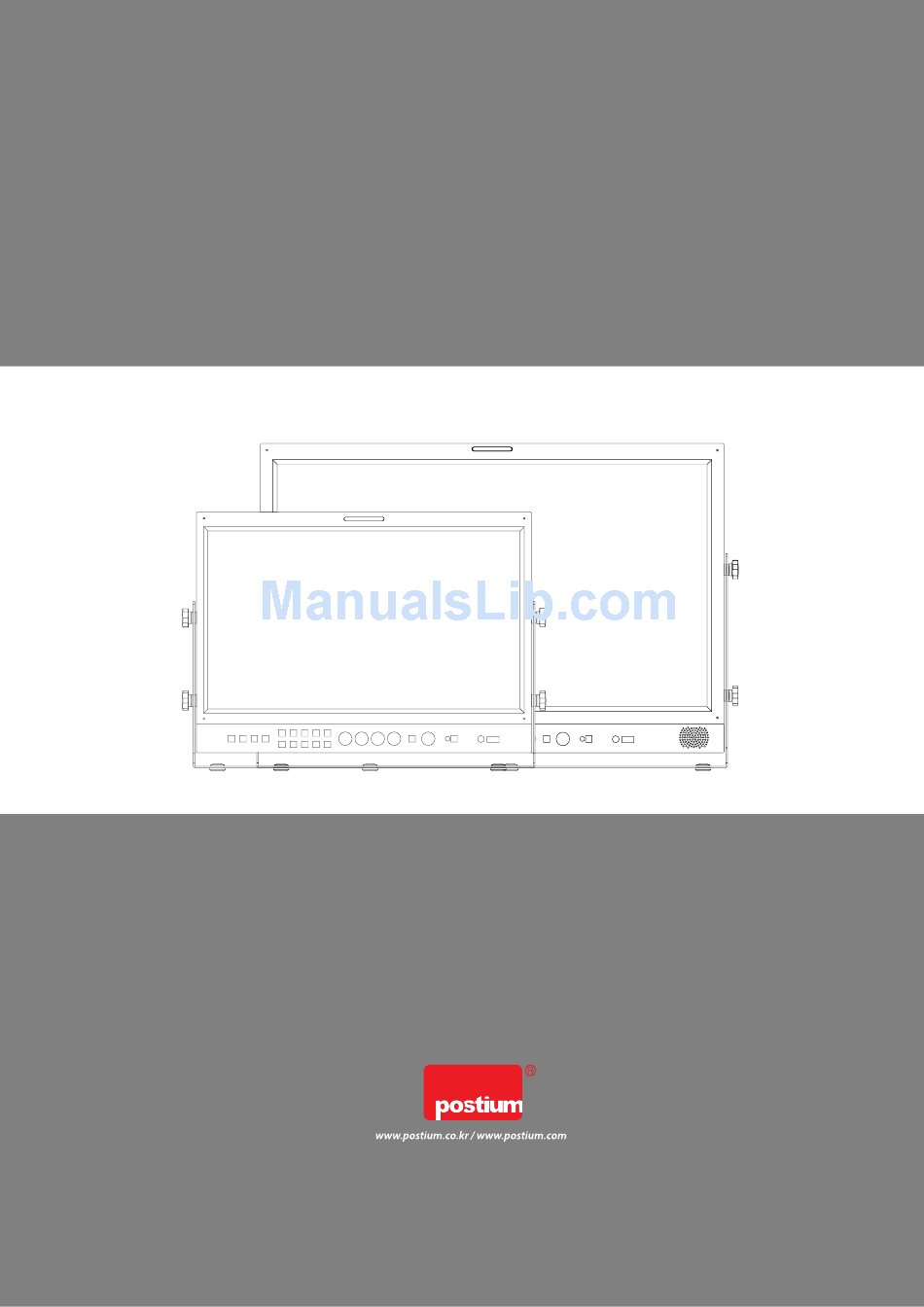

  • Page 1 User Manual Professional Video Monitor Operational Instructions OBM-U240 OBM-U170 03. 2017...

  • Page 2: Table Of Contents

    6. OSD Menu Operations Status Menu Color Temp/Color Space/Gamma Menu Zebra/Focus Menu User Configuration Menu Remote Menu 7. Scan Mode Image (OBM-U240) 8. Scan Mode Image (OBM-U170) 9. Connecting the SDI Signals 10. Available Signal Formats 11. Other Functions 12. Product Specification...

  • Page 3: Precaution

    When using other DC 12V(OBM-U170) or DC 24V(OBM-U240) adapters instead of the standard adapter provided by the manufacturer, please check the proper load capacity or current capacity and use an adapter with stable voltage.
  • Page 4 4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 1. Precaution Do not a empt to service the product yourself. Removing covers can expose you to high voltage and other dangerous condi ons. Request a qualified service person to perform servicing. When the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteris cs and performance as the original parts.

  • Page 5: Main Features

    4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 2. Main Features 4K professional monitor OBM-U170/U240 Series unit has the following features: · Versa le 4K/QFHD Input Capability This monitor is equipped with standard 12G-SDI input interface(x2), 3G/HD-SDI input interface(x2) and support 4K 2-sample interleave signals and 4K square division signals.

  • Page 6: Location And Function Of Parts And Controls

    4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 3. Location and Function of Parts and Controls Front Panel A : Input select Bu ons/Lamp Press to monitor the signal input to each connector. [SINGLE] Bu on/Lamp - Press the bu on to select SDI input or SFP input for one channel. - Mode changes in the order of [12G SDI-1], [12G SDI-2], [3G SDI-3], [3G SDI-4], [SFP]*.
  • Page 7 4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K [CHROMA] knob Press this knob to display the adjustment screen and adjust the color intensity. Press again to hide the adjustment screen. Turn the knob right to increase the color intensity and turn le to decrease it. [APERTURE] knob Press this knob to display the adjustment screen and adjust the picture sharpness.

  • Page 8: Rear Panel

    4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K Rear Panel A : SDI IN (SDI Input) connectors (BNC) Input connectors for SDI signals. For details, see “Connec ng the SDI Signals” (page 21). B : SDI OUT (SDI Output) connectors (BNC) Output connectors for SDI signals.
  • Page 9 I : DC IN terminal Connects the DC power supply to the monitor. - OBM-U170: 12V - OBM-U240: 24V Make sure to use DC 12V power supply for OBM-U170 and DC 24V power supply for OBM-U240. OBM-U170 OBM-U240 DC IN Socket...

  • Page 10: Using The Menu

    4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 4. Using the Menu This monitor is equipped with an OSD menu to make various adjustments and se ngs such as picture control, input se ng, set se ng change, etc. 1.

  • Page 11: Adjustment Using The Menus

    4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 5. Adjustment Using the Menus The OSD menu of this monitor consists of the following items. Status menu (To indicate the current se ngs) User Configura on menu Format User Preset Color Temp Func on Bu on Se ng F1 Bu on...

  • Page 12: Osd Menu Operations

    4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 6. OSD Menu Operations Status Menu The Status menu displays the current status of the Page 3/4 monitor. The following items are displayed. Page 1/4 SDI Input Iden fier SDI Payload ID Sampling Format Picture Rate...

  • Page 13: Color Temp/Color Space/Gamma Menu

    4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 6. OSD Menu Operations Color Temp/Color Space/Gamma Menu These menus are used for adjus ng or se ng the color Page 2/3 temperature, color space or gamma of the picture. Page 1/3 Color Space - Selects the color space from among...
  • Page 14 4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 6. OSD Menu Operations Page 3/3 Gamma - Selects the appropriate gamma mode from 1.00 to 3.00. **Note - When the OBM-HDR is set Off, this menu becomes ac vated. - When the color space is set to Na ve, this menu becomes deac vated.

  • Page 15: Zebra/Focus Menu

    4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K User Configuration Menu Zebra/Focus Menu User Configura on consists of the adjustment menus such as [User Preset], [Func on Bu on Se ng], [Input Se ng], [Camera Log], [SDI Audio Se ng], [Audio Level Meter Se ng], [Marker], [WFM/Vector], [System Se ng].
  • Page 16 4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K User Configuration Menu Page 2/7 Page 3/7 Speaker Out / Audio Level Meter Se ng Input Se ng - Selects the audio channel of the SDI & HDMI 3G Signal Format input signal.
  • Page 17 4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K User Configuration Menu Page 5/7 Page 4/7 Marker WFM/Vector - Selects On to display the marker, and Off to - Sets to ac vate and deac vate Waveform deac vate it. monitor and Vectorscope.

  • Page 18: Remote Menu

    4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K Page 6/7 Key LED Sets On to turn on the LED of the keys, and sets Off to turn off the LED of the keys. OSD Time Adjusts the display me of the OSD menu. [10 Sec.]: The OSD menu will be disappeared a er 10 seconds.

  • Page 19: Scan Mode Image (Obm-U240)

    Input image 4096 x 2160 The LCD panel resolu on of OBM-U240 is QFHD(16:9) 3840x2160, so if the input signal is 3840x2160, 1:1 mapping is supported. If the input signal is DCI 4K(1.89:1) 4096x2160, 1:1 mapping is not supported. [Zero Scan]...

  • Page 20: Scan Mode Image (Obm-U170)

    4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 8. Scan Mode Image (OBM-U170) OBM-U170 4K/QFHD Mode 3840 x 2160 Panel Input image 1920 x 1080 4096 x 2160 The LCD panel resolu on of OBM-U170 is FHD(16:9) 1920x1080. So, when Zero Scan is selected, if the input signal is QHD(3840x2160) it is scaled to 1920x1080(16:9), and if the input signal is DCI 4K(1.89:1) 4096x2160 it is scaled to1920x1012(1.89:1).

  • Page 21: Connecting The Sdi Signals

    4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 9. Connecting the SDI Signals Single Link 12G/6G/3G/HD-SDI, Dual-Link 3G-SDI, and Quad-Link 3G-SDI signals can be input to the SDI IN connectors of this monitor. Up to 2-channel Single Link 12-SDI signals, up to 4-channel 3G/HD-SDI signals, 1-channel Dual-Link 3G-SDI or 1-channel Quad-Link 3G-SDI signals can be input.

  • Page 22: Available Signal Formats

    4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 10. Available Signal Formats This monitor is applicable to the following signal formats HD-SDI Signal System Signal Format 1920x1080 / 4:2:2 YCbCr 10bit 23.98, 24, 25, 29.97, 30p/Psf, 50, 59.94, 60i 2048 x 1080 / 4:2:2 YCbCr 10bit 23.98, 24, 25, 29.97, 30p/Psf...
  • Page 23 4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 10. Available Signal Formats Quad-Link (4K) 3G-SDI Signal System Signal Format 3840 x2160 / Level A / Level B-DL 4:2:2 YCbCr 10bit 50, 59.94, 60p 2-sample interleave division/ 4:4:4 RGB 10bit Square division 3840 x2160 / 4:4:4 YCbCr 10bit...

  • Page 24: Other Functions

    Interleave signals and 4K Quad Link Square Division excellent grayscale. signals. You can select from color gamuts such as DCI-P3, The OBM-U170 and OBM-U240 can accept up to ITU-R BT.2020, ITU-R BT.709, SMPTE-C, EBU, Na ve. 3840x2160/24,25,30,50,60p and 4096x2160/24.25.30,50,60p signals.

  • Page 25: Product Specification

    4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 12. Product Specifications ITEM OBM-U170 OBM-U240 4 x BNC 12G-SDI-1/2, 3G/HD-SDI-3/4 Input 1 x HDMI HDMI 2.0 1 x SFP Op cal Output 4 x BNC 12G-SDI-1/2, 3G/HD-SDI-3/4 Ac ve Loop Output SMPTE ST 2082M 2160p(60/59.94/50/30/29.97/25/24)
  • Page 26 4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 208, Building A, Samsong Techno Valley, 140, Tongil-ro, Deogyang-gu, Goyang-si, Gyeonggi-do, Korea, 10594 Tel : +82.2.354.6055 / Fax : +82.2.354.6056 E-mail : sales@postium.com www.postium.com...
