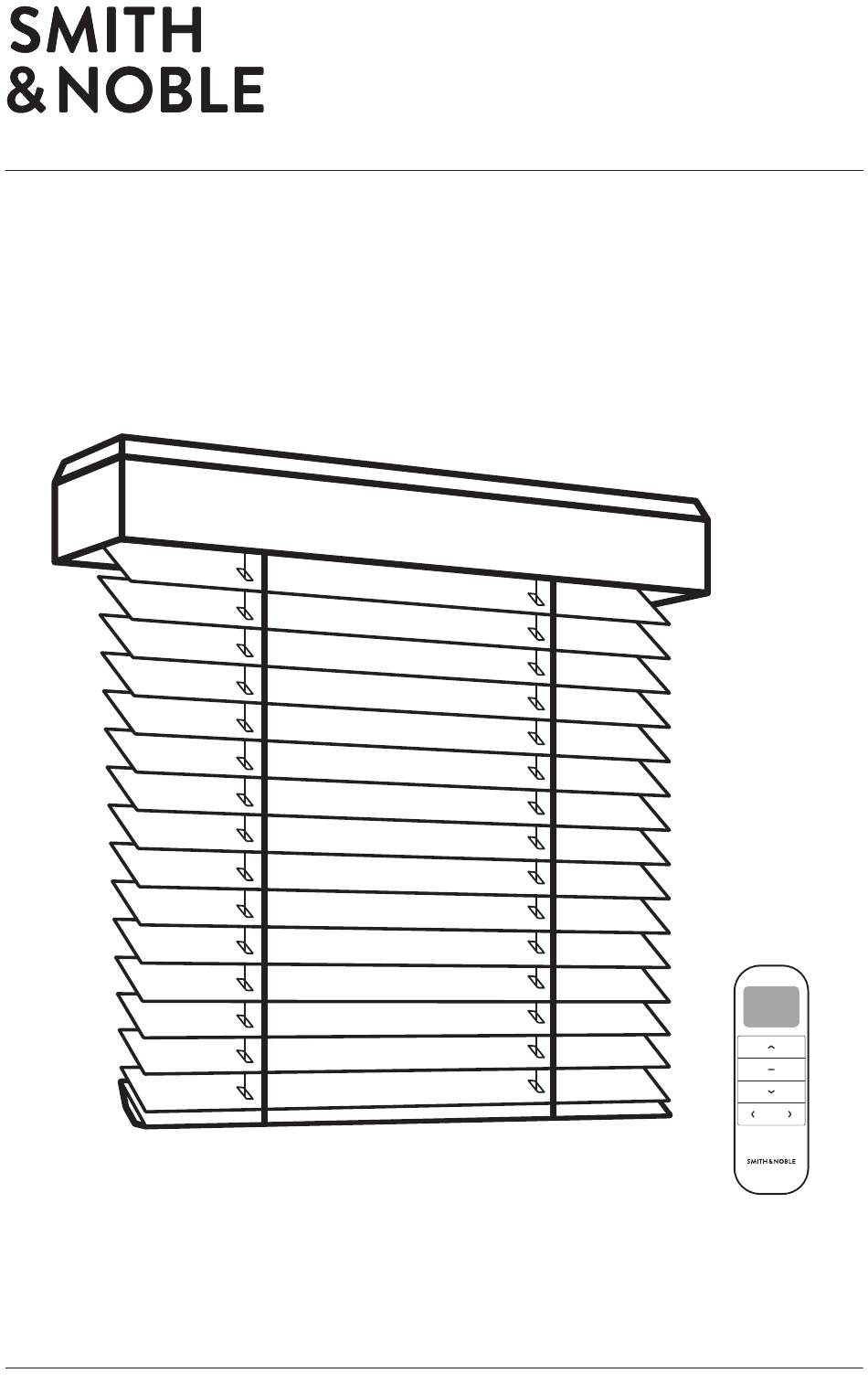

- Page 1 STEP BY STEP INSTALLATION INSTRUCTIONS Wood Blinds Tilt & Lift Motorization...
-
Page 2: Table Of Contents
You Need Overview - Tilt & Lift Control Wood Blinds ..... 4 Step 2 - Mounting the Brackets ......5 - 6 Step 3 - Connecting Battery to Motor . -
Page 3: Step 1 - Parts & Tools
STEP 1 - PARTS & TOOLS OVERVIEW Tilt & Lift Motorization Getting Started First, make sure you have all the parts and tools required to install your blinds. ALL THE HARDWARE YOU’LL NEED: CENTER Pencil, screwdriver, ¼” nut driver, level, and a drill with a ⁄... -
Page 4: Step 2 - Mounting Brackets
STEP 2 - MOUNTING BRACKETS STEP 2 - MOUNTING BRACKETS MOUNTING BRACKET Outside or Ceiling Mount Inside Mount CENTER SUPPORT BRACKET CENTER SUPPORT BRACKET MOUNTING BRACKET Hold the blind in the desired position Place mounting brackets level and and mark the window frame or ceiling 1 inch from the window frame. -
Page 5: Step 3 - Connecting Battery To Motor
STEP 3 - CONNECTING BATTERY TO MOTOR STEP 5 - ATTACHING THE VALANCE Insert each magnetic valance clip in the VALANCE MAGNET VALANCE Connect battery to motor by plugging SLOT cables together. slot located at the back of the valance, spread them evenly along the valance slot. -
Page 6: Step 6 - Attaching Optional Hold Down Clips
STEP 6 - ATTACHING OPTIONAL HOLD DOWN CLIPS STEP 7 - OPERATING THE BLIND Remove Plastic from Battery Hold-down clips are used to secure the OUTSIDE MOUNT bottom rail of the blind in situations where Before operating the remote, remove the excessive movement may be a problem. -
Page 7: Quick Start Guide
Smith & Noble Motorized Smart Shades Quick Start Guide Scan QR code for remote operating & programming guide Scan QR code for Hub & App User Guide. Wood Blinds Motorized 11 smithandnoble.com 800.248.8888... -
Page 8: Charging Blinds
CHARGING BLINDS SOLAR PANEL (OPTIONAL) Determine Solar Panel Placement When the blind begins to operate slower CHARGER The solar panel should be placed where than normal and beeps when operated it is gets the maximum amount of sunlight is time to charge the battery. per day. -
Page 9: Install Solar Panel (Optional)
INSTALL SOLAR PANEL INSTALL SOLAR PANEL Mounting the Solar Panel Tape Method SOLAR PANEL RECHARGE UNIT Choose the location to mount the solar Clean the window surface with rubbing panel. alcohol. When dry, remove the backing on the adhesive strip and attach the solar Clean the ends of the solar panel where DAUL LOCK TAPE Mounting Locations... - Page 10 INSTALL SOLAR PANEL CONNECT SOLAR PANEL TO MOTOR USB CABLE CHARGE PORT BRACKET Bracket Method Connect Solar Panel to Motor Connect the sliding bracket and the L-shape Before the blind is installed, plug the bracket using the two screws and nuts. Do solar panel into the side battery port not overtighten to allow for easy adjustment located inside the headrail.
-
Page 11: Troubleshooting
CARE & CLEANING / SAFETY TROUBLESHOOTING Care & Cleaning PROBLEM SOLUTION Occasional light vacuuming with a soft bristle attachment or gentle feather dusting is all that Your brackets may be mounted too close is required to keep your blinds looking fresh and neat. For maximum results, lower blinds to to the top of the window casement causing full length, then tilt slats until almost fully closed to dust. - Page 12 NOTES NOTES smithandnoble.com 800.248.8888...
-
Page 13: Warranty
Warranty Service The enjoyment of your window coverings should be everlasting, which is why our products come with a limited lifetime warranty. The warranty applies to the original owner, requires a proof of purchase (hang on to your receipt!) and covers defects in material or craftsmanship.
