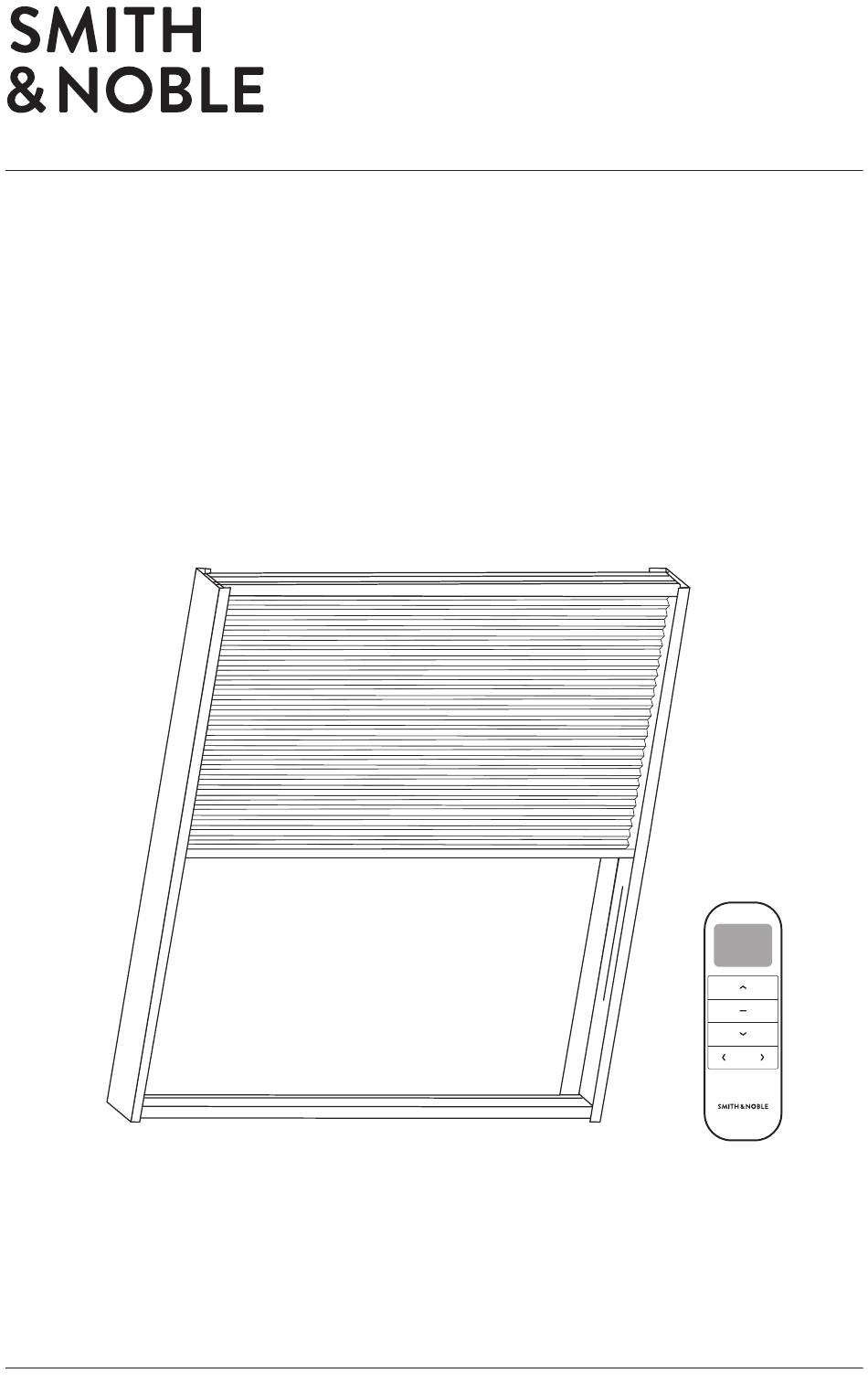

- Page 1 STEP BY STEP INSTALLATION INSTRUCTIONS Cellular Shades Skylight Cellular Skylight (All Materials) Motorized Shades...
- Page 2 Table of Contents Everything Step 1 - Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 You Need Overview - Motorized Cellular Skylight .
- Page 3 STEP 1 — PARTS & TOOLS OVERVIEW Getting Started Cellular Skylight Motorized First, make sure you have all the parts and tools required to install your shades. ALL THE HARDWARE YOU’LL NEED: Pencil, screw-driver, ¼” nut driver, level, and a drill with a ⁄...
- Page 4 STEP 3 — INSTALLING THE BRACKETS STEP 2 — BATTERY PACK PLACEMENT Placement of Battery Pack Shades are shipped with the required 3" number of brackets for proper installation. Skylight Shades use an external End brackets should be located approx- rechargeable battery that can be imately 3"...
- Page 5 STEP 4 — INSTALLING THE TOP RAIL STEP 5 — INSTALLING THE BOTTOM RAIL Position the rail with the front lip (A) WARNING, please link shade to resting on the hooks of all the brackets. remote and hub before installing HEADRAIL Push the rail firmly down and toward shade.
- Page 6 STEP 6 — REMOVING THE SHADE STEP 7 — INSTALLING THE TRACKS To remove a shade, insert a flat blade Place the track against the front of the screwdriver between the rail and the top and bottom rails. Attach the track bottom back of the bracket (tab which with the screws provided.
- Page 7 STEP 8 — LEVELING THE SHADE Level the Moving Rail ADJUSTMENT SCREWS Motorized Skylight Shades use a Smith & Noble system that allows easy leveling of the moving rail. It is designed to make slight adjustments (Less than 1") to Motorized Smart Shades level the moving rails of your shade.
- Page 8 CHARGING SHADE SOLAR PANEL (OPTIONAL) INSERT CHARGER TO CHARGING PORT Skylight shades use an external battery. Determine Solar Panel Placement When the shade begins to operate The solar panel should be placed where it slower than normal and beeps when gets the maximum amount of sunlight per operated it is time to charge the battery.
- Page 9 INSTALL SOLAR PANEL INSTALL SOLAR PANEL Connect Solar Panel to Motor Tape Method SOLAR PANEL RECHARGE UNIT INSERT SOLAR PANEL CABLE TO CHARGING Cut the tape to fit inside the white After the shade is installed and the PORT external battery has been connected border as shown.
- Page 10 TROUBLESHOOTING CARE & CLEANING / SAFETY Care & Cleaning PROBLEM SOLUTION The shade fabric is easy to care for. Regular dusting with a feather duster or vacuum cleaner Shade will not raise or lower. Recharge motor. brush is recommended. Most stains can be blotted with a damp sponge and mild detergent. Before using anything stronger than mild detergent and lukewarm water, test an unobtrusive Shade runs slowly.
- Page 11 Warranty Service The enjoyment of your window coverings should be everlasting, which is why our products come with a limited lifetime warranty. The warranty applies to the original owner, requires a proof of purchase and covers defects in material or craftsmanship.
