STEP BY STEP INSTALLATION INSTRUCTIONS
Cellular Shades
Skylight
Smart | Shades

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Skylight and is the answer not in the manual?

Questions and answers

Related Manuals for Smith & Noble Skylight

Summary of Contents for Smith & Noble Skylight

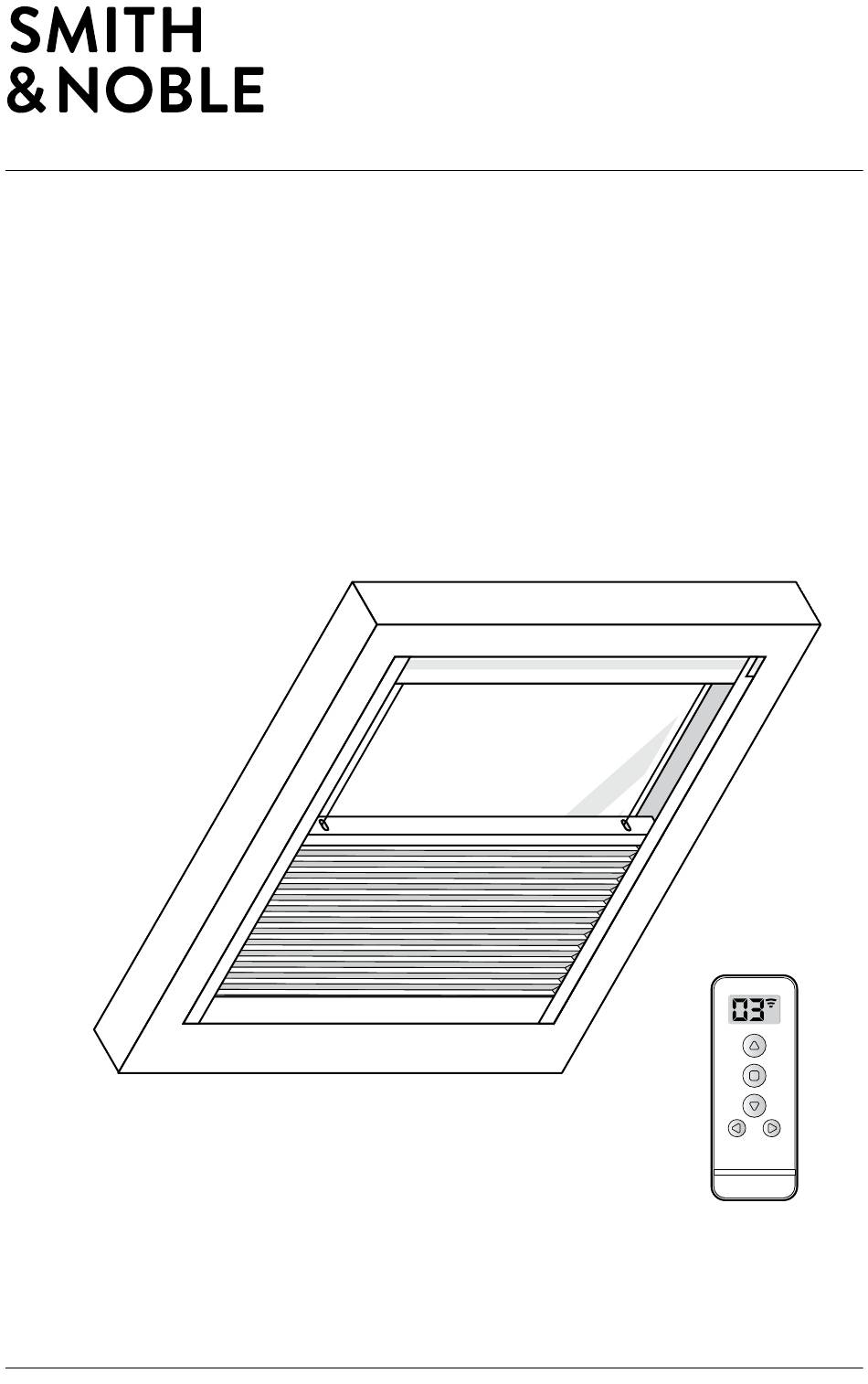

  • Page 1 STEP BY STEP INSTALLATION INSTRUCTIONS Cellular Shades Skylight Smart | Shades...

  • Page 2: Table Of Contents

    Motorized Cellular Skylight . . . . . . . . . . . . . . . . . . .

  • Page 3: Step 1 - Getting Started

    STEP 1 — PARTS & TOOLS OVERVIEW Smart | Shades Cellular Skylight Getting Started First, make sure you have all the parts and tools required to install your shades . ALL THE HARDWARE YOU’LL NEED: Pencil, screw-driver, ¼” nut driver, level, and a drill with a ⁄...

  • Page 4: Step 2 - Battery Pack Placement

    STEP 3 — INSTALLING THE BRACKETS STEP 2 — BATTERY PACK PLACEMENT Placement of Battery Pack Shades are shipped with the required number brackets proper Shades 20" wide and wider have the installation . End brackets should be rechargeable battery inside the head rail . located approximately 3"...

  • Page 5: Step 4 - Installing The Top Rail

    STEP 4 — INSTALLING THE TOP RAIL STEP 5 — INSTALLING THE BOTTOM RAIL Start with the top rail/fabric assembly . Use the remote to lower the bottom The top rail is the rail with the motor rail all the way down so that it can be in it .

  • Page 6: Step 6 - Removing The Shade

    STEP 6 — REMOVING THE SHADE STEP 7 — INSTALLING THE TRACKS To remove a shade, insert a flat blade Place the track against the front of the screwdriver between the rail and top and bottom rails . Attach the track the bottom back of the bracket (tab with the screws provided .

  • Page 7: Step 8 - Leveling The Shade

    STEP 8 — LEVELING THE SHADE Level the Moving Rail ADJUSTMENT SCREWS Motorized Skylight Shades use a system that allows easy leveling of Smith & Noble the moving rail . It is designed to make slight adjustments (Less than 1") to Smart Shades level the moving rails of your shade .
  • Page 8 PAIRING THE REMOTE PAIRING THE REMOTE For added protection, your remote control door located at the right end of the head rail. arrived with a protective film on top. Please remove this film prior to use. 2. Make sure the On/Off switch on the motor is set to "ON".
  • Page 9 SETTING SHADE LIMITS SETTING SHADE LIMITS Adjust Shade Limits (If Desired) Hold the LIMIT button until the shade jogs & beeps . The lower and upper limits have been set at CHANNEL CHANNEL the factory. If you need to make adjustments Lower Limit DISPLAY DISPLAY...
  • Page 10 SETTING & USING A FAVORITE POSITION UNPAIR THE REMOTE If there is only a single shade on the channel To unpair a shade(s) from a selected proceed to SETTING A FAVORITE POSITION channel, press and release the CONFIRM below. button on the back of the remote. CHANNEL CHANNEL If there is more than one shade on the channel,...
  • Page 11 ADD OR REMOVE REMOTE OR CHANNEL DE-ACTIVATE JOG FUNCTION Replace Original Remote, Add Additional Remote or Add Shade to an Additional CHANNEL Channel DISPLAY To De-Activate the Jog Function 1 . Press the SETTING button on the motor until the shade jogs & beeps. Release the 1 .
  • Page 12 CHARGING SHADE SOLAR PANEL (OPTIONAL) When the shade begins to operate Determine Solar Panel Placement slower than normal it is time to charge The solar panel should be placed where it the motor. Plug the 8.4v charger into the gets the maximum amount of sunlight per charging port.

  • Page 13: Install Solar Panel (Optional)

    INSTALL SOLAR PANEL INSTALL SOLAR PANEL Connect Solar Panel to Motor Tape Method SOLAR PANEL RECHARGE UNIT After the shade is installed, plug the Cut the tape to fit inside the white solar unit into the motor recharge port. border as shown. Clean the ends of the solar panel where the tape will go with rubbing alcohol.

  • Page 14: Troubleshooting

    TROUBLESHOOTING NOTES PROBLEM SOLUTION Shade will not raise or lower. Recharge motor. Shade runs slowly. Recharge motor. The motor continues to run in The limit setting was unsuccessful and one direction. needs to be reset. Channel Display screen on remote does Replace the battery in the remote not light up.

  • Page 15: Care & Cleaning

    CARE & CLEANING Care & Cleaning The shade fabric is easy to care for. Regular dusting with a feather duster or vacuum cleaner brush is recommended. Most stains can be blotted with a damp sponge and mild detergent. Before using anything stronger than mild detergent and lukewarm water, test an unobtrusive corner of the shade.
