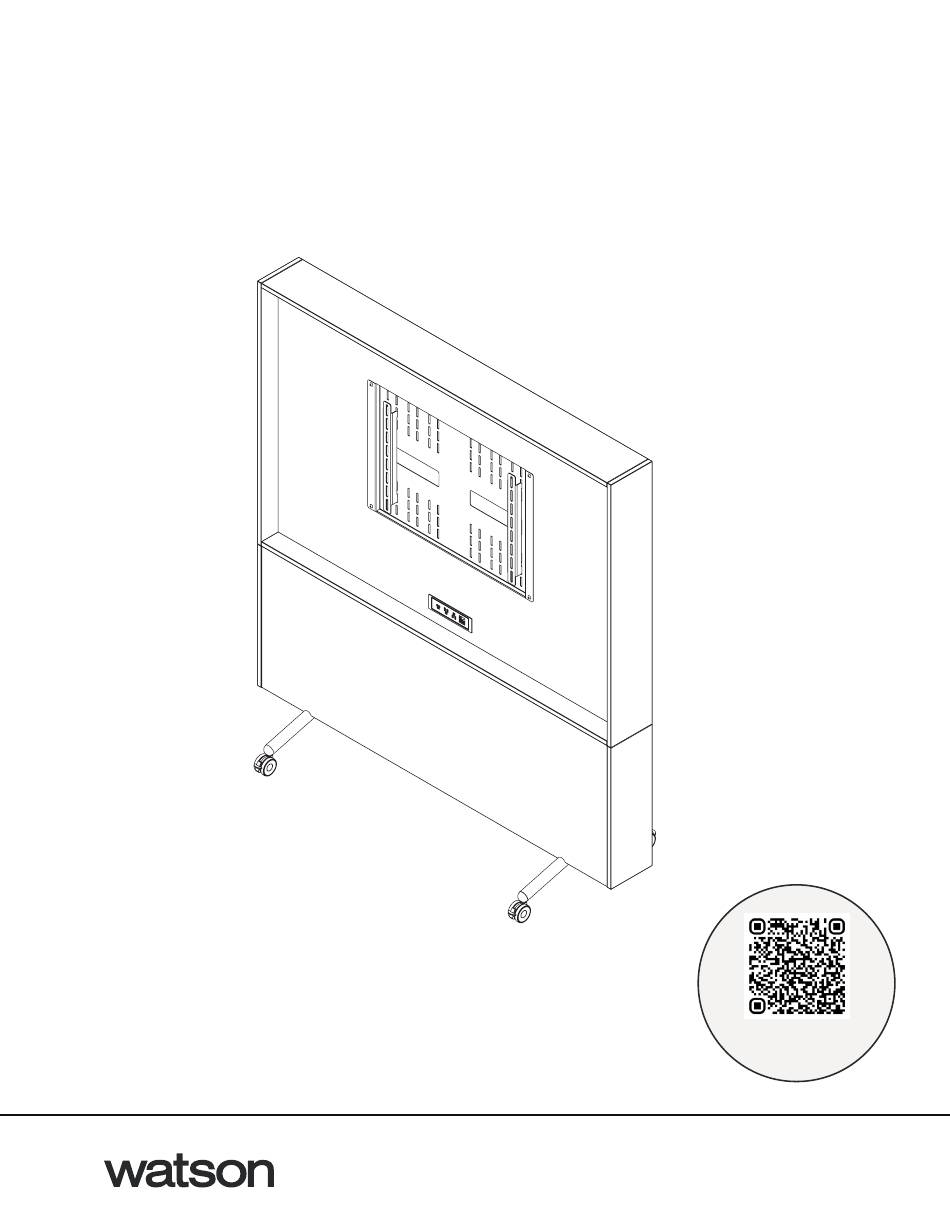

- Page 1 ASSEMBLY Allé Mobile Monitor Wall View Digitally V.24.0 10/2024 360.394.1300 watsonfurniture.com...
- Page 2 Hardware M4 x 12mm PH Zinc 1/4 Flat Zinc M8 8mm Screw Washer Screw, Cone Tip Set (117016) (145000) (0002791) 5/16-18 x 1-3 M8-1.25 x 25mm 20 x 14 x 6mm 4 SHCS BK Screw, Low Head Nut, Rectangular Screw (0002870) (0002935) (125040)
- Page 3 Parts Case Assembly Fabric Panel AV Mount Panel AV Mount Brackets Wire Manager Mobile Leg Assembly PDU (Optional) Power Module (Optional) 3 ALLÉ MOBILE MONITOR WALL ASSEMBLY INSTRUCTIONS...
- Page 4 Secure Legs to Extrusion Loosely secure the T-nut (PN 0002935) with the M8 screw (PN 0002870) through the center casting of each leg assembly. Slide the T-Nut and center casting of the leg assembly into the corresponding channel of the aluminum extrusion. This leg assembly will need to slide along the length of the extrusion into their final position in the case assembly.
- Page 5 Insert Mobile Legs into Case Assembly Slide the leg assemblies along the extrusion until they are aligned with the holes in the bottom of the lower panels. Insert each leg assembly into the lower panel holes. Insert a set screw (PN 0002791) into each housing (PN 0002790) in the lower case panel and fully tighten in place.
- Page 6 Attach the Cable Manager Locate the two holes bored into the back of the lower case assembly. From the outside, feed the barrels of the internally threaded standoffs into the set of holes. From the inside, secure in place with QTY: 2 washers (PN 145000) and QTY: 2 M4 screws (PN 117016).
- Page 7 Install Optional Convenience Power If convenience power is optioned, slide the Byrne power system through the slot in the center panel from the front side of the unit ensuring that the plug end goes through the slot first. 7 ALLÉ MOBILE MONITOR WALL ASSEMBLY INSTRUCTIONS...
- Page 8 Install Optional Convenience Power Secure the in-surface conveninece power unit by sliding the provided plastic pieces and glide into both ends of the extrusion channel. Hand tighten the glide knobs against the backside center panel until the unit is secured in place.
- Page 9 Attach Optional PDU If in-surface power option is not selected, the unit will come standard with a 4-outlet PDU. Place the unit as close to the center panel as possible with the provided sections of adhesive tape. If the PDU is not placed close enough to the center panel, it will interfere with the closing of the removable fabric panel.
- Page 10 Attach Monitor Mount Brackets to Monitor Secure the monitor mount brackets to the back of the monitor with the mounting hardware kit. Specific hardware and screw placement will vary based upon monitor brand. Align the brackets with the slots in the AV mount center bracket going straight toward the slot and carefully lowering until the brackets are seated.
- Page 11 Secure Monitor Mount Bracket on Unit Backside Remove the fabric panel from the backside of the monitor wall by rotating it outwards then lifting up and out of the hinge brackets. Secure the monitor mount brackets on the backside of the monitor wall using QTY: 2 of the 5/16-18 x 1 3/4”...
