Roger Access Control System
ADL-2 Electronic Lock
Installation Manual
Product hardware version: v2.0
Firmware version: v2.0.8.121
Document version: Rev. H
This document contains minimum information
that is necessary for initial setup and
installation of the device. The detailed
description of configuration parameters and
functionalities is specified in respective
Operating Manual available at www.roger.pl.
D
ESIGN AND PURPOSE
ADL-2 consists of a pair of door escutcheons
combined with handles. In the external
escutcheon (mounted on the entrance to a
room), the handle moves freely and is
normally disengaged. Once the proximity
card or PIN is used and access is granted and
the handle is engaged with the mortise lock
thus allowing to enter the room.
In the internal escutcheon (mounted on the
exit side from the room), the handle is
permanently engaged thus exit from the
room is permanently possible by handle
without using of the electronic circuit of the
lock. ADL-2 works autonomously and access
to the room requires entering a PIN code,
reading the proximity card or using the
mobile application. The ADL-2 lock can be
mounted on doors with a door leaf thickness
of 38 to 75 mm and equipped with an
cylinder lock (cylinder lock inserted in the
door leaf) with a handle- cylinder spacing of
72 mm. The lock is supplied with two
assembly sets consisting of two screws and a
handle stem. The first set is designed for a
door leaf up to 55 mm thick, while the second
one is for a door leaf thicker than 55 mm.
The ADL-2 escutcheon has space for
mounting a cylinder insert, which allows for
permanent blocking of the access door as
well as its opening in the event of a failure of
the lock's electronic.
Note: The escutcheon should be equipped
with a cylinder insert. The cylinder insert is
not supplied with the escutcheon. The
selection and installation of the cylinder insert
is the responsibility of the installer. Installing
the lock without a cylinder insert is forbidden.
L
OCK INSTALLATION
1. Using the mounting template included
with the lock, drill holes in the door leaf.
2. Pull the wires coming out of the inner
escutcheon through the hole in the door
leaf and connect them to the bundle of
wires coming out of the outer
escutcheon.
3. Make sure that the hole for the handle
pin is positioned so that the marker (red
dot) points to the upper door hinge (Fig.
1), then place the included handle pin in
the mortise lock.
4. Install the batteries (4xAAA) in the
battery compartment located in the
internal escutcheon.
5. Mount escutcheon and verify the
operation of internal handle and door
cylinder, in particular, the possibility of
entering the room by means of a cylinder
insert and without using the reader
located in the external escutcheon.
Note: In addition to the possibility of
mechanically locking the door, the cylinder
insert allows for emergency opening of the
door in the event of a failure of the electronic
part of the lock. Access to the mechanical key
should be secured in the event of the need to
open the door in emergency.

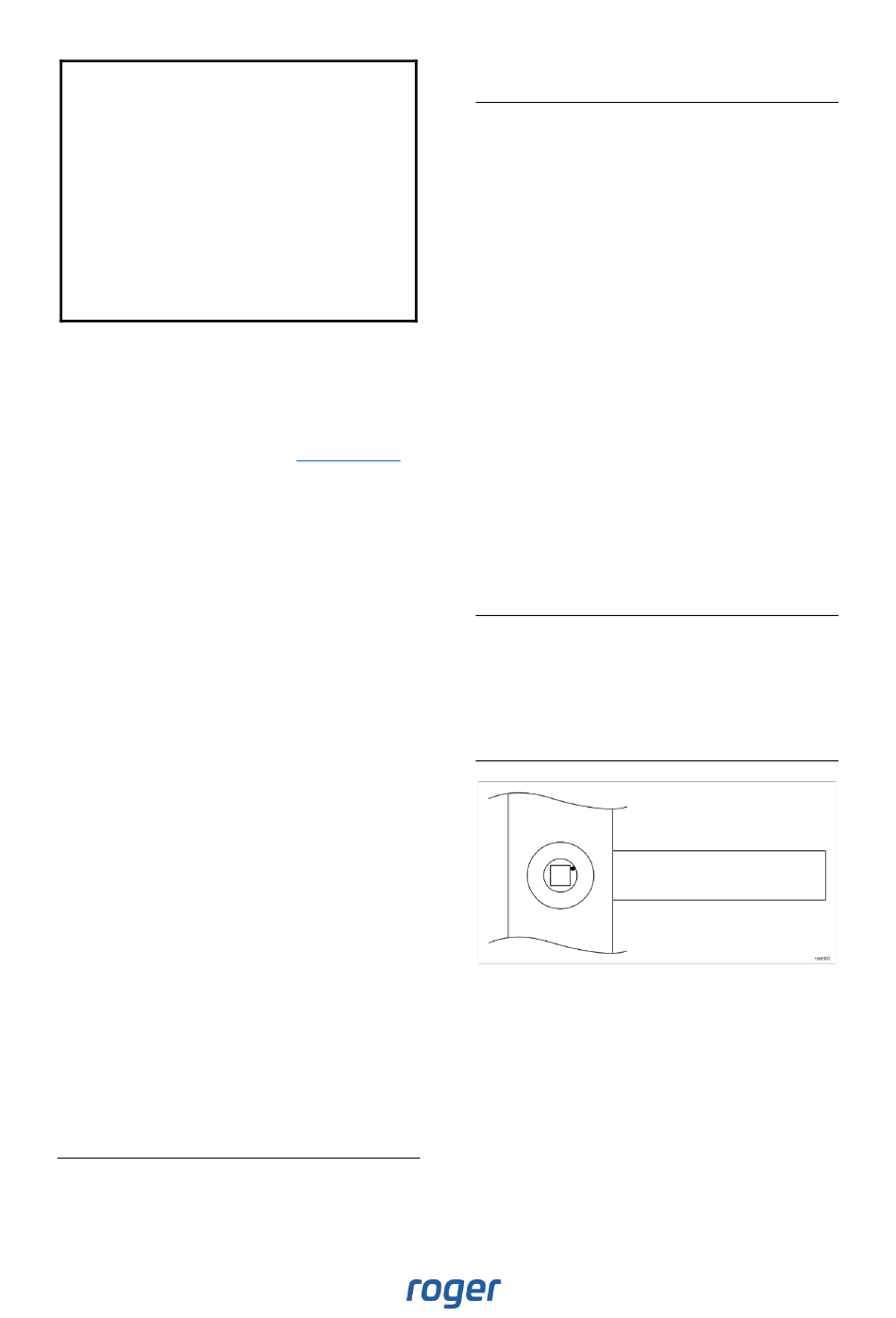

Fig. 1. Proper installation of handle
mechanism
P S
OWER UPPLY
Lock is supplied from 4 x AAA batteries.
Assuming 10 openings per day and the BLE
Broadcast Period option is set to 3000ms, a
set of new alkaline batteries (*) will last for
about 18 months of device operation. If the
parameter is changed to 600ms, a set of new
alkaline batteries will last for about 6 months
of device operation. The BLE Broadcast Period
parameter is set from the Roger MDM app. If
