- Page 1 Roger Access Control System Apartment locks ADL-2 and ADL-2-BLE v1.0 User Manual Firmware version: v1.0 Document version: v1.0 Rev. B...

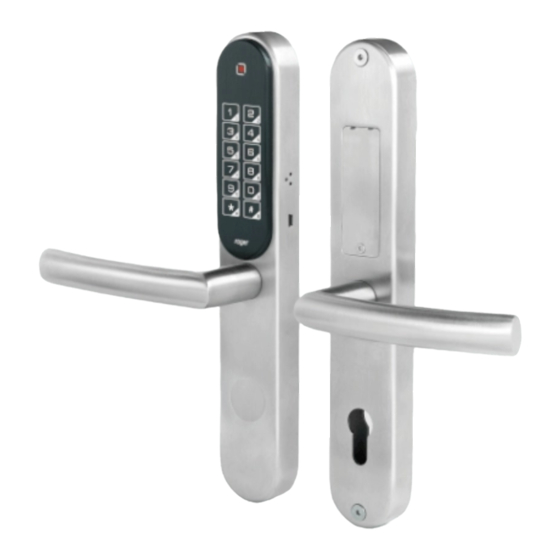

- Page 2 2021-11-03 ESIGN AND APPLICATION ADL-2 locks provides remote management of access to B&B apartments without the need to hand over keys or proximity cards. With remote issuing of identifiers guests, lock enables the functionality of a "virtual reception". Access to the room is possible after entering the PIN or with smartphone and Roger Mobile Key app installed.
-
Page 3: Mechanical Construction

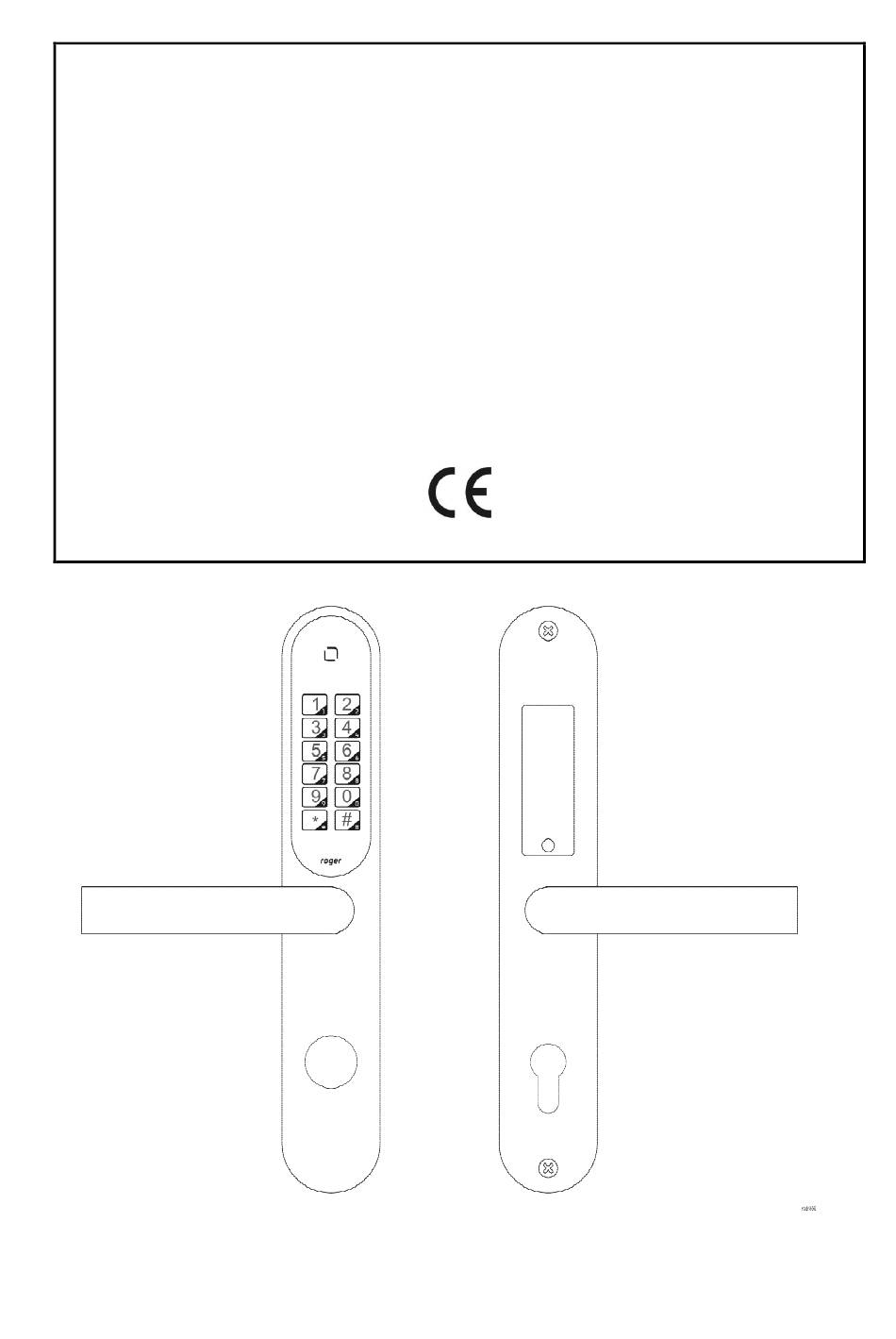

Mechanical construction External part of lock The external part of ADL-2 consists of escutcheon with handle and it is dedicated to installation at the entry to controlled room. The escutcheon includes keypad, card reader (A) and hole for door cylinder which can be used for emergency door opening with metal key. - Page 4 ADL-2 User Manual.doc 2021-11-03 Fig. 3. External part of lock Fig. 4 Electronic module Internal part of lock The internal part of lock consists of escutcheon with handle and it is dedicated to installation at the exit from controlled room. The internal escutcheon includes battery pack with cable and connector (G) which is used to connect supply to external part of lock (E) in fig 3.
-
Page 5: Functional Description
‘*’ (when pressed then keypad backlight is on) and finished with ‘#’. Alternatively, PIN can be stored on proximity card by means of Roger MDM app and then the access can be granted by card reading at the lock. In case of ADL-2-BLE the access can be also granted using smartphone with Roger Mobile Key app (iOS, Android) installed. - Page 6 PIN generating Programmable PINs are generated via rcs.roger.pl website. After logging in to the web interface, define your device in the ADL-2 PIN section ("Add device" button). To do this, enter the CID of the Page 6 of 12...
-
Page 7: Led Indicators
*8*00000000# (eight zeros), and then apply the proximity card. LED indicators ADL-2 lock is equipped with multicolour LED, which is dedicated to signal device states as in the table below. In the bottom part of front panel there is located red LED to indicate battery level. When this LED is on after PIN is entered then low battery level is reported and batteries must be replaced. -
Page 8: Programming And Configuration
PINs When ADL-2 lock is clicked on the screen then list of PINs stored in the memory of the lock is displayed. Select ‘+’ on title bar to add new PIN and then enter 8 or 12 digits as well as enter name for the PIN. -
Page 9: Icon Description
ADL-2 User Manual.doc 2021-11-03 instructions to save PIN on card. Remove PIN from card Command removes particular PIN from the memory of proximity card. Follow displayed instructions to remove PIN from card. Remove Command removes PIN from the list but it does not remove it from the lock. -
Page 10: Memory Reset
The list includes events registered in the lock. It is possible to send report in PDF format to specified email address. Identify device Command activates acoustic and optical signalisation at ADL-2 lock. This is mainly used to identify particular lock. Remove lock Command removes lock from the list of registered devices in Roger MDM app. -
Page 11: Power Supply
ADL-2 User Manual.doc 2021-11-03 NSTALLATION The lock is designed for mounting in door with 38 to 75mm thickness, with mortise lock installed and with 72mm handle spacing. Prior to installation make sure that door cylinder is long enough. The lock is delivered with two handle pins and two sets of bolts with different length. -
Page 12: Ordering Information
Weight of the equipment is specified in the document. Contact: Roger sp. z o.o. sp.k. 82-400 Sztum Gościszewo 59 Tel.: +48 55 272 0132 Fax: +48 55 272 0133 Tech.
