ADL-2 Operating Manual Rev. D.docx
D
ESIGN AND APPLICATION

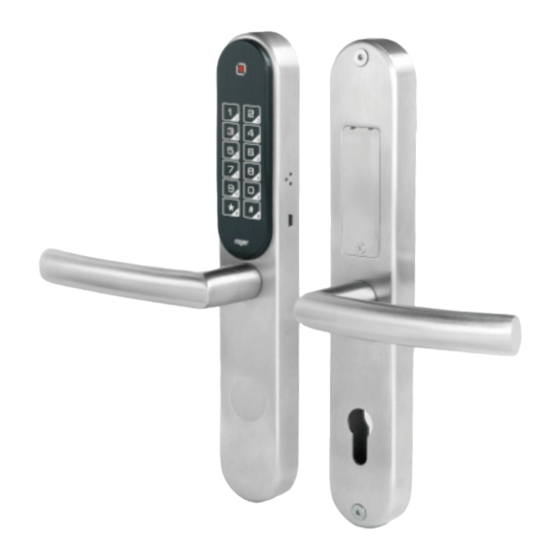

The ADL-2 electronic lock consists of two metal escutcheons integrated with handles. The external
escutcheon has a built-in electronic reader with a keypad, which enables electronic access control.
ADL-2 grants access upon entering a PIN code, reading a proximity card or use of a mobile app.
Access codes can be generated remotely at rps.roger.pl or programmed in the lock's internal memory
during its configuration. Remotely generated access codes may have a validity period. The lock is
operated using the Roger MDM mobile app, which, in addition to lock's configuration, enables reading
of an event log saved in the lock's memory and programming of the proximity access cards. ADL-2
lock can be installed on the most doors while retaining the existing internal mortise lock and cylinder.
The lock's cylinder can be used for mechanical door locking or emergency door opening. Thanks to
the remotely generated codes, the lock is particularly suitable for short-term rental apartments. For
integration purposes, an SDK is available that allows you to generate remote PIN codes from third-
party systems.
C
HARACTERISTICS
•
PIN codes generated remotely in the Internet
•
Email notification about newly created codes
•
Validity period for remotely generated codes
•
Access via PIN, proximity card or mobile app
•
20 access codes programmed in the lock's memory
•
One-time use and other special codes
•
Event log
•
Office Mode (door temporary open)
•
PIN Blacklist
•
Mechanical locking and emergency opening with a traditional door key
•
Powered by four AAA batteries
•
Emergency power supply socket
•
Typical working life of 18 months with 10 openings per day
•
Brushed stainless steel lock body
•
Front escutcheon dimensions (WHD): 46x280x27mm
•
Rear escutcheon dimensions (WHD): 46x280x20mm
•
Mounting with two 5x50mm screw
•
Lock spacing (handle-cylinder distance): 72mm
•
Door thickness: 38 to 75mm
•
SDK for generating PIN codes
•
IK07
•
IP20
•
CE; RoHS
L
OCK VERSIONS
Depending on door opening direction and handle location on the door leaf, the adequate type of ADL-
2 lock must be applied.
Roger Access Control System
ADL-2 Electronic Lock
Operating Manual
Product hardware version: v2.0
Firmware version: v2.0.4.114
Document version: Rev. D
2023-10-18
Page 1 of 15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADL-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Roger ADL-2

Summary of Contents for Roger ADL-2

  • Page 1 ADL-2 grants access upon entering a PIN code, reading a proximity card or use of a mobile app. Access codes can be generated remotely at rps.roger.pl or programmed in the lock's internal memory during its configuration.

  • Page 2: Mechanical Construction

    Left hand doors ADL-2-R Right hand doors Fig. 1. Door types for ADL-2-L lock Fig. 2. Door types for ADL-2-R lock ECHANICAL CONSTRUCTION The lock consists of an external escutcheon equipped with a touch keypad panel and intended to be mounted on the room entrance and an internal escutcheon containing a battery compartment and mounted on the room exit.
  • Page 3 ADL-2 Operating Manual Rev. D.docx 2023-10-18 Fig. 3. External and internal escutcheons Fig. 4. Electronic module inside the escutcheon Internal escutcheon Internal escutcheon includes battery pack. A bundle of wires terminated with a socket (E) comes out of the battery pack. This socket should be connected to the matching plug (D) coming out of the electronic module in the external escutcheon.

  • Page 4: Functional Description

    ADL-2 failure. The size of the cylinder depends on door thickness, and it must be selected in such way that it would not protrude more than 16mm above door surface from the outside and within the range of 21-24mm from the inside.
  • Page 5 PIN was entered at least once. To enable shortened PINs, the configuration parameter Shortened PINs must be set as 4, 5 or 6. This can be enabled in the lock using Roger MDM app or using PIN generator on the website https://rps.roger.pl. When generated via website than Email with both the original and shortened PINs are sent.
  • Page 6 (MFC-8) at the keypad. Incorrect PINs including code belonging to another lock will not be programmed. PIN can also be saved on card using Roger MDM app, where the Save on card option is available in the context menu for each PIN.
  • Page 7 [*] key. Lock is ready to communicate with Roger MDM app when LED Status blinks in blue. A short click on the selected device displays the list of PINs defined in the Roger MDM app for a given lock. In this situation, it is possible to open the door from the Roger MDM app. Other options are available after a long click on the device and selecting the appropriate item in the context menu.

  • Page 8: Device Configuration

    ADL-2 Operating Manual Rev. D.docx 2023-10-18 stored on card for particular lock and up to 32 PINs can be saved for multiple locks (only one PIN per lock). Format Card Command is used to remove PIN from card. Proceed according to messages displayed in the app.
  • Page 9 Default value: 0. Shortened PINs Length of shortened PIN in range of not used, 4, 5 ,6. The parameter must be the same as on rps.roger.pl website. Default value: not in use. PINs Blacklist The view displays a list of blocked PINs (maximum 255). If the list is full, adding a new code to the list removes the oldest one.

  • Page 10: Identify Device

    The ADL-2 lock allows the use (enter) PIN from the level of the mobile app (RMK and Roger MDM). In the Roger MDM app, clicking on the selected ADL-2 lock opens the view of the list of PINs saved in the app for the given lock. The button in the title bar allows you to add a new PIN.
  • Page 11 ADL-2 Operating Manual Rev. D.docx 2023-10-18 Note: Due to security reasons it is recommended to register ADL-2 lock at rps.roger.pl website immediately after purchase to prevent the registration of your lock by unauthorized who knows the BLE MAC number of your lock.
  • Page 12 ADL-2 Operating Manual Rev. D.docx 2023-10-18 The button PIN codes is used to manage PINs for lock. When new lock is added then only factory PINs are displayed such as PIN Emergency and PIN Reset but they are masked with asterisk characters. They can be unmasked after contacting with website administrator and confirming user identity.

  • Page 13: Power Supply

    The button Delete disabled PINs deletes all expired PINs from the database. NSTALLATION The ADL-2 lock is designed for mounting on door with 38 to 75mm thickness, with mortise lock installed and with 72mm handle spacing. Prior to installation make sure that door cylinder is long enough.

  • Page 14: Specification

    Door thickness 38 – 75mm Handle spacing 72mm Built-in card reader ISO/IEC 14443A MIFARE® card reader for MFC-8 (Roger) proximity cards Environmental class (acc. to Class I, indoor general conditions, temperature: +5°C to +40°C, EN 50131-1) relative humidity: 10 to 95% (no condensation)

  • Page 15: Ordering Information

    Weight of the equipment is specified in the document. Contact: Roger Sp. z o. o. sp. k. 82-400 Scazzero 59 Tel.: +48 55 272 0132 Fax: +48 55 272 0133 Tech.
