Roger Access Control System
ADL-2 Electronic Lock
Installation Manual
Product hardware version: v2.0
Firmware version: v2.0.4.114
Document version: Rev. D
This document contains minimum information
that is necessary for initial setup and
installation of the device. The detailed
description of configuration parameters and
functionalities is specified in respective
Operating Manual available at www.roger.pl.
D
ESIGN AND PURPOSE
The ADL-2 electronic lock consists of two
metal escutcheons integrated with handles.
The external escutcheon has a built-in
electronic reader with a keypad, which
enables electronic access control. ADL-2
grants access upon entering a PIN, reading a
proximity card or use of a mobile app. The
ADL-2 lock is designed for mounting in door
with 38 to 75mm thickness, with mortise lock
installed and with 72mm handle spacing.
Prior to installation make sure that door
cylinder is long enough. The lock is delivered
with two handle pins and two sets of bolts
with different length. In case of door with
55m or greater thickness, longer bolts should
be used.
L
OCK INSTALLATION
1. Make holes in door using drilling
template.
2. Wires from internal escutcheon should be
lead through door's hole and then
connected with wires from external
escutcheon.
3. Make sure that handle pin hole is
positioned in such way that marker (red
dot) indicates door top hinge and then
install handle pin inside the lock.
4. Install 4 x AAA batteries in the internal
escutcheon.
5. Mount escutcheon and verify the
operation of internal handle and door
cylinder, particularly if handle latch is
retracted when metal key is used.
Note: The cylinder not only offers the
possibility of mechanically locking the door,
but it also enables emergency opening of the
door in the event of a failure of the electrical
control. Availability of mechanical key should
be ensured in case of emergency opening of
the door.
Fig. 1. Proper installation of handle
mechanism
P S
OWER UPPLY
Lock is supplied from 4 x AAA batteries.
Assuming average 10 openings of lock per
day, alkaline batteries enable 18 months
operation of the lock. Low battery level is
signalled by red LED indicator with battery
icon (in the bottom part of keypad panel).
The indicator will signal low battery level only
when in normal mode which can be started
with [*] button.

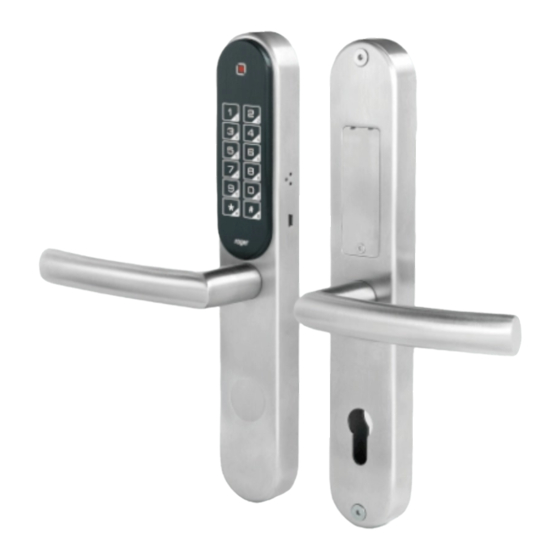

External and internal escutcheons
Fig. 2.
