Alienware AW2725QF Simplified Service Manual page 8

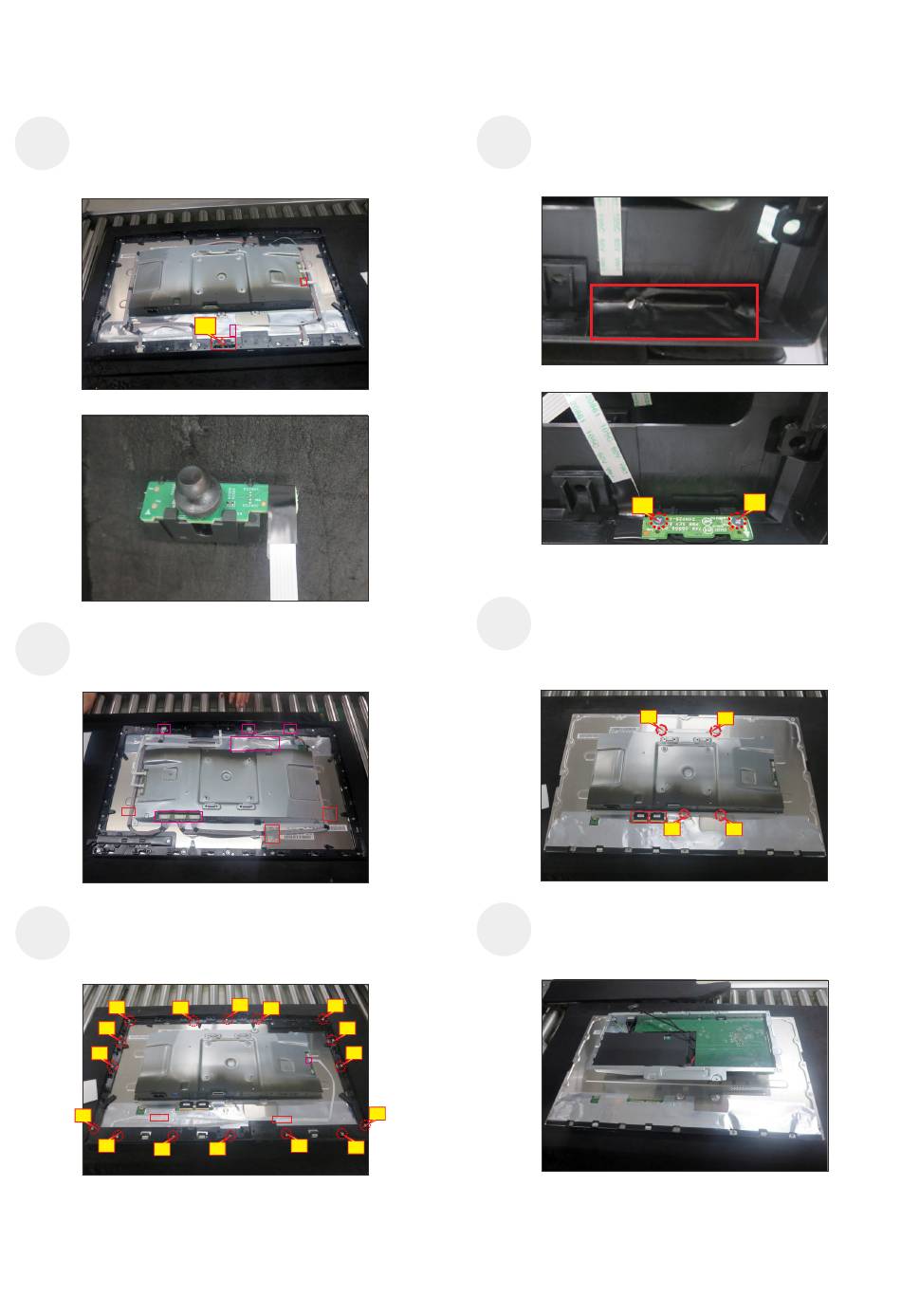

Remove the joystick board.
a. Remove 1 screw (M3x6).
S6
b. Peel the tape.
c. Pull out key cable from the connector.
Remove the lamp cable.
S7 a. Peel transparent tape and aluminum foil.
b. Disconnect lamp cables from panel.
Remove middle frame.
S8
a. Remove 16 screws (M3x5).
b. Peel tape and disconnect the power key cable.
6 13
7
9
16
11
3
5. Disassembly and Assembly Procedures
1
1
5
14
8
10
15
4
12
2
Remove power key board.
a. Peel the mylar tape.
S9
b. Remove 2 screws (M2x2.4).
c. Remove the power keypad from the front cover.
2
Remove chassis screw and Disconnect eDP cables.
a. Remove 4 screws (M3x4) that secure the main
S10
chassis.
b. Open the latch.
c. Disconnect the two eDP cables from panel.
3
Remove main chassis and display panel.
S11 a. Lift up the main chassis and put it on a cushion.
b. Lift up the display panel and put it on a cushion.
1
2
1 4
