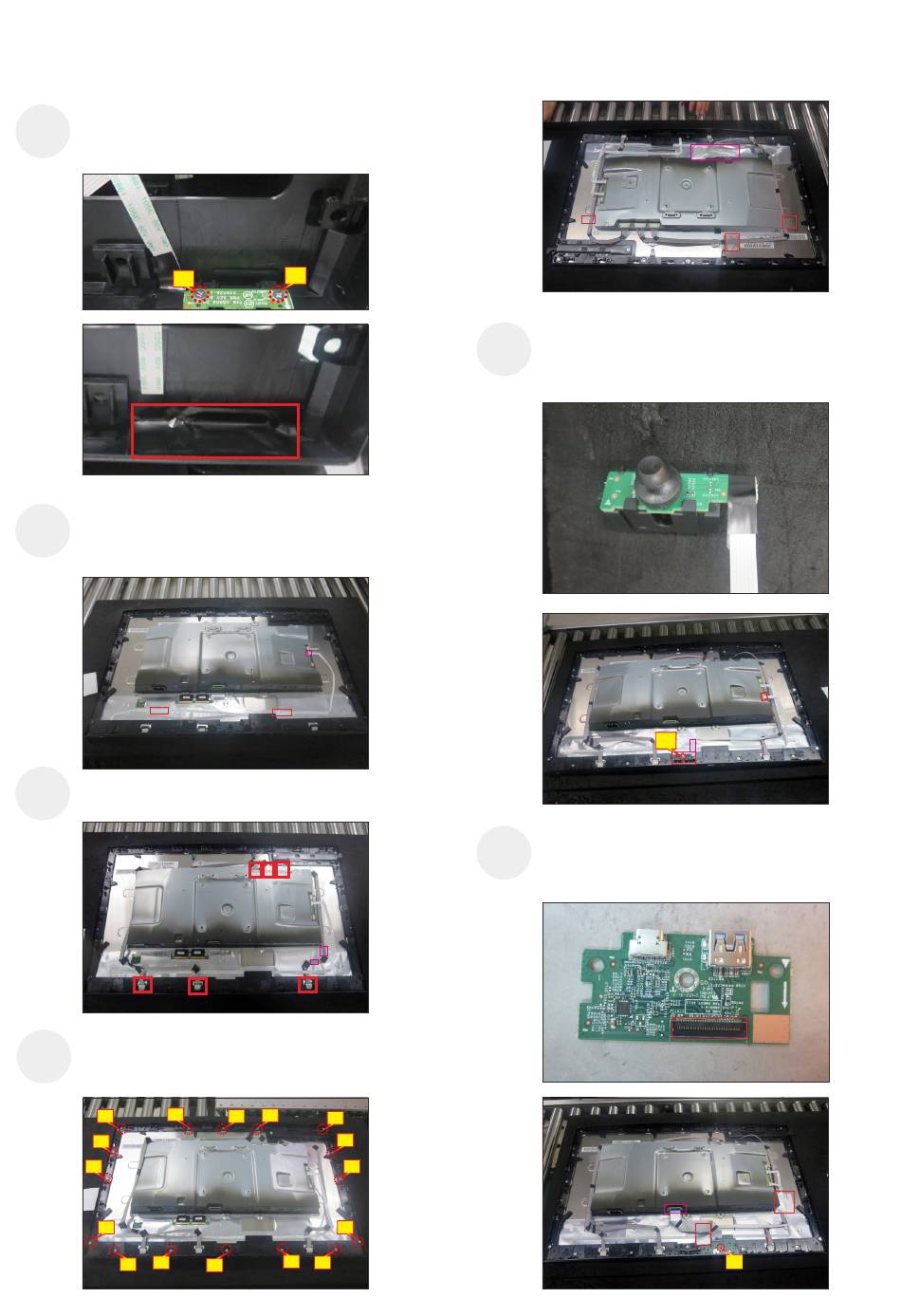

Lock power keypad PCBA to middle frame.
S7
a. Lock 2 screws (M2x2.4).
b. Paste mylar tape on the keypad PCBA.
2
Connect the power keypad cable to the PCBA.
a. Assemble middle frame with display panel.
S8
b. Plug the power keypad cable to the connector.
c. Fix the cable on the back of panel by tape.
S9
Plug the lamp cables to connect PCBA with panel.
Lock the middle frame with display panel.
S10
a. Lock 16 screws (M3x5).
b. Fix the lamp cables on the back of panel by tapes.
13
5
7
9
11
3
15
5. Disassembly and Assembly Procedures
1
1
14
6
8
10
12
4
16
2
Lock joystick board and holder to middle frame.
a. Assemble the joystick board with the holder.
S11
b. Lock 1 screws (M3x6).
c. Connect the key cable to PCBA.
Lock USB board to the middle frame.
a. Lock 1 screws (M3x6).
S12
b. Connect the FFC cable to PCBA.
c. Paste 2 AL tape to fix the cable.
1
1
