Disassembly And Assembly Procedures - Alienware AW2725QF Simplified Service Manual

NOTE:
The removal and installation procedure are applicable only for the EMEA region. Dell deems the warranty void if any removal is
done on the monitors.
List of tools/equipment:
1. Philips-head screwdriver
2. Elecstric screwdriver
Disassembly Procedures:

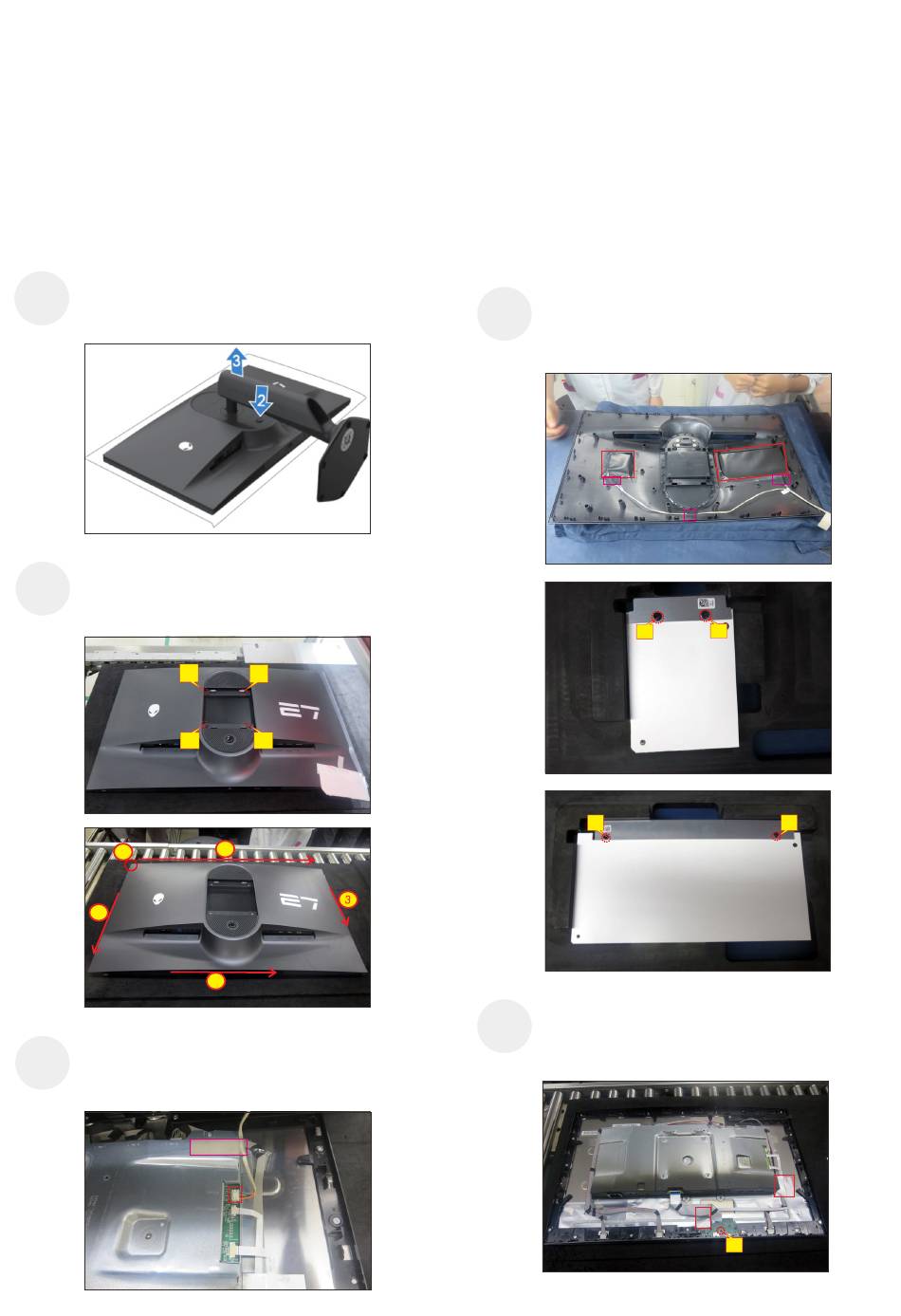

Removing the monitor stand.
a. Place the monitor on a soft cloth or cushion.
S1
S1
b. Press and hold the stand-release button.
c. Lift the stand up and away from the monitor.
Loose the display back cover.
a. Remove the 4 screws (M4x11).
S2
b. Pull up the back cover by hand in the sequence of
"1 -> 2 -> 3 -> 4" to loosen it from the panel.
1
3
Remove the display back cover.
a. Lift up the display back cover and disconnect the
S3
light bar cable.
b. Peel the tape and remove the rear cover.

5. Disassembly and Assembly Procedures

2
3
1
4
2
4
Remove the light bar PCBA from the back cover.
a. Place the back cover on a soft cloth or cushion.
S4
b. Peel all the tape and mylar.
c. Release the two light bar from the hooks.
d. Remove the 4 screws (M2x3.8)
4
2
Remove the USB PCBA.
a. Peel the aluminum foil.
S5
b. Remove 1 screw1 (M3x6).
c. Pull out FFC cable from the connectors.
3
1
1
