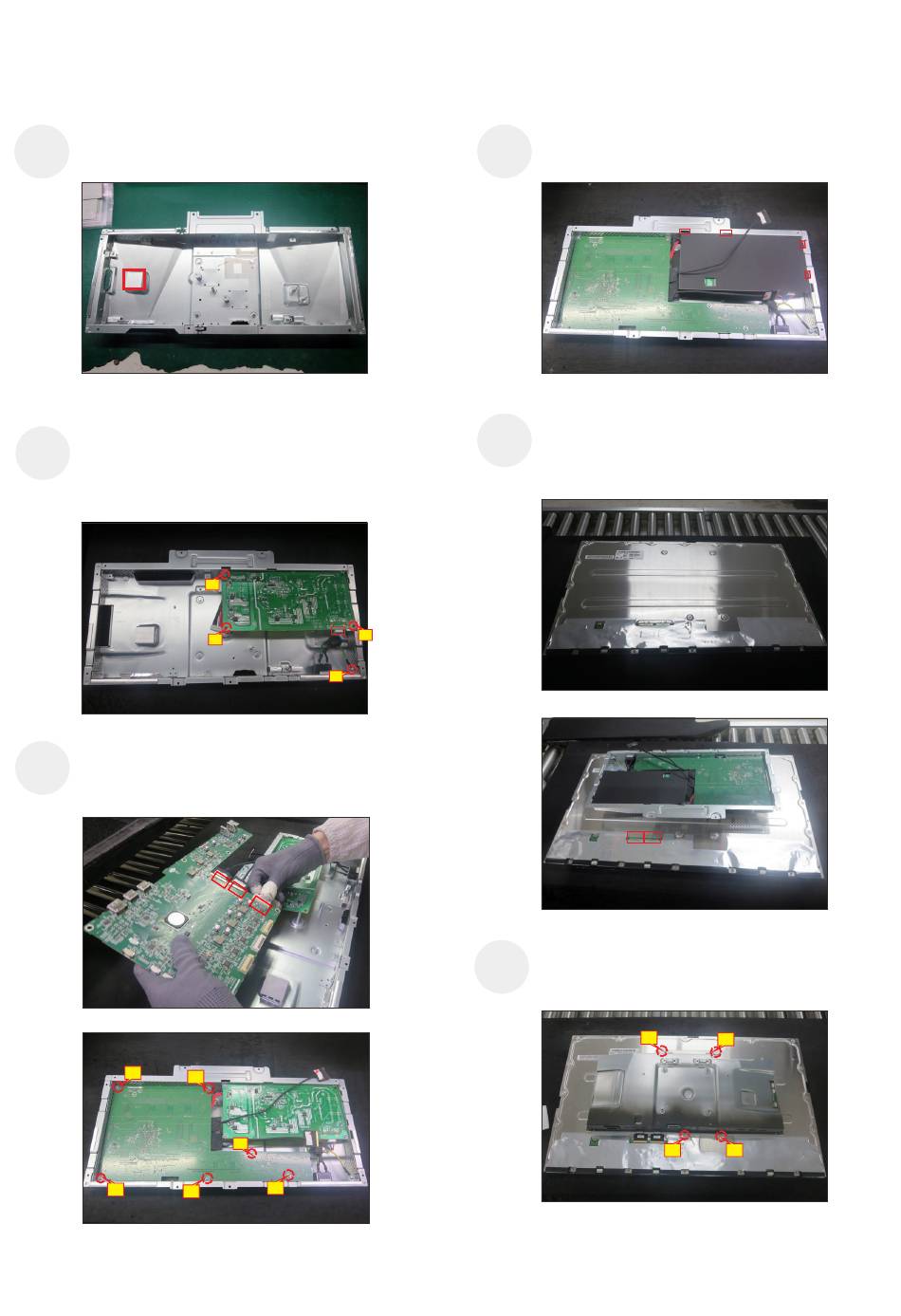

5.2 Assembly Procedures:
S1 S1
Paste 1 silicon sheet on the main chassis.
Assemble AC outlet power board to the main chassis.
a. Assemble AC outlet to the main chassis.
S2 b. Lock 1 ground screw (M4x8).
c. Lock 3 screws (M3x6).
d. Connect the cable of AC outlet to the power
Assemble interface board to the chassis.
S3
a. Connect all cables to the interface board.
b. Lock 6 screws (M3x6).
4
3
5. Disassembly and Assembly Procedures
2
4
1
2
1
6
5
S4
S5
3
S6
Insert mylar sheet to the chassis.
Connect eDP cable to display panel.
a. Place display panel faced down on a cushion.
b. Put the main chassis on the back of the panel.
c. Plug the eDP cable to display panel.
Assemble main chassis to display panel.
a. Turn over and adjust the main chassis.
b. Lock 4 screws (M3x5).
