Summary of Contents for ZEROXCLUB SY01

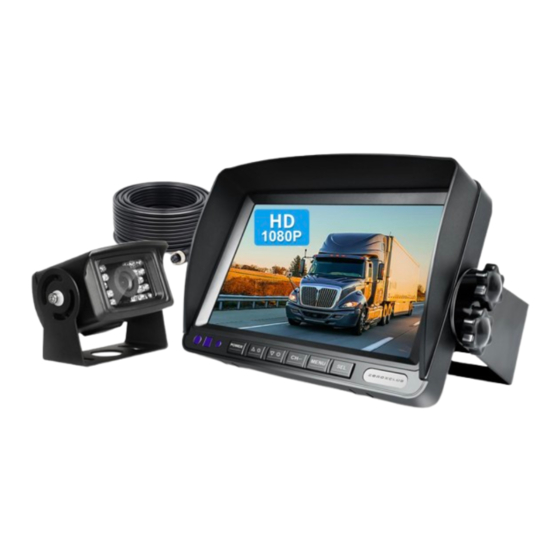

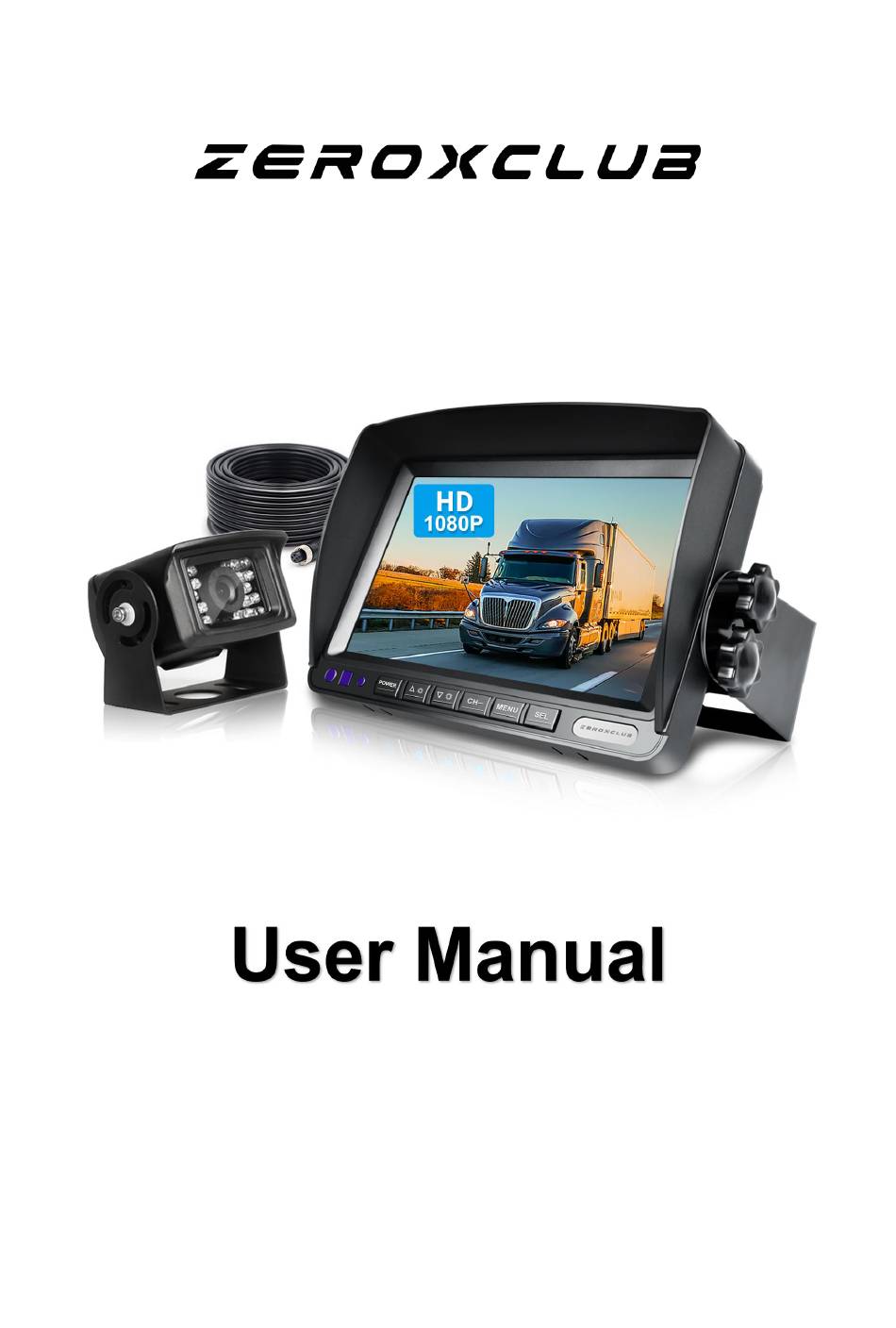

- Page 1 ZEROXCLUB Instructions Manual Wired Backup Camera System Model # SY01 Any questions or suggestions please send an email to customer service via sales@uszeroxclub.com...
-
Page 2: Before Using
ZEROXCLUB Instructions Manual Before Using Make sure you have the following listed items included in the packaging. If any item is damaged or missing, contact us at sales@uszeroxclub.com. It would be better if you wrote the order number from Amazon include photos of the damaged or missing part in your email, so that we can handle the problem much more quickly. - Page 3 ZEROXCLUB Instructions Manual Test the System To ensure that all components are working properly, please test the system before installation. 1. When the monitor is powered, the indicator light and buttons will light to indicate that the monitor is on and ready to work.
-
Page 4: Table Of Contents
ZEROXCLUB Instructions Manual Table of contents Before Using ................II 1. Safety Information .............2 2. Installation ................. 3 3. Operation ................8 4. Display Settings .............. 10 5. FAQ .................. 10 6. Troubleshooting ..............13 7. Warranty ................16... -
Page 5: Safety Information
● Do not disassemble or attempt to repair any part of the camera system. ● There are no user-serviceable parts inside the ZEROXCLUB camera system. Contact ZEROXCLUB customer service at sales@uszeroxclub.com if the part is ever compromised ●... -
Page 6: Installation
ZEROXCLUB Instructions Manual Installation 2.1 Installation Safety Precautions • Ensure the power supply circuit has circuit protection • Connect the rear camera to a 12-32V DC circuit only • Use insulated tools when working with power supply • Use correct safety equipment when working at elevated levels •... - Page 7 ZEROXCLUB Instructions Manual The wiring method when product use, as follows: (1) Connect the wire to ACC / Battery / Reversing light / Driving light wire is connected to the car ignition wire ACC switch (which is the gear switch before starting up the car's motor), when the car key is turned on, the device will start automatically, and if the vehicle key is turned off, it will automatically turn off.
- Page 8 ZEROXCLUB Instructions Manual NOTE: 1) The system will remember your settings and no need to set it again next time you use. But the settings of each camera are not universal. (when you connect two cameras) 2) Before connecting, you need to confirm that the voltage of the battery is between 12-32V.
- Page 9 ZEROXCLUB Instructions Manual 2.4 Install the monitor 1.Put on the sunshade as the Adjust the sunshade ① ② white dotted line Put the bracket on the fixed ④ Put the bracket on the fixed ③ directions as the white dotted...
- Page 10 ZEROXCLUB Instructions Manual X-Shaped Mount Installation: 1. Put the little iron sheet upon screw and fasten two turn to fix a bit 2. Adjust it into a square and slide into the groove 3. Tighten the knob to the right...
-
Page 11: Operation
ZEROXCLUB Instructions Manual 2.5 Install the camera 2.5.1 Adjust Camera Angle Adjust the camera to the correct angle as needed. ●The camera should be adjusted to a horizontal position relative to the ground in order to provide the best view of the objects behind the vehicle. - Page 12 ZEROXCLUB Instructions Manual ①POWER A power button turns the display device on or off. A Increase/Brightness Adjustment button. Select ②△☼ forward in display operation. A Decrease/Brightness Adjustment button. Select ③▽☼ backward in display operation. A Channel Switch button. ④CH- A Menu button. Settings for Brightness / Contrast / ⑤MENU...
-
Page 13: Display Settings
ZEROXCLUB Instructions Manual 3.2 Operate the Mini Remote Control The system comes with a mini remote control, only need to unplug the transparent plastic sheet at the bottom, you can use it. 4.Display Settings Display settings allow you to adjust various aspects of your display to ensure that the display works well with your camera. - Page 14 ZEROXCLUB Instructions Manual seconds to confirm and exit setup mode automatically. COLOR Touch Menu button 3 times: enter adjust mode, touch △ ☼ / ▽ ☼ increase/decrease the value, wait a few seconds to confirm and exit setup mode automatically.
-
Page 15: Faq
ZEROXCLUB Instructions Manual increase/decrease the value, wait a few seconds to confirm and exit setup mode automatically. Touch Menu button 8 times: enter GUIDE LINES mode, touch △☼/▽☼ to turn on/off the guidelines, wait a few seconds to confirm and exit setup mode automatically. -
Page 16: Troubleshooting
ZEROXCLUB Instructions Manual 6. Troubleshooting Monitor No Power -Car Engine Has Not Been Started. Start the Car Engine. -Incorrect Wiring Connection. Check the Wiring. -Monitor Power is 0ff in Default, Press Power Button on Monitor to Turn on. Press the monitor's power button waiting 2-4 seconds then to see if there is any image. - Page 17 ZEROXCLUB Instructions Manual If it still can't work well after try, please contact us in time at sales@uszeroxclub.com with your Amazon order ID and the issue picture, we will help you solve it. Blurry camera -Check the external lenses. Fix this by simply wiping off the dirt.
- Page 18 ZEROXCLUB Instructions Manual voltage range(12-32V) specified. If there is a problem with the voltage,please use a 12V DC power adapter filter rectifier to solve -It is also possible that battery is low in power, you can charged it up.Or check whether the battery is in good condition, you can try another battery.
-
Page 19: Warranty
Any problems please contact us in time at sales@uszeroxclub.com, and we will help fix whatever the issue is. 7.Warranty ZEROXCLUB offers a full 12 months warranty and replacement policy. We also provide lifetime technical support to ensure that you enjoy your modern backup camera for many years to come. To... - Page 20 ZEROXCLUB Instructions Manual Customer service email: sales@uszeroxclub.com...
