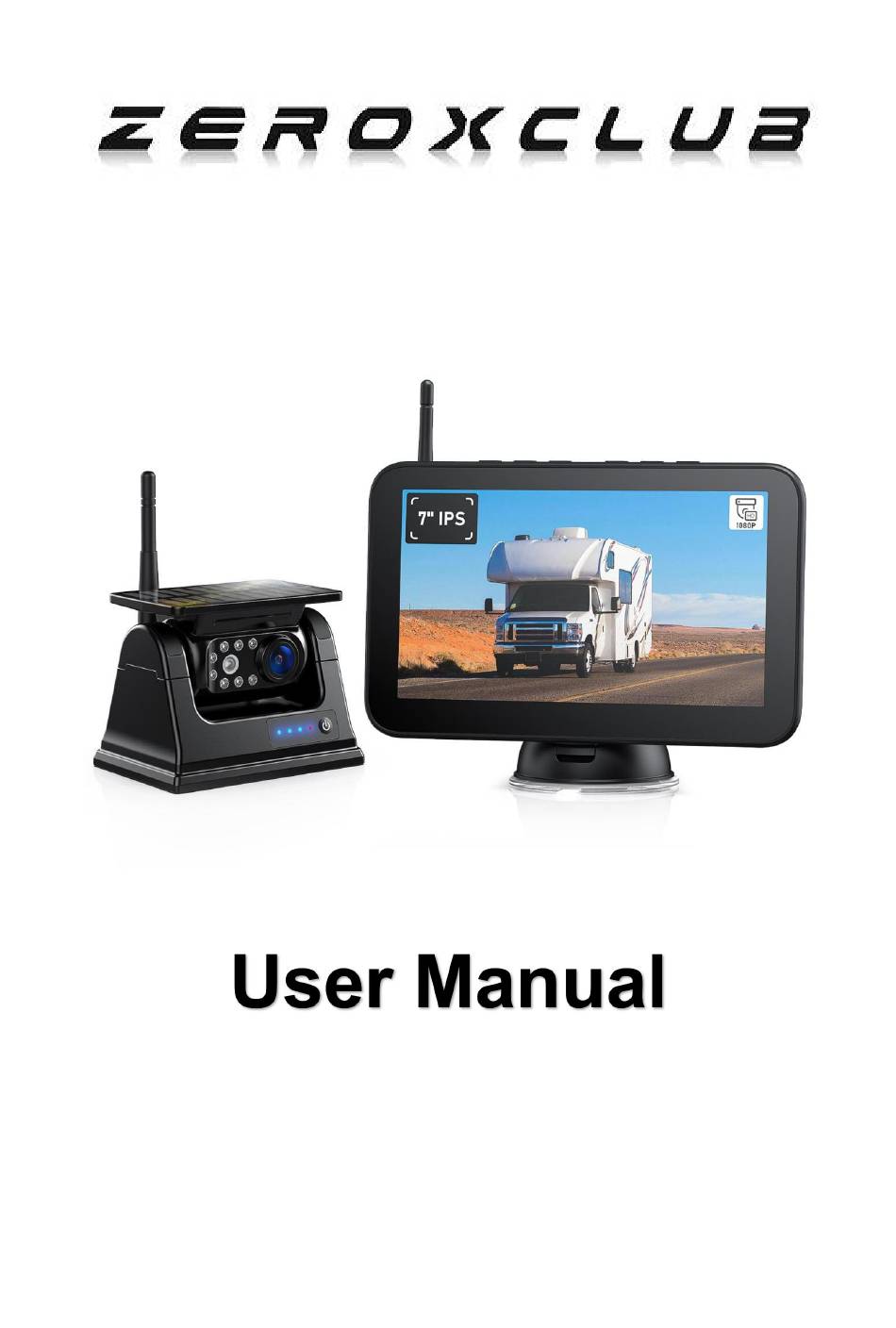

- Page 1 ZEROXCLUB Instructions Manual Solar Wireless Backup Camera System Model: BD701/BM701 Any questions or suggestions please send an email to customer service via sales@uszeroxclub.com...
-
Page 2: Table Of Contents
ZEROXCLUB Instructions Manual TABLE OF CONTENTS WARRANTY ..................2 BEFORE USING ................... 2 CHARGE THE BATTERY ..............3 WHAT IS IN THE BOX ................. 4 ABOUT CAMERA ................. 4 INSTALLATION ..................6 Installation of the Antenna ..............6 Installation of the Camera ..............6 Installation of the Monitor .............. -
Page 3: Warranty
ZEROXCLUB Instructions Manual WARRANTY ZEROXCLUB offers a full 18 months warranty and 3 months replacement policy. We also provide lifetime technical support to ensure that you enjoy your modern backup camera for many years to come. To obtain warranty support, or if you are not satisfied in... -
Page 4: Charge The Battery
ZEROXCLUB Instructions Manual CHARGE THE BATTERY Fully Charge the battery before use via the supplied USB cable. 1. Connect the supplied USB-C cable to the Type-C port of the camera. 2. Plug the USB-C cable into the USB wall charger and Plug your charger into an outlet. -
Page 5: What Is In The Box
ZEROXCLUB Instructions Manual WHAT IS IN THE BOX 7-inch Monitor (Build-in 32GB memory card) Backup Camera 12V Car Charge Suction Cup Mount USB Wall Charger Power Cable for Monitor Antenna*2 USB-C Cable ABOUT CAMERA... - Page 6 ZEROXCLUB Instructions Manual 1. Two Charging Methods The camera supports USB-C charging (5V DC charging) and Solar charging. Due to the inefficiency of solar charging caused by the limitation of solar panel area, it is best to use Type-C charging as the primary charging method.
-
Page 7: Installation
ZEROXCLUB Instructions Manual b. Fully Charge the battery before use via the supplied USB cable. The solar panel can be used as a tool to supply power to the battery, extend the working time of the backup camera and reduce the charging times. But you need to charge the backup camera with Type-C Charging regularly according to the frequency of use, especially in the winter. -
Page 8: Installation Of The Monitor
ZEROXCLUB Instructions Manual NOTICE a. Aluminum and fiberglass magnets vehicle body is weakly attracted to a magnetic base. We recommend that you can purchase a metal plate and bolts from the local hardware store. After cutting it down to size and used the bolts that you through-bolted to the vehicle. -
Page 9: Operating Instruction
ZEROXCLUB Instructions Manual (1)Connect Red wire to ACC power(which is the gear switch before starting up the car's motor).Vehicle turns on, monitor turns on automatically,Vehicle turns off, monitor will turn off. (2)Connect Black wire to Negative Power/Ground/Sheet Metal. NOTICE Do not allow water to enter the LCD Display. -
Page 10: Main Screen Interface
ZEROXCLUB Instructions Manual (5) The button cannot be operated to access the menu panel if the system is recording. Please press OK first to stop recording. (6) If everything is backwards, press and hold the button a few seconds can rotate the screen. -
Page 11: Pairing Operation
ZEROXCLUB Instructions Manual Function Increase button or Function Decrease button to select the menu item. Sub-menu items may be highlighted in red. NOTICE Pressing the button won't bring up the main menu when in split-screen mode or recording mode. To return from any selection, press the button or wait for a timeout. -
Page 12: Picture Operation
ZEROXCLUB Instructions Manual Single Camera Pairing Steps 1) Turn off the camera first and make sure they are charged with at least 1 bar Press button to select a full channel that needs to be paired. (The channel must be a blue screen with no signal, and only one channel is currently displayed, which is full screen.) -
Page 13: System Operation
ZEROXCLUB Instructions Manual 4) After all settings are done, press to return to previous panel, press it again to exit the menu. Please note that the "Volume" function is disabled. The system is NOTICE unable to record and playback sound. -
Page 14: Play Operation
ZEROXCLUB Instructions Manual AUTO-DIM When this option is "ON", the monitor will automatically increase the brightness when there is low light. Or you can set this option to "OFF". Auto Dimming Function. Ignore this function DELAY TIME P-LINE Turn ON/OFF parking line. Or you can press to turn it ON/OFF. -
Page 15: Troubleshooting
ZEROXCLUB Instructions Manual 3) Press to select REWRITE / FORMAT, press confirm. Press to turn on/off. After all settings are done, press to return to previous panel, press it again to exit the menu. REWRITE It will automatically overwrite the previous videos when the SD card is full. - Page 16 ZEROXCLUB Instructions Manual bit, keeping the tip of the antenna as far away from metal objects as possible. The antenna cling to the sheet metal will weaken the transmission signal. Make sure the antenna of the camera and the monitor is firmly installed.
- Page 17 ZEROXCLUB Instructions Manual the stable connection. 5) Improper charging temperature. For the battery-powered camera, it cannot be charged if the temperature is out of the charging temperature range 0℃(32℉) - 45℃ (113℉). You may take the camera and battery back to the room and wait for it back to the room temperature to charge for a test.
-
Page 18: Faqs
ZEROXCLUB Instructions Manual email us at sales@uszeroxclub.com. We're always there for you! FAQS Question Answer If the rough surface of the dash did not work, you can plan ahead and make sure the surface is smooth, like glass or plastic. - Page 19 ZEROXCLUB Instructions Manual Plug the other end into the camera's type-c port. Plug the charge into the wall outlet. 2.Charge the camera with a batter pack: Charge your power bank in advance and remember to take it with you when you won't have access to wall outlet.
-
Page 20: Safety Information
We will reply you within 24 hours. SAFETY INFORMATION ● There are no user-serviceable parts inside the ZEROXCLUB camera system. Contact ZEROXCLUB customer service at sales@uszeroxclub.com if the part is ever compromised. ● Do not disassemble or attempt to repair any part of the camera system. -
Page 21: Specifications
ZEROXCLUB Instructions Manual SPECIFICATIONS Monitor 7’’ LCD Display Connector Type DC female connector Item Weight 0.52 pounds Power Supply DC 12V~24V 230mA Monitor Dimensions 7.3(L) x 4.53(H) x 0.78(D) in Camera Image Sensor CMOS 1920 x 1080 Effective Pixels Waterproof Rating...
