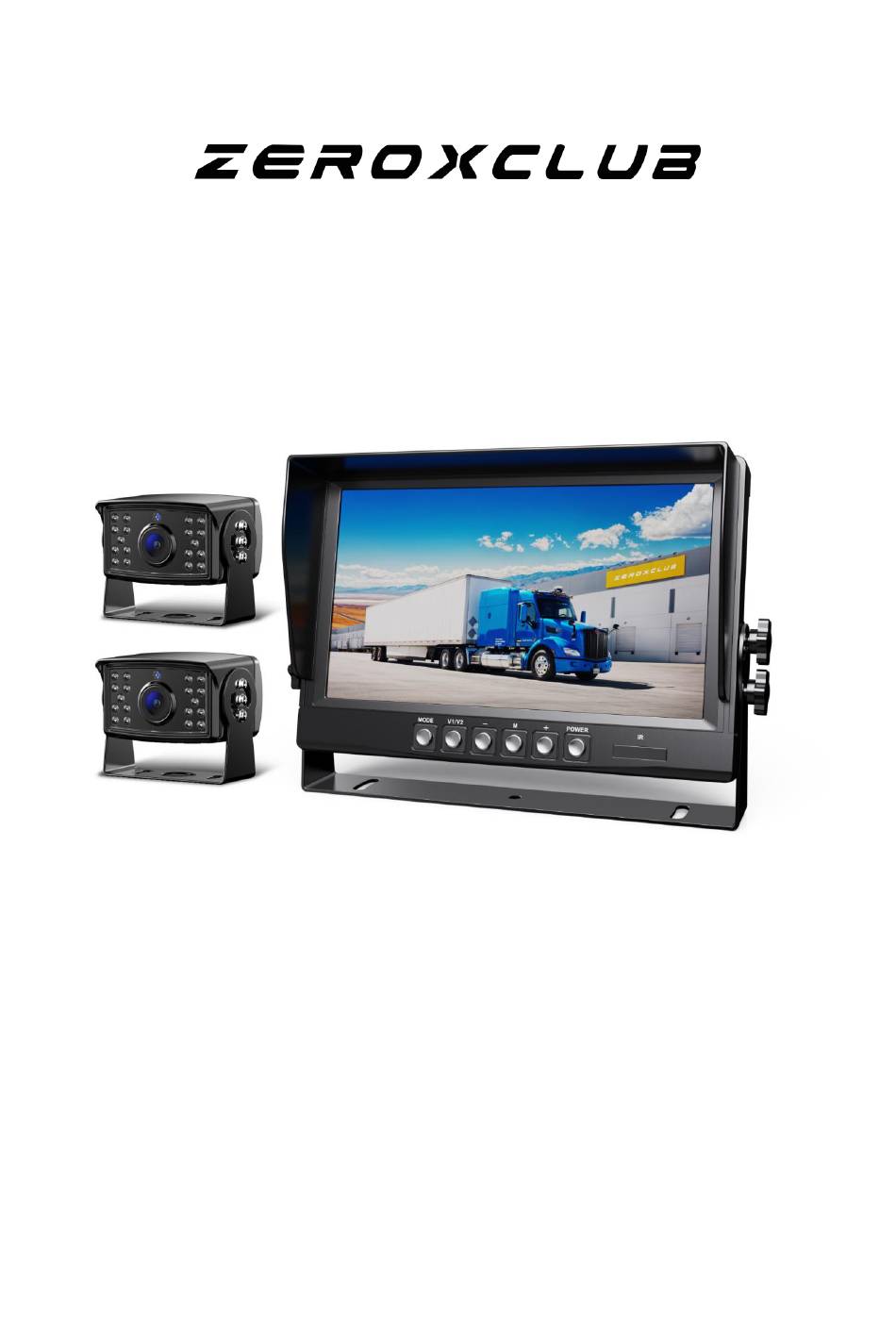

- Page 1 ZEROXCLUB Instructions Manual Installations manual & Owner’s Guide ZEROXCLUB Wired Camera System Model # BY902A Any questions or suggestions please send an email to customer service via sales@uszeroxclub.com...
- Page 2 ZEROXCLUB Instructions Manual Before Using Make sure you have the following listed items included in the packaging. If any item is damaged or missing, contact us at sales@uszeroxclub.com. It would be better if you wrote the order number from Amazon include photos of the damaged or missing part in your email, so that we can handle the problem much more quickly.
-
Page 3: Test The System
ZEROXCLUB Instructions Manual Test the System To ensure that all components are working properly, please test the system before installation. 1. When the monitor is powered, the indicator light and buttons will light to indicate that the monitor is on and ready to work. - Page 4 ZEROXCLUB Instructions Manual Thanks for Purchasing We are willing to provide you with an accessory to help you install or use our system easier if you need it. Please choose one from them, and then email us at sales@uszeroxclub.com with its name and your...
-
Page 5: Table Of Contents
ZEROXCLUB Instructions Manual Table of contents Before Using ..........II Test the System ...........III 1. Safety Information ........1 2. Installation ..........2 2.2 Installation Safety Precautions ....2 2.2 Wiring ............ 2 2.3 Install the monitor ......... 5 2.4 Install the camera ........6 3.Operation .......... -
Page 6: Safety Information
● Do not disassemble or attempt to repair any part of the camera system. ● There are no user-serviceable parts inside the ZEROXCLUB camera system. Contact ZEROXCLUB customer service at sales@uszeroxclub.com if the part is ever compromised ●... -
Page 7: Installation
ZEROXCLUB Instructions Manual Installation 2.1 Installation Safety Precautions • Ensure the power supply circuit has circuit protection • Connect the rear camera to a 12-14V DC circuit only • Use insulated tools when working with power supply • Use correct safety equipment when working at elevated levels •... - Page 8 ZEROXCLUB Instructions Manual Yellow (1) Connect the wire to positive power( 12-24V) NOTE: Yellow wire needs to be powered for a long time. If the Yellow wire has no power, the system will lose all the settings you made on the screen. We recommend that you connect the...
-
Page 9: Install The Monitor
ZEROXCLUB Instructions Manual NOTE: Green Connect the wire, the parking guide lines will appear. If you don't need it, ignore this the Green wire. * Before installing it by professional person, please test it if works well, like image display, just in case and save your precious time. - Page 10 ZEROXCLUB Instructions Manual 2.4 Camera Installation The camera comes equipped with an adjustable flat mount base. You can adjust the lock-screws on the sides of the camera to adjust the lens of camera with a small Phillips screwdriver. A short 4 -pin aviation video cable is attached to the body of the camera.
-
Page 11: Install The Camera
ZEROXCLUB Instructions Manual 2.5 Camera-Cables Installation ● Define the routing of each of the camera cables. Connect the camera cable to the extension cable provided in the system (you can coil up the unused part if you need shorter feet), and run the extension through the car to the dash area. - Page 12 ZEROXCLUB Instructions Manual ●You should also make sure the monitor only starts after ignition, so that you can preserve your battery. You can find the corresponding connection for the fuse box according to the manual for your car and model.
-
Page 13: Operation
ZEROXCLUB Instructions Manual 3.Operation 3.1 Operate the Monitor A Confirm/Recording button. Press to confirm the ①MODE option or to star/stop recording or to start/pause playback file. A Channel Switch button. ②V₁ /V₂ A Down/Decrease button. Select backward in ③－ display operation. -
Page 14: Display Settings
ZEROXCLUB Instructions Manual 3.2 Operate the Mini Remote Control The system comes with a mini remote control, only need to unplug the transparent plastic sheet at the bottom, you can use it. 4.Display Settings Display settings allow you to adjust various aspects of your display to ensure that the display works well with your camera. - Page 15 ZEROXCLUB Instructions Manual Move Mode Recording Settings Press M → Go into the Move Mode → MODE → ＋ (Skip to next option)//－(Back to the previous option)→MODE (confirm)→＋/－ (Increase/ decrease)→M(Back previous panel) to the (1) Movie Quality: Super Fine/Fine (2) Movie Clip Time: Off/ 1min/ 2min/ 3min/ 5min/ 10min Time per recorded video file.
- Page 16 ZEROXCLUB Instructions Manual (6) To Movie Playback: You can go to the playback panel and see the recorded video files. You can switch to the AHD1 or AHD2 video playback panel by pressing the V1/V2 button. Under the AHD1/AHD2 video playback panel, press +/- to select the video to be played and press MODE to confirm.(Press MODE...
- Page 17 ZEROXCLUB Instructions Manual (1) Delete: Delete one/ Delete All (2) Protect: Protect one/ Unprotect one/Protect one/ Unprotect All Prevent accidental deletion of video files, if you choose to protect the file, you need to unprotect it to delete. (3) To Preview Mode: Exit the current panel...
- Page 18 ZEROXCLUB Instructions Manual Press M →Go into the Clock Settings→MODE→＋/－ (Increase time/ decrease time)→MODE (confirm and go to the next date/time settings) NOTE: Press the M button once to return to the menu, press twice to return to the camera view.
- Page 19 ZEROXCLUB Instructions Manual Note: Make sure you have saved the important videos to the computer when you use this. General Settings More advanced display settings are available in the General Settings" panel. Press M → Go into the General Settings → MODE → ＋ (Skip to next option)//－(Back to the previous option)→MODE (confirm)
- Page 20 ZEROXCLUB Instructions Manual this option and press the MODE button several times, it will return to the original normal screen. (2) Car ACC Line: On/Off NOTE: Only the AHD2 screen(CH2 camera) will be triggered for full screen with Parking Lines through Green wire.
-
Page 21: Faq
ZEROXCLUB Instructions Manual (11) Saturation: Adjust the Saturation to the desired level. (12) Color Temp: Off, Warm, Cool. The default is Off You can select the screen color temperature according to your habit (13) VCOM DC:It can change the brightness of the screen. It is “40”... - Page 22 ZEROXCLUB Instructions Manual (2) How to rotating the image ? A.Menu-General Setting "Rotate" or "AHD1/AHD2 Mirror". (3) How to record video? A.Press the MODE button, then the red point will come that means the monitor recording. (4) Why monitor can't use the menu and switch channel? A.
-
Page 23: Troubleshooting
ZEROXCLUB Instructions Manual 6.Troubleshooting 1. Check 12v+ to monitor and check the The display will not display to ensure that it is powering. turn on (the power indicator LED lights is on/off) 2. Check if the power button on the display will turn on the light. - Page 24 ZEROXCLUB Instructions Manual sensor of the camera with your hand and see if the infrared light will light up. 8. If it still can't work well after try, please contact time sales@uszeroxclub.com with picture of the issue and your Amazon Order ID.
- Page 25 ZEROXCLUB Instructions Manual port labeled CH1/CH2. 4. Ensure that the car charger or the red positive trigger on power pigtails cable is put to power 12v+. 5. If it still can't work well after try, please contact time sales@uszeroxclub.com with your Amazon order ID and the issue picture, we will help you solve it.
- Page 26 ZEROXCLUB Instructions Manual picture of the issue and your Amazon Order ID The monitor shows 1. The monitor enters parking mode, parking lines and the please disconnect the Green wire for buttons can’t work try. (Under parking mode, other buttons will be locked and can't be used for safety.)
-
Page 27: Warranty
ZEROXCLUB Instructions Manual 7.Warranty ZEROXCLUB offers a full 18 months warranty and replacement policy. We also provide lifetime technical support to ensure that you enjoy your modern backup camera for many years to come. To obtain warranty support, or if you are not satisfied in any way, or have any issues with your purchase, please contact us first for help, we will try our best to make you satisfied.
